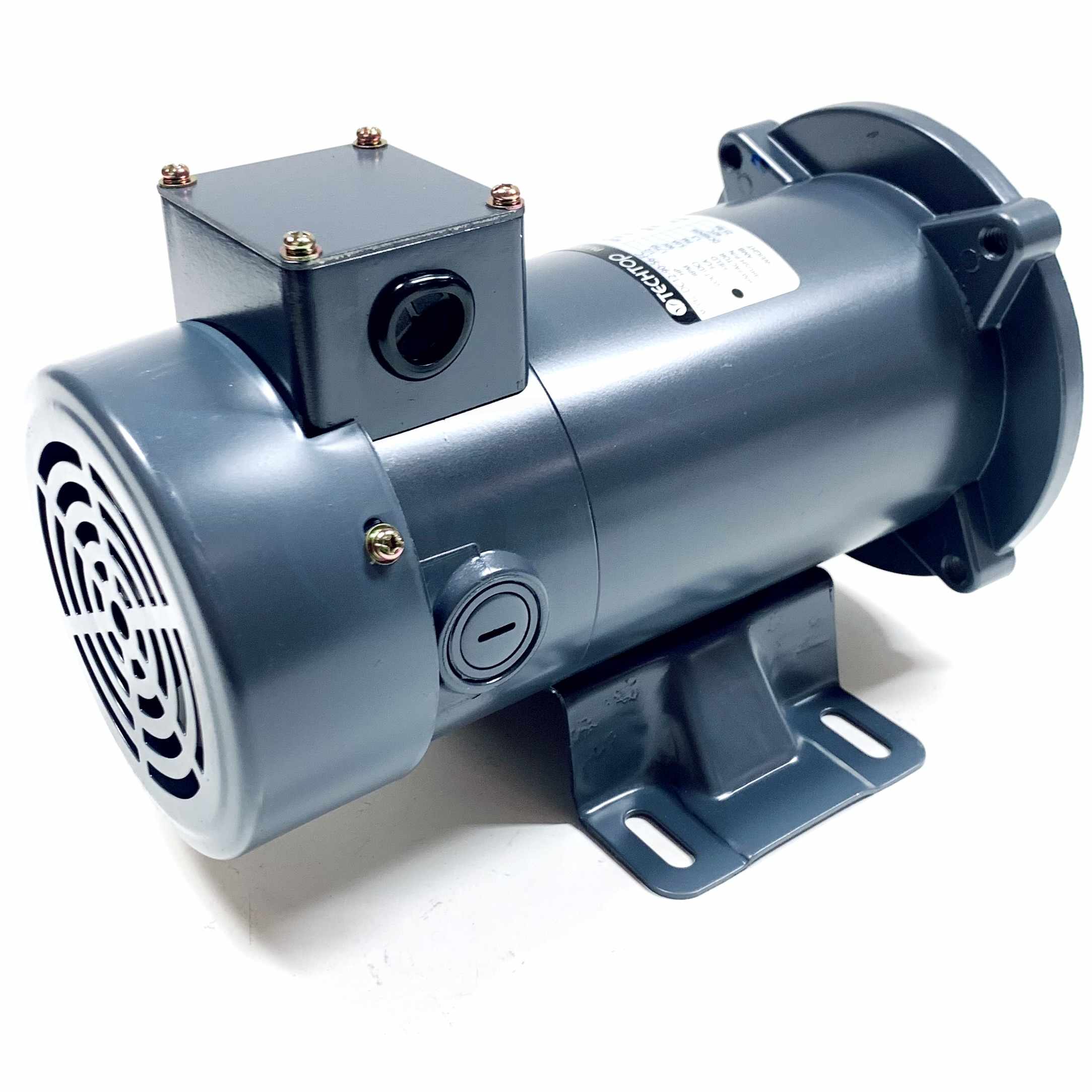

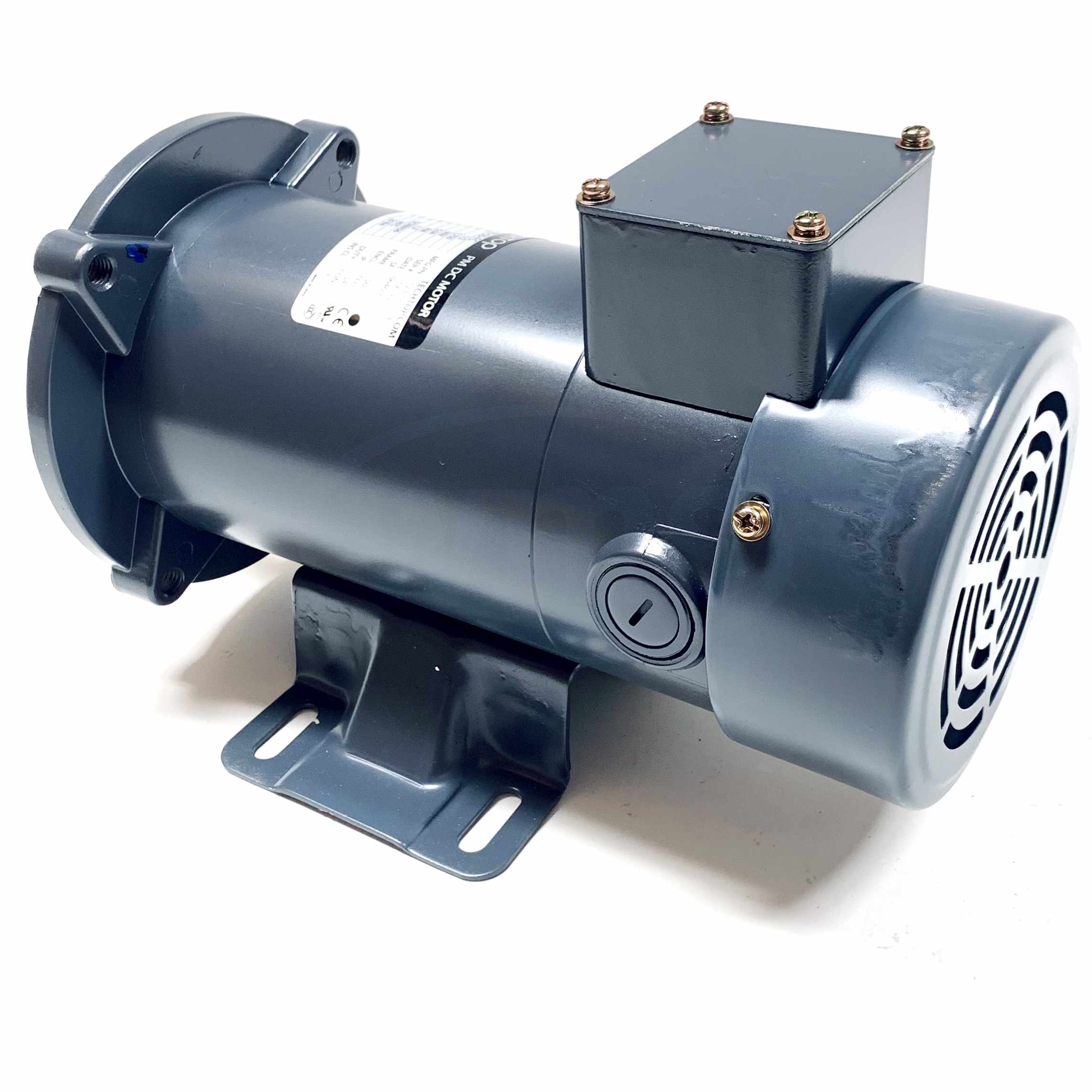

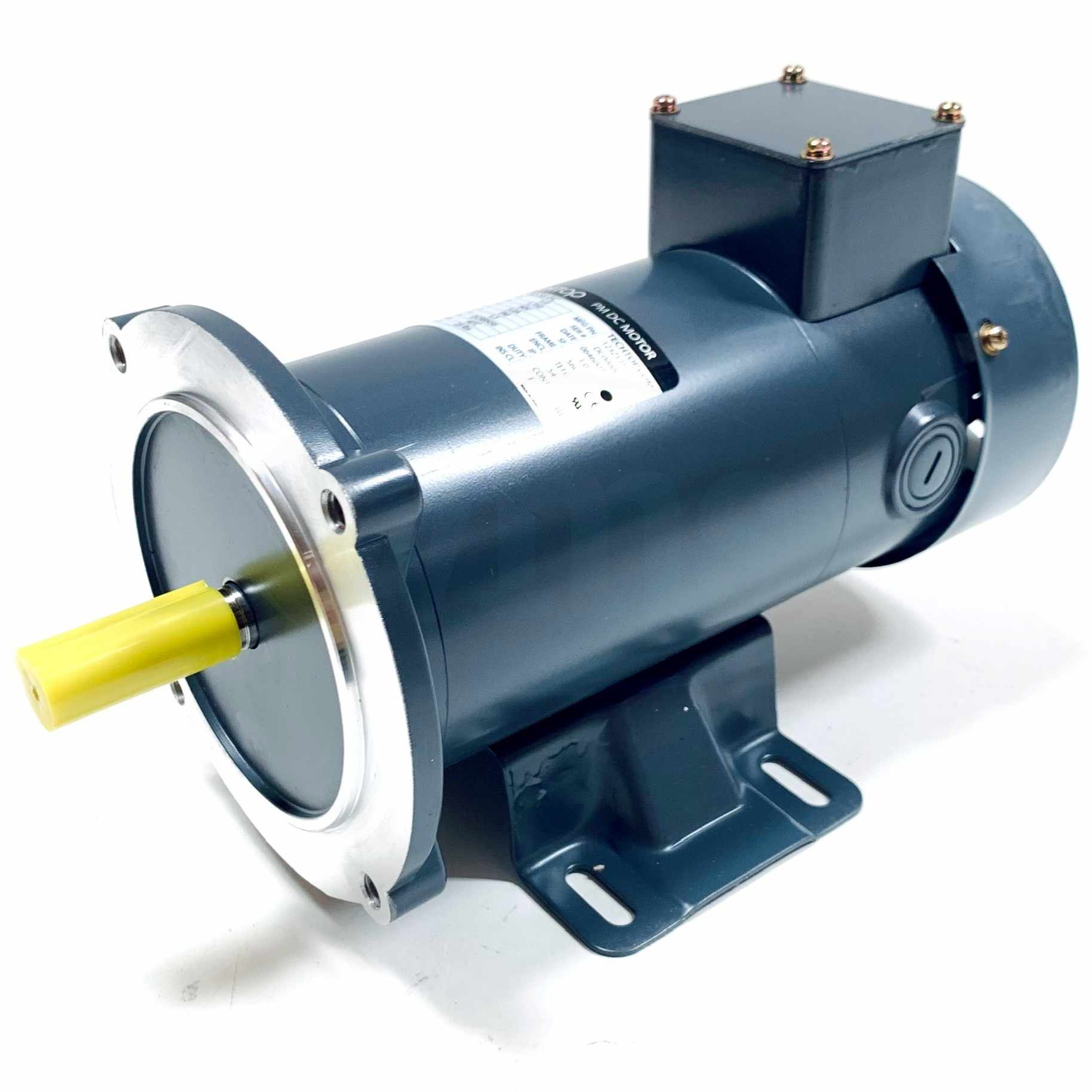

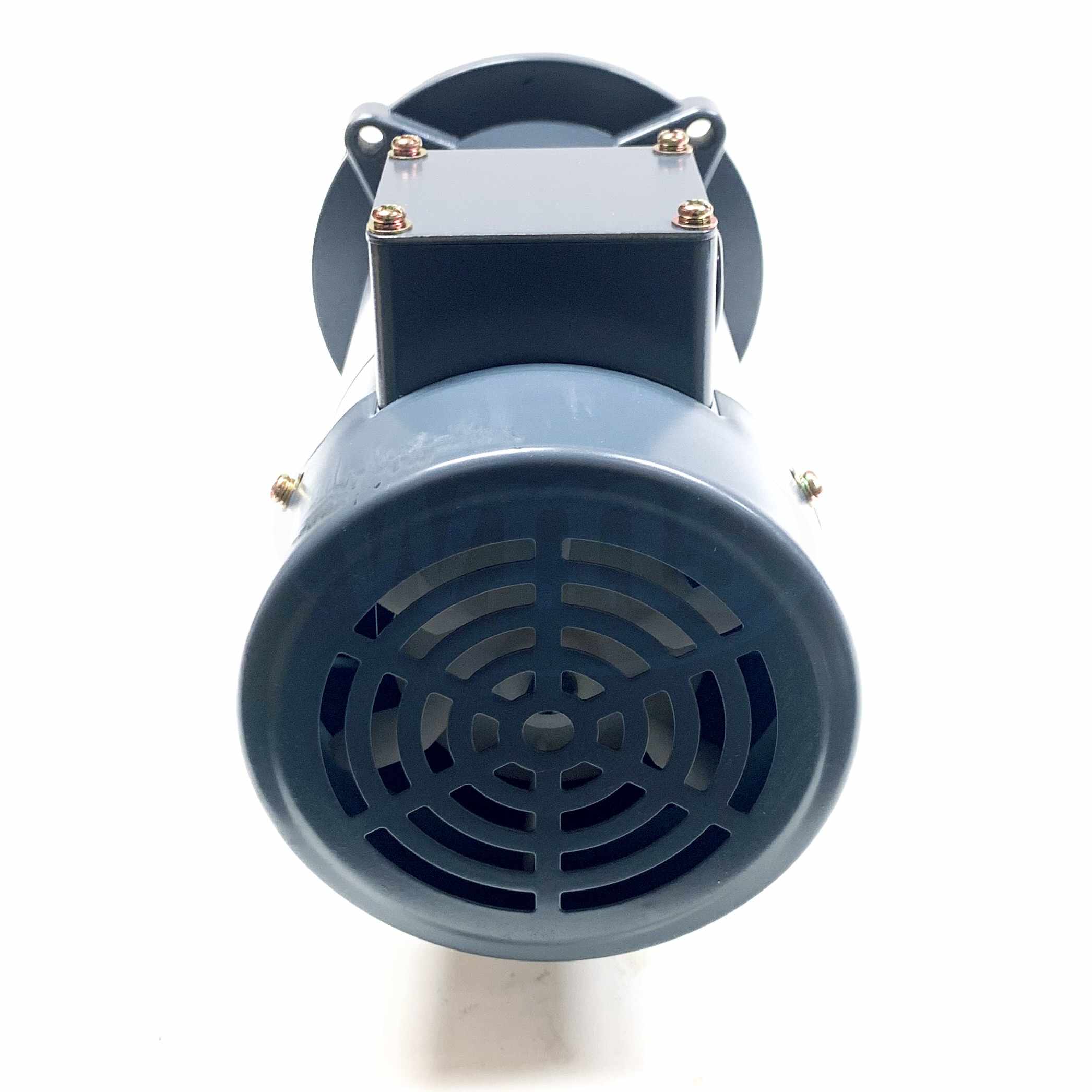

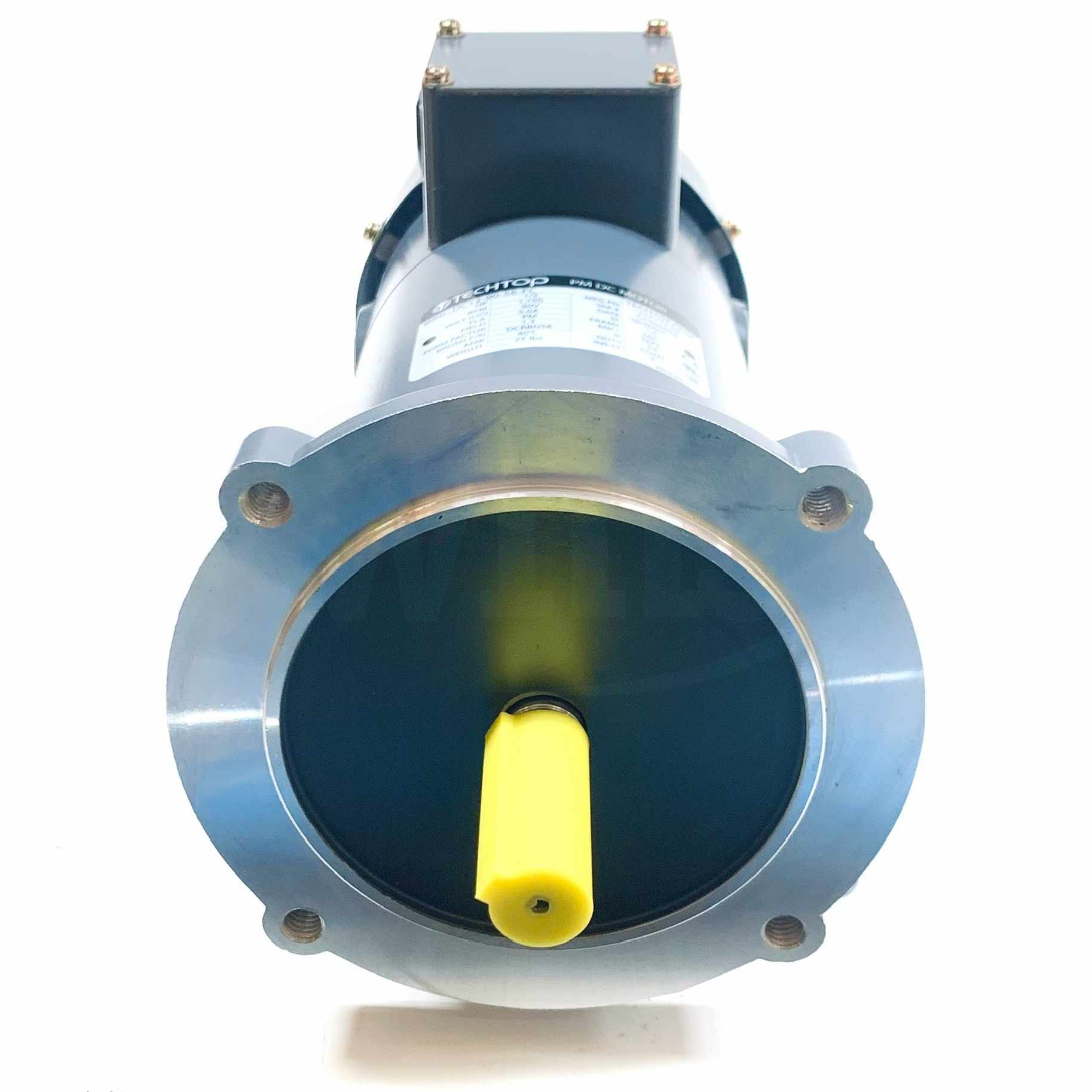

Techtop Permanent Magnet DC Motors
Designed for use on SCR and PWM type direct current adjustable speed drives and on across-the-line DC controls. Ideal applications include conveyors, turntables, packaging or anywhere adjustable speed and constant torque is required.
Basic Specifications
- 1/2 HP
- DC12-12-56-FC Model Number
- 1800 Sync. Speed
- 56C Frame
- 12 VDC
- TEFC Enclosure
- 39.0 Full Load Amps (A)
- 25 lbs
Standard Features
- SCR Rated
- 20:1 Constant Torque Speed Range
- 1.15 Service Factor
- Rolled Steel Frame Construction
- Bolt-on Removable Base
- Double Shielded Ball Bearings
- 1045 Steel Shaft
- Corrosion Resistant Hardware
- Continuous (S1) Duty
- Ambient Temperatures up to 40°C
- Installation up to 3300 feet (1000 MASL)
- IP54 Rated Ingress Protection
- Class F Insulation
- Class B Temperature Rise
- 12 Month Warranty
