/5.6" Diameter (48 Frame)/D908 Fasco 1/3HP Condenser Fan Electric Motor, 1075RPM
Click Image to Expand

Product ID: D908

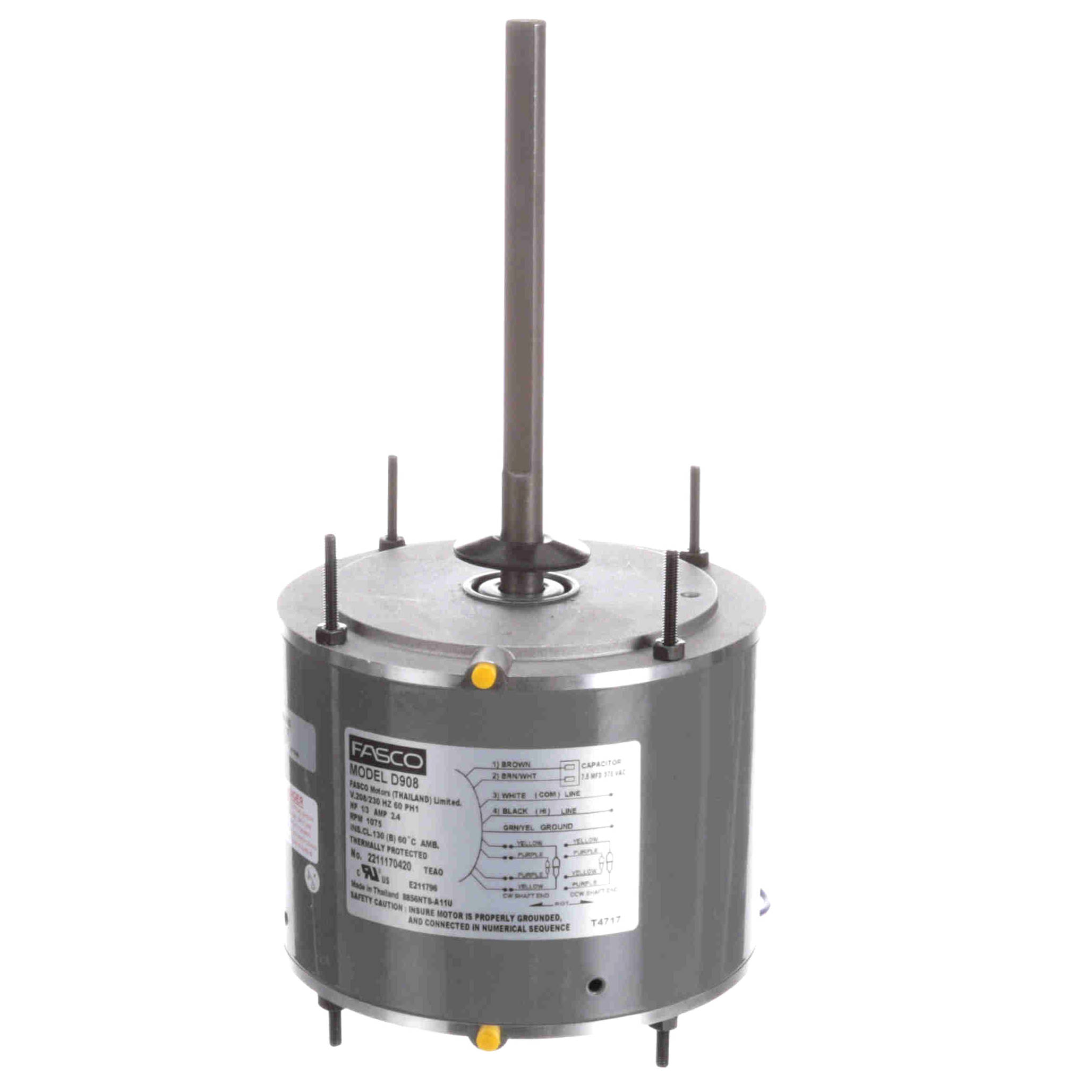

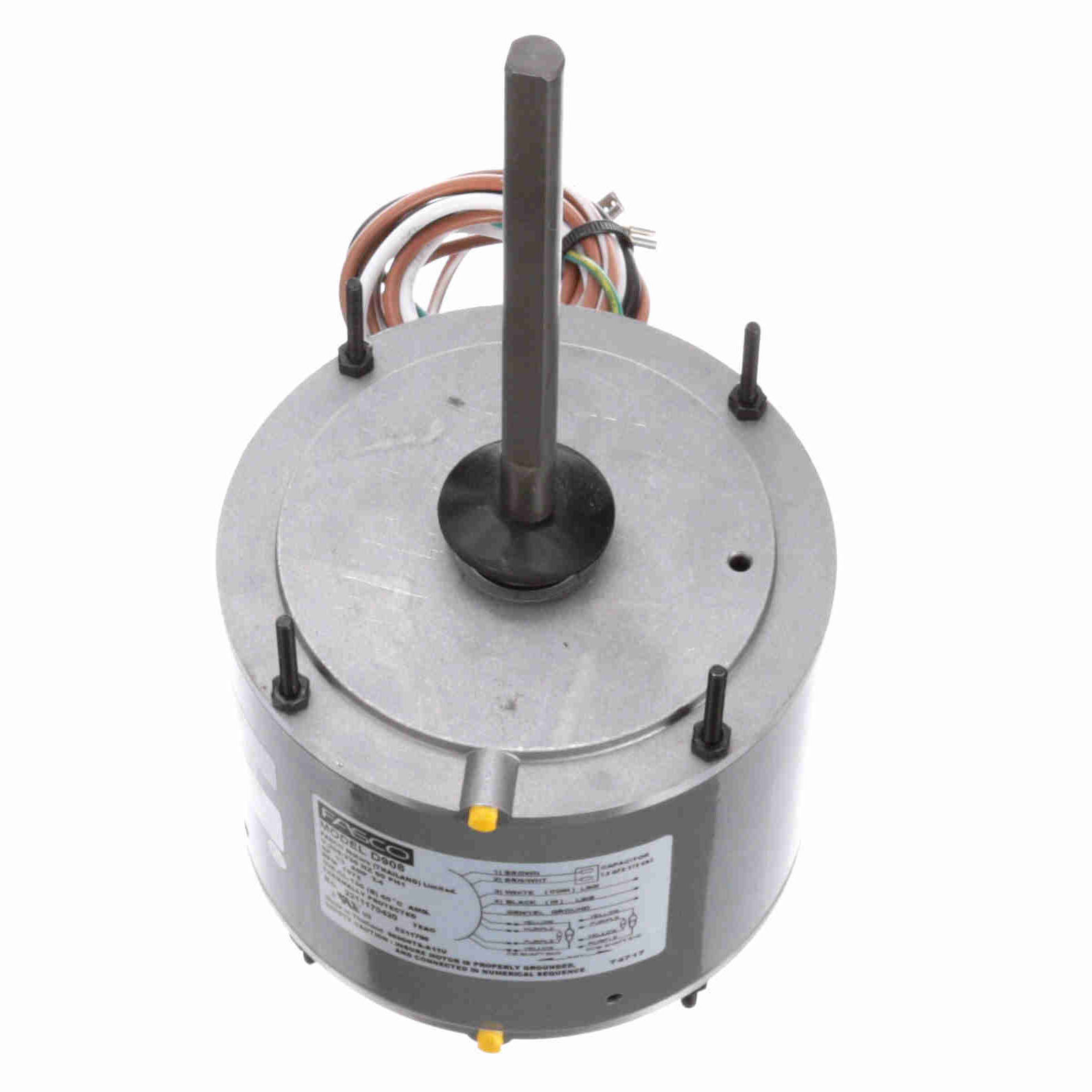

D908 Fasco 1/3HP Condenser Fan Electric Motor, 1075RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D908

Selected accessories will also be added to cart
$134.97 / Each
Quantity:
TEAO, 48 Frame, 208-230VAC 60Hz Single Phase, Extended Studs, Sleeve Bearings, 1/2" x 6.5" Shaft, Reversible

Features

  • Condenser Fan Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 60°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 27" Leads
  • Extended Studs Shaft End and Lead End, Mounting Holes in Shell, Belly Band

General Specifications

UPC: 818508020532 Weight: 33 LB
Packaged Length: 5.63 IN Packaged Width: 5.63 IN
Packaged Height: 15 IN

Nameplate Specifications

Output HP: 1/3 Hp Output KW: 0.25 kW
Voltage: 208-230 V Current: 2.4 A
Speed: 1075 rpm Service Factor: 1
Phase: 1 Duty: Continuous
Insulation Class: B Frame: 48
Enclosure: Totally Enclosed Air Over Thermal Protection: Automatic
Ambient Temperature: 40 °C UL: Recognized
CSA: Y CE: N

Technical Specifications

Electrical Type: AC Starting Method: PSC
Poles: 4 Rotation: Reversible
Mounting: Extended Studs Motor Orientation: Single Shaft Horizontal/Bi-Direction
Drive End Bearing: Sleeve Opp Drive End Bearing: Sleeve
Frame Material: Rolled Steel Shaft Type: Double Flat
Frame Length: 3.95 in Shaft Diameter: 0.500 in
Shaft Extension: 6.5 in Assembly/Box Mounting: Tie rods
