/5.6" Diameter (48 Frame)/D827 Fasco 1/8HP OEM Replacement Electric Motor, 700RPM
Click Image to Expand

Product ID: D827

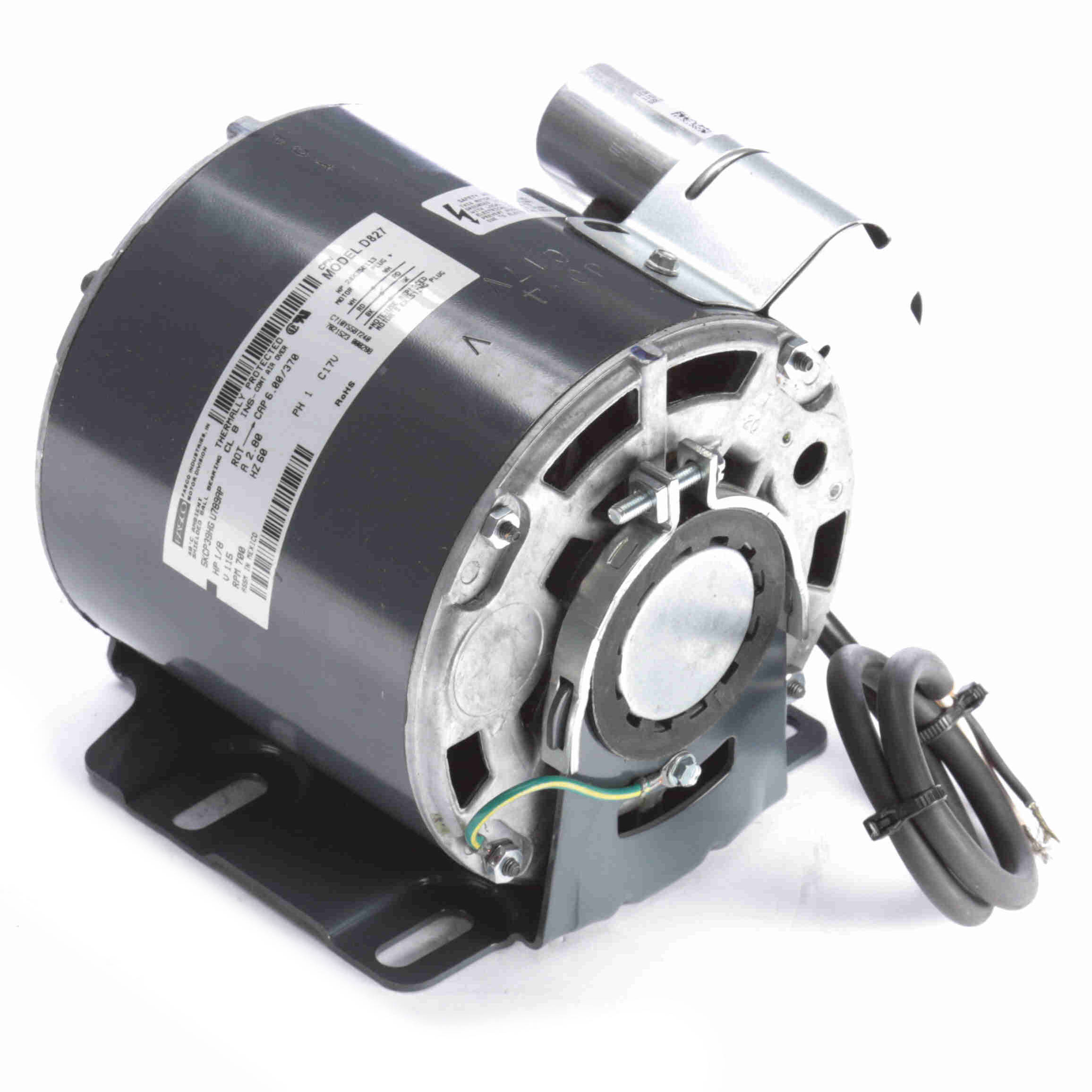

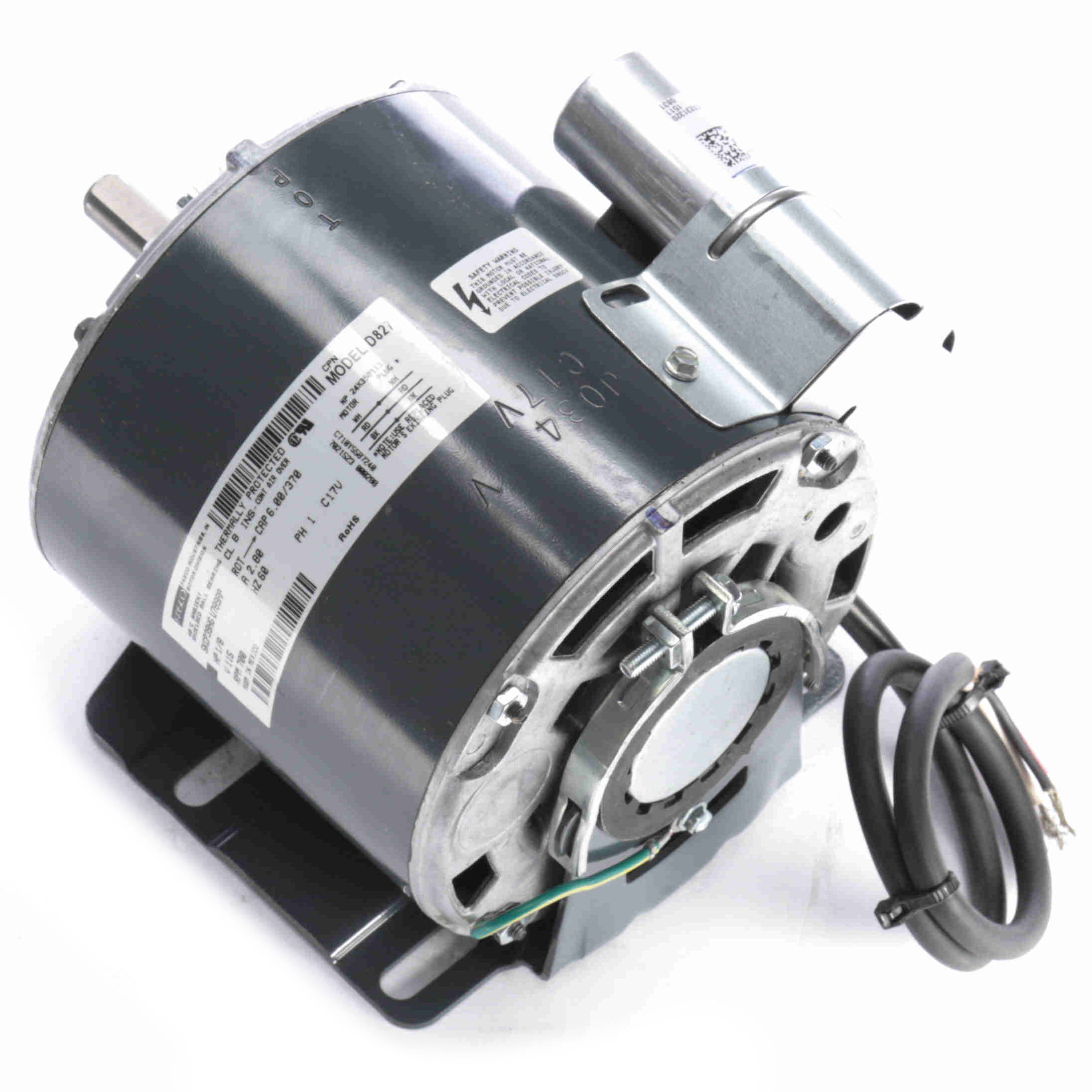

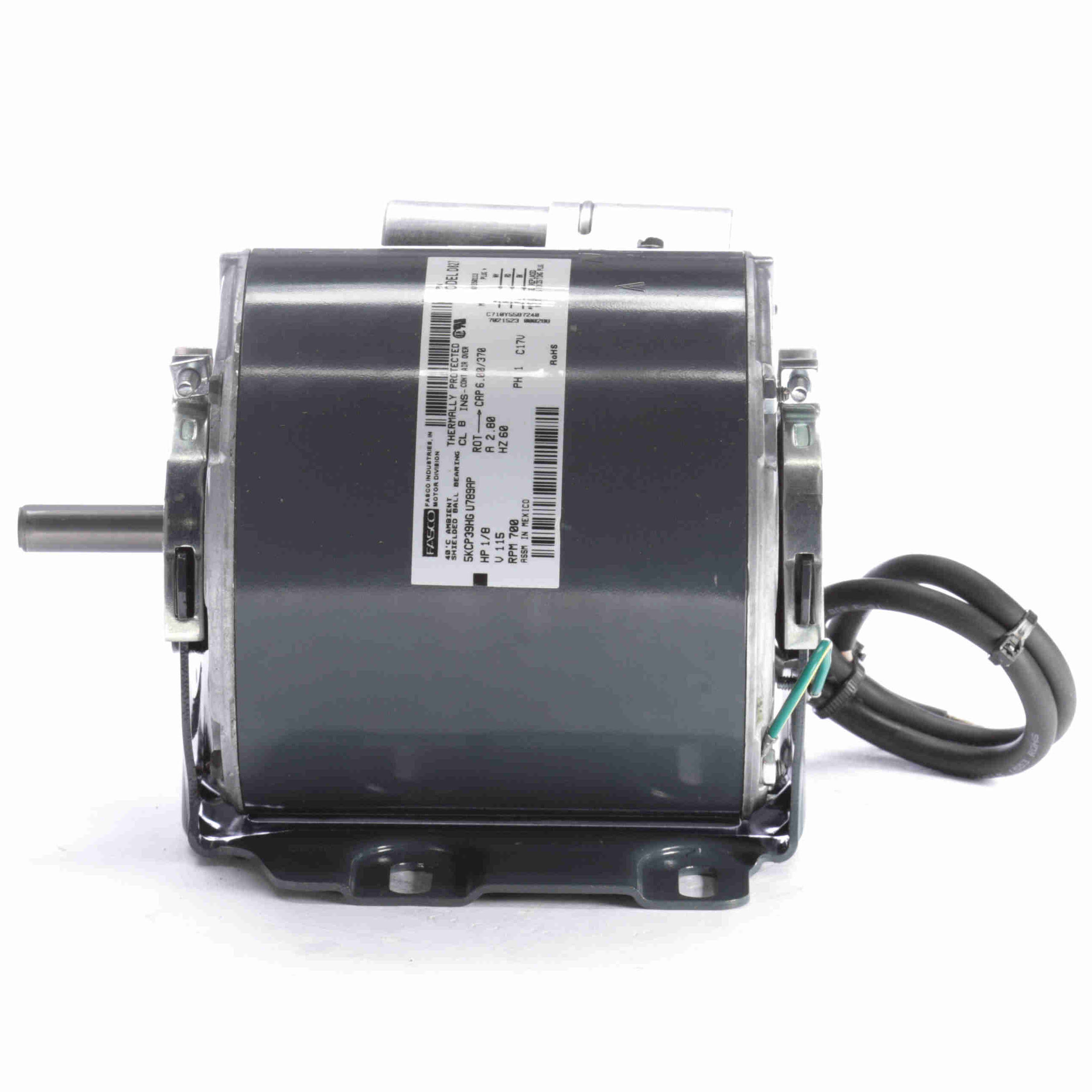

D827 Fasco 1/8HP OEM Replacement Electric Motor, 700RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D827

Selected accessories will also be added to cart
$219.97 / Each
Quantity:
Semi-Enclosed, 48 Frame, 115VAC 60Hz Single Phase, Ball Bearings, 1/2" x 1.50" Shaft, Resilient Base, CW

Features

  • OEM Direct Replacement Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Flat
  • 20" Leads
  • Resilient Base

General Specifications

UPC: 818508020457 Weight: 14 LB
Packaged Length: 14.12 IN Packaged Width: 8.38 IN
Packaged Height: 8 IN

Nameplate Specifications

Output HP: 1/8 Hp Output KW: 0.10 kW
Frequency: 60 Hz Voltage: 115 V
Current: 2.80 A Speed: 700 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Air Over Insulation Class: B
Frame: 48 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor Poles: 8
Rotation: Clockwise Mounting: Resilient Base
Motor Orientation: Hor Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Flat Overall Length: 7.89 in
Frame Length: 4.82 in Shaft Diameter: 0.500 in
Shaft Extension: 1.50 in Thru-bolts Extension: N/R in
