/5.6" Diameter (48 Frame)/D798 Fasco 1/6HP Electric Motor, 5.6", 825 RPM
Click Image to Expand

Product ID: D798

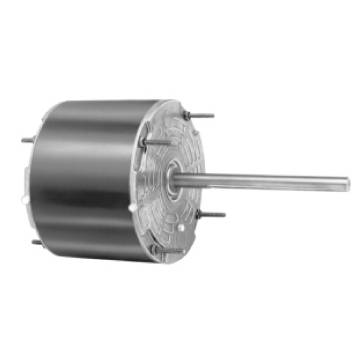

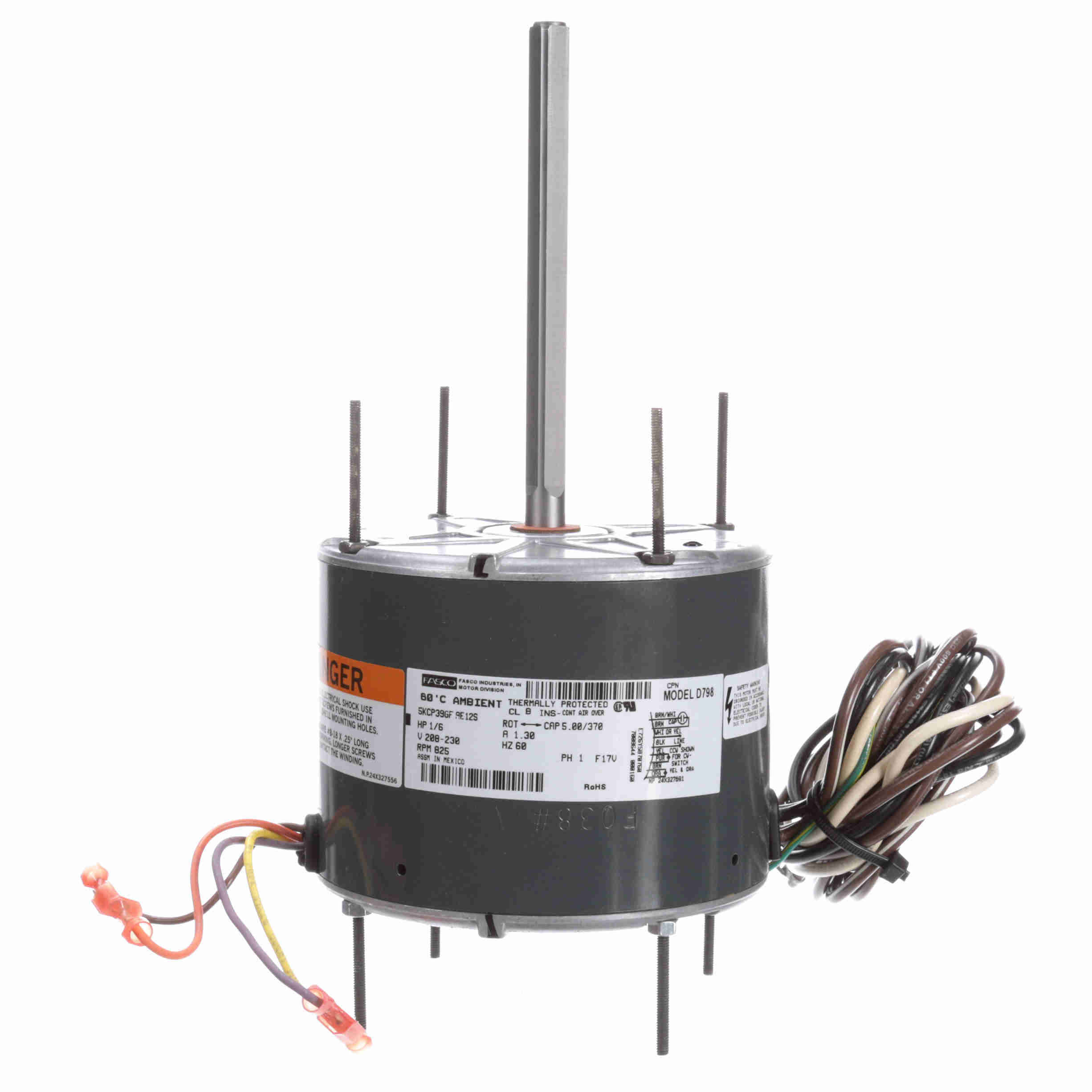

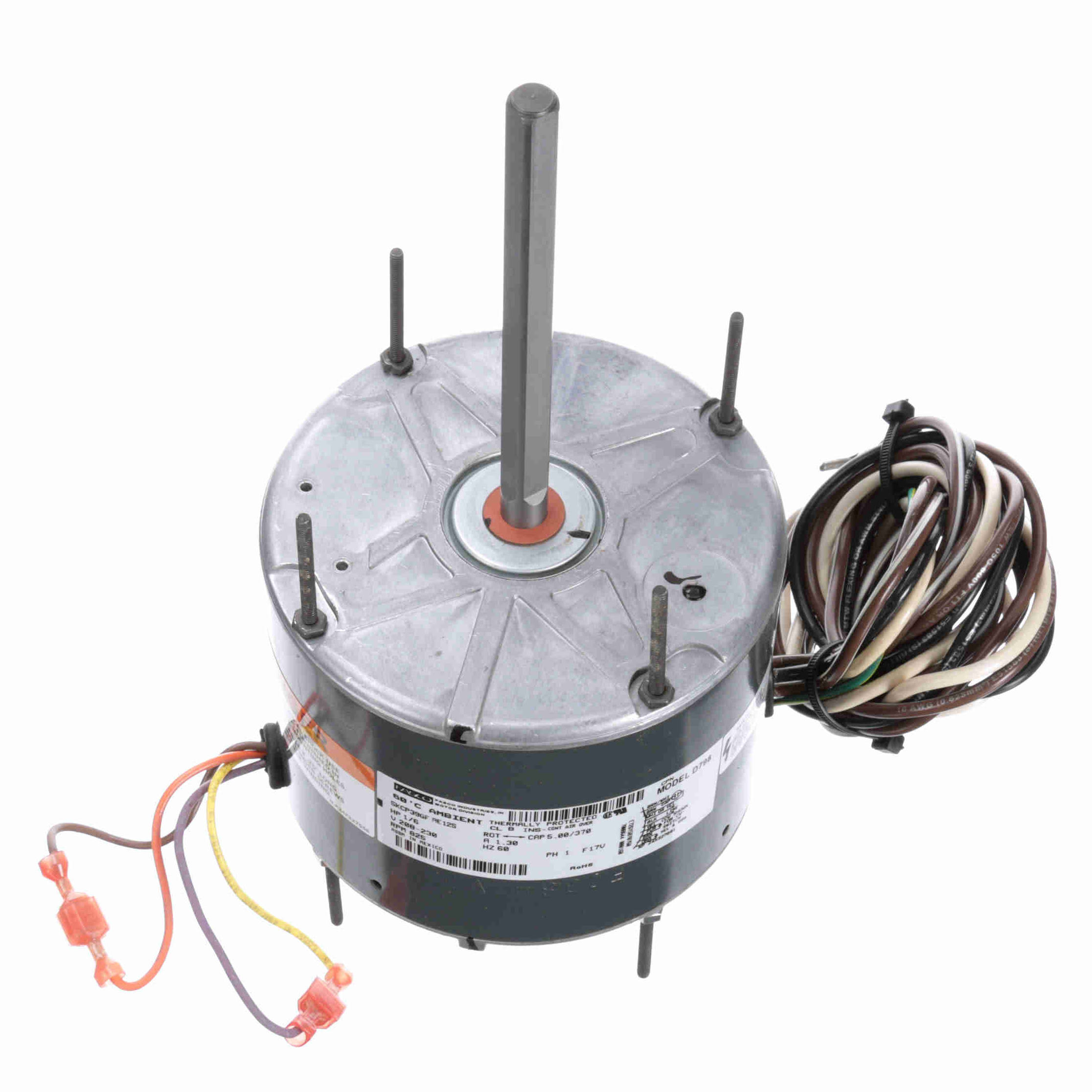

D798 Fasco 1/6HP Electric Motor, 5.6", 825 RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D798

Selected accessories will also be added to cart
$236.97 / Each
Quantity:
TEAO, 208-230VAC 60Hz Single Phase, Reversible, Sleeve Bearings

Electrical

HP 1/6 HP
Voltage 208-230 VAC
Frequency 60 Hz
Phase Single Phase
RPM 825 RPM
Single Speed
Amperage 1.3 Amps

Specifications

Manufacturer Fasco
Model Number D798
Diameter 5.6 inches
Rotation Direction Reverse
Bearing Type Sleeve
Shaft Dimensions 1/2" x 6"
Notes Has 4 drilled and tapped holes in shell
Electrically Reversible
60° ambient temperature rating
All angle mount bearings. Use rain shield when necessary.
Weight 12 lbs
Frame
Type PSC
Enclosure Totally Enclosed
”A” Dimension 4-1/3"

Cross Reference
