Product ID: D7748

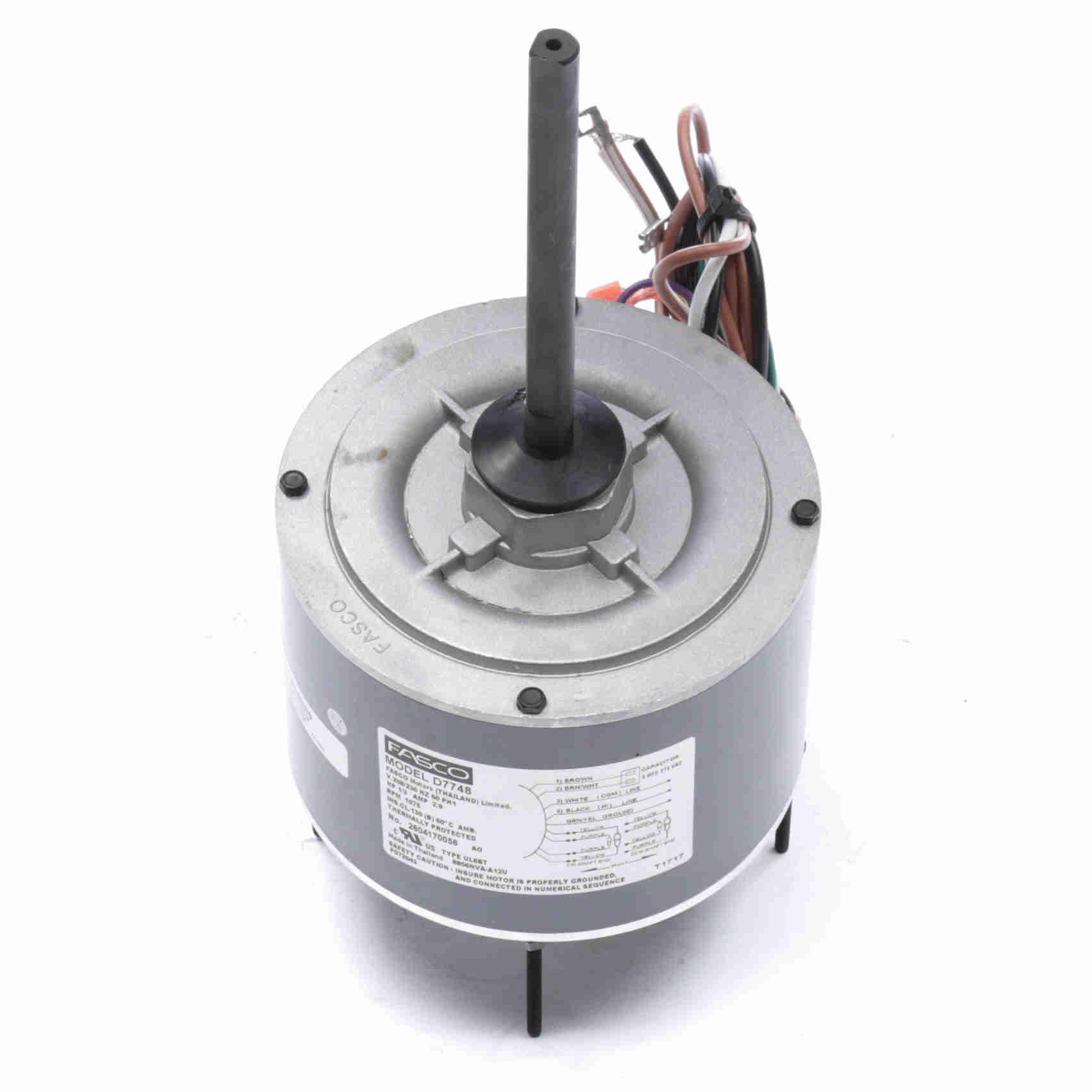

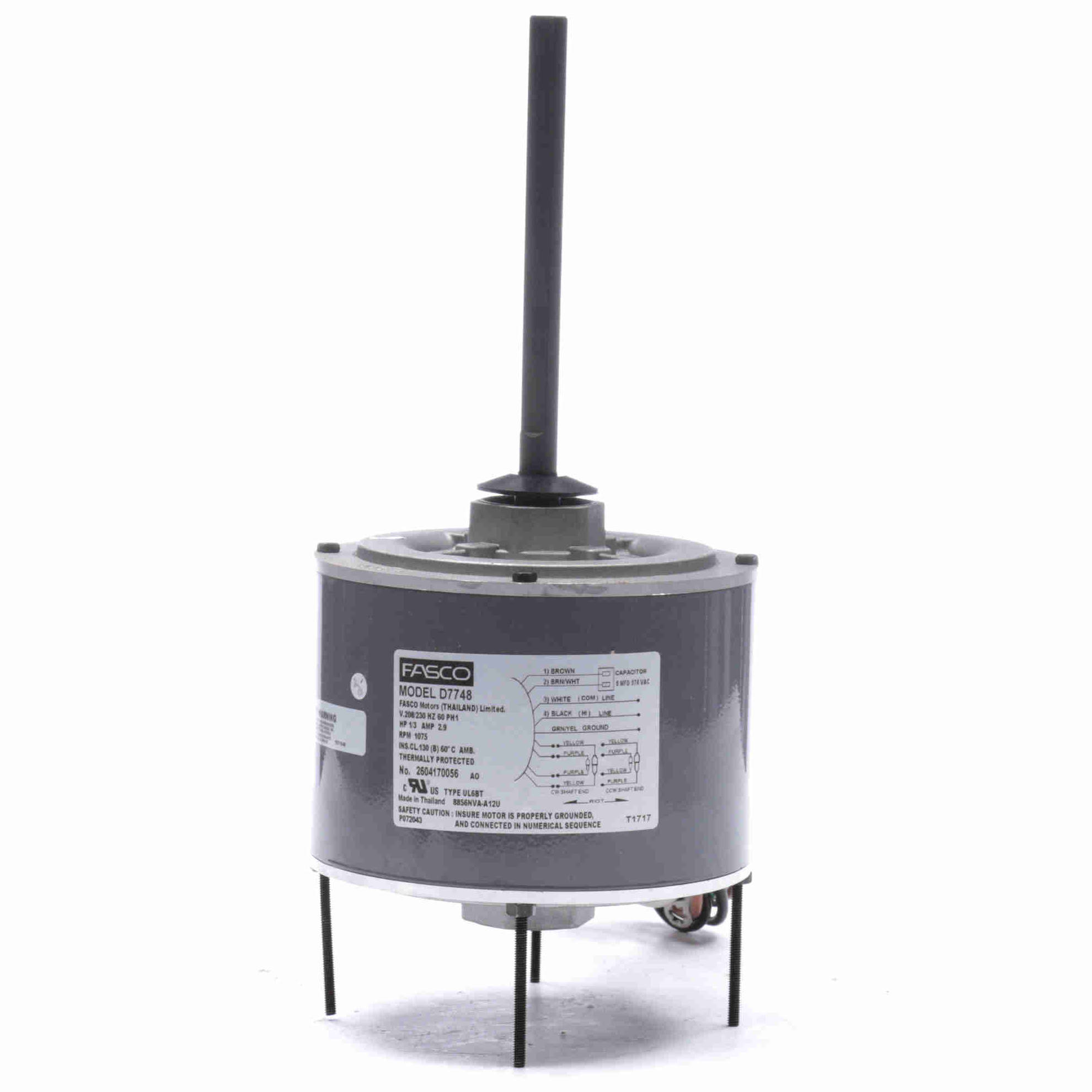

D7748 Fasco 1/3HP Condenser Fan Electric Motor, 5.6", 1075 RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D7748

Selected accessories will also be added to cart

$105.97 / Each

Quantity:

Semi-Enclosed, 48 Frame, 208-230VAC 60Hz Single Phase, Shaft Up or Horizontal

Details

Electrical

HP	1/3 HP
Voltage	208-230 VAC
Frequency	60 Hz
Phase	Single Phase
RPM	1075 RPM Single Speed
Amperage	2.9 Amps

Specifications

Manufacturer	Fasco
Model Number	D7748
Diameter	5.6 inches
Rotation Direction	REV
Bearing Type	Ball Bearing
Shaft Dimensions	1/2" x 6-1/2"
Notes	Electrically Reversible Includes shaft water slinger 60° ambient temperature rating Closed end shield shaft end All angle mount bearings
Weight	14 lbs
Frame
Type	PSC
Enclosure	Open Ventilation
”A” Dimension	4-1/4"

Cross Reference

Motor/Control Division
