/5.6" Diameter (48 Frame)/D743 Fasco 1/5HP Condenser Fan Electric Motor, 1075RPM
Click Image to Expand

Product ID: D743

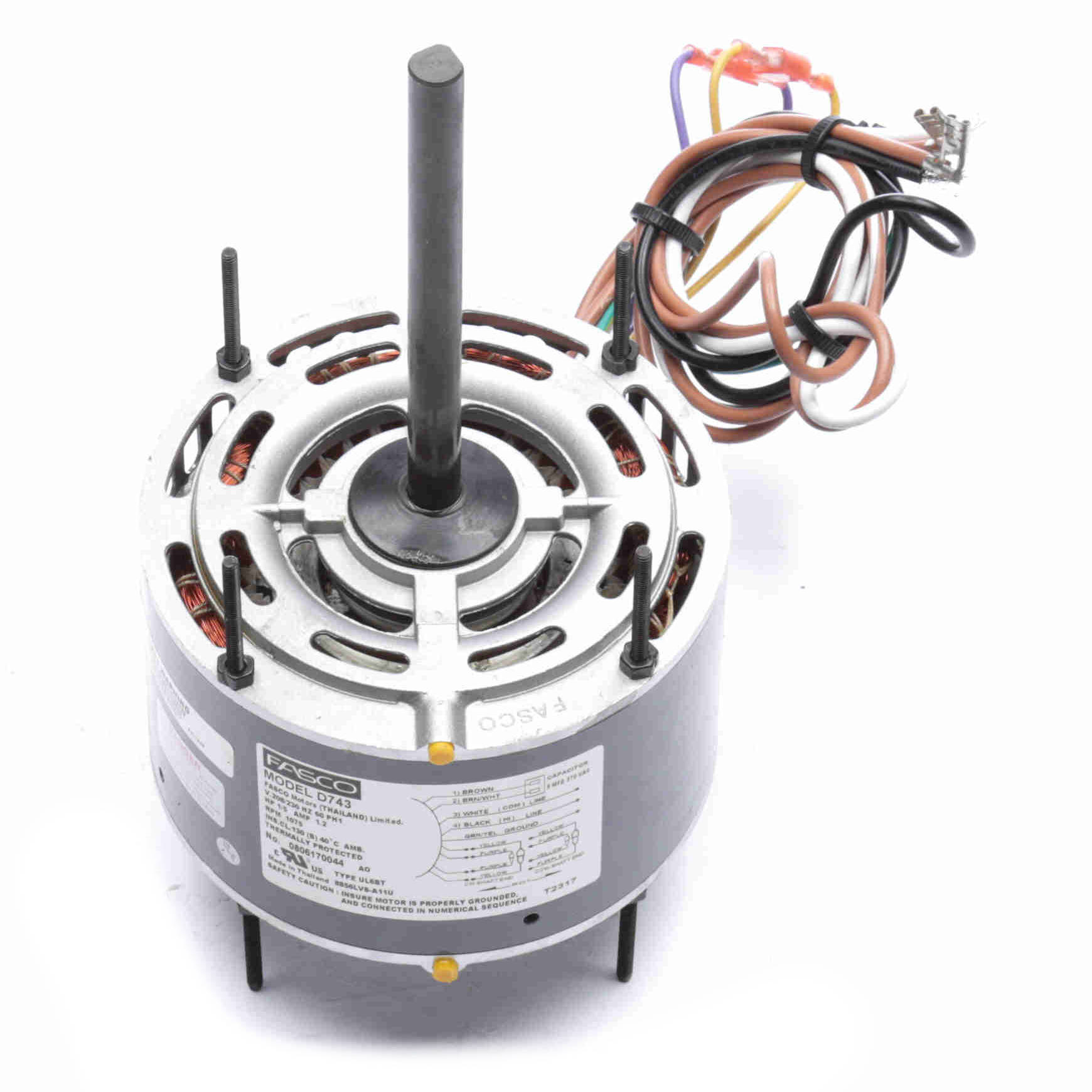

D743 Fasco 1/5HP Condenser Fan Electric Motor, 1075RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D743

Selected accessories will also be added to cart
$144.97 / Each
Quantity:
Semi-Enclosed, 48 Frame, 208-230VAC 60Hz Single Phase, Extended Studs, Sleeve Bearings, Rolled Steel, 1/2" x 6" Shaft, Reversible

Features

  • Condenser Fan Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Shell on Shaft End and Shaft End End-Frame, Enclosed Shell on Lead End and Lead End End-Frame, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 27" Leads
  • Extended Studs Shaft End and Lead End, Belly Band

General Specifications

UPC: 818508021317 Weight: 10 LB
Packaged Length: 5.63 IN Packaged Width: 5.63 IN
Packaged Height: 15 IN

Nameplate Specifications

Output HP: 1/5 Hp Output KW: 0.15 kW
Voltage: 208-230 V Current: 1.2 A
Speed: 1075 rpm Service Factor: 1
Phase: 1 Duty: Continuous
Insulation Class: B Frame: 48
Enclosure: Open Drip Proof Thermal Protection: Automatic
Ambient Temperature: 40 °C UL: Recognized
CSA: Y CE: N

Technical Specifications

Electrical Type: AC Starting Method: PSC
Poles: 6 Rotation: Reversible
Mounting: Extended Studs Motor Orientation: Single Shaft Horizontal/Bi-Direction
Drive End Bearing: Sleeve Opp Drive End Bearing: Sleeve
Frame Material: Rolled Steel Shaft Type: Double Flat
Frame Length: 2.95 in Shaft Diameter: 0.500 in
Shaft Extension: 6 in Assembly/Box Mounting: Tie rods
