/4.4" Diameter/D635 Fasco 1/10, 1/20, 1/35HP Electric Motor, 1550RPM
Click Image to Expand

Product ID: D635

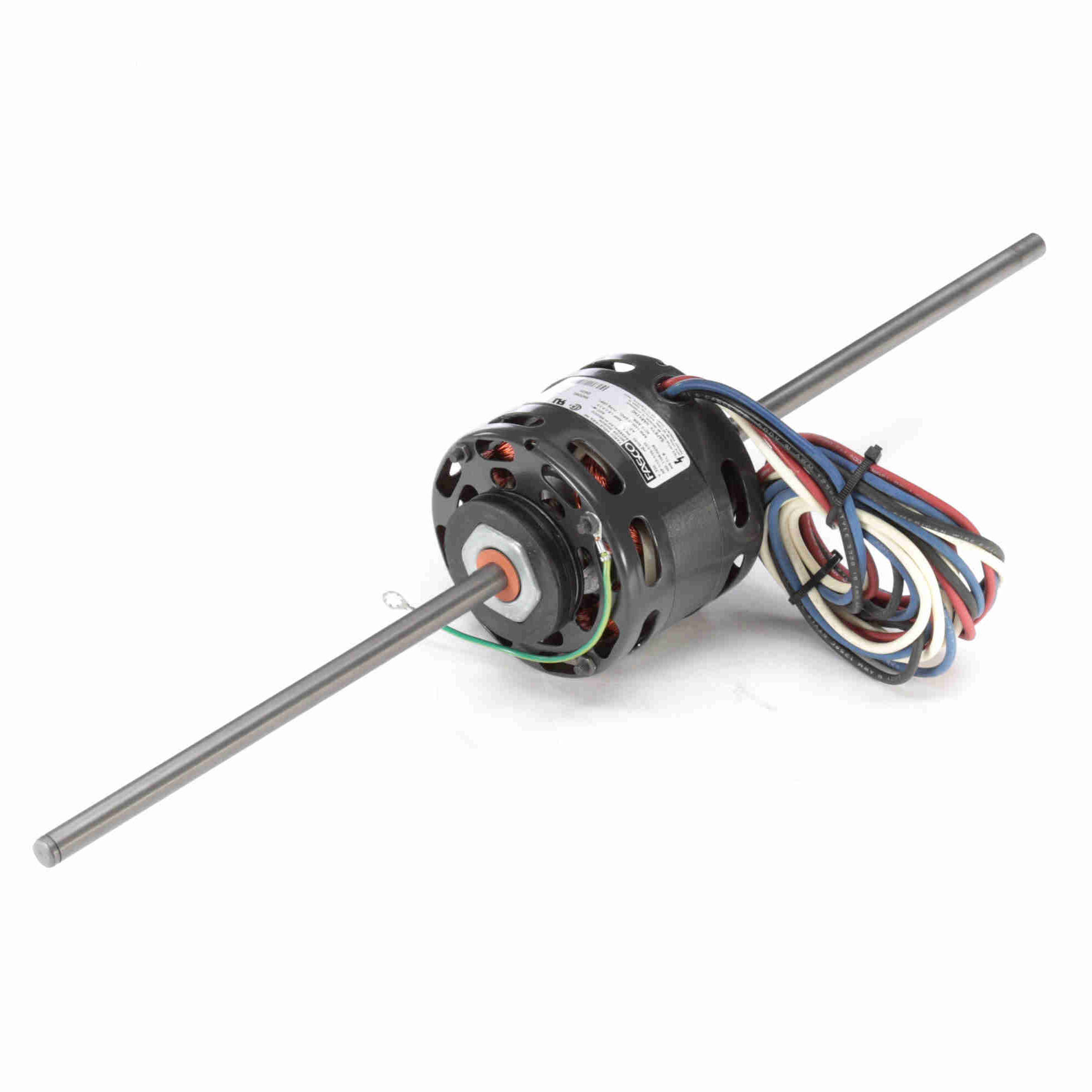

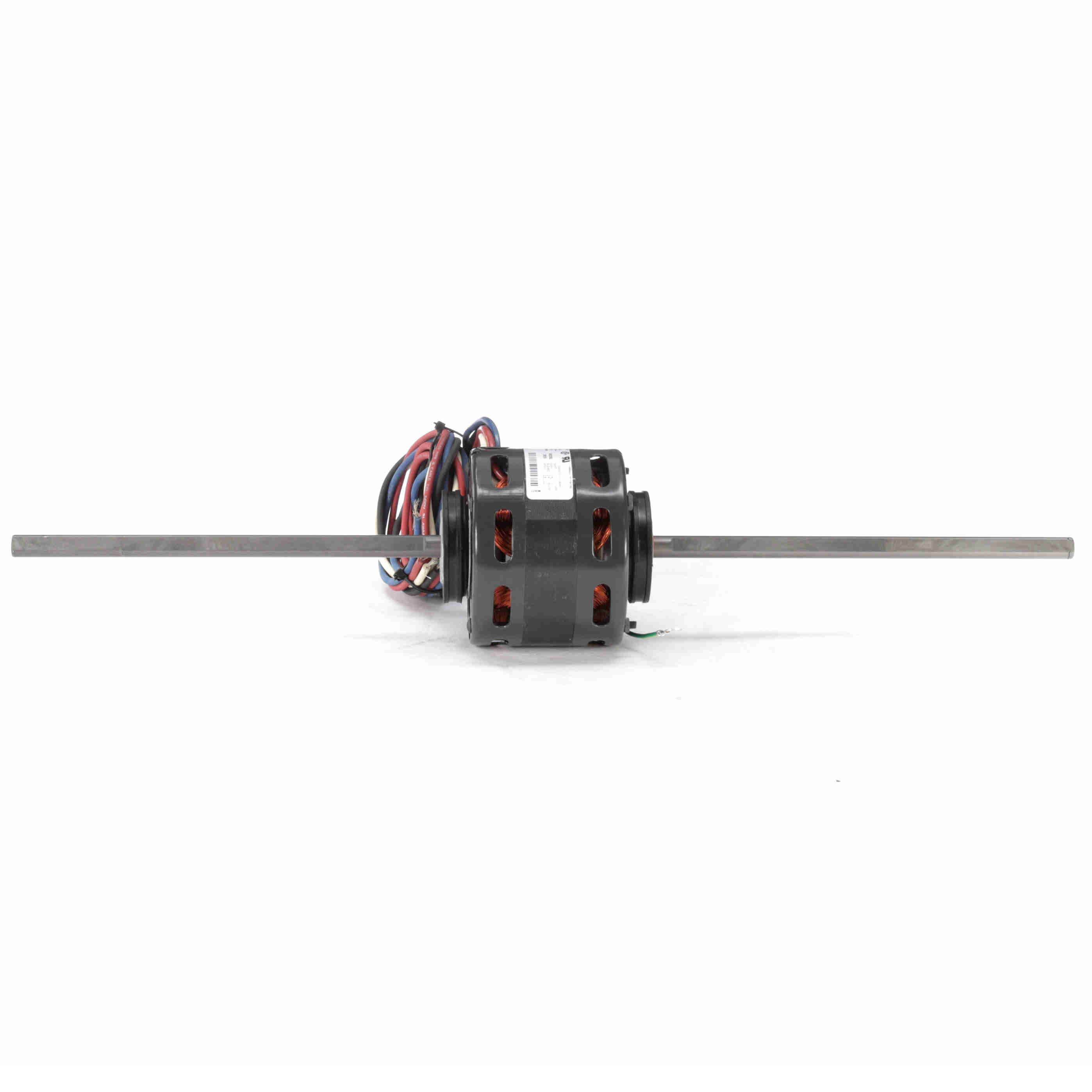

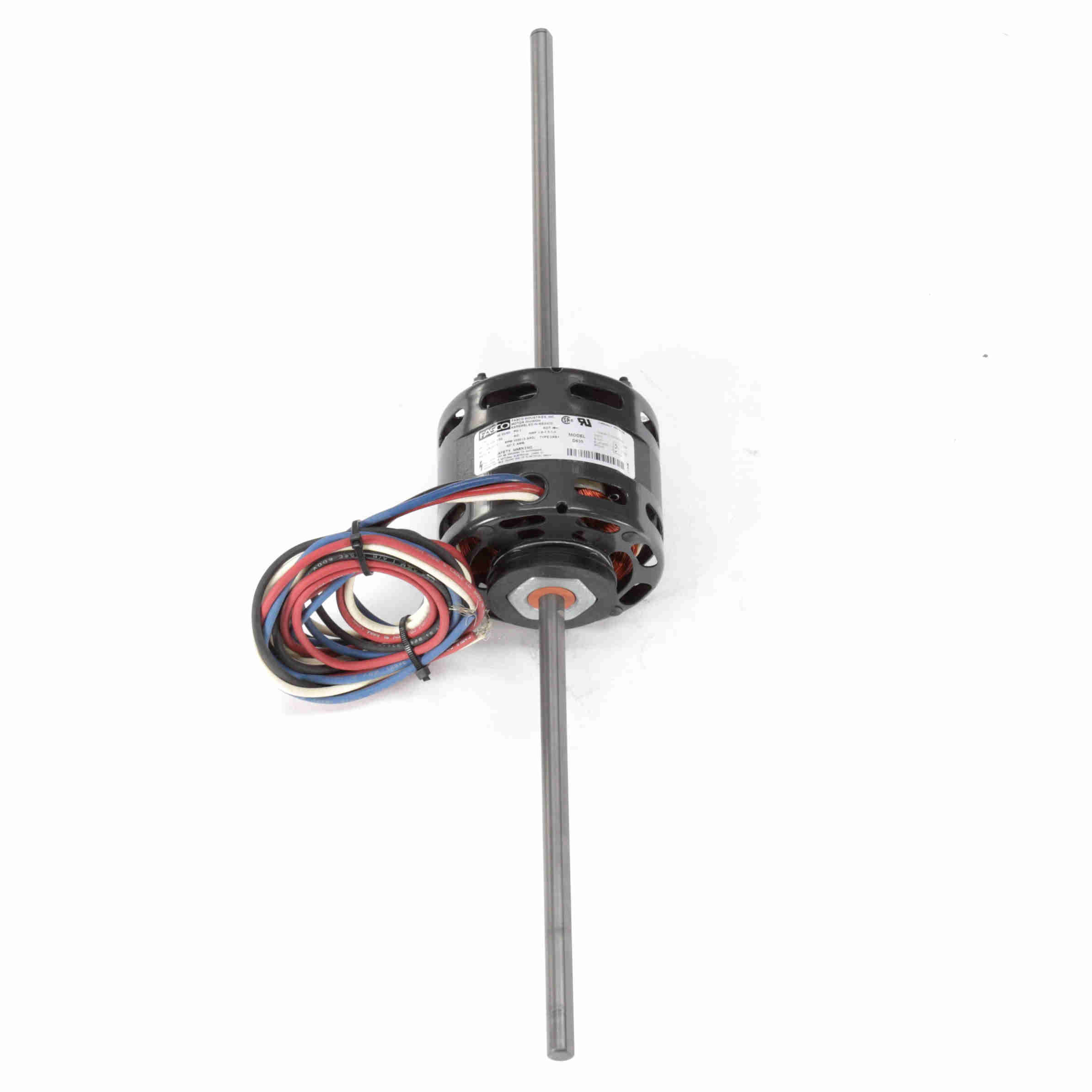

D635 Fasco 1/10, 1/20, 1/35HP Electric Motor, 1550RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D635

Selected accessories will also be added to cart
$308.97 / Each
Quantity:
3-Speed, Open Air Over, 230VAC Single Phase 60Hz, Reversible, 10" x 0.50" x 10" Shaft, Sleeve Bearing, Resilient Rings, Shaded Pole

Features

Features
  • Fan Coil - Air-Conditioning - Heating Unit Motor
  • 4.4" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Double Shaft with Flat
  • 60" Leads
  • Resilient Mounting Ring Lead End and Opposite Lead End

General Specifications

General Specifications
Model : Catalog No : D635
Part Description : 71080238.MOTOR.4.40" DIA..1/10 HP.3 SPD. Category : Fan Coil / Room Air Conditioner
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 1/10-1/20-1/35 HP Output KW : 0.07 kW
Frequency : 60 Hz Voltage : 230 V
Current : 1.8-1.3-1.0 A Speed : 1550 RPM
Service Factor : 1 Phase : 1
Duty : Air Over Insulation Class : B
Frame : 4.4 Enclosure : Open Air Over
Overload Protector : Thermally Protected Ambient Temperature : 40 °C
UL : Recognized CSA : Y
CE : N

Technical Specifications

Technical Specifications
Electrical Type : Shaded Pole Starting Method : Across The Line
Poles : 4 Rotation : Reversible
Mounting : Resilient Rings Drive End Bearing : Sleeve
Opp Drive End Bearing : Sleeve Frame Material : Na
Shaft Type : Flat Overall Length : 23.38 in
Shaft Diameter : 0.500 in Shaft Extension : 10 in
UPC : 818508021096 Weight : 8.00 LB

Speed & Load Characteristics
