/Products/Electric Motors/Single Phase/US / Nidec/D5C2K Nidec 5HP Air Compressor Electric Motor 1800RPM
Click Image to Expand

Product ID: D5C2K

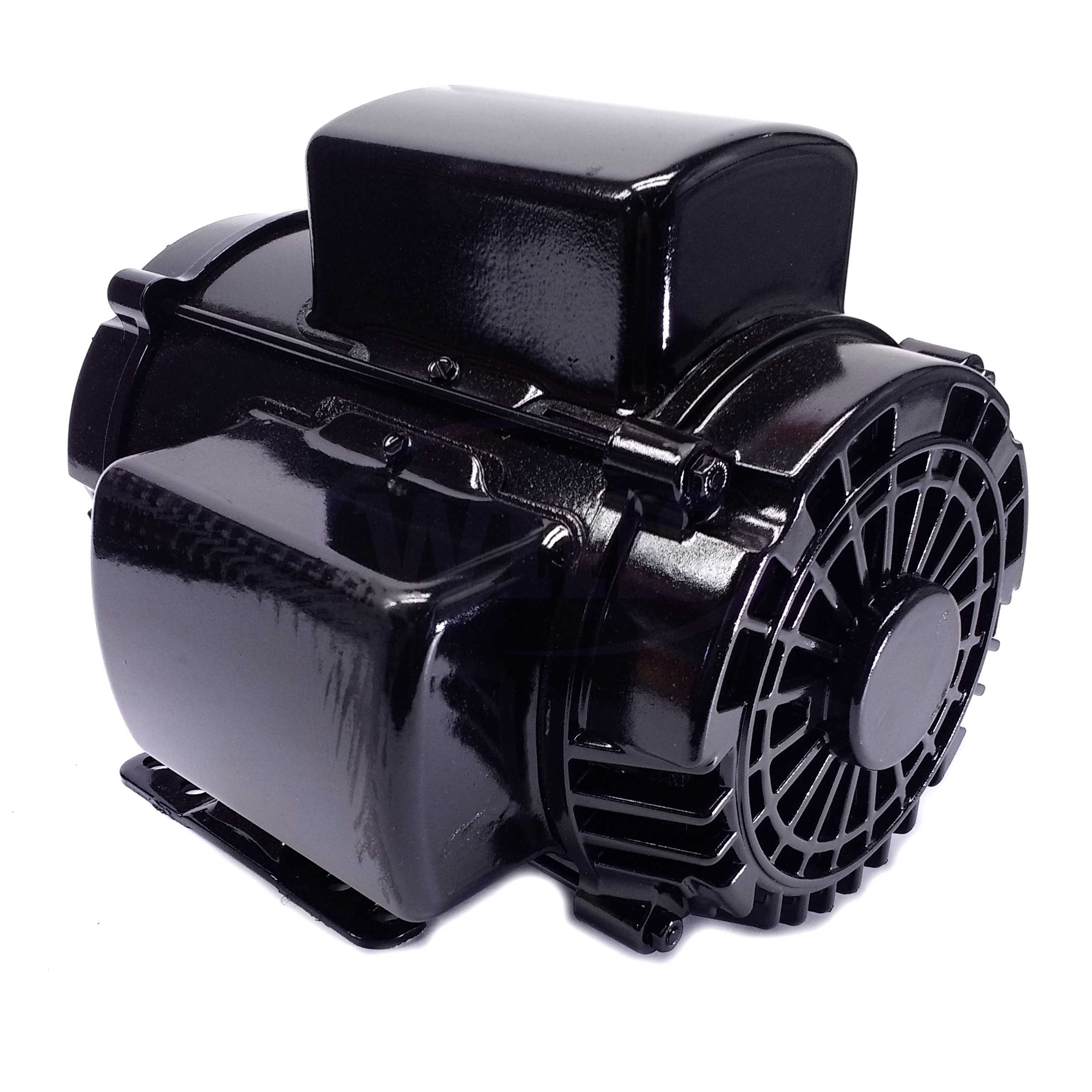

D5C2K Nidec 5HP Air Compressor Electric Motor 1800RPM

MFG: US Motors (Nidec Motor Corporation)
MFG Part Number: D5C2K

Available Stock: 7
Selected accessories will also be added to cart
$472.46 / Each
Quantity:
184T Frame, 230VAC Single Phase, Open Dripproof (ODP)
5 Horsepower (HP)
1800 RPM
184T Frame
Catalog Number: D5C2K
1.15 Service Factor
'C' Dimension (inches) 16.3
Ship Weight: 75 lbs
Full Load Amps: 23.5
Notes: 25 Non-Protected, R - Reversible Rotation


Special Application Air Compressor Single Phase, Open Dripproof (ODP) Motor

Applications:
For belt drive air compressor duty high breakdown torque

Features:
- Rigid Welded Base
- Continuous Duty
- Manual Reset Thermal Overload Protector
- ODP Enclosure
- Class B Insulation
- 40°C Ambient
- Ball Bearings
- Rotation - CCW Facing Shaft End, Non-Reversible
