/3.3" Diameter/D514 Fasco 1/30HP Fan and Blower Electric Motor, 1550RPM
Click Image to Expand

Product ID: D514

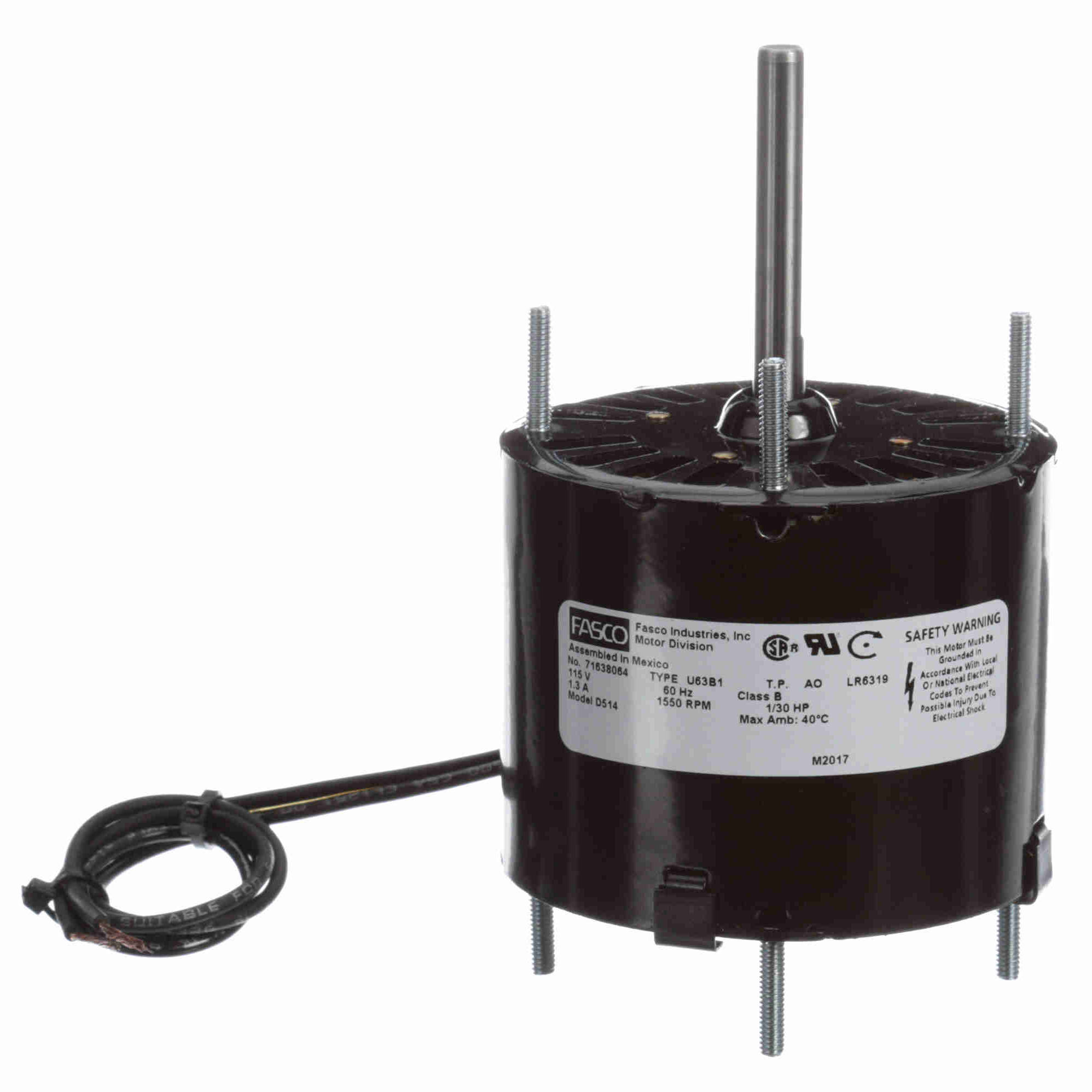

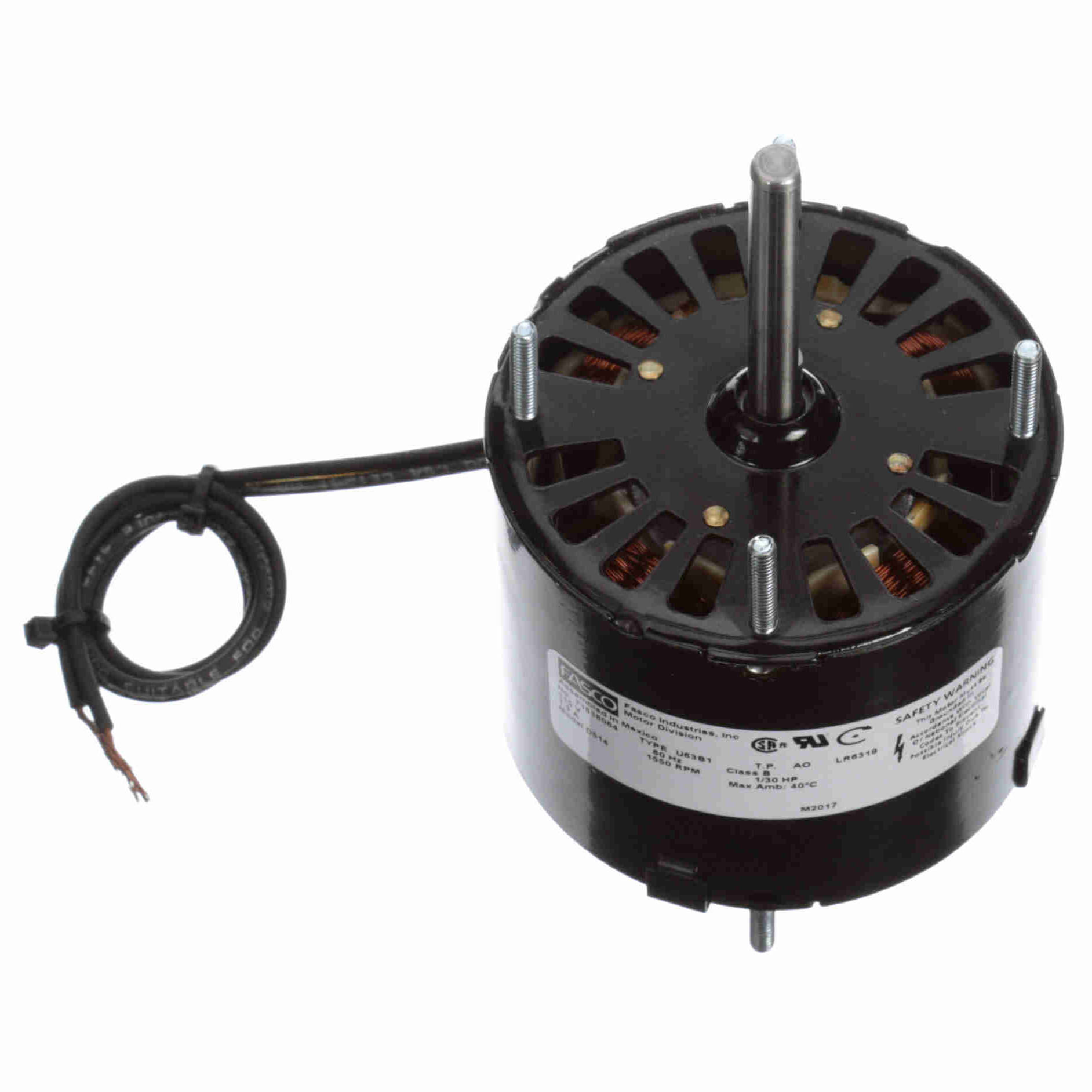

D514 Fasco 1/30HP Fan and Blower Electric Motor, 1550RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D514

Selected accessories will also be added to cart
$55.97 / Each
Quantity:
Semi-Enclosed, 3.3" Diameter, 115VAC 60Hz Single Phase, Extended Studs, Sleeve Bearings, 5/16" x 2.30" Shaft, CWSE

Features

  • General Purpose Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • 12" Leads
  • Extended Studs Shaft End and Lead End

General Specifications

UPC: 818508020723 Weight: 3 LB
Packaged Length: 8 IN Packaged Width: 3.38 IN
Packaged Height: 3.38 IN

Nameplate Specifications

Output HP: 1/30 Hp Output KW: 0.02 kW
Frequency: 60 Hz Voltage: 115 V
Current: 1.30 A Speed: 1550 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: B
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Overall Length: 5.30 in
Frame Length: 2.50 in Shaft Diameter: 0.313 in
Shaft Extension: 2.30 in
