/3.3" Diameter/D503 Fasco 1/10HP Electric Motor, 3.3" Diameter, 1590RPM
Click Image to Expand

Product ID: D503

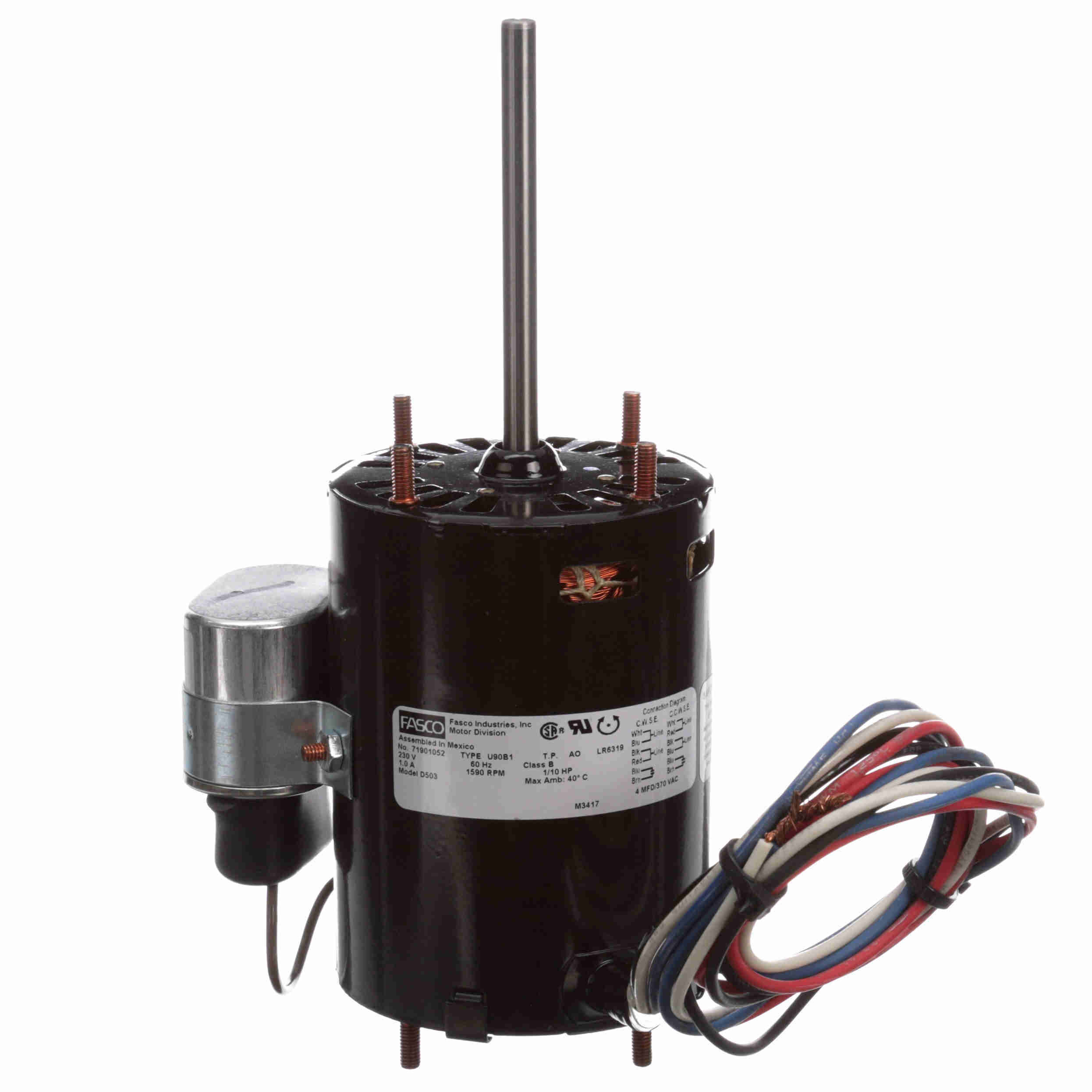

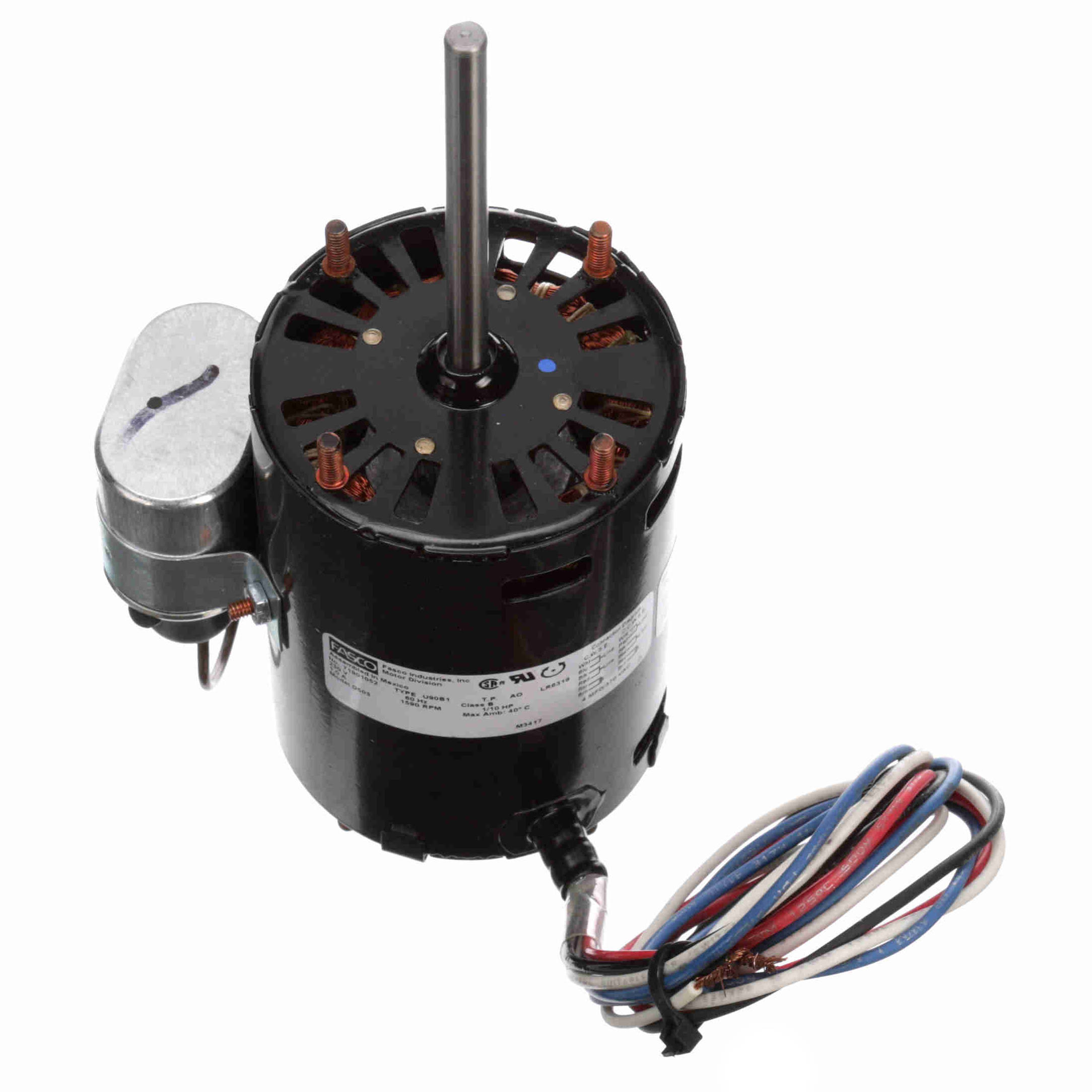

D503 Fasco 1/10HP Electric Motor, 3.3" Diameter, 1590RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D503

Selected accessories will also be added to cart
$200.97 / Each
Quantity:
Open, Air Over, 230VAC Single Phase 60Hz, Reversible, 0.313" x 3.87" Shaft, Extended Studs, PSC

Features

Features
  • General Purpose Motor
  • 3.3" Diameter
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Shaft End End-Frame and Opposite Shaft End End-Frame, Eclosed Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16"  Diameter Shaft with Flat
  • 30" Leads
  • Extended Studs Shaft End and Opposite Shaft End

General Specifications

General Specifications
Model : Catalog No : D503
Part Description : 71901052.MOTOR.3.30" DIA..1/10 HP.1 SPD. Category : Self Cooled
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 1/10 HP Output KW : 0.07 kW
Frequency : 60 Hz Voltage : 230 V
Current : 1.00 A Speed : 1590 RPM
Service Factor : 1 Phase : 1
Duty : Air Over Insulation Class : B
Frame : 3.3 Enclosure : Open Air Over
Overload Protector : Thermally Protected Ambient Temperature : 40 °C
UL : Recognized CSA : Y
CE : N

Technical Specifications

Technical Specifications
Electrical Type : Permanent Split Capacitor Starting Method : Across The Line
Poles : 4 Rotation : Reversible
Mounting : Extended Studs Drive End Bearing : Sleeve
Opp Drive End Bearing : Sleeve Frame Material : Steel
Shaft Type : Flat Overall Length : 8.77 in
Frame Length : 4.39 in Shaft Diameter : 0.313 in
Shaft Extension : 3.87 in UPC : 818508020709
Weight : 6.00 LB
