/4.4" Diameter/D485 Fasco 1/20HP Refrigeration Electric Motor, 1550RPM
Click Image to Expand

Product ID: D485

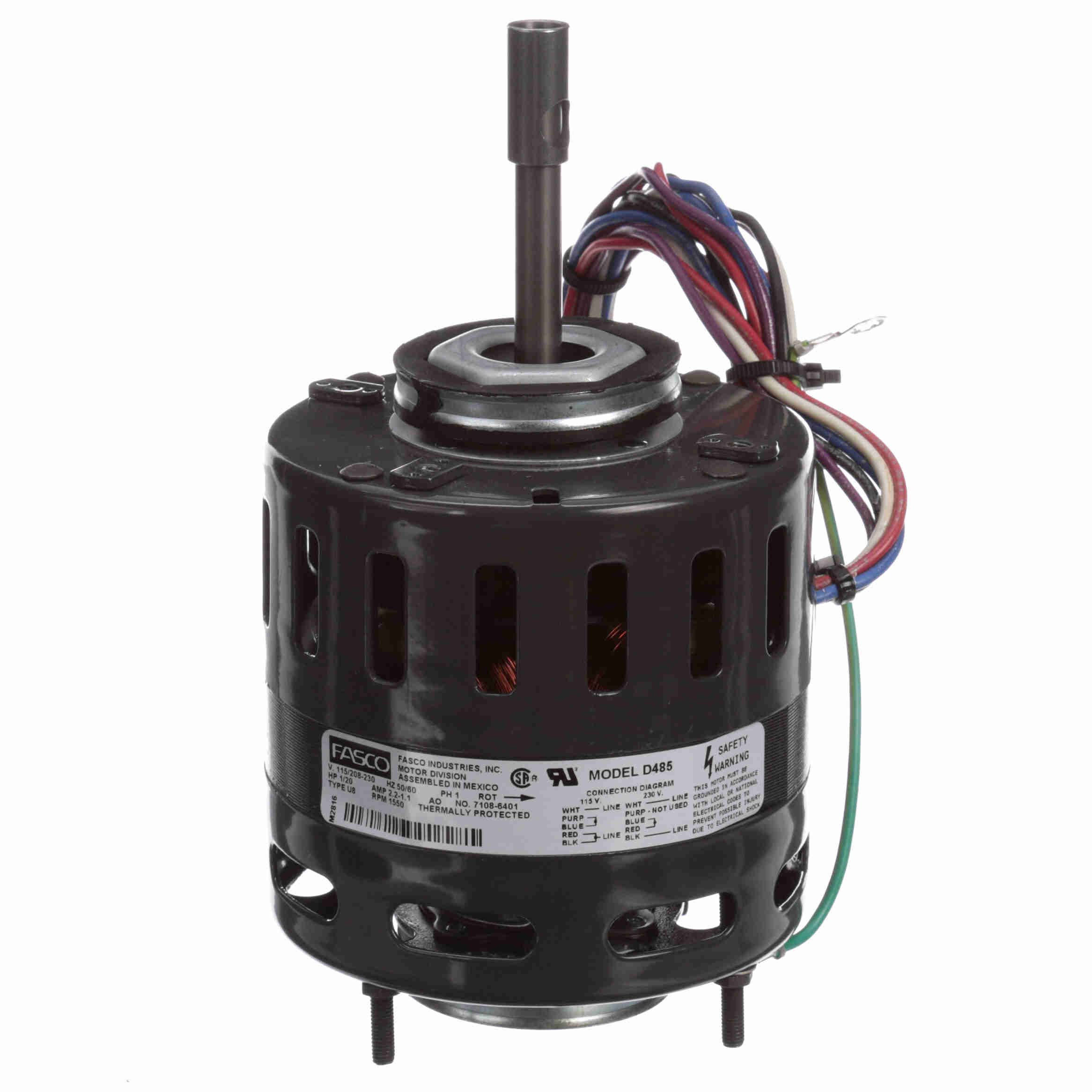

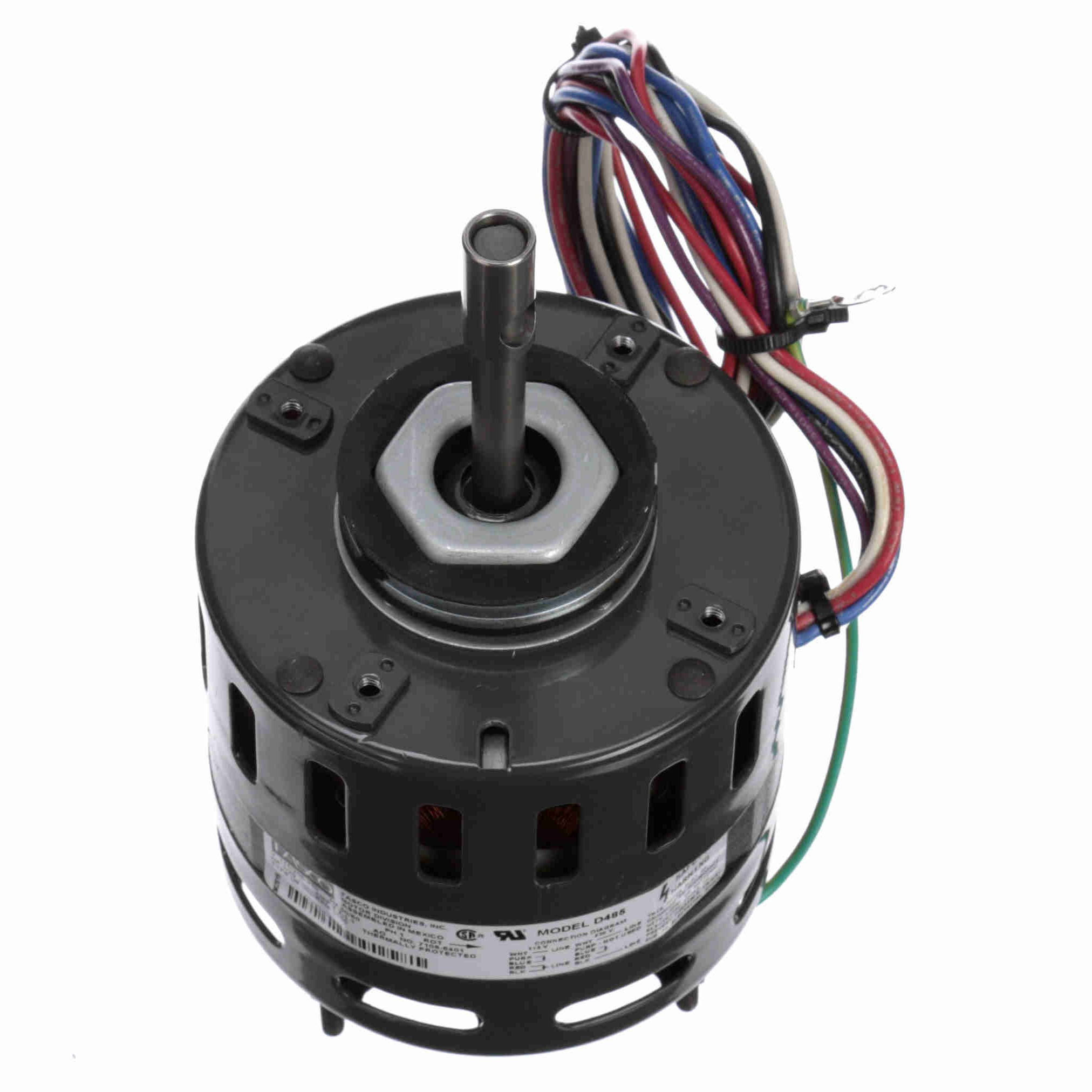

D485 Fasco 1/20HP Refrigeration Electric Motor, 1550RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D485

Selected accessories will also be added to cart
$160.97 / Each
Quantity:
OAO, 115/208-230VAC 60Hz Single Phase, CCW Shaft End, 3/8" Shaft, 4.4" Diameter

Features

  • Refrigeration Fan Motor
  • 4.4" Diameter
  • Shaded Pole
  • Thermally Protected
  • Enclosed Shaft End End-Frame, Open Opposite Shaft End End-Frame and Shell, Air Over
  • Class A Insulation, 40°C Ambient
  • Sleeve Bearing
  • 3/8" Diameter Shaft with Flat
  • 31" Leads
  • Extended Studs Opposite Shaft End, Resilient Mounting Rings Shaft End and Opposite Shaft End

General Specifications

UPC: 818508020297 Weight: 6.00 LB
Packaged Length: 4.38 IN Packaged Width: 4.38 IN
Packaged Height: 10 IN

Nameplate Specifications

Output HP: 1/20 Hp Output KW: 0.04 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 2.2/1.1 A Speed: 1550 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: A
Frame: 4.4 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Counterclockwise Shaft End
Mounting: Resilient Ring - Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Na
Shaft Type: Flat Overall Length: 7.94 in
Shaft Diameter: 0.375 in Shaft Extension: 3.15 in
