/3.3" Diameter/D410 Fasco 1/10HP Draft Inducer Electric Motor, 3000RPM
Click Image to Expand

Product ID: D410

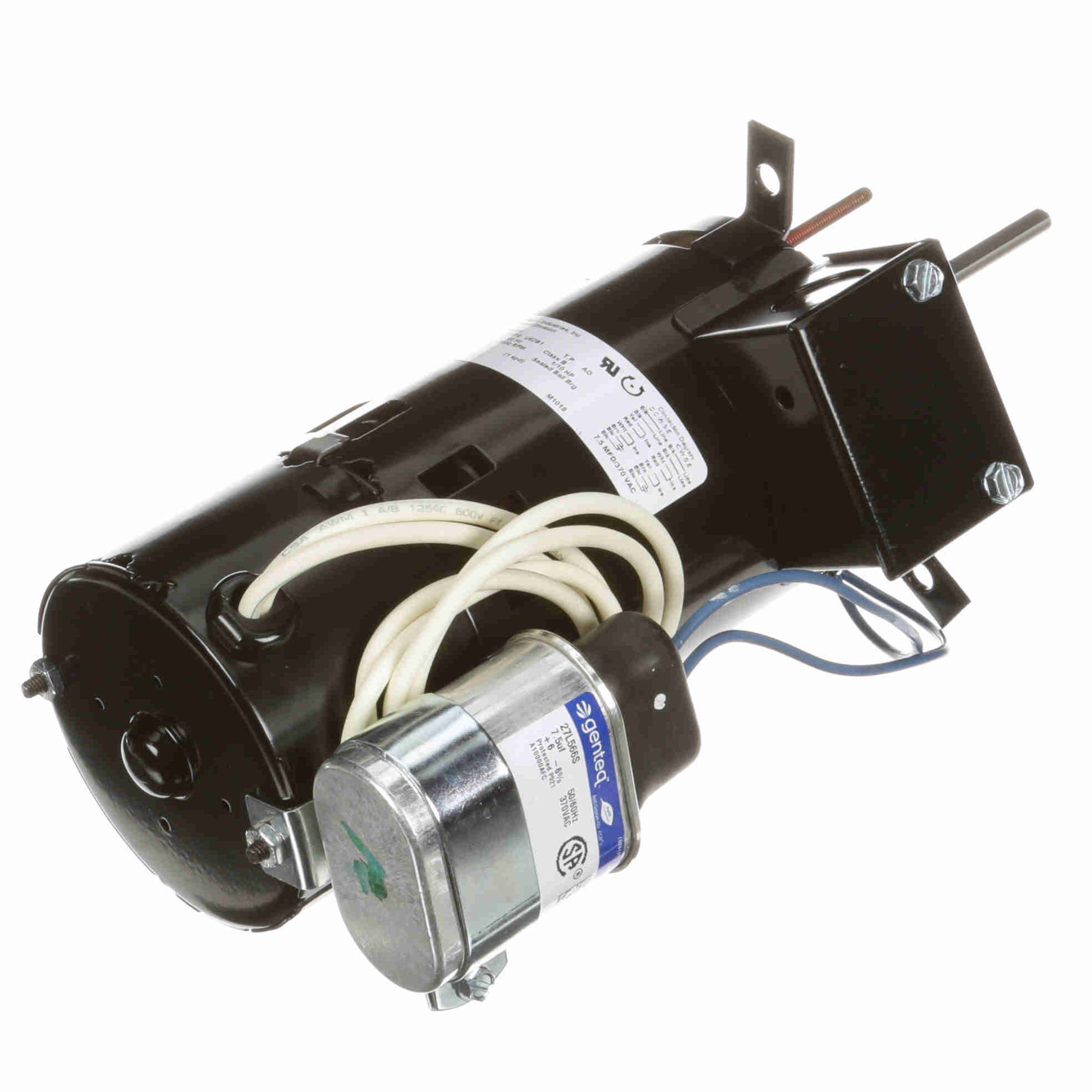

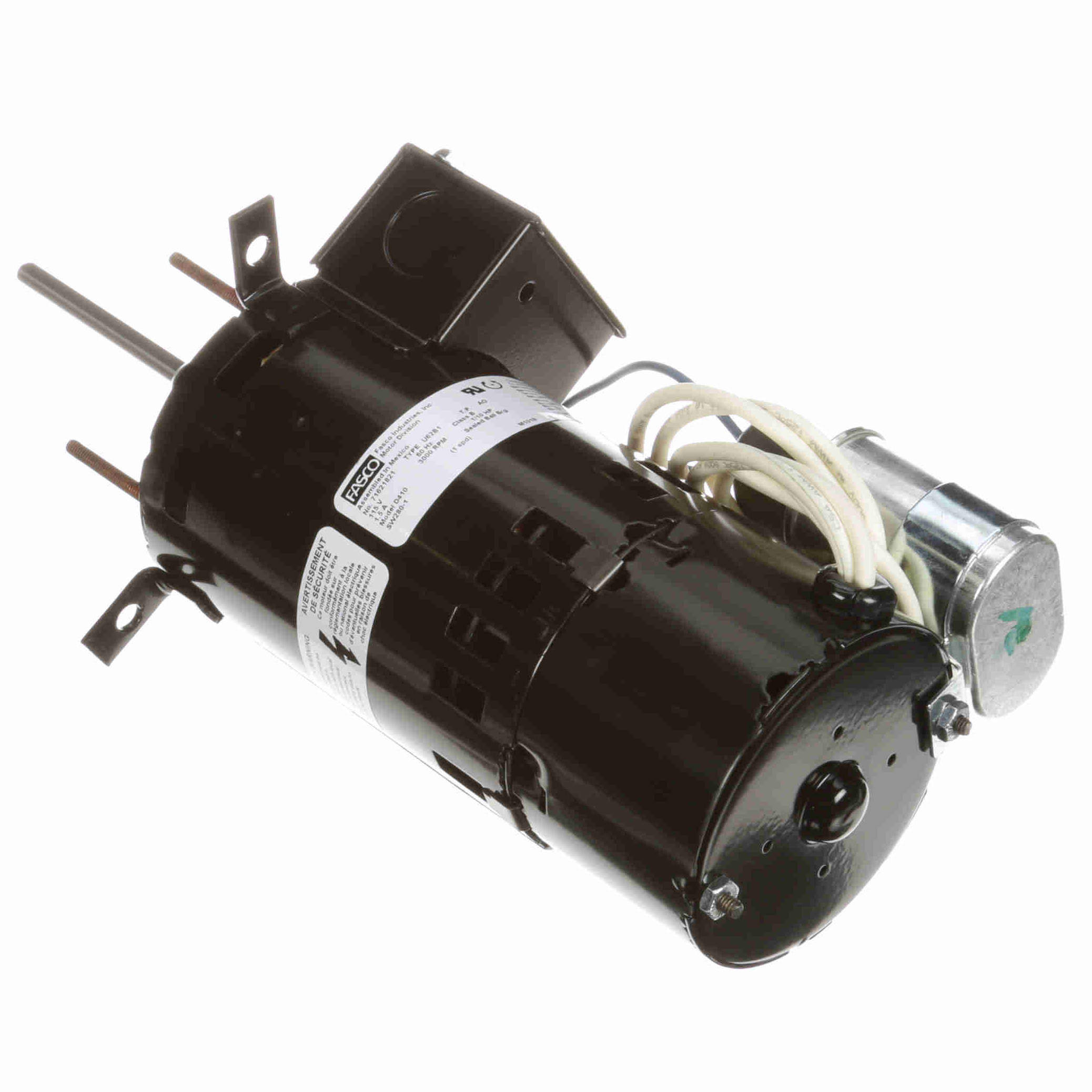

D410 Fasco 1/10HP Draft Inducer Electric Motor, 3000RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D410

Selected accessories will also be added to cart
$332.97 / Each
Quantity:
Semi-Enclosed, 3.3" Diameter, 115VAC 60Hz Single Phase, Extended Studs, Ball Bearings, 1/4" x 3.80" Shaft, Reversible

Features

  • Draft Inducer Motor
  • 3.3" Diameter
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Shell, Enclosed Shaft End End-Frame and Lead, Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 1/4" Diameter Shaft with Flat
  • 21" Leads, 21" Switch Leads
  • Extended Studs Shaft End, Lug Mount

General Specifications

UPC: 815585029892 Weight: 6 LB
Packaged Length: 13 IN Packaged Width: 5.5 IN
Packaged Height: 4.56 IN

Nameplate Specifications

Output HP: 1/10 Hp Output KW: 0.07 kW
Frequency: 60 Hz Voltage: 115 V
Current: 1.5 A Speed: 3000 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: B
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: N
CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 2 Rotation: Reversible
Mounting: Extended Studs Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Steel
Shaft Type: Flat Overall Length: 10.92 in
Frame Length: 4.80 in Shaft Diameter: 0.250 in
Shaft Extension: 3.80 in
