/3.3" Diameter/D404 Fasco 1/10HP Electric Motor, 3.3" Diameter, 3200RPM
Click Image to Expand

Product ID: D404

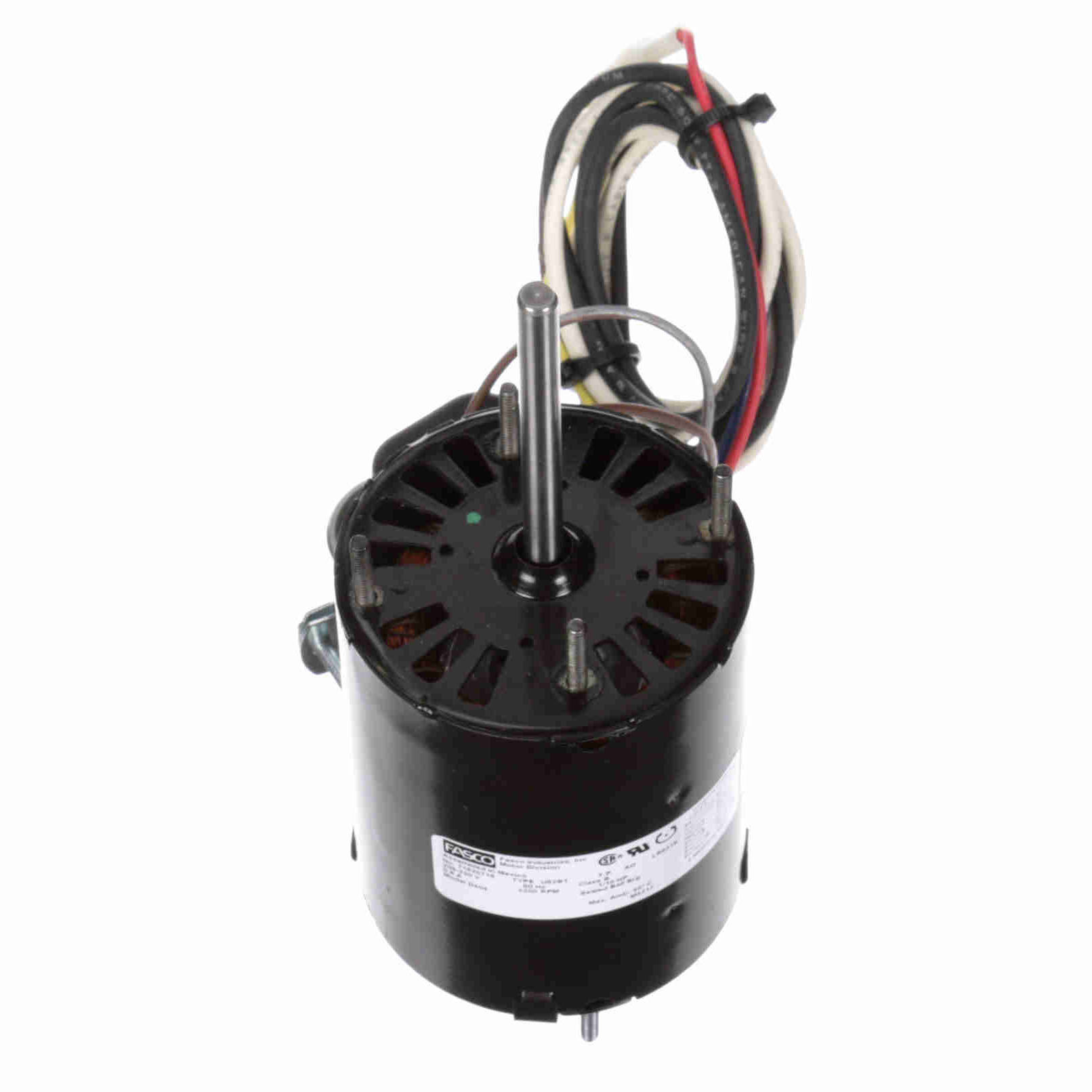

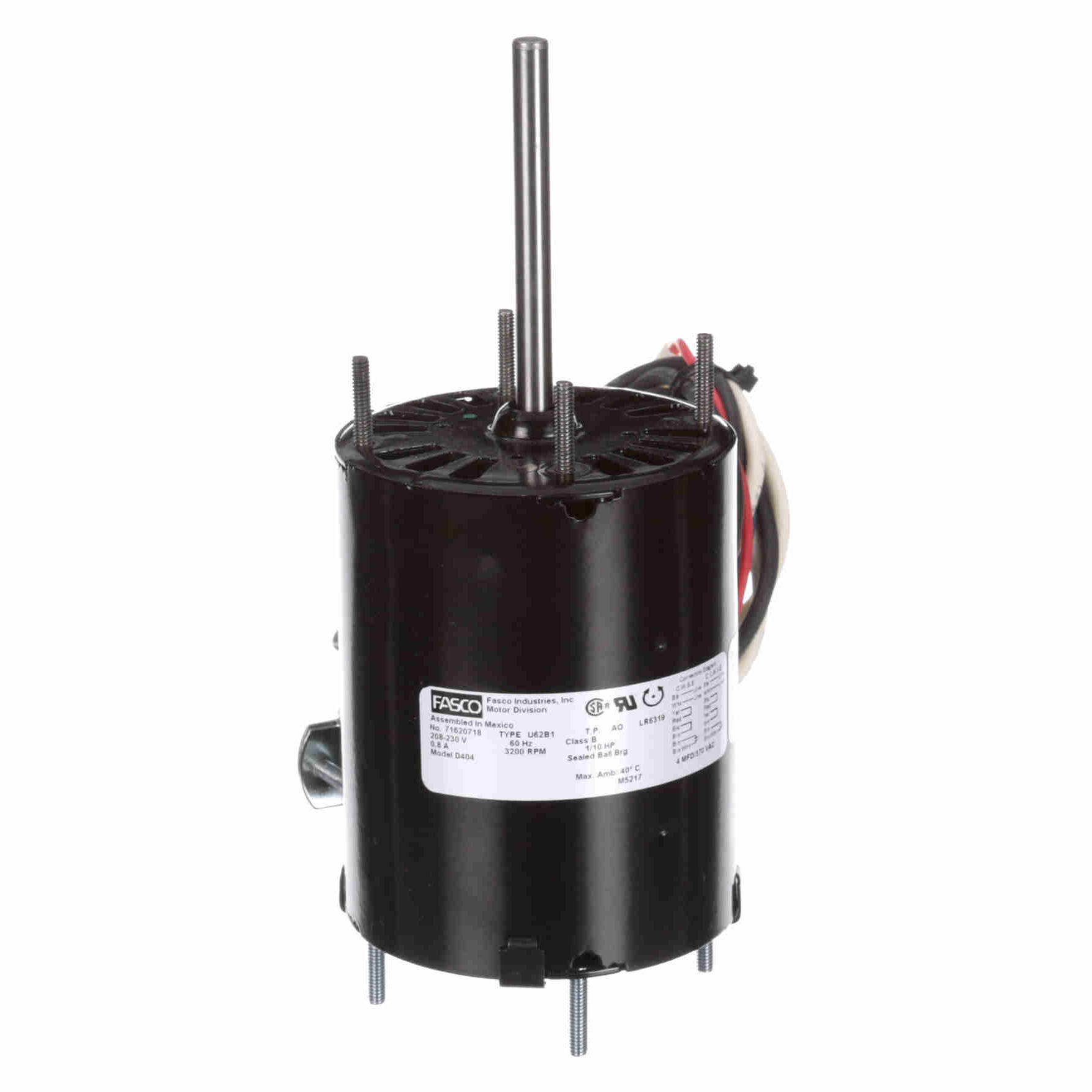

D404 Fasco 1/10HP Electric Motor, 3.3" Diameter, 3200RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D404

Selected accessories will also be added to cart
$340.97 / Each
Quantity:
Open, Air Over, 208-230VAC Single Phase 60Hz, Reversible, 0.312" x 3.25" Shaft, Extended Studs, PSC

Features

Features
  • OEM Direct Replacement Motor
  • 3.3" Diameter
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Opposite Lead End End-Frame, Enclosed Lead End End-Frame and Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 5/16" Diameter Shaft with Flat
  • 36" Leads
  • Extended Studs Shaft End and Opposite Shaft End

General Specifications

General Specifications
Model : Catalog No : D404
Part Description : 71620718.MOTOR.3.30" DIA..1/10 HP.1 SPD. Category : OEM Replacement
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 1/10 HP Output KW : 0.07 kW
Frequency : 60 Hz Voltage : 208-230 V
Current : .8 A Speed : 3200 RPM
Service Factor : 1 Phase : 1
Duty : Air Over Insulation Class : B
Frame : 3.3 Enclosure : Open Air Over
Overload Protector : Thermally Protected Ambient Temperature : 40 °C
UL : Recognized CSA : Y
CE : N

Technical Specifications

Technical Specifications
Electrical Type : Permanent Split Capacitor Starting Method : Across The Line
Poles : 2 Rotation : Reversible
Mounting : Extended Studs Drive End Bearing : Ball
Opp Drive End Bearing : Ball Frame Material : Steel
Shaft Type : Flat Overall Length : 7.80 in
Frame Length : 4.01 in Shaft Diameter : 0.312 in
Shaft Extension : 3.25 in UPC : 815585029861
Weight : 5.00 LB
