/3.3" Diameter/D402 Fasco 1/60HP Fan & Blower Electric Motor, 3000RPM
Click Image to Expand

Product ID: D402

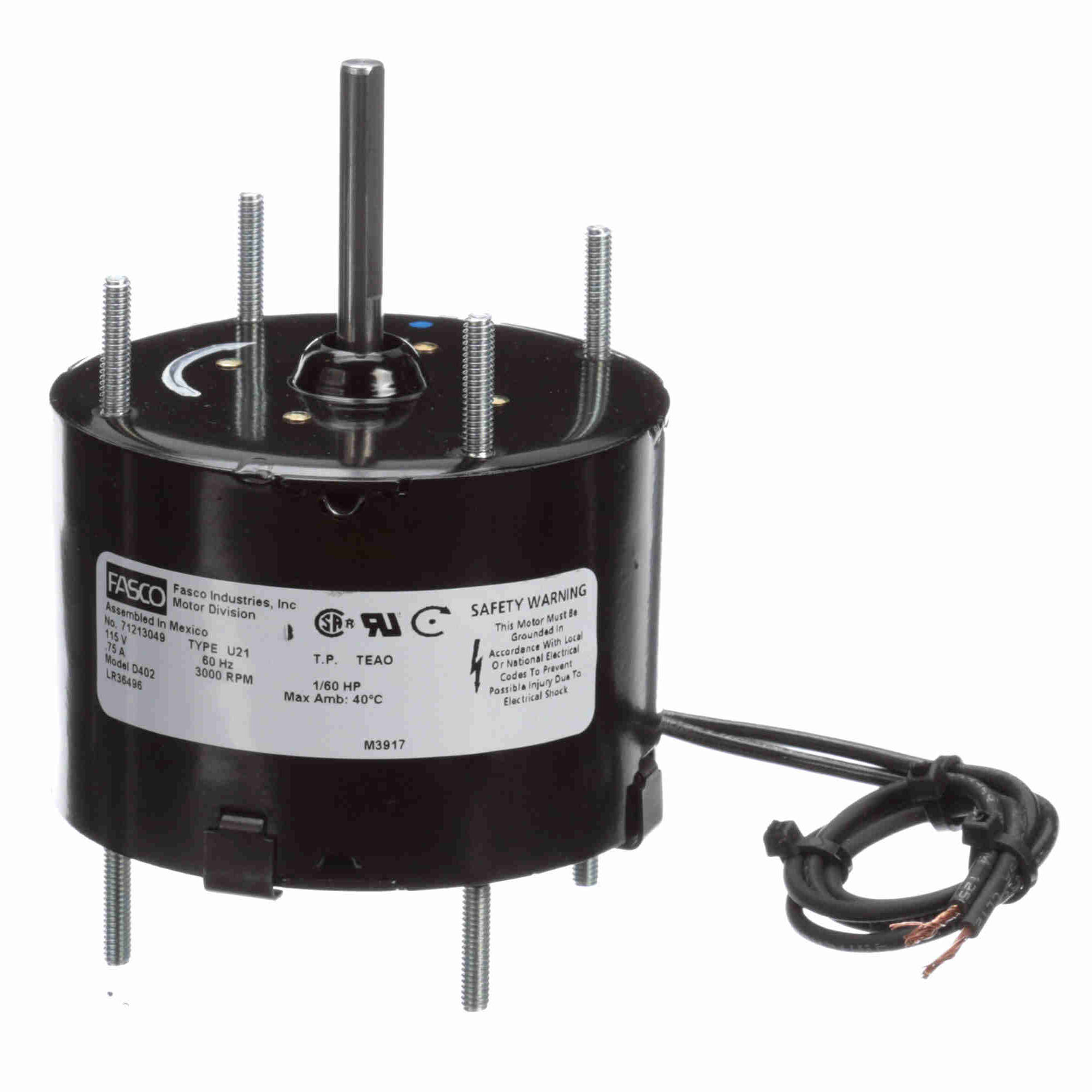

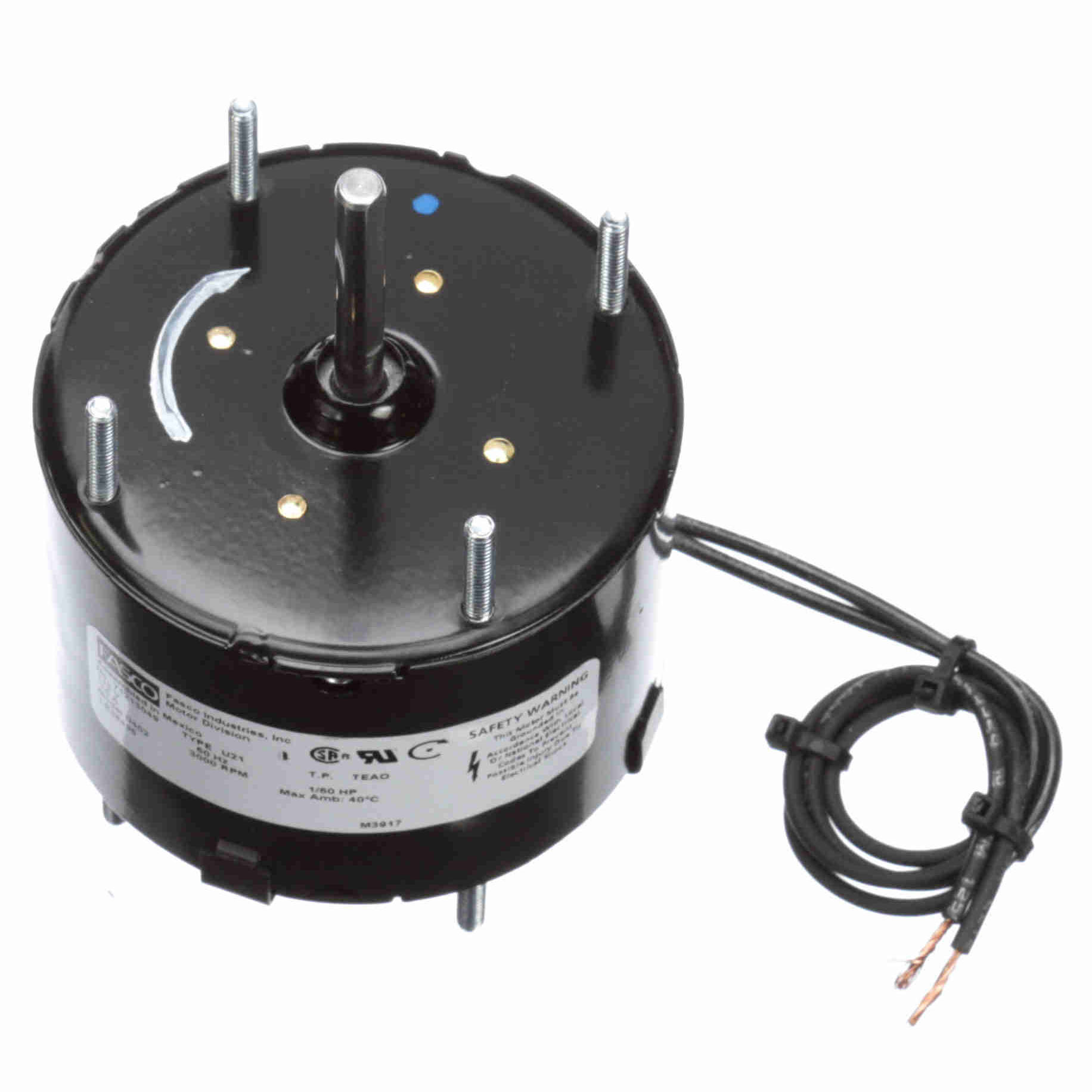

D402 Fasco 1/60HP Fan & Blower Electric Motor, 3000RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D402

Selected accessories will also be added to cart
$82.97 / Each
Quantity:
TEAO, 3.3" Diameter, 115VAC 60Hz Single Phase, Extended Studs, Sleeve Bearings, 1/4" x 1.75" Shaft, CWSE

Features

  • General Purpose Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/4" Diameter Shaft with Flat
  • 11" Leads
  • Extended Studs Shaft End and Lead End

General Specifications

UPC: 815585029847 Weight: 2 LB
Packaged Length: 8 IN Packaged Width: 3.38 IN
Packaged Height: 3.38 IN

Nameplate Specifications

Output HP: 1/60 Hp Output KW: 0.01 kW
Frequency: 60 Hz Voltage: 115 V
Current: .75 A Speed: 3000 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: B
Frame: 3.3 Enclosure: Totally Enclosed
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 2 Rotation: Clockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Overall Length: 4.44 in
Frame Length: 2.14 in Shaft Diameter: 0.250 in
Shaft Extension: 1.75 in
