/4.4" Diameter/D338 Fasco 1/6, 1/10, 1/12, 1/15HP Electric Motor, 1550RPM
Click Image to Expand

Product ID: D338

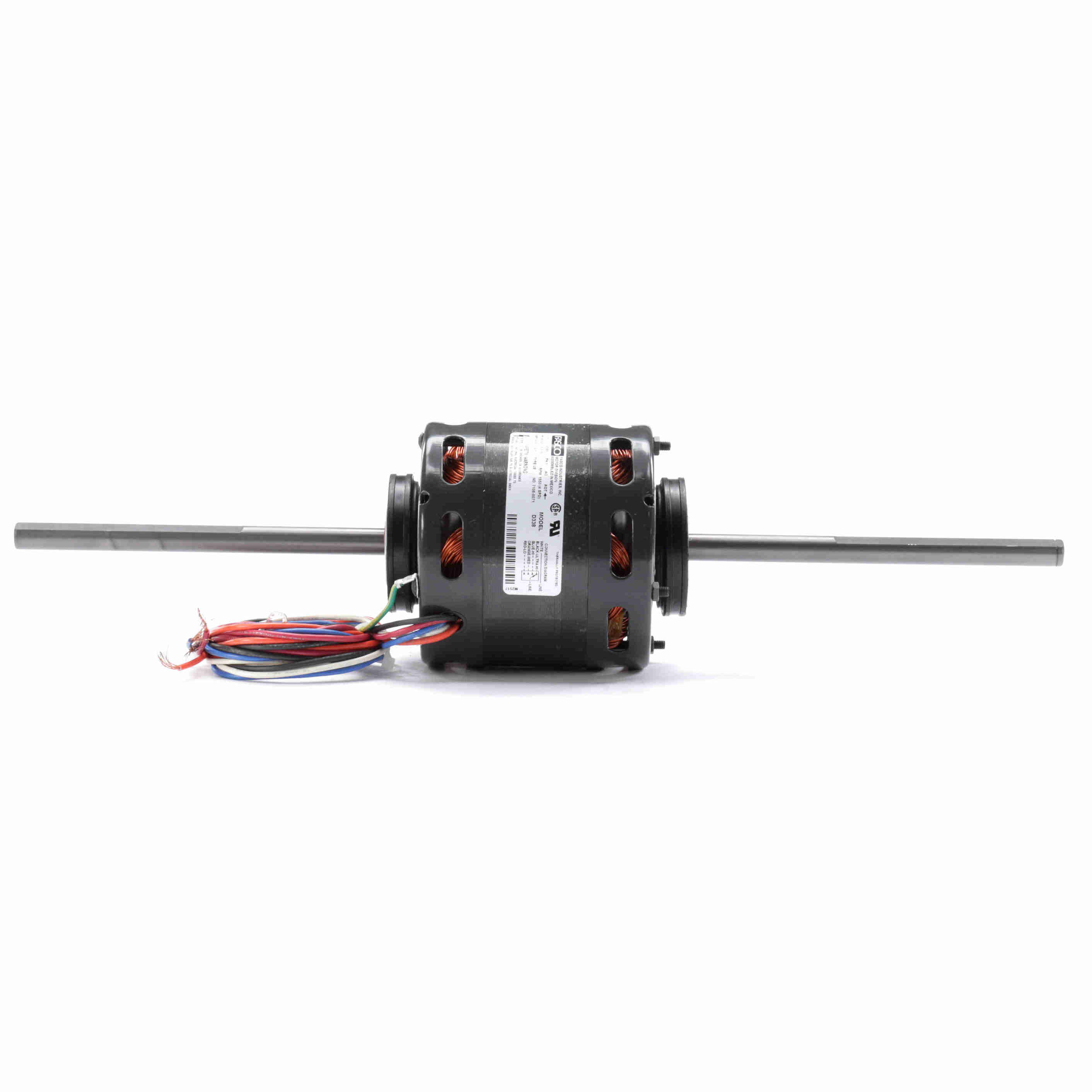

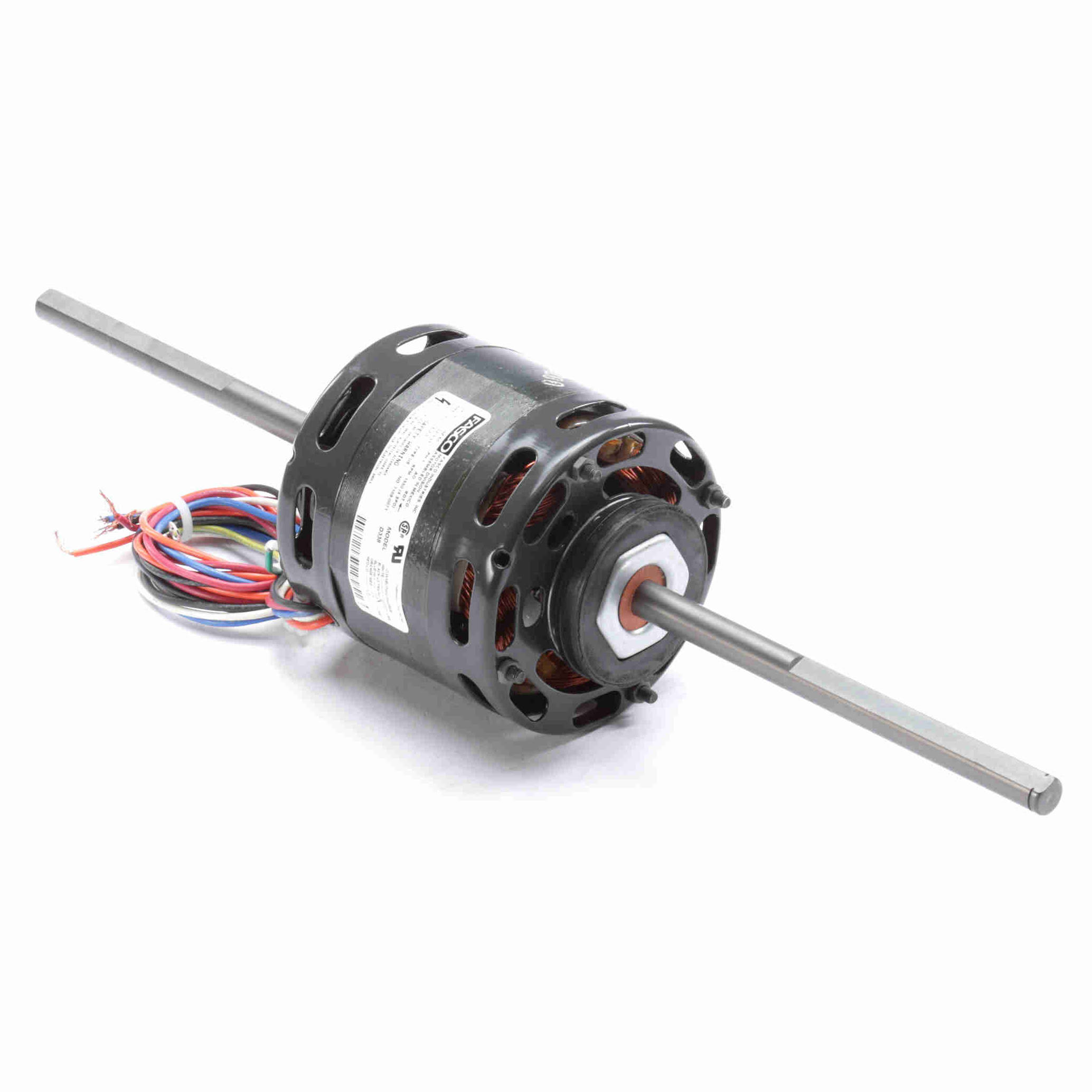

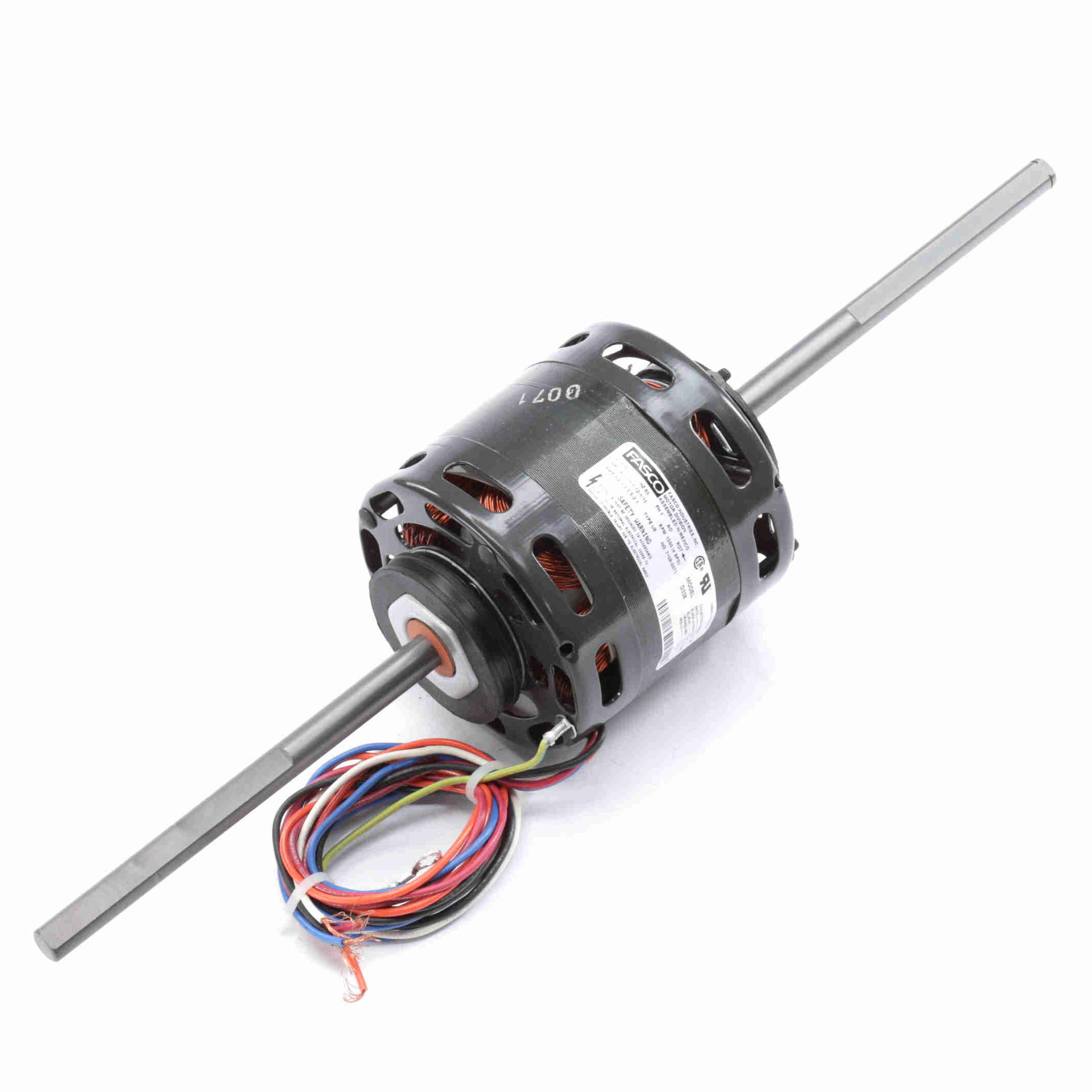

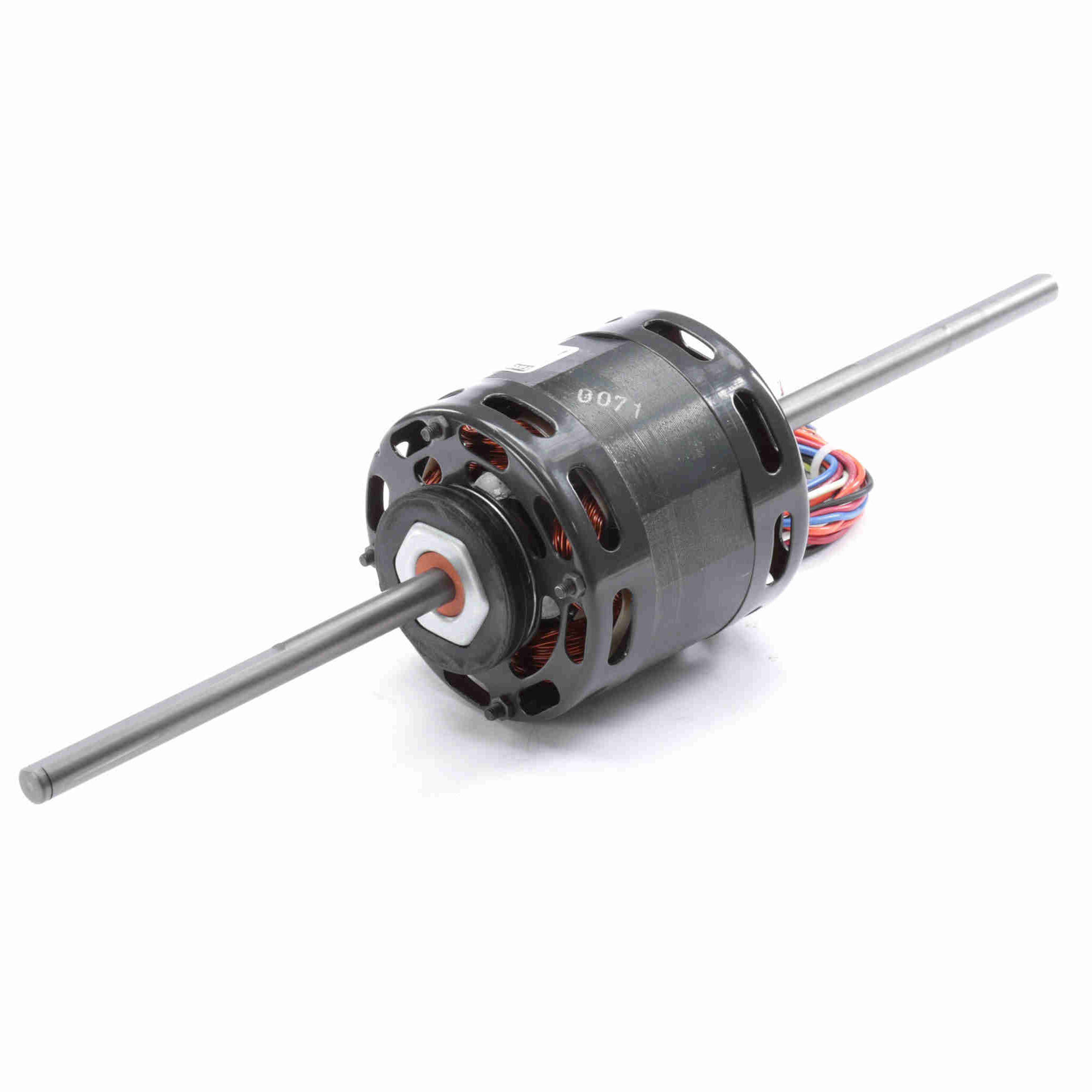

D338 Fasco 1/6, 1/10, 1/12, 1/15HP Electric Motor, 1550RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D338

Selected accessories will also be added to cart
$132.97 / Each
Quantity:
4 Speed, Open Air Over, 115VAC Single Phase 60Hz, Reversible, 7.25" x 0.50" x 7.25" Shaft, Sleeve Bearings, Resilient Rings, Shaded Pole

Features

Features
  • Fan Coil - Air-Conditioning - Heating Unit Motor
  • 4.4" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Double Shaft with Flat
  • 30" Leads
  • Resilient Mounting Rings

General Specifications

General Specifications
Model : Catalog No : D338
Part Description : 71080071.MOTOR.4.40" DIA..1/6 HP.4 SPD. Category : Fan Coil / Room Air Conditioner
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 1/6-1/10-1/12-1/15 HP Output KW : 0.13 kW
Frequency : 60 Hz Voltage : 115 V
Current : 5.4-3.2-2.5-2.1 A Speed : 1550 RPM
Service Factor : 1 Phase : 1
Duty : Air Over Insulation Class : A
Frame : 4.4 Enclosure : Open Air Over
Overload Protector : Thermally Protected Ambient Temperature : 40 °C
UL : Recognized CSA : Y
CE : N

Technical Specifications

Technical Specifications
Electrical Type : Shaded Pole Starting Method : Across The Line
Poles : 4 Rotation : Reversible
Mounting : Resilient Rings Drive End Bearing : Sleeve
Opp Drive End Bearing : Sleeve Frame Material : Na
Shaft Type : Flat Overall Length : 18.63 in
Shaft Diameter : 0.500 in Shaft Extension : 7.25 in
UPC : 815585029649 Weight : 10.00 LB
