/4.4" Diameter/D336 Fasco 1/10,1/15,1/25HP Fan/Room Air Conditioner Electric Motor, 1550RPM
Click Image to Expand

Product ID: D336

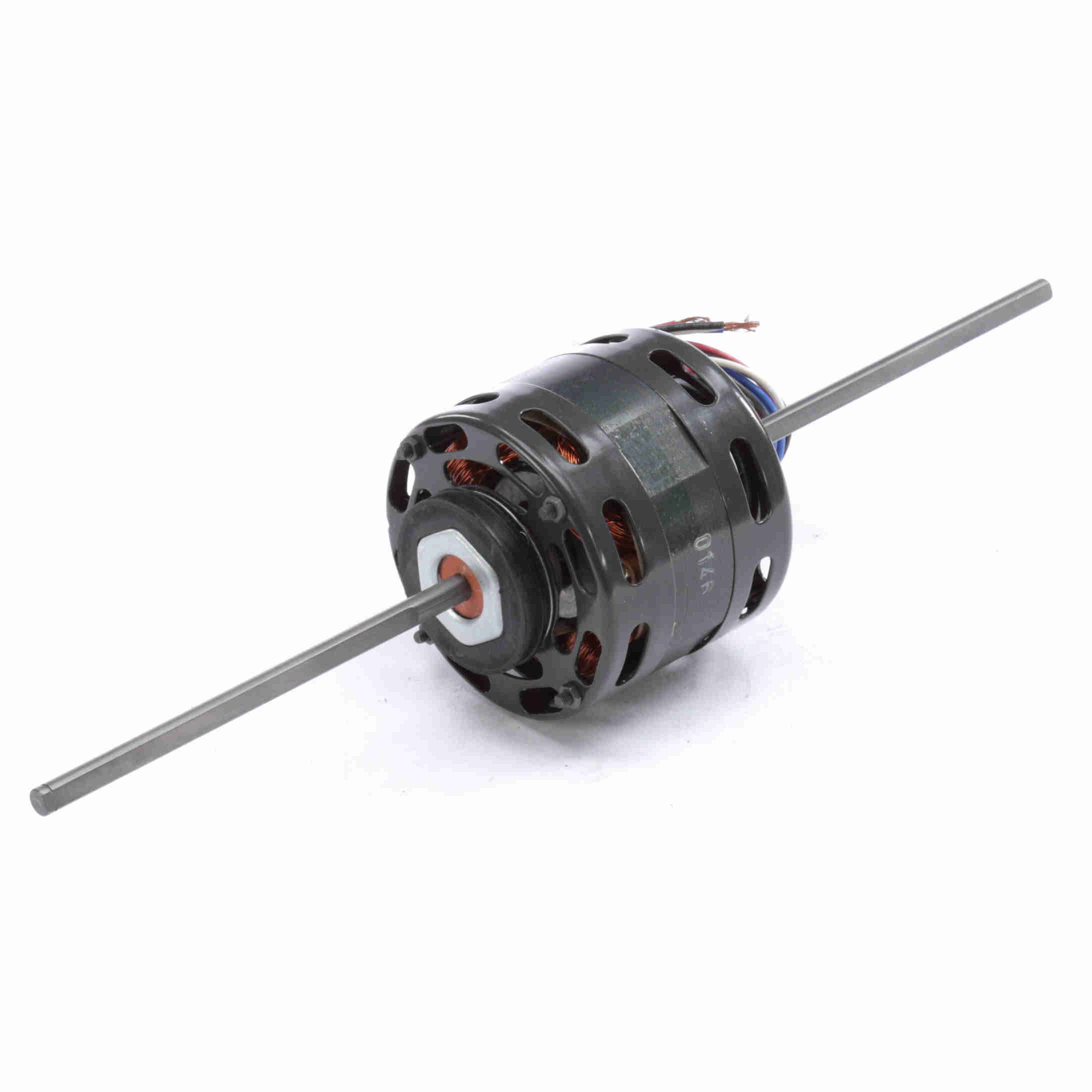

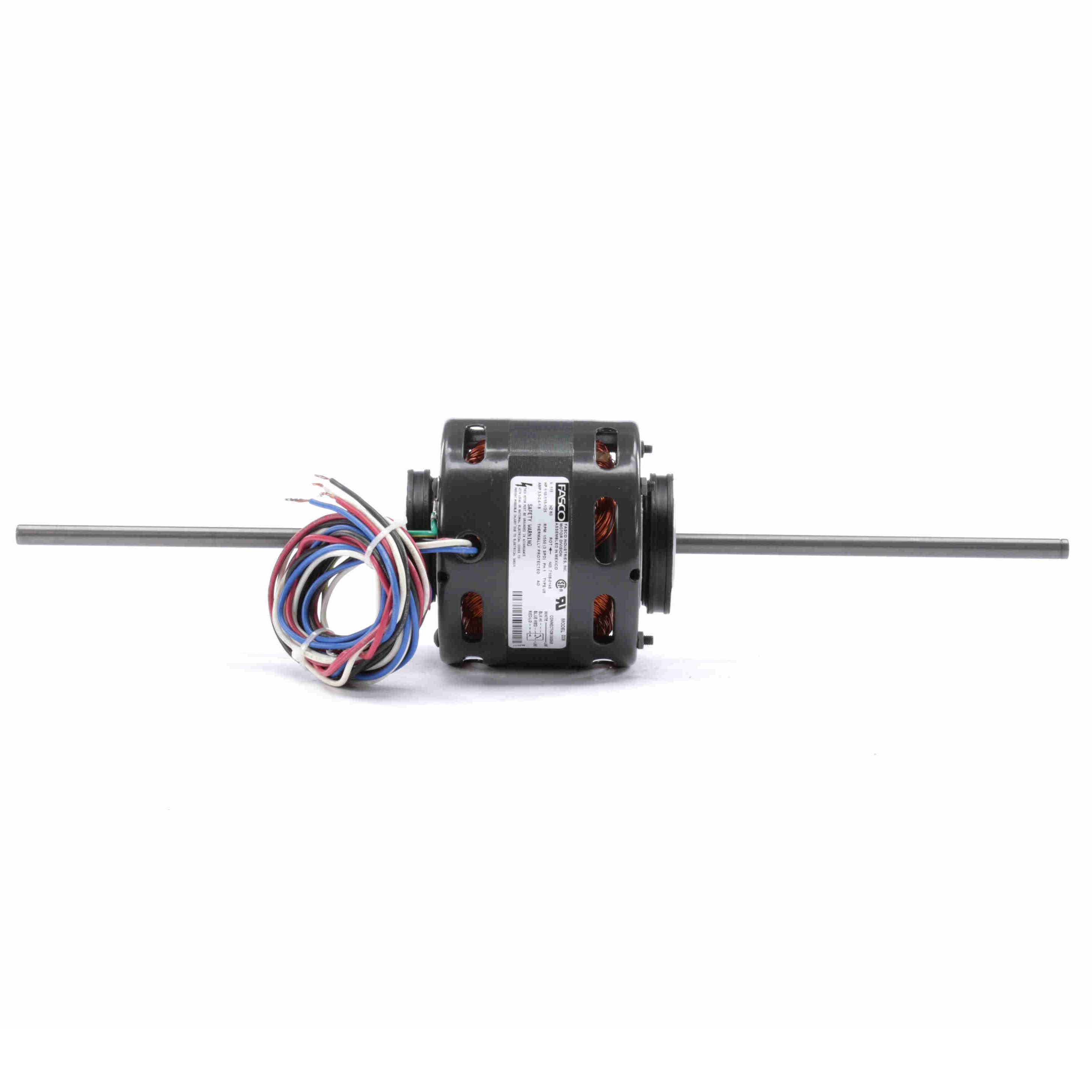

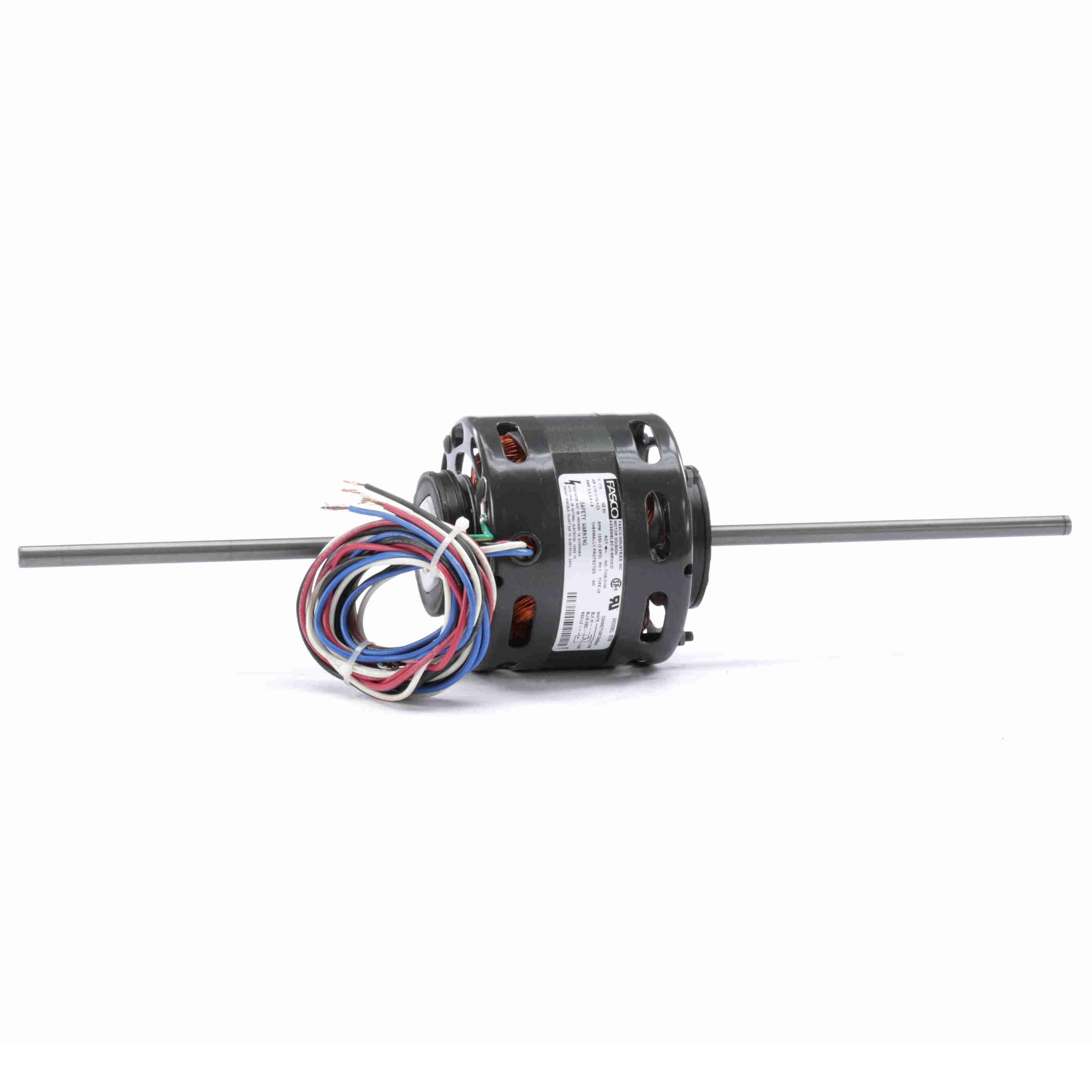

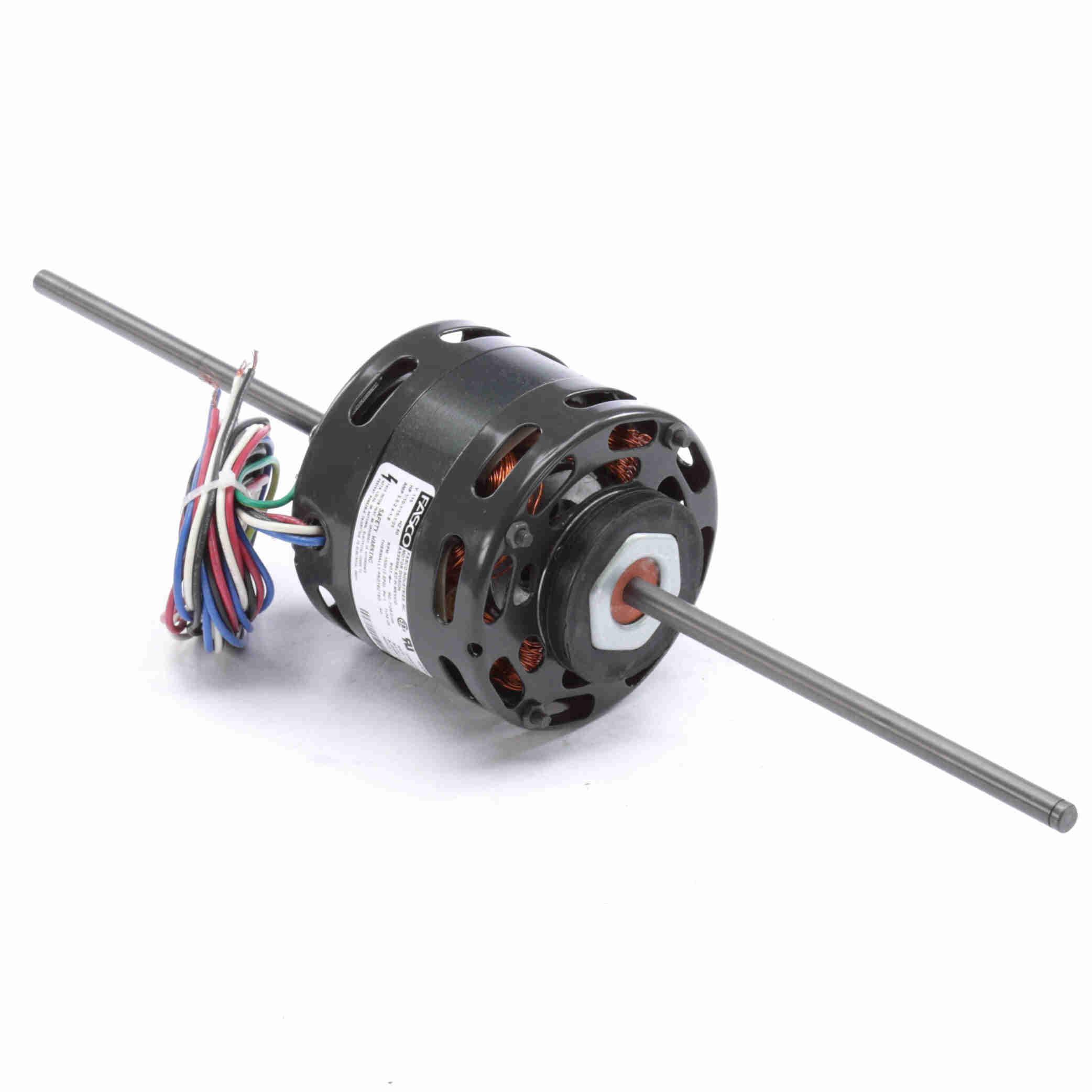

D336 Fasco 1/10,1/15,1/25HP Fan/Room Air Conditioner Electric Motor, 1550RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D336

Selected accessories will also be added to cart
$237.97 / Each
Quantity:
3 Speed, Open Air Over, 4.4" Diameter, 115VAC Single Phase 60Hz, Shaded Pole, Resilient Rings, Reversible, Sleeve Bearings, 3/8" x 7.5" Shaft

Features

  • Fan Coil - Air-Conditioning - Heating Unit Motor
  • 4.4" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 3/8" Diameter Double Shaft with Flat
  • 60" Leads
  • Resilient Mounting Rings

General Specifications

UPC: 815585029625 Weight: 7.00 LB
Packaged Length: 4.38 IN Packaged Width: 4.38 IN
Packaged Height: 20 IN

Nameplate Specifications

Output HP: 1/10-1/15-1/25 Hp Output KW: 0.07 kW
Frequency: 60 Hz Voltage: 115 V
Current: 3.5-2.4-1.8 A Speed: 1550 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: A
Frame: 4.4 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Mounting: Resilient Rings Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Na
Shaft Type: Flat Overall Length: 18.51 in
Shaft Diameter: 0.375 in Shaft Extension: 7.5 in

Speed & Load Characteristics
