/Products/Electric Motors/Single Phase/Marathon/General Purpose/D315 Marathon 2HP General Purpose Electric Motor, 3600RPM
Click Image to Expand

Product ID: D315

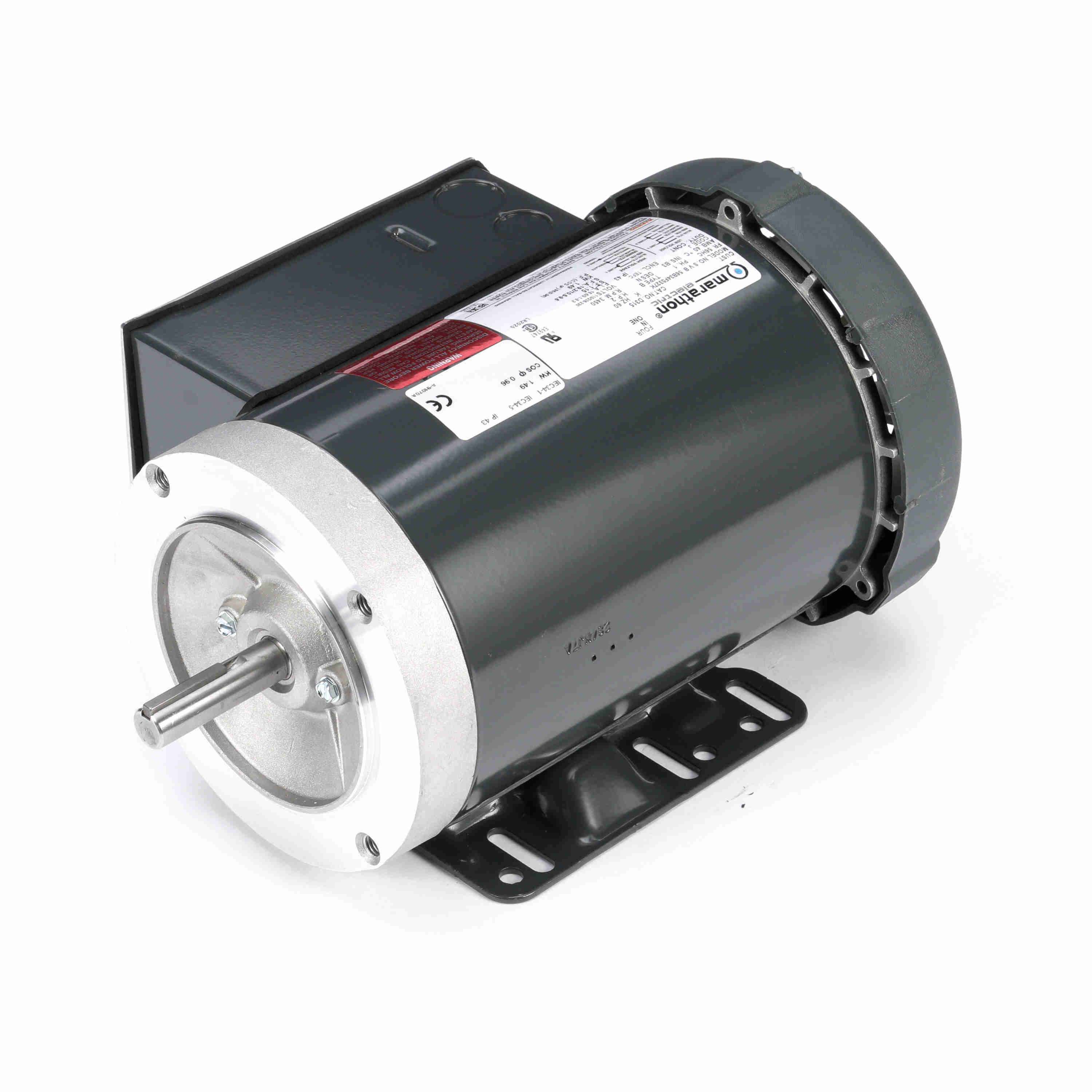

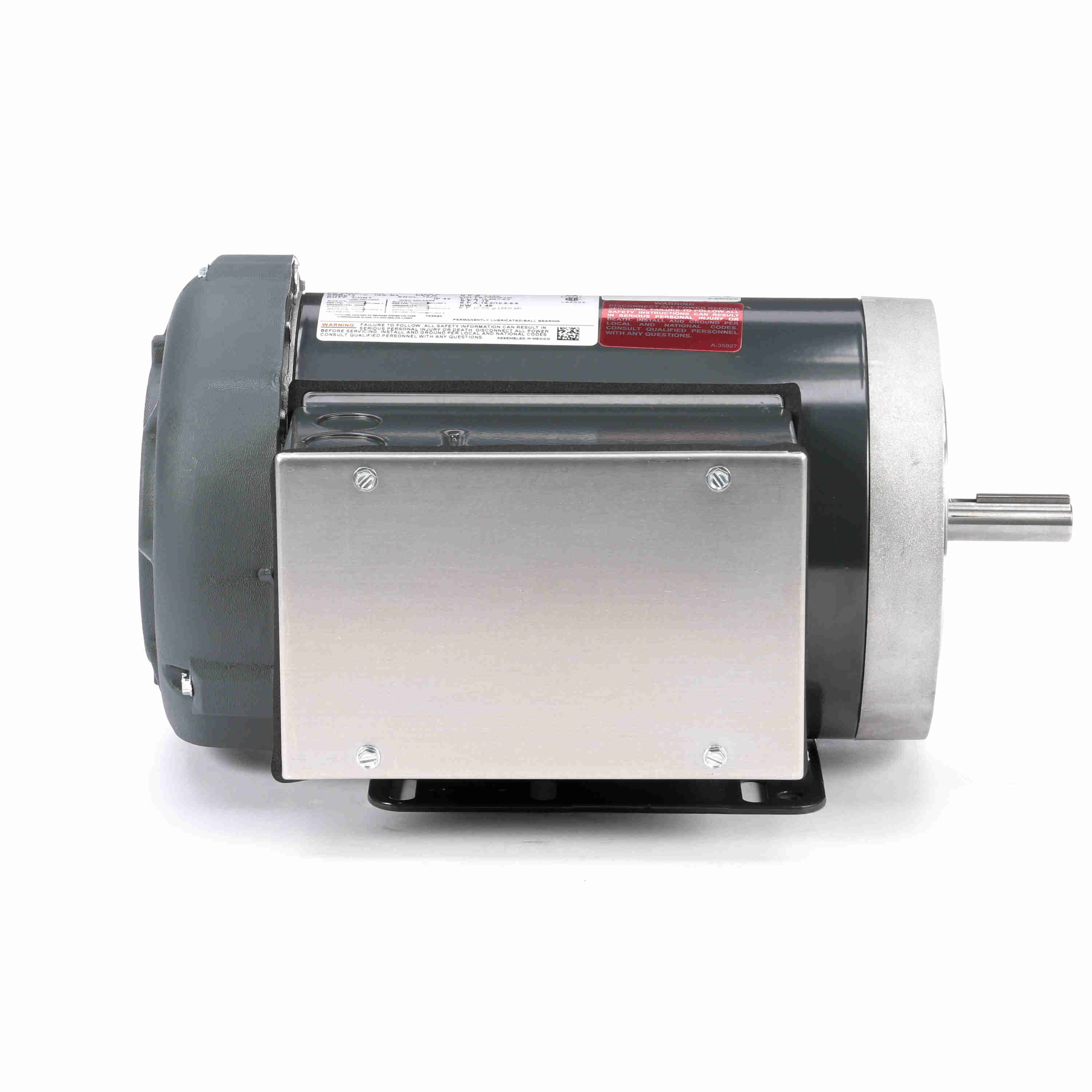

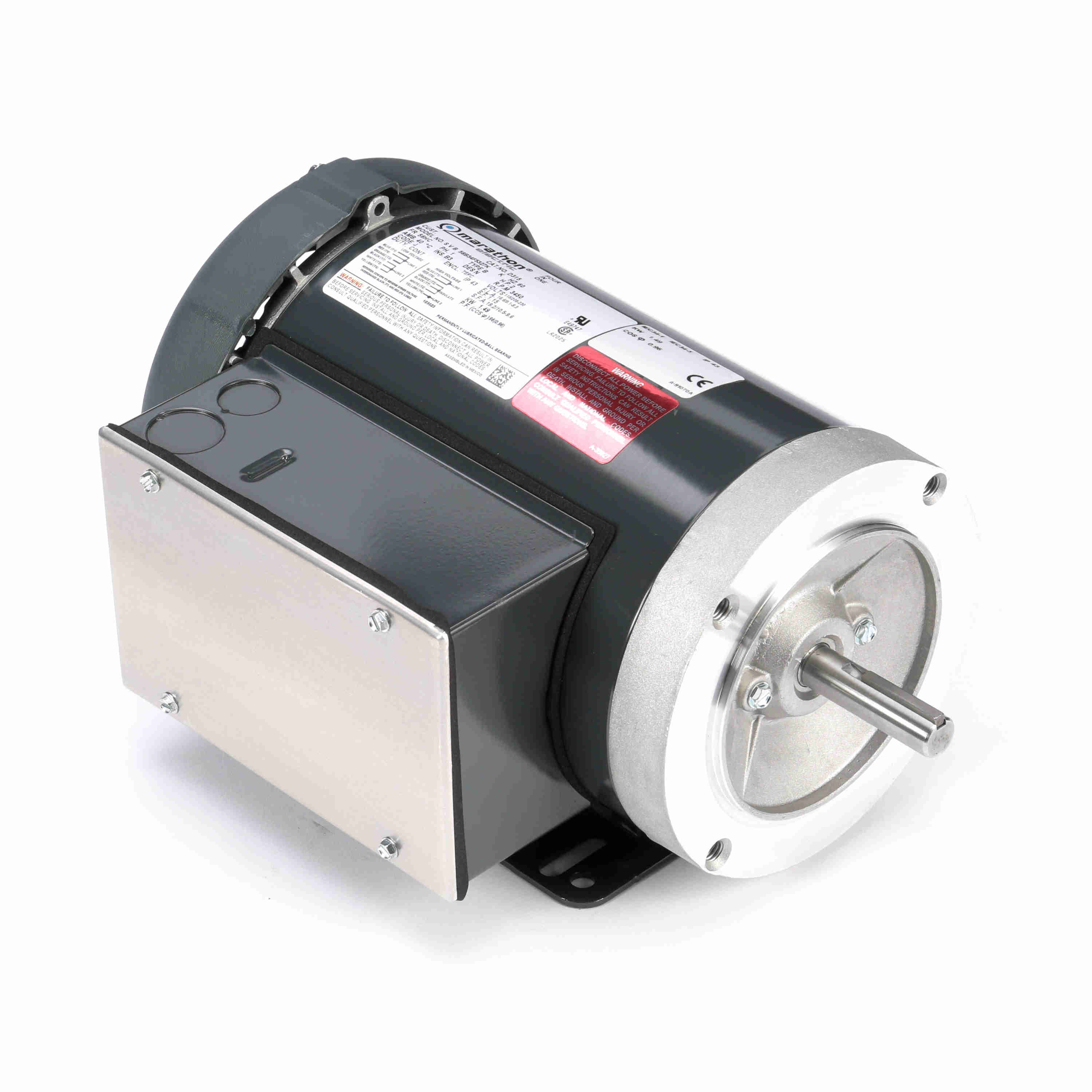

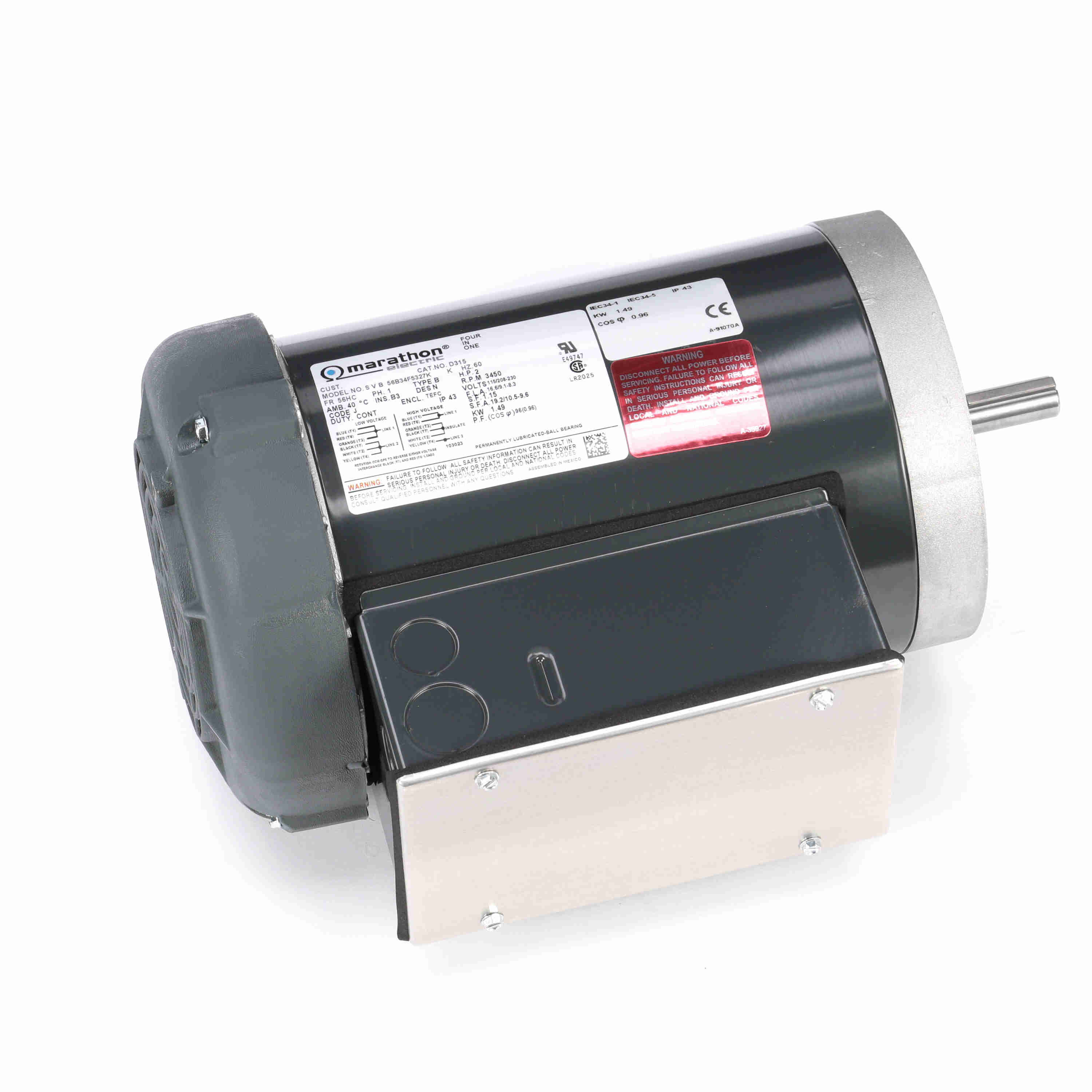

D315 Marathon 2HP General Purpose Electric Motor, 3600RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: D315

Selected accessories will also be added to cart
$789.97 / Each
Quantity:
TEFC, 56HC Frame, 115/208-230V Single Phase 60Hz, Bolt-on Base, 056B34F5327

Features

Features
  • Double sealed ball bearings, mechanically locked on shaft end
  • Heavy gauge steel constructions
  • Bolt-on, removable rigid base
  • Suitable for horizontal or vertical mounting
  • Capacitor start design for high starting torque
  • Capacitor start/capacitor run design for higher efficiency, as noted
  • Will accept brake kits, see Accessory section
  • Will accept drip cover kits, see Accessories section

General Specifications

General Specifications
Model :056B34F5327 Catalog No :D315
Part Description :2,3450,TEFC,56HC,1/60/115/208-230 Category :Totally Enclosed Fan Cooled (TEFC)
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :2 HP Output KW :1.5 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :16.6/9.4-8.3 A Speed :3450 RPM
Service Factor :1.15 Phase :1
Efficiency :79 % Duty :Continous
Insulation Class :B Design Code :N
KVA Code :J Frame :56HC
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :Y
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Capacitor Run Starting Method :Across The Line
Poles :2 Rotation :Selective Counterclockwise
Mounting :Bolt-on Base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :NEMA 56
Overall Length :13.31 in Frame Length :8.06 in
Shaft Diameter :0.625 in Shaft Extension :2.06 in
Assembly/Box Mounting :F1 Only UPC :722856009432
Weight :38.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up61.10736.06.72226.022911.400.02.00
Locked-Rotor61.30739.07.37247.0011.300.02.00
Break-Down32.10387.07.73259.03,1146.500.02.00
Full Load8.30100.02.98100.03,5001.890.02.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 2.10
  • 0.315
  • 0.0
  • 65.2
  • 3,600
  • 0.0
  • 0.00
  • 25 %
  • 3.30
  • 0.670
  • 56.1
  • 88.3
  • 3,577
  • 0.0
  • 0.74
  • 50 %
  • 4.90
  • 1.050
  • 70.8
  • 93.2
  • 3,555
  • 0.0
  • 1.47
  • 75 %
  • 6.65
  • 1.460
  • 76.4
  • 95.5
  • 3,530
  • 0.0
  • 2.22
  • 100 %
  • 8.30
  • 1.890
  • 78.5
  • 96.0
  • 3,510
  • 59.0
  • 2.98
  • 115 %
  • 9.60
  • 2.170
  • 79.0
  • 98.3
  • 3,500
  • 80.0
  • 3.45
  • 125 %
  • 10.70
  • 2.360
  • 79.2
  • 95.9
  • 3,489
  • 0.0
  • 3.77
  • 150 %
  • 13.10
  • 2.880
  • 77.7
  • 95.6
  • 3,456
  • 0.0
  • 4.56
  • 175 %
  • 16.00
  • 3.490
  • 74.7
  • 94.8
  • 3,413
  • 0.0
  • 5.38
  • 200 %
  • 20.10
  • 4.300
  • 69.4
  • 93.0
  • 3,341
  • 0.0
  • 6.29
