5.0" Diameter (42 Frame)
/
D260 Fasco 1/6HP OEM Replacement Electric Motor, 1075RPM
Click Image to Expand
Previous Image
Next Image
Previous
Next
Previous
Next
Product ID: D260

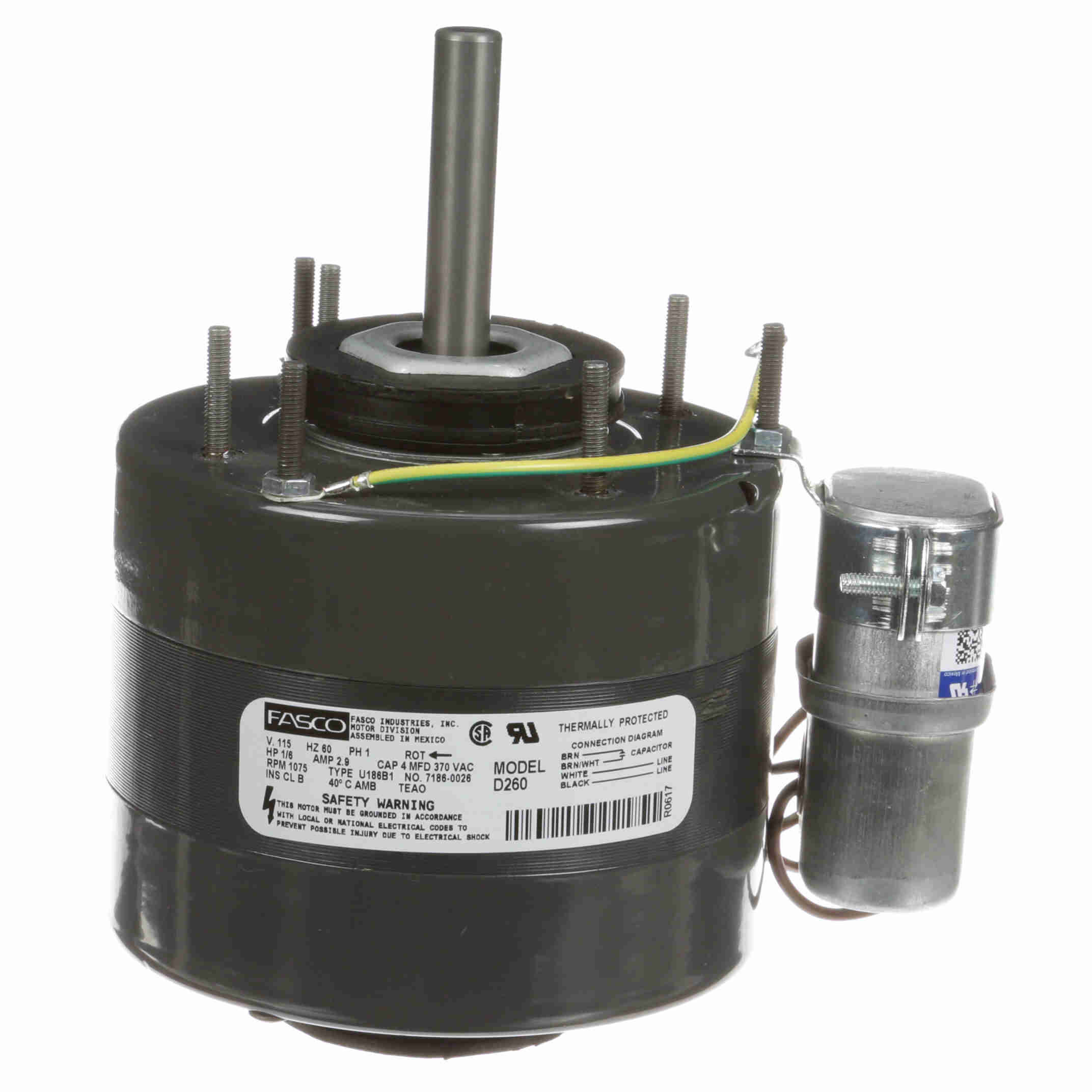

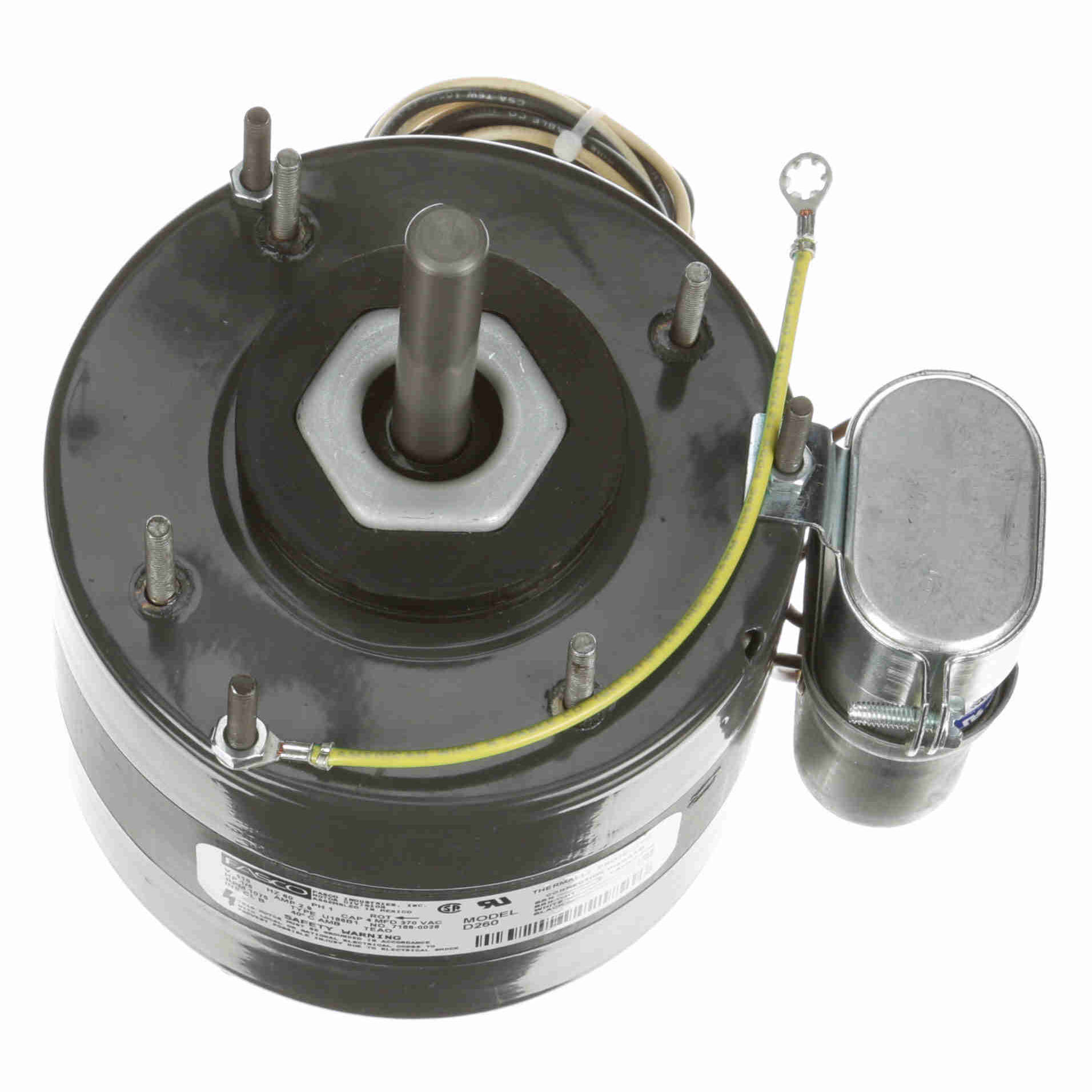

D260 Fasco 1/6HP OEM Replacement Electric Motor, 1075RPM
MFG: Fasco (RegalRexnord)
MFG Part Number: D260
Selected accessories will also be added to cart
$329.97 / Each
Quantity:
TEAO, 42 Frame, 115VAC 60Hz Single Phase, Resilient Rings, Sleeve Bearings, CW Shaft End, 1/2" Shaft
Details
Features
OEM Direct Replacement Motor
5" Diameter - 42 Frame
Permanent Split Capacitor
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2" Diameter Shaft with Flat
58" Leads with .5" Strip
Extended Studs Shaft End, Resilient Mounting Ring Shaft end and Lead End
General Specifications
UPC:
815585029359
Weight:
10.00 LB
Packaged Length:
6.63 IN
Packaged Width:
5.13 IN
Packaged Height:
10 IN
Nameplate Specifications
Output HP:
1/6 Hp
Output KW:
0.13 kW
Frequency:
60 Hz
Voltage:
115 V
Current:
2.9 A
Speed:
1075 rpm
Service Factor:
1
Phase:
1
Duty:
Continuous
Insulation Class:
B
Frame:
42
Enclosure:
Totally Enclosed
Thermal Protection:
Automatic
Ambient Temperature:
40 °C
UL:
Recognized
CSA:
Y
CE:
N
Technical Specifications
Electrical Type:
Permanent Split Capacitor
Starting Method:
Across The Line
Poles:
6
Rotation:
Clockwise Shaft End
Mounting:
Resilient Rings
Drive End Bearing:
Sleeve
Opp Drive End Bearing:
Sleeve
Frame Material:
Na
Shaft Type:
Flat
Overall Length:
8.04 in
Shaft Diameter:
0.500 in
Shaft Extension:
3 in
