/Products/Electric Motors/DC/Baldor/DC Power Motor/D2305 Baldor 1.5HP DC Electric Motor, 1750RPM

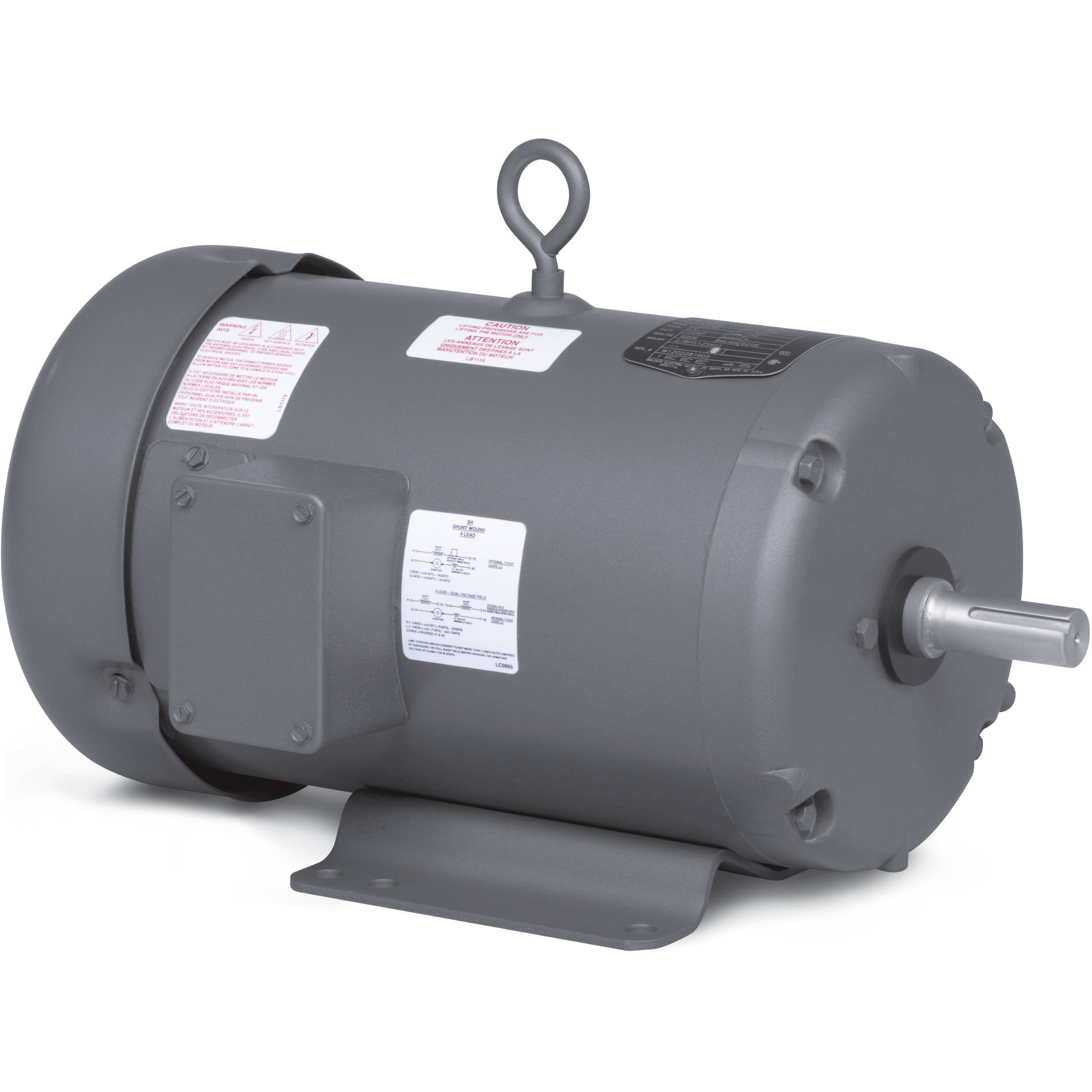

D2305 Baldor 1.5HP DC Electric Motor, 1750RPM
Enlarge Photo

Product ID: D2305

D2305 Baldor 1.5HP DC Electric Motor, 1750RPM

MFG: Baldor Electric Company
MFG Part Number: D2305

Selected accessories will also be added to cart
$4,599.97 / Each
Quantity:
TEFC, 184 Frame, 230VDC, 3636D, Rolled Steel, Rigid Base, 7/8" Keyed Shaft

Specifications

Specs

Armature Voltage 230 V
Base Speed 1750 rpm
Enclosure TEFC
Field Voltage 230 V
Frame 184
Frame Material Steel
Output Power 1.500 HP
XP Class and Group None
Agency Approvals CSA
UR
Ambient Temperature 40 °C
Armature Current 5.8 a
Armature Inertia 30.342 lb-ft2
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Feedback Device NO FEEDBACK
Field Winding Type COMPOUND
Heater Indicator No Heater
Insulation Class F
Lifting Lugs Standard Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 2 @ 18 AWG
2 @ 12 AWG
Mounting Arrangement F1
Overall Length 16.79 IN
Product Family WP Below Decks Marine Duty
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS COMPLIANT
Service Factor 1.00
Shaft Diameter 0.875 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Motor Standards NEMA
XP Division Not Applicable

Applications

  • Cranes and Hoists
  • Conveyors
  • Augers
  • Marine Duty Applications

Features

  • 20% compound wound
  • Weather proof, VPI insulation meets IEEE 45 specifications
  • Suitable for mounting in any position
  • Continuous duty
  • Easy access brushes
  • Can be powered from generators or batteries

Nameplate

Nameplate

CAT.NO. D2305
SPEC. 36-5313Z114
HP 1.5 ENCL TEFC
RPM 1750
FRAME 184 TYPE 3636D
ARM V 230 ARM A 5.8
FLD V 230 FLD A .3
INSUL F AMB. 40
DUTY CONT SUPPLY A
BRG/DE 6206 BRG/ODE 6205
BRUSHES 2/BP5125A01
-- BLANK
SER.
BLANK IEEE 45
APRV-CSA APRV-UL
NP2801L

Performance

Performance

Performance at 230 Arm V, 1.5 HP

Typical performance; not guaranteed values.

General Characteristics

Armature Resistance 1.3495 ohms
Series Winding Resistance 0.2714 ohms
Armature Inductance
Maximum Rated RPM With Field Weakening
Commutating Winding Resistance 0.8124 ohms
Shunt Winding Resistance 739.9142 ohms
Armature Inertia 30.3419 LI²
Maximum Allowable Inrush Amps

Load Characteristics

Load Point 1 2 3 4 5 6 7
Armature Amps 0.6 3.1 4.25 5.55 6.7 8.1 9.3
RPM 1861 1765 1721 1675 1643 1613 1579
Torque 0 2.25 3.375 4.5 5.625 6.75 7.875
