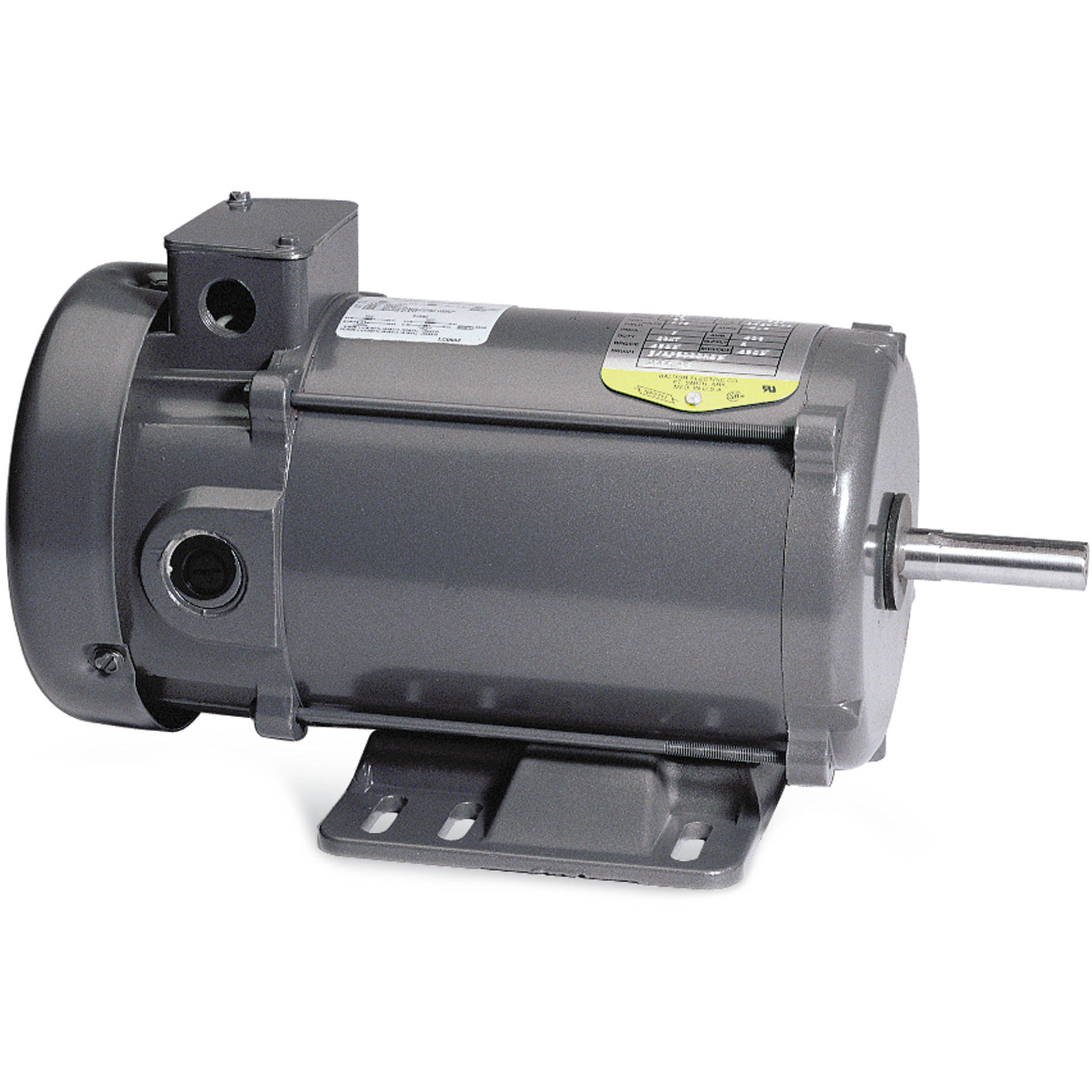

D2303 Baldor 3/4HP DC Electric Motor, 1750RPM
Enlarge Photo

Product ID: D2303

D2303 Baldor 3/4HP DC Electric Motor, 1750RPM

MFG: Baldor Electric Company
MFG Part Number: D2303

Selected accessories will also be added to cart
$2,299.97 / Each
Quantity:
TEFC, 56 Frame, 230VDC, 3428D, Rolled Steel, Rigid Base, 5/8" Keyed Shaft

Specifications

Specs

Armature Voltage 230 V
Base Speed 1750 rpm
Enclosure TEFC
Frame 56
Frame Material Steel
Output Power 0.750 HP
XP Class and Group None
Agency Approvals CSA
UR
Ambient Temperature 40 °C
Armature Current 3.3 a
Armature Inertia 6.552 lb-ft2
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
Drip Cover No Drip Cover
Duty Rating CONT
Feedback Device NO FEEDBACK
Field Winding Type COMPOUND
Heater Indicator No Heater
Insulation Class F
Lifting Lugs No Lifting Lugs
Motor Lead Exit Ko Box
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 2 @ 18 AWG
2 @ 14 AWG
Mounting Arrangement F1
Overall Length 14.04 IN
Product Family WP Below Decks Marine Duty
Pulley End Bearing Type Sealed Bearing
RoHS Status ROHS COMPLIANT
Service Factor 1.00
Shaft Diameter 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Motor Standards NEMA
XP Division Not Applicable

Applications

  • Cranes and Hoists
  • Conveyors
  • Augers
  • Marine Duty Applications

Features

  • 20% compound wound
  • Weather proof, VPI insulation meets IEEE 45 specifications
  • Suitable for mounting in any position
  • Continuous duty
  • Easy access brushes
  • Can be powered from generators or batteries

Nameplate

Nameplate

CAT.NO. D2303
SPEC. 34-6121-3118
HP .75 ENCL TEFC
RPM 1750
FRAME 56 TYPE 3428D
ARM V 230 ARM A 3.3
FLD V FLD A
INSUL F AMB. 40
DUTY CONT SUPPLY A
BRG/DE 6203 BRG/ODE 6203
BRUSHES 2/BP5000H03
IEEE 45 BLANK
SER.
BLANK --
APRV-CSA APRV-UL
NP2801L

Performance

Performance

Performance at 230 Arm V, 0.75 HP

Typical performance; not guaranteed values.

General Characteristics

Armature Resistance 4.8044 ohms
Series Winding Resistance 1.4374 ohms
Armature Inductance
Maximum Rated RPM With Field Weakening
Commutating Winding Resistance
Shunt Winding Resistance 743.473 ohms
Armature Inertia
Maximum Allowable Inrush Amps

Load Characteristics

Load Point 1 2 3 4 5 6 7
Armature Amps 0.74 1.37 2.01 2.68 3.31 3.99 4.66
RPM 1995 1936 1876 1808 1750 1687 1640
Torque 0 0.563 1.125 1.688 2.25 2.813 3.375

Performance Curves
