/3.3" Diameter/D215 Fasco 1/20HP Fan & Blower Electric Motor, 3000RPM
Click Image to Expand

Product ID: D215

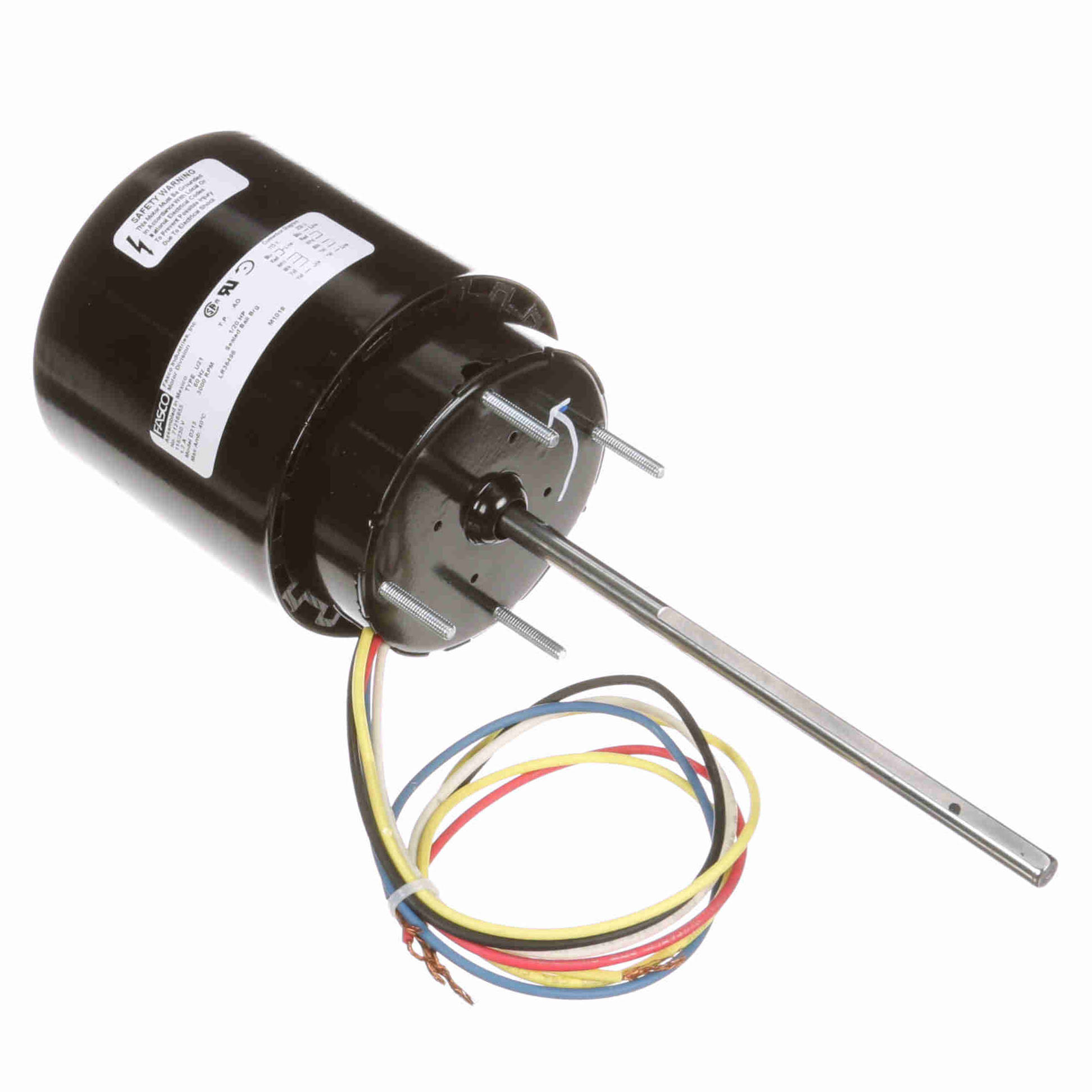

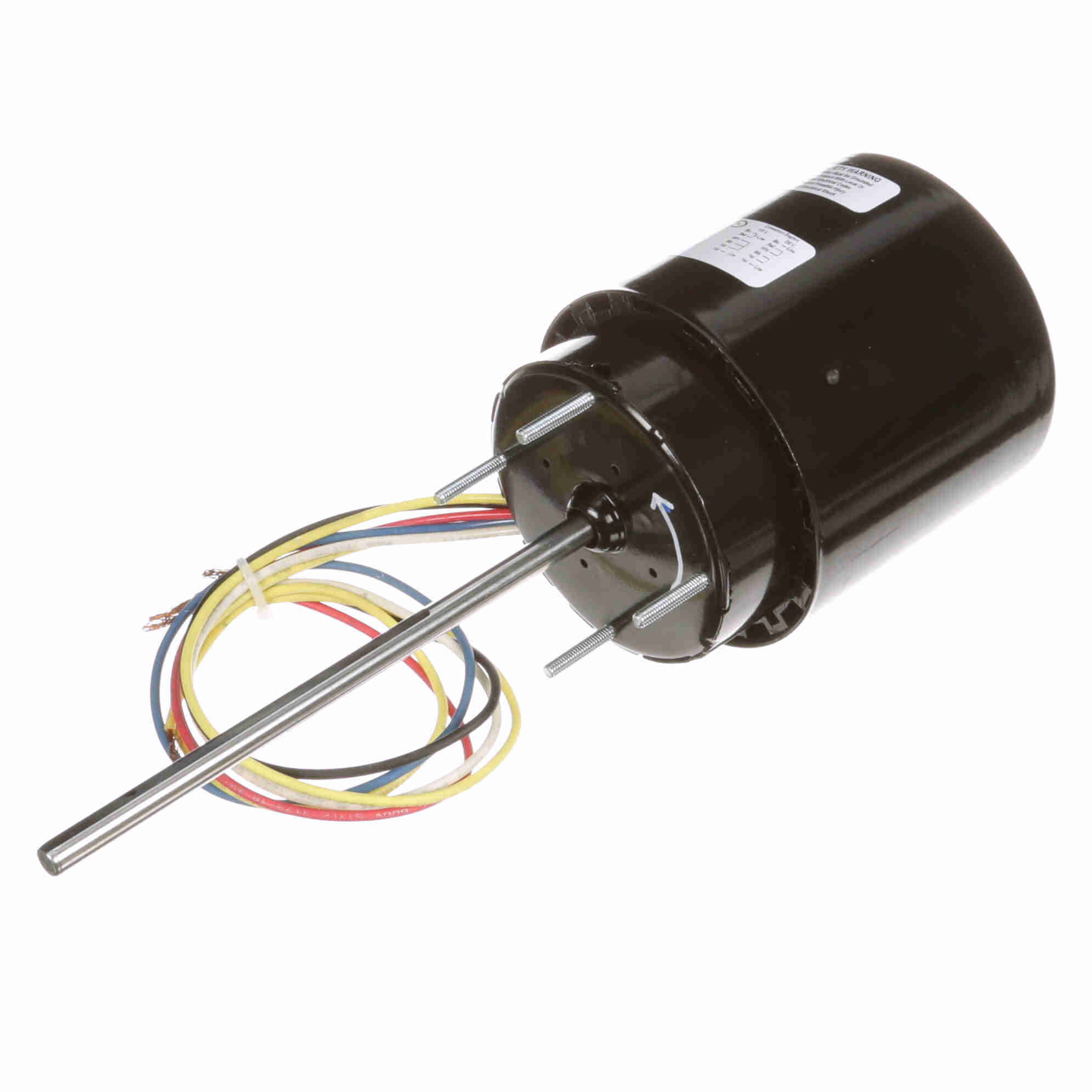

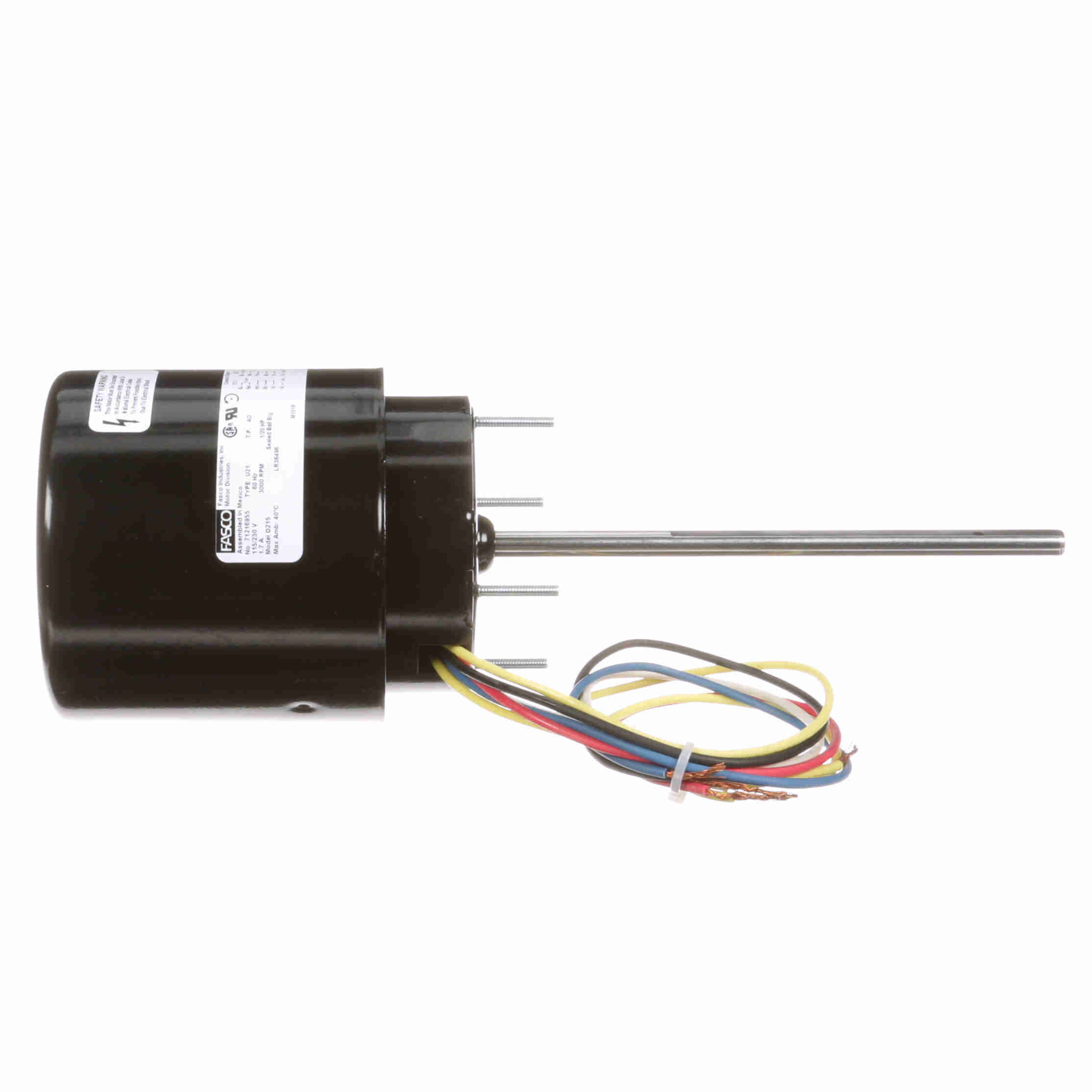

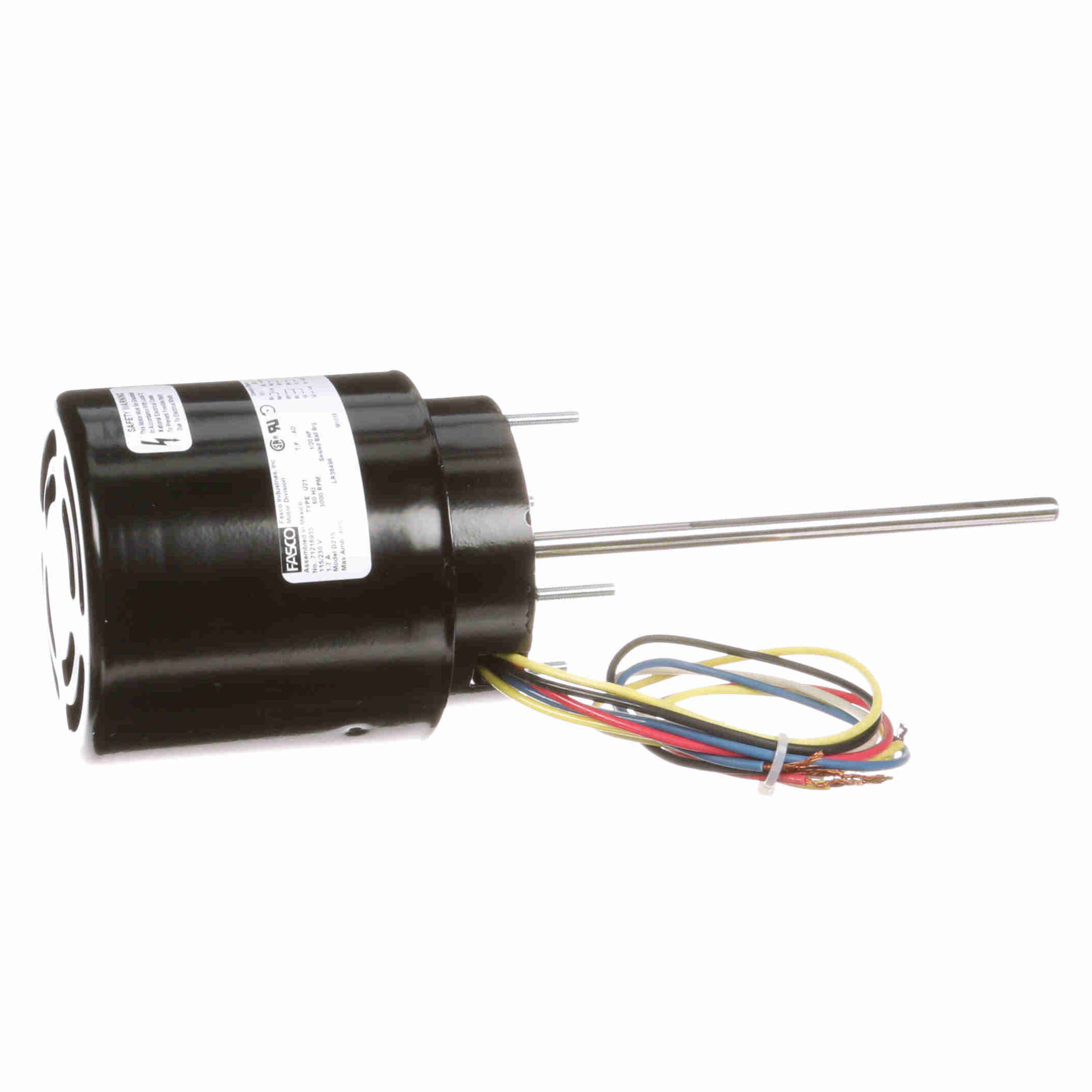

D215 Fasco 1/20HP Fan & Blower Electric Motor, 3000RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D215

Selected accessories will also be added to cart
$193.97 / Each
Quantity:
TEFC, 3.3" Diameter, 115/230VAC 60Hz Single Phase, Extended Studs, Ball Bearings, 5/16" x 6.50" Shaft, CCWSE

Features

  • General Purpose Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Totally Enclosed Fan Cooled, Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 5/16" Diameter Shaft with Flat
  • 12" Leads
  • Extended Studs Shaft End

General Specifications

UPC: 815585029045 Weight: 5 LB
Packaged Length: 4.13 IN Packaged Width: 4.13 IN
Packaged Height: 12.63 IN

Nameplate Specifications

Output HP: 1/20 Hp Output KW: 0.04 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 1.7 A Speed: 3000 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: B
Frame: 3.3 Enclosure: Totally Enclosed
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 2 Rotation: Counterclockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Steel
Shaft Type: Flat Overall Length: 11.23 in
Frame Length: 3.43 in Shaft Diameter: 0.312 in
Shaft Extension: 6.50 in
