/3.3" Diameter/D214 Fasco 1/20HP Electric Motor, 3000RPM, 3.3"
Click Image to Expand

Product ID: D214

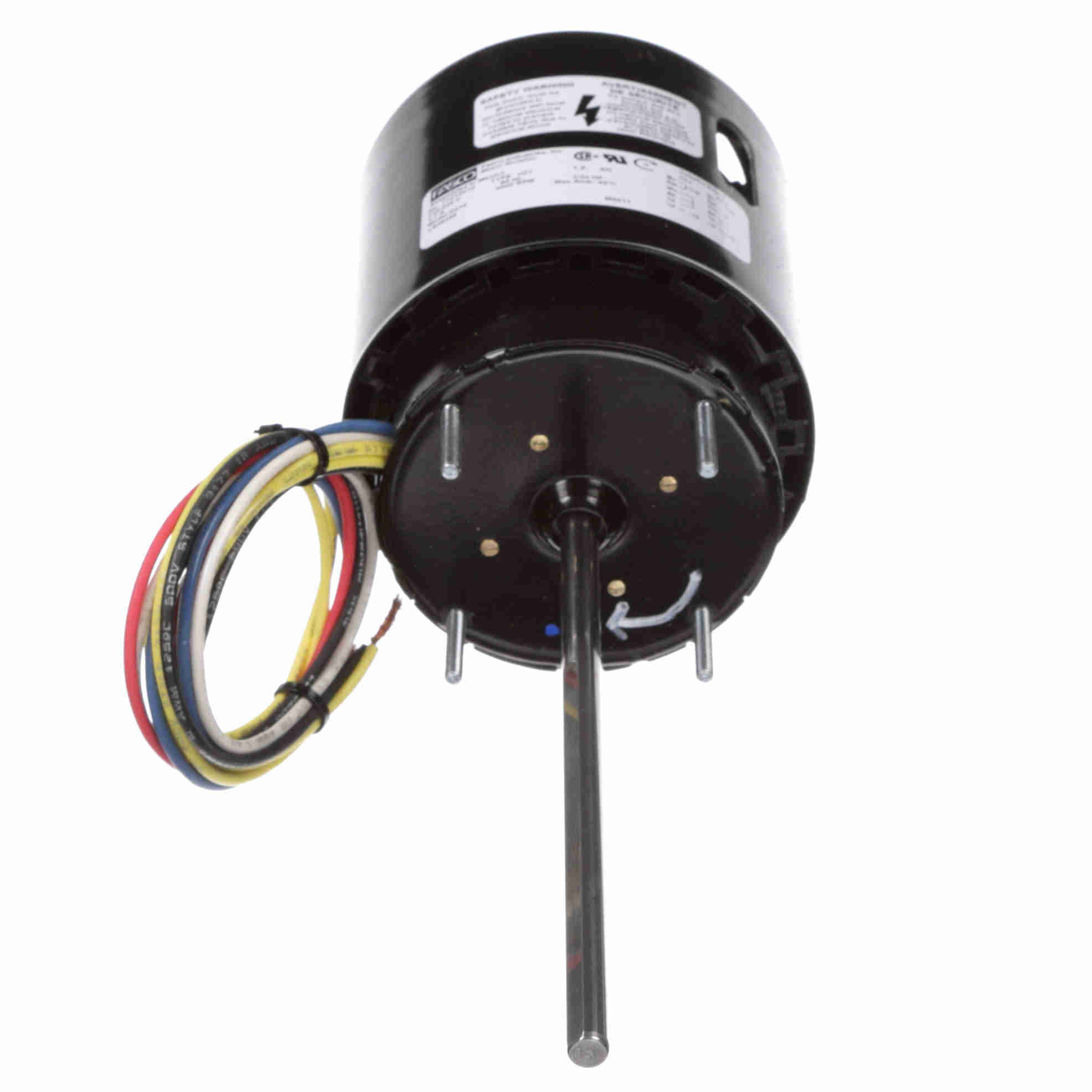

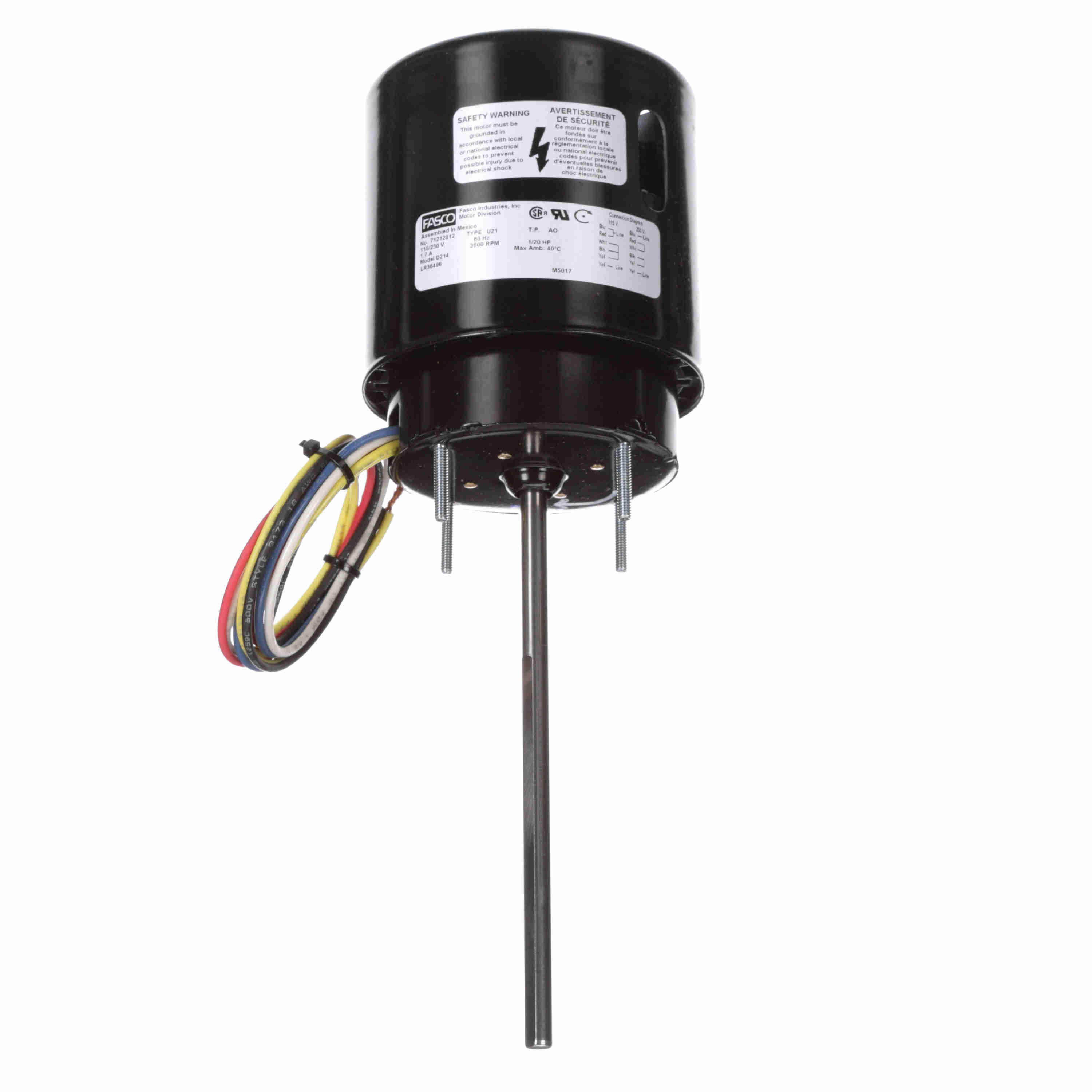

D214 Fasco 1/20HP Electric Motor, 3000RPM, 3.3"

MFG: Fasco (RegalRexnord)
MFG Part Number: D214

Selected accessories will also be added to cart
$177.97 / Each
Quantity:
TEAO, 115/230VAC Single Phase 60Hz, CWSE, Shaded Pole, Extended Studs, Sleeve Bearings, 0.313" x 6.50" Shaft

Features

Features
  • General Purpose Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Totally Enclosed Fan Cooled, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • 12" Leads
  • Extended Studs Shaft End

General Specifications

General Specifications
Model : Catalog No : D214
Part Description : 71212012.MOTOR.3.3 DIA..1/20 HP.1 SPD.. Category : Self Cooled
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 1/20 HP Output KW : 0.04 kW
Frequency : 60 Hz Voltage : 115/230 V
Current : 1.7 A Speed : 3000 RPM
Service Factor : 1 Phase : 1
Duty : Air Over Insulation Class : B
Frame : 3.3 Enclosure : Totally Enclosed
Overload Protector : Thermally Protected Ambient Temperature : 40 °C
UL : Recognized CSA : Y
CE : N

Technical Specifications

Technical Specifications
Electrical Type : Shaded Pole Starting Method : Across The Line
Poles : 2 Rotation : Clockwise Shaft End
Mounting : Extended Studs Drive End Bearing : Sleeve
Opp Drive End Bearing : Sleeve Frame Material : Steel
Shaft Type : Flat Overall Length : 11.25 in
Frame Length : 3.43 in Shaft Diameter : 0.313 in
Shaft Extension : 6.50 in UPC : 815585029038
Weight : 5.00 LB

Speed & Load Characteristics
