/3.3" Diameter/D207 Fasco 1/30HP Electric Motor, 3000RPM, 3.3"
Click Image to Expand

Product ID: D207

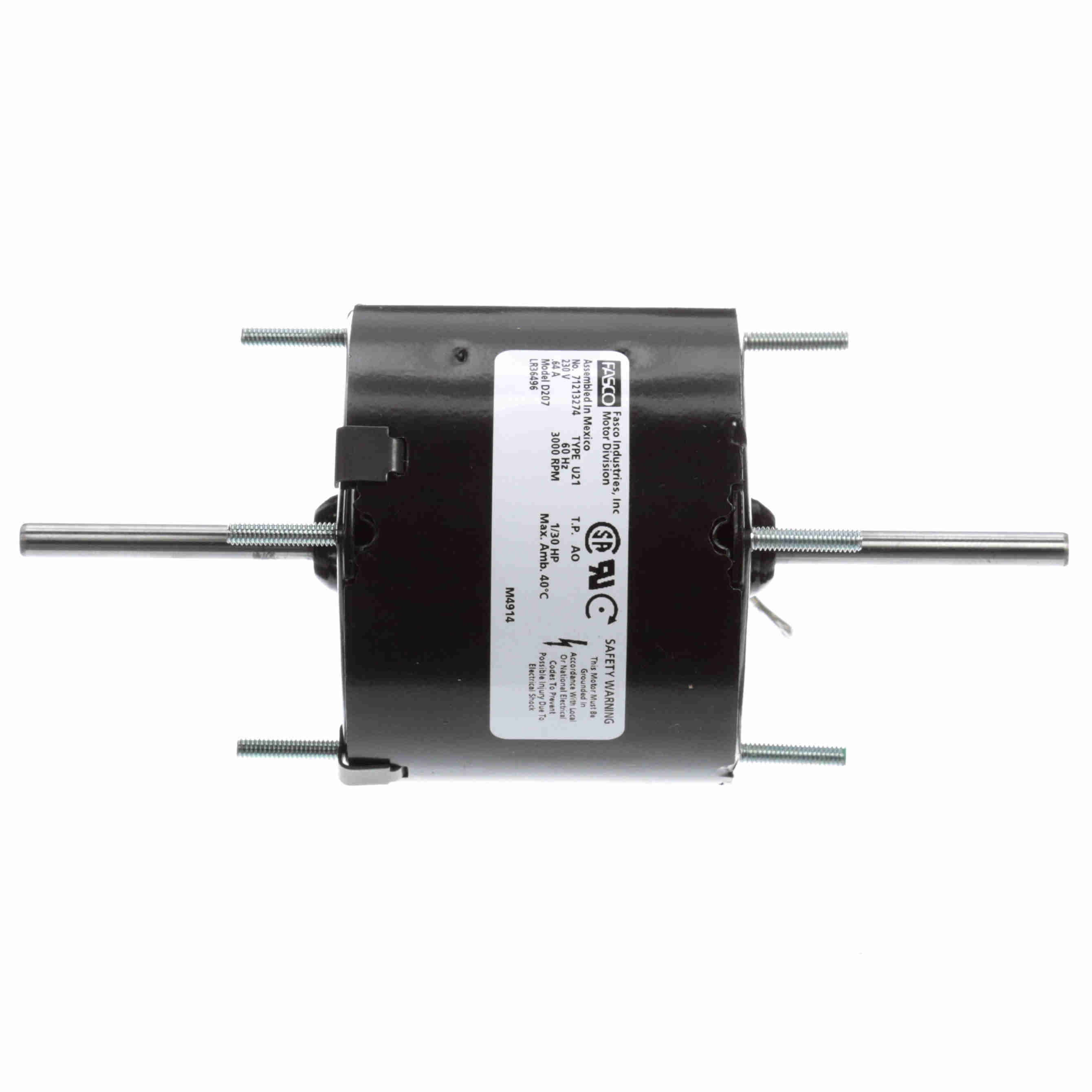

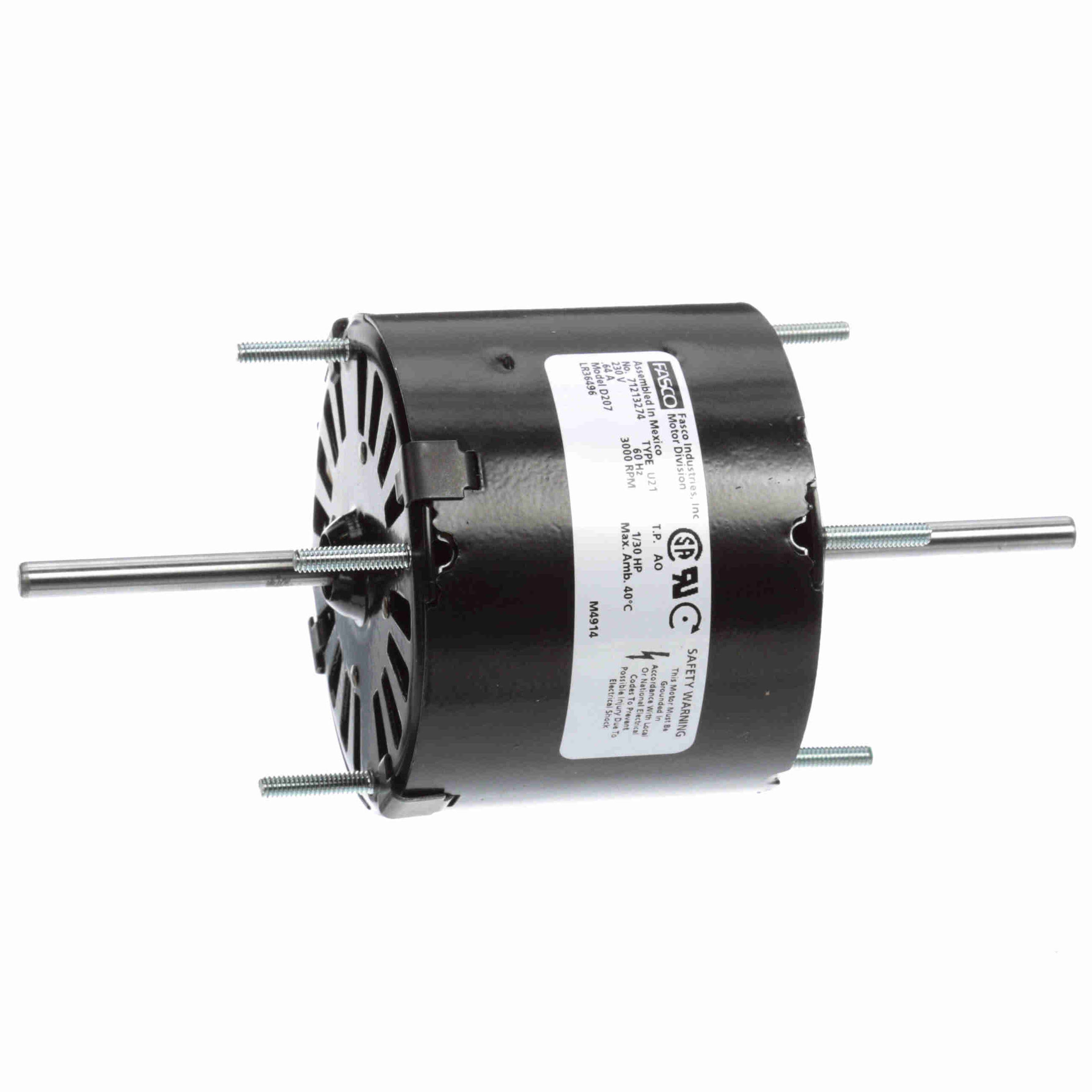

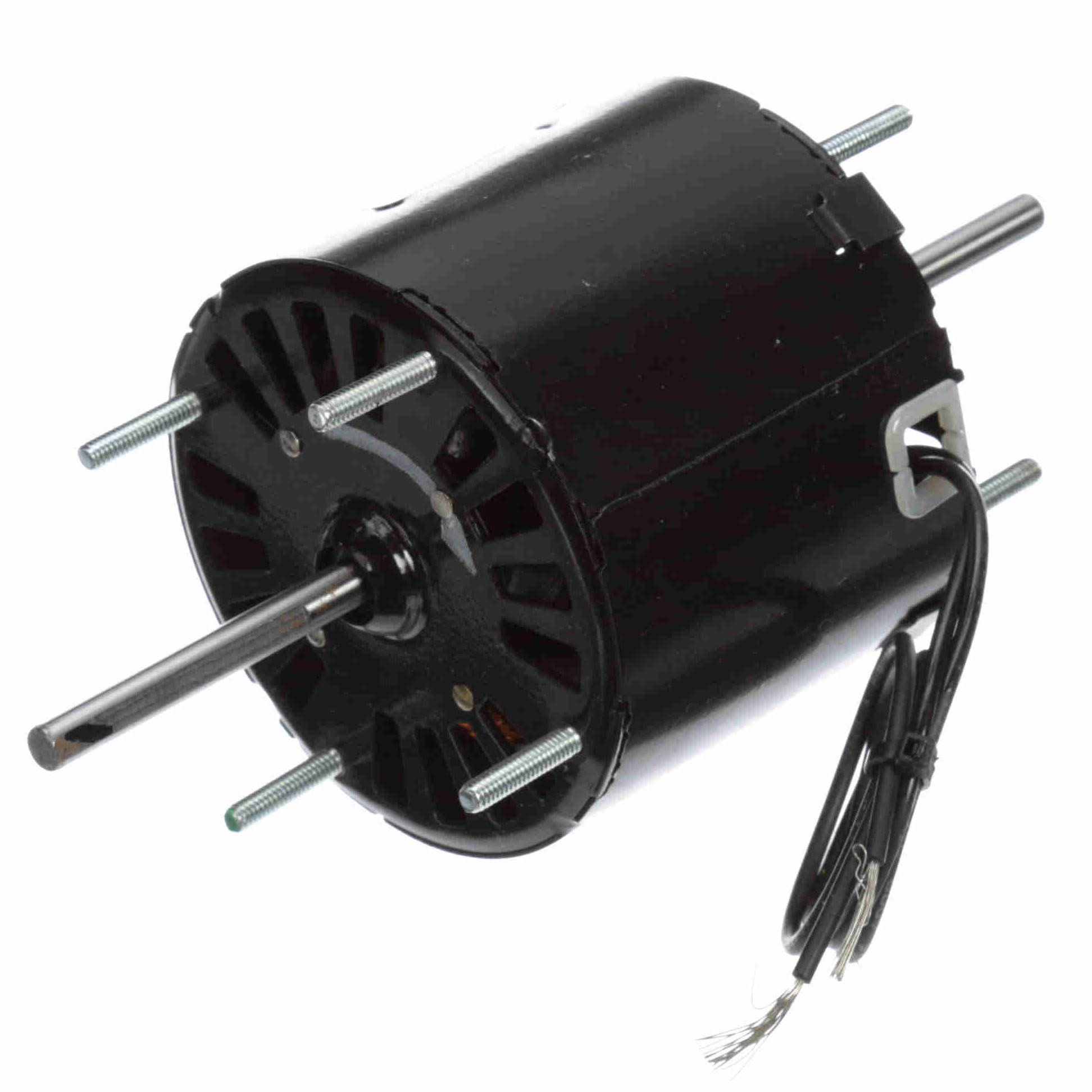

D207 Fasco 1/30HP Electric Motor, 3000RPM, 3.3"

MFG: Fasco (RegalRexnord)
MFG Part Number: D207

Selected accessories will also be added to cart
$100.97 / Each
Quantity:
Open Air Over, 230VAC Single Phase 60Hz, CWSE, Shaded Pole, Extended Studs, Sleeve Bearings, 0.250" x 2.25" Shaft

Features

Features
  • General Purpose Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/4" Diameter Double Shaft with Flat
  • 12" Leads
  • Extended Studs Lead End and Opposite Lead End

General Specifications

General Specifications
Model : Catalog No : D207
Part Description : 71213274.MOTOR.3.30" DIA..1/30 HP.1 SPD. Category : Self Cooled
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 1/30 HP Output KW : 0.02 kW
Frequency : 60 Hz Voltage : 230 V
Current : 0.64 A Speed : 3000 RPM
Service Factor : 1 Phase : 1
Duty : Air Over Insulation Class : B
Frame : 3.3 Enclosure : Open Air Over
Overload Protector : Thermally Protected Ambient Temperature : 40 °C
UL : Recognized CSA : Y
CE : N

Technical Specifications

Technical Specifications
Electrical Type : Shaded Pole Starting Method : Across The Line
Poles : 2 Rotation : Clockwise Shaft End
Mounting : Extended Studs Drive End Bearing : Sleeve
Opp Drive End Bearing : Sleeve Frame Material : Steel
Shaft Type : Flat Overall Length : 7.33 in
Frame Length : 2.53 in Shaft Diameter : 0.250 in
Shaft Extension : 2.25 in UPC : 815585028970
Weight : 3.00 LB
