3.3" Diameter
/

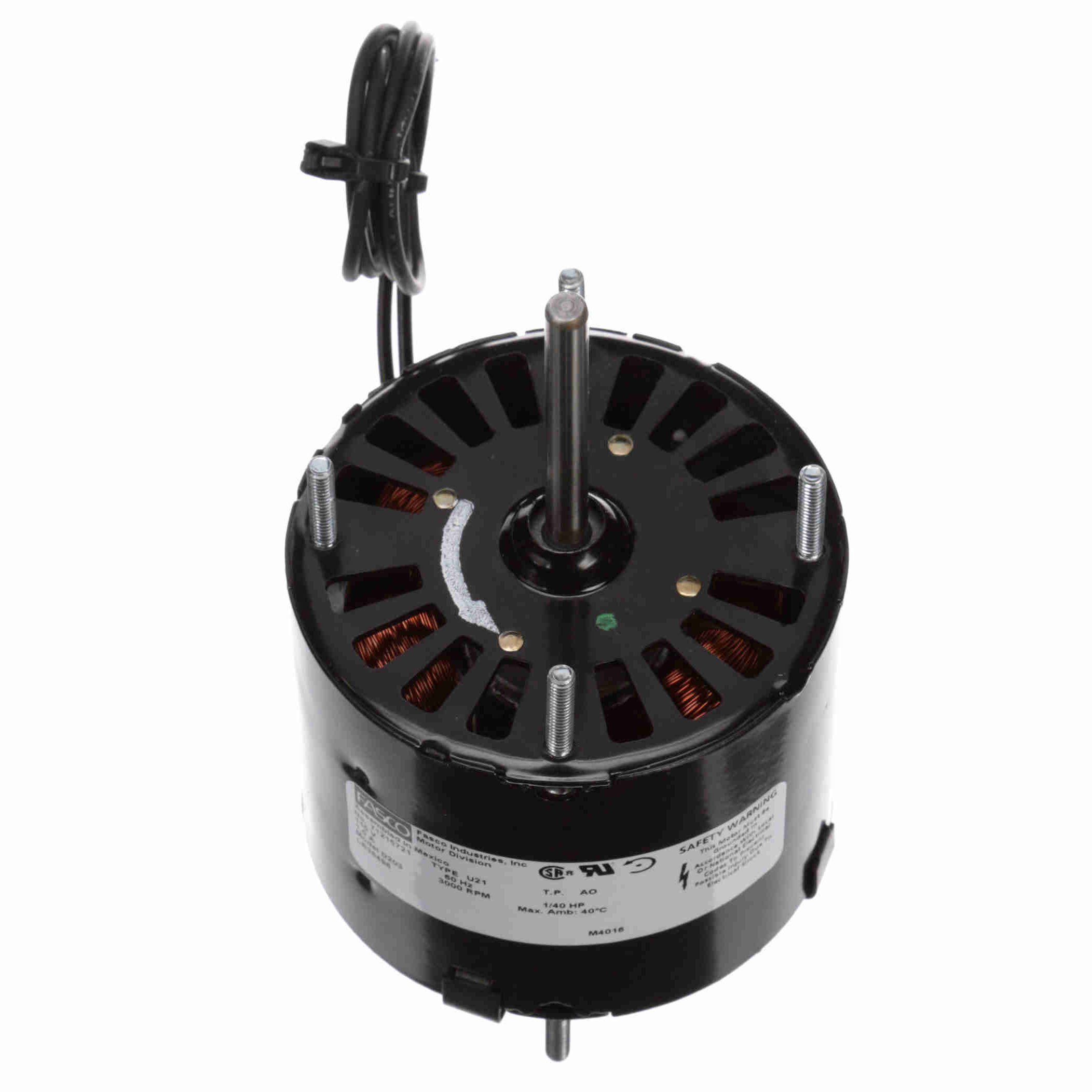

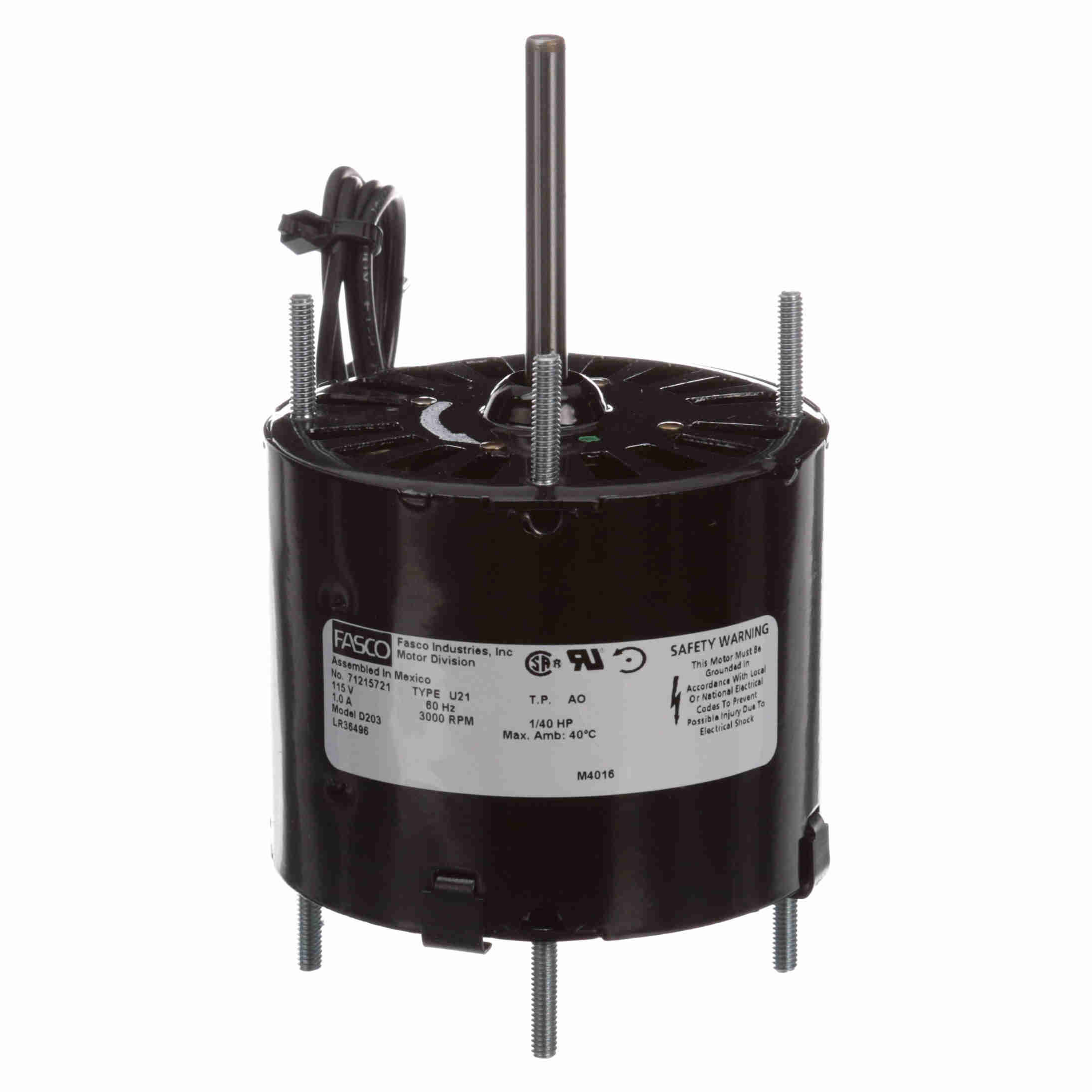

D203 Fasco 1/40HP Electric Motor, 3.3" Diameter, 3000RPM
Click Image to Expand
Previous
Next
Product ID: D203
D203 Fasco 1/40HP Electric Motor, 3.3" Diameter, 3000RPM
MFG: Fasco (RegalRexnord)
MFG Part Number: D203
Selected accessories will also be added to cart
$129.97 / Each
Quantity:
Open, Air Over, 115VAC Single Phase 60Hz, CCWSE, 0.25" x 2.25" Shaft, Extended Studs, Shaded Pole
Details
Features
Features
General Purpose Motor
3.3" Diameter
Shaded Pole
Thermally Protected
Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/4" Diameter Shaft with Flat
12" Leads
Extended Studs Shaft End and Lead End
General Specifications
General Specifications
Model :
Catalog No :
D203
Part Description :
71215721.MOTOR.3.30" DIA..1/40 HP.1 SPD.
Category :
Self Cooled
Stock :
No
Nameplate Specifications
Nameplate Specifications
Output HP :
1/40 HP
Output KW :
0.02 kW
Frequency :
60 Hz
Voltage :
115 V
Current :
1.0 A
Speed :
3000 RPM
Service Factor :
1
Phase :
1
Duty :
Air Over
Insulation Class :
B
Frame :
3.3
Enclosure :
Open Air Over
Overload Protector :
Thermally Protected
Ambient Temperature :
40 °C
UL :
Recognized
CSA :
Y
CE :
N
Technical Specifications
Technical Specifications
Electrical Type :
Shaded Pole
Starting Method :
Across The Line
Poles :
2
Rotation :
Counterclockwise Shaft End
Mounting :
Extended Studs
Drive End Bearing :
Sleeve
Opp Drive End Bearing :
Sleeve
Frame Material :
Steel
Shaft Type :
Flat
Overall Length :
5.08 in
Frame Length :
2.53 in
Shaft Diameter :
0.250 in
Shaft Extension :
2.25 in
UPC :
815585028949
Weight :
2.00 LB
Speed & Load Characteristics
