/3.3" Diameter/D200 Fasco 1/85HP Electric Motor, 3000RPM
Click Image to Expand

Product ID: D200

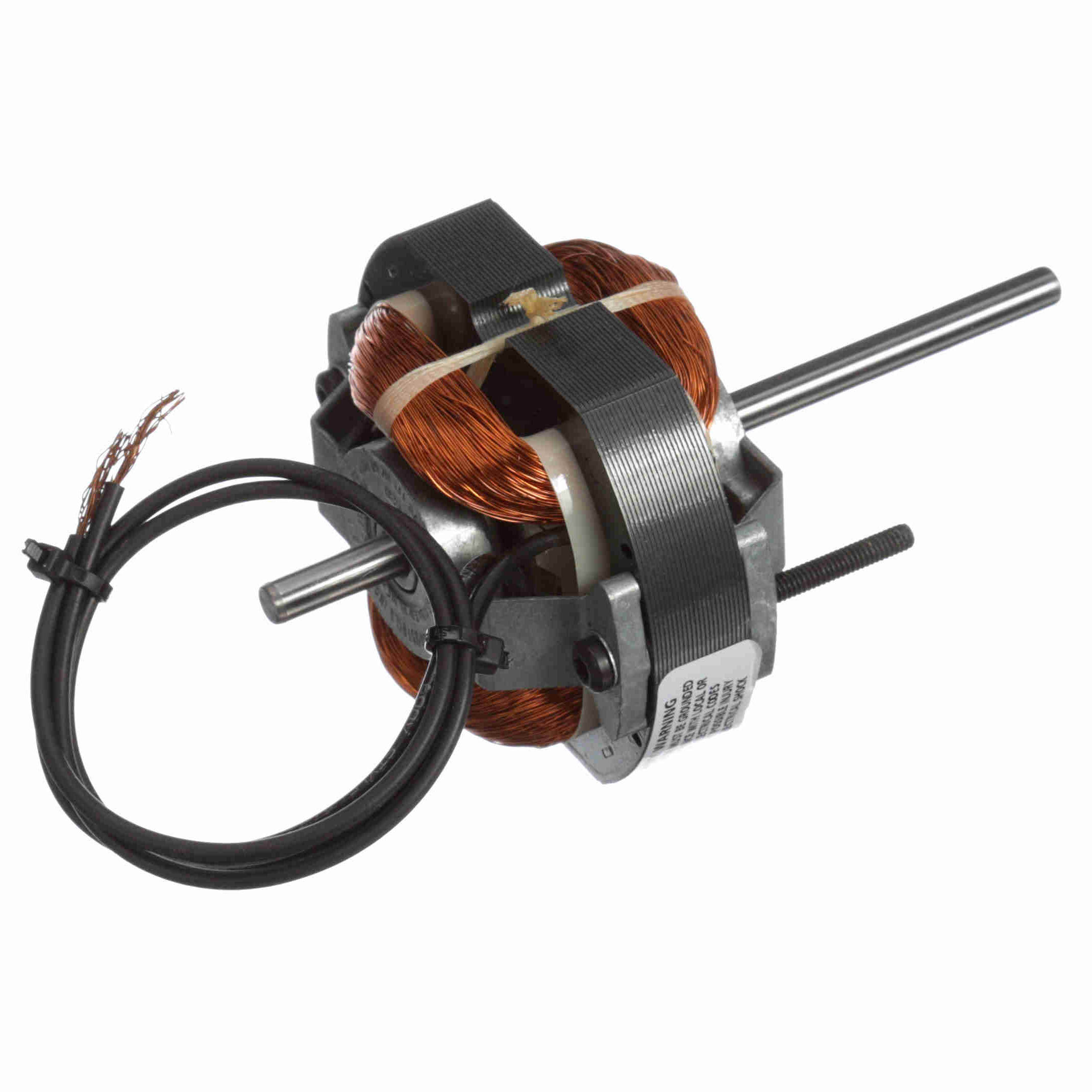

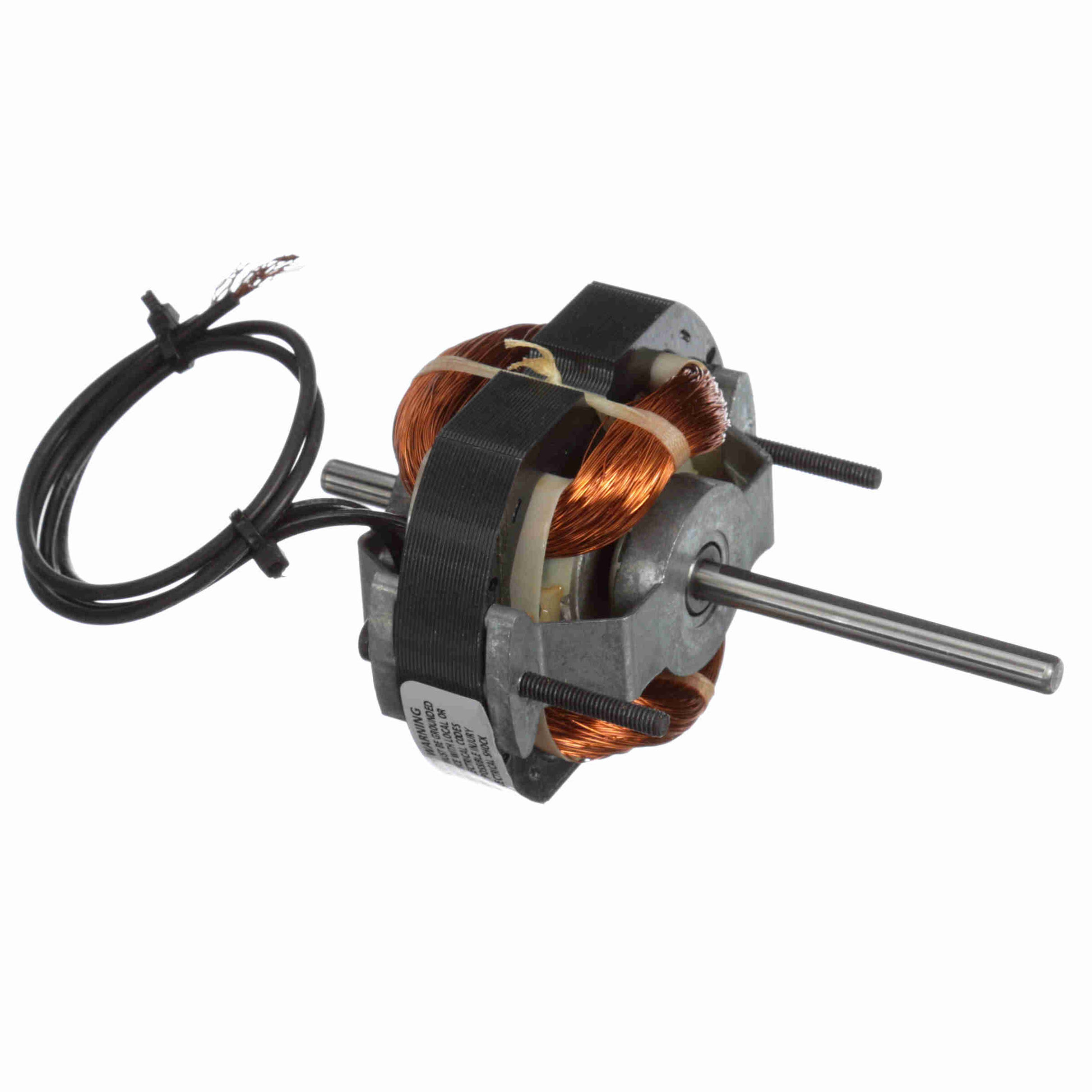

D200 Fasco 1/85HP Electric Motor, 3000RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D200

Selected accessories will also be added to cart
$75.97 / Each
Quantity:
Open Air Over, 115VAC Single Phase 60Hz, Shaded Pole, Extended Studs, Sleeve Bearings, 0.250" x 2.38" Shaft

Features

Features
  • General Purpose Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/4" Diameter Double Shaft with Flat
  • 12" Leads
  • Extended Studs Opposite Lead End

General Specifications

General Specifications
Model : Catalog No : D200
Part Description : 71211984.MOTOR.3.25" DIA..1/85 HP.1 SPD. Category : Self Cooled
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 1/85 HP Output KW : 0.01 kW
Frequency : 60 Hz Voltage : 115 V
Current : .62 A Speed : 3000 RPM
Service Factor : 1 Phase : 1
Duty : Air Over Insulation Class : B
Frame : 3.3 Enclosure : Open
Overload Protector : Thermally Protected Ambient Temperature : 40 °C
UL : Recognized CSA : Y
CE : N

Technical Specifications

Technical Specifications
Electrical Type : Shaded Pole Starting Method : Across The Line
Poles : 2 Rotation : Clockwise Shaft End
Mounting : Extended Studs Drive End Bearing : Sleeve
Opp Drive End Bearing : Sleeve Frame Material : Na
Shaft Type : Flat Overall Length : 5.21 in
Shaft Diameter : 0.250 in Shaft Extension : 2.38 in
UPC : 815585028918 Weight : 2.00 LB

Speed & Load Characteristics
