/5.0" Diameter (42 Frame)/D151 Fasco 1/4, 1/5, 1/6HP Fan and Blower Electric Motor, 1050RPM
Click Image to Expand

Product ID: D151

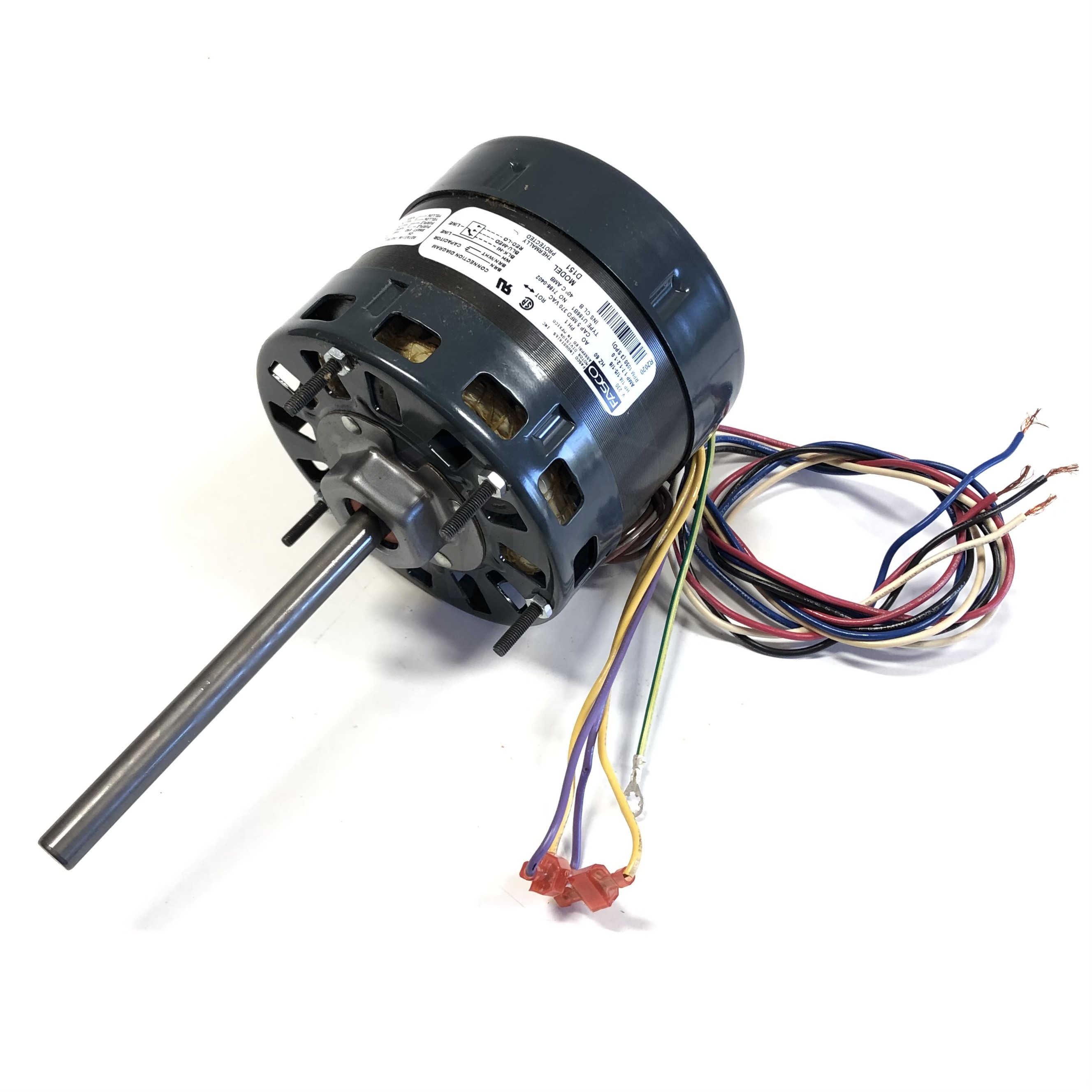

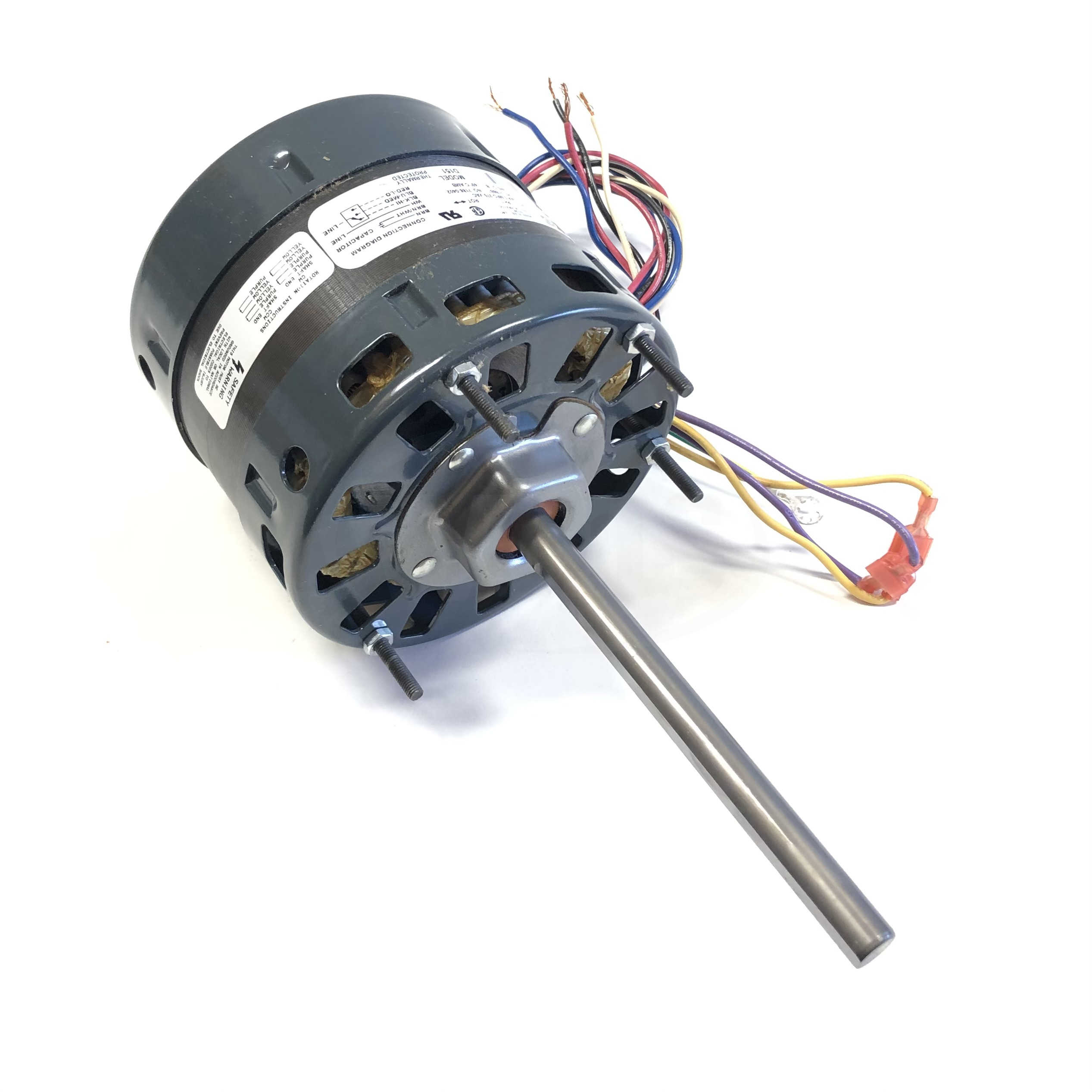

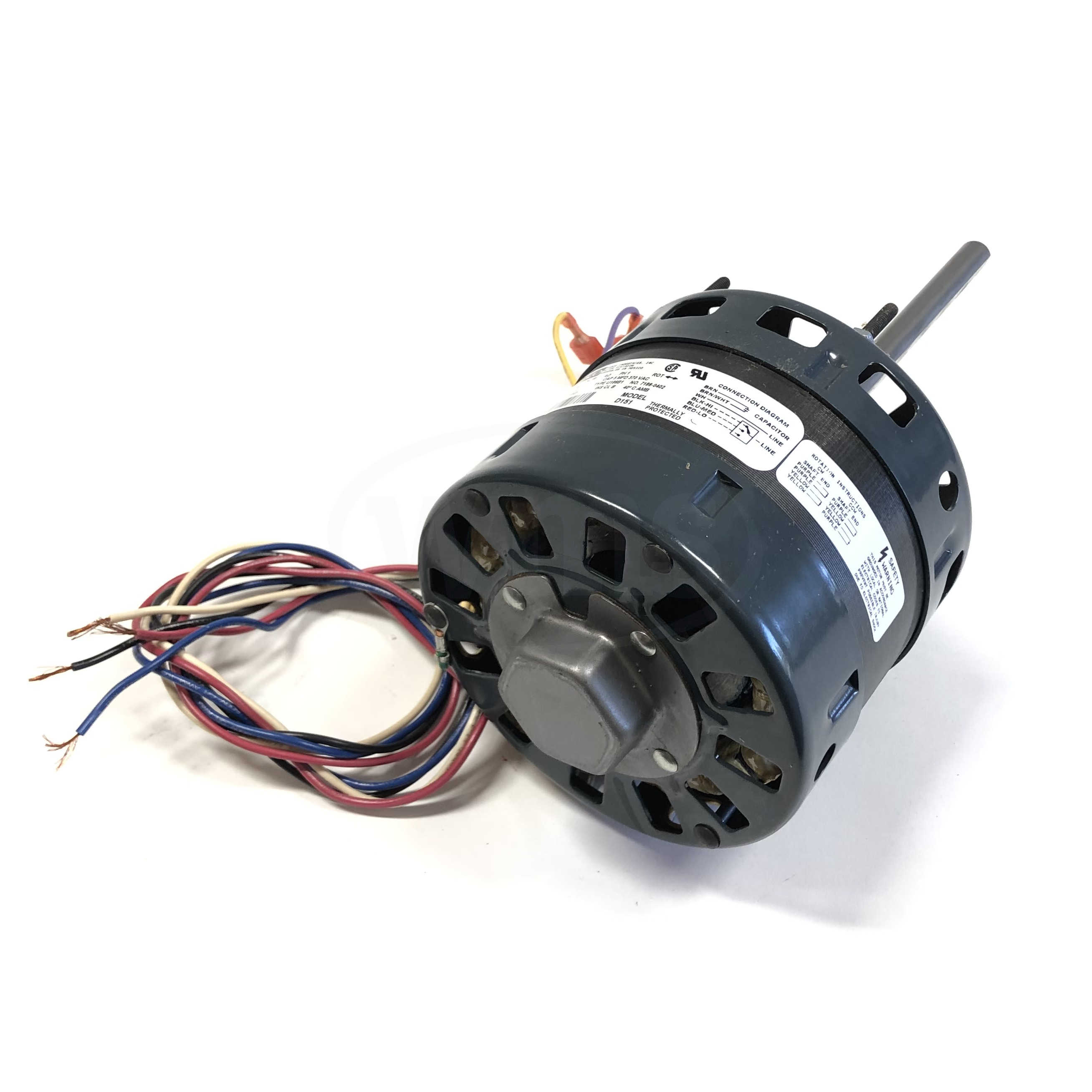

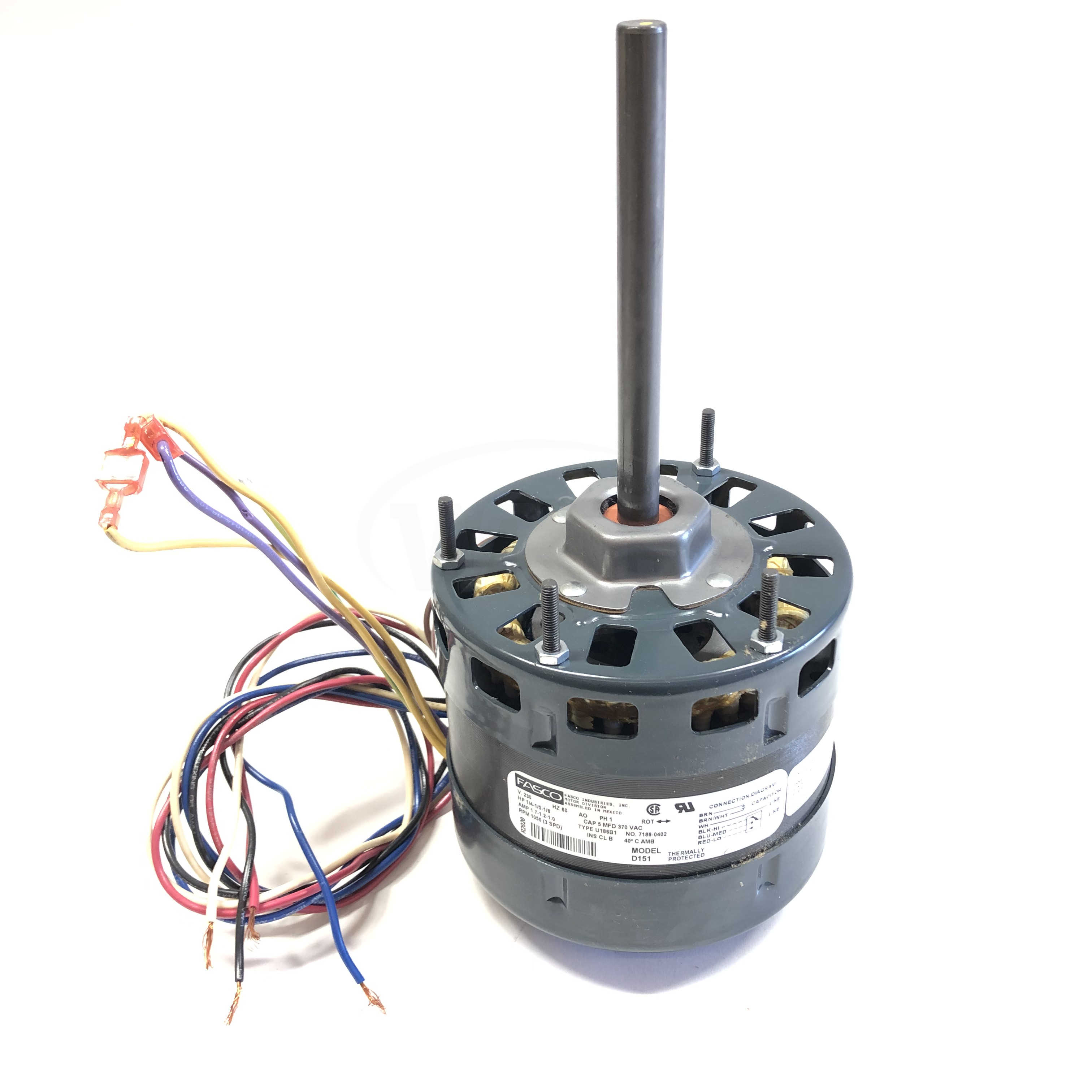

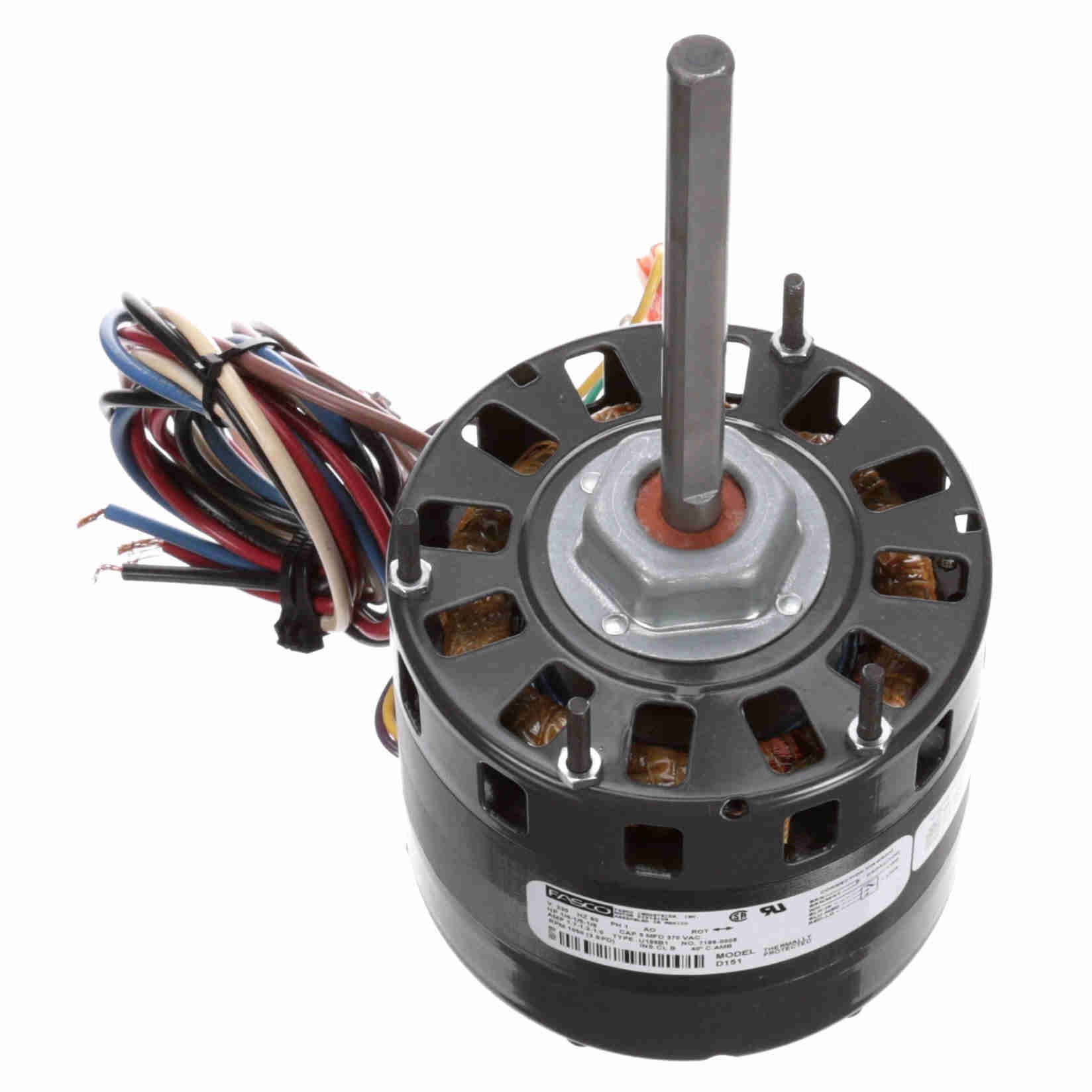

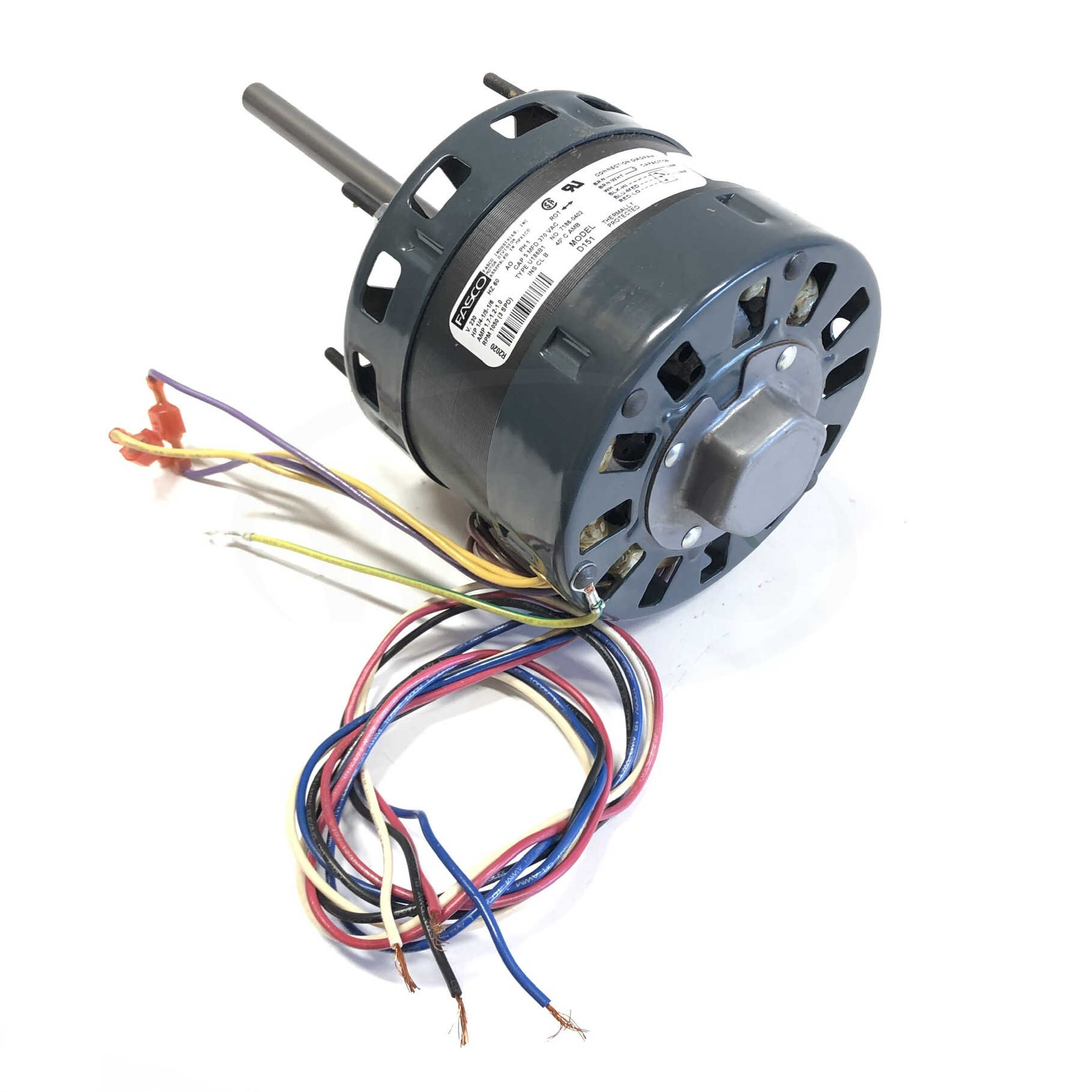

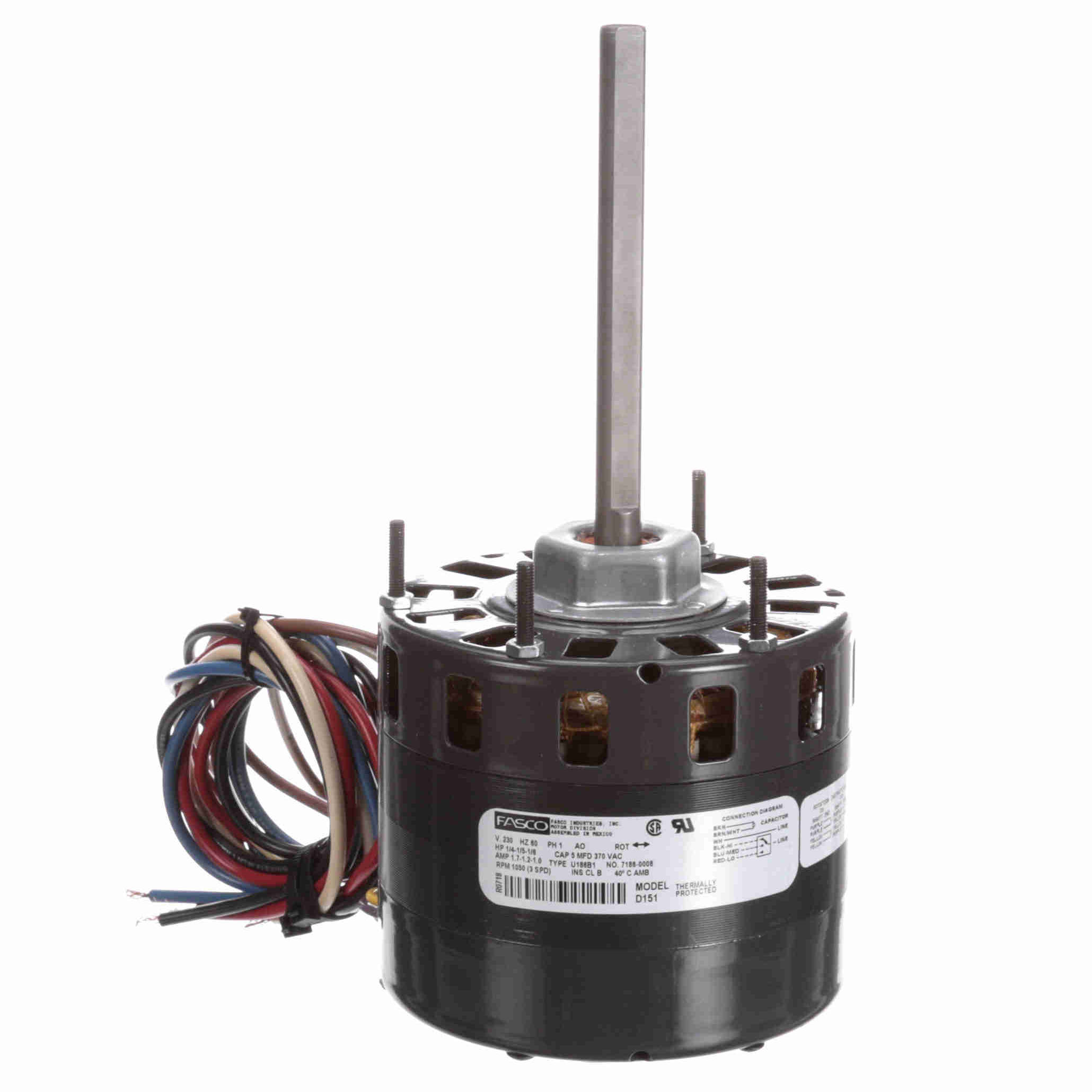

D151 Fasco 1/4, 1/5, 1/6HP Fan and Blower Electric Motor, 1050RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D151

Selected accessories will also be added to cart
$169.97 / Each
Quantity:
OAO, 42 Frame, 230VAC 60Hz Single Phase, 3 Speed, Extended Studs, Sleeve Bearings, 1/2" Shaft, Reversible

Features

  • Direct Drive Blower Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 30" Leads
  • Extended Studs Shaft End, Belly Band

General Specifications

UPC: 815585028666 Weight: 12 LB
Packaged Length: 5.13 IN Packaged Width: 5.13 IN
Packaged Height: 15 IN

Nameplate Specifications

Output HP: 1/4-1/5-1/6 Hp Output KW: 0.19 kW
Frequency: 60 Hz Voltage: 230 V
Current: 1.7/1.2/1.0 A Speed: 1050 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 42 Enclosure: Open Air Over
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Reversible
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Na
Shaft Type: Flat Overall Length: 10.97 in
Shaft Diameter: 0.500 in Shaft Extension: 6.00 in
