/5.0" Diameter (42 Frame)/D148 Fasco 1/10HP Ventilation Electric Motor, 1050RPM
Click Image to Expand

Product ID: D148

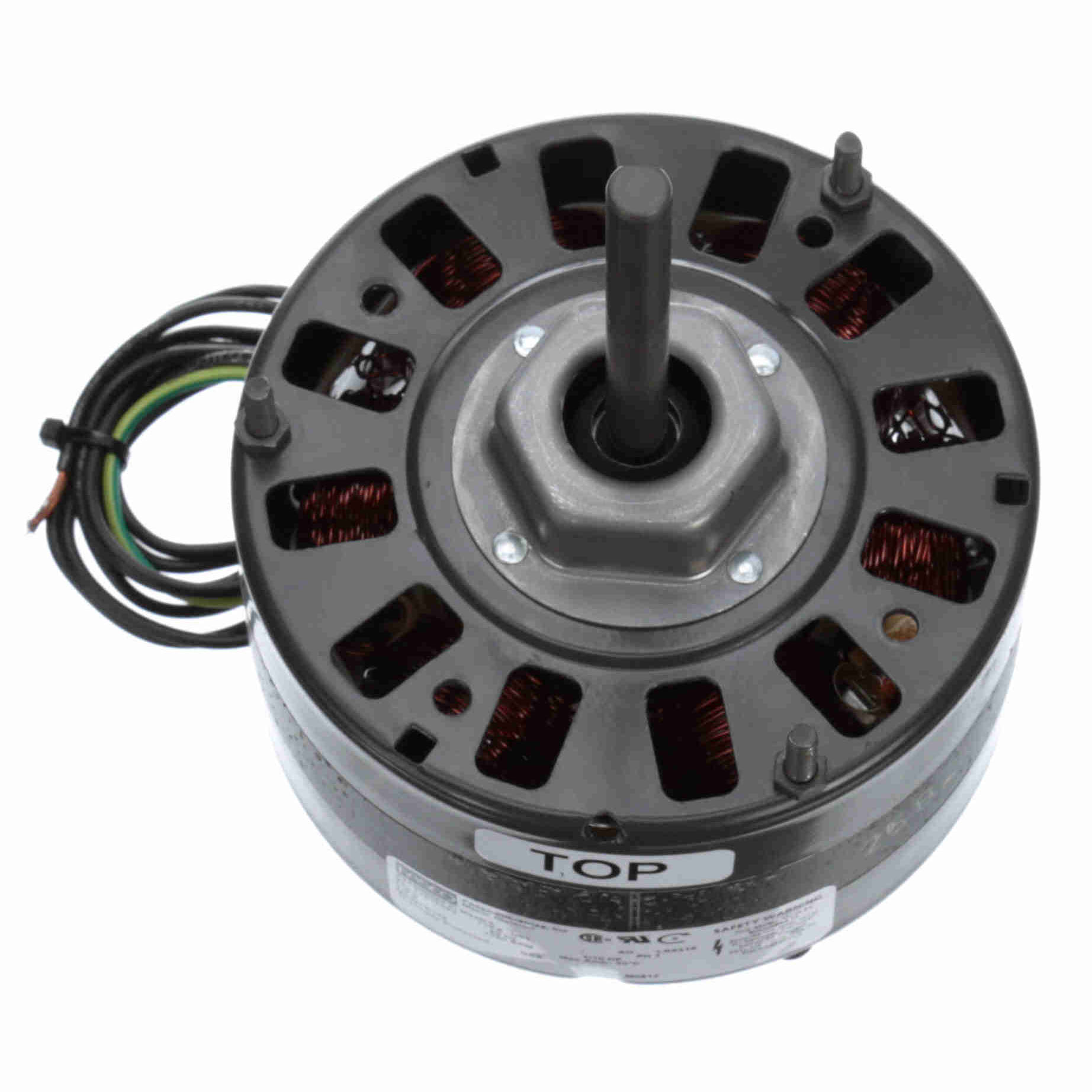

D148 Fasco 1/10HP Ventilation Electric Motor, 1050RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D148

Selected accessories will also be added to cart
$249.97 / Each
Quantity:
Open Air Over, 42 Frame, 115VAC 60Hz Single Phase, Extended Studs, Sleeve Bearings, Clockwise Shaft End, 3/8" Shaft

Features

  • Ventilation - Unit Heater Motor
  • 5" Diameter - 42 Frame
  • Shaded Pole
  • Thermally Protected
  • Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
  • Class A Insulation, 40°C Ambient
  • Sleeve Bearing
  • 3/8" Diameter Shaft with Flat
  • 27" Leads
  • Extended Studs Shaft End, Hex Mounting Hub Shaft End and Lead End

General Specifications

UPC: 815585028642 Weight: 6.00 LB
Packaged Length: 5.13 IN Packaged Width: 5.13 IN
Packaged Height: 10 IN

Nameplate Specifications

Output HP: 1/10 Hp Output KW: 0.07 kW
Frequency: 60 Hz Voltage: 115 V
Current: 3.6 A Speed: 1050 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: A
Frame: 42 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 6 Rotation: Clockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Na
Shaft Type: Flat Overall Length: 6.85 in
Shaft Diameter: 0.375 in Shaft Extension: 3.50 in
