/3.3" Diameter/D126 Fasco 1/40HP Fan & Blower Electric Motor, 1500RPM
Click Image to Expand

Product ID: D126

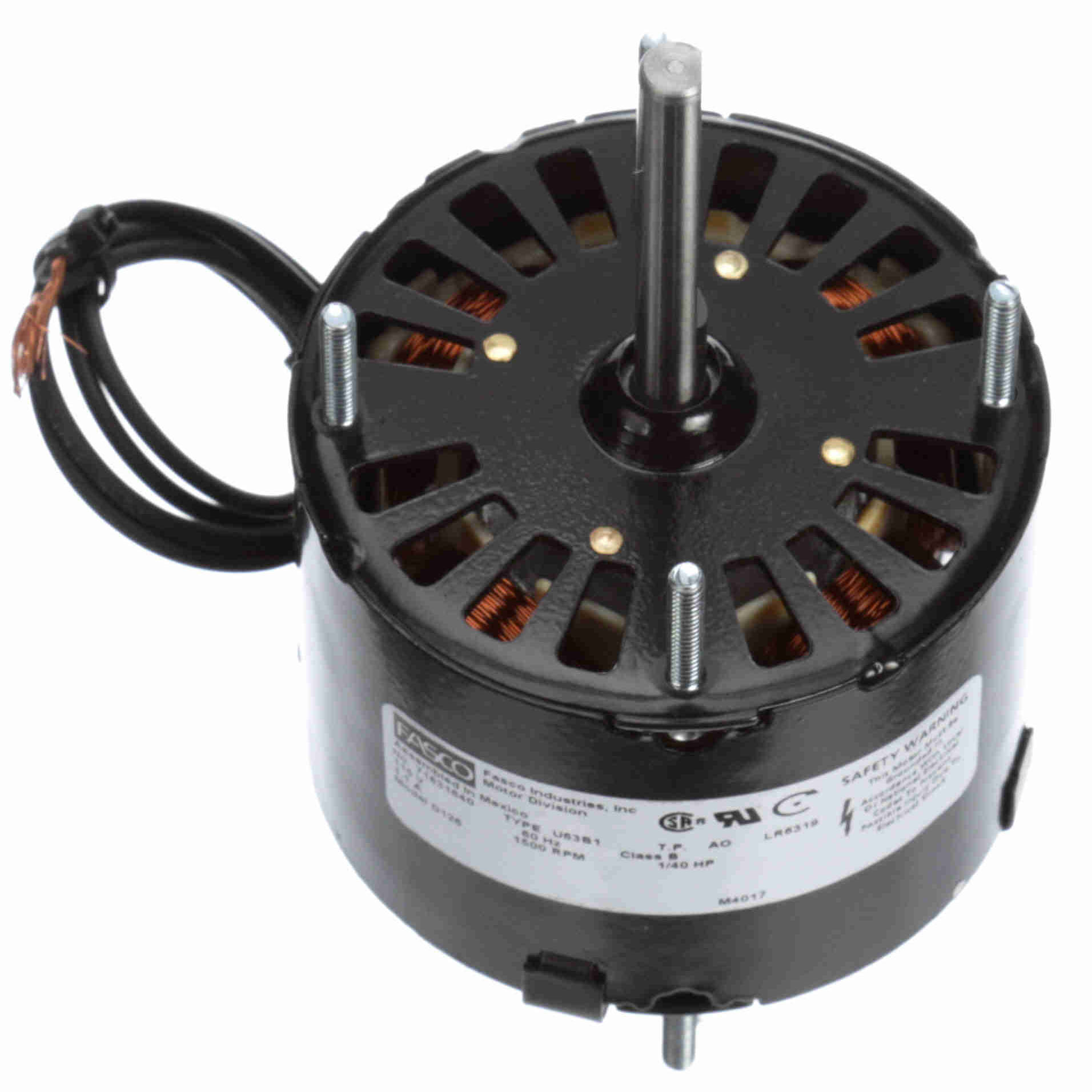

D126 Fasco 1/40HP Fan & Blower Electric Motor, 1500RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D126

Selected accessories will also be added to cart
$71.97 / Each
Quantity:
Semi-Enclosed, 3.3" Diameter, 115VAC 60Hz Single Phase, Extended Studs, Sleeve Bearings, 5/16" x 2.30" Shaft, CW Shaft End

Features

  • General Purpose Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Shaft End and Lead End, Enclosed Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • 12" Leads
  • Extended Studs Shaft End and Lead End, Belly Band Mount

General Specifications

UPC: 815585028475 Weight: 3.00 LB
Packaged Length: 8 IN Packaged Width: 3.38 IN
Packaged Height: 3.38 IN

Nameplate Specifications

Output HP: 1/40 Hp Output KW: 0.02 kW
Frequency: 60 Hz Voltage: 115 V
Current: 1.10 A Speed: 1500 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: B
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Overall Length: 5.08 in
Frame Length: 2.24 in Shaft Diameter: 0.313 in
Shaft Extension: 2.30 in
