/3.3" Diameter/D1198 Fasco 1/30HP Electric Motor, 3.3" Diameter, 3200RPM

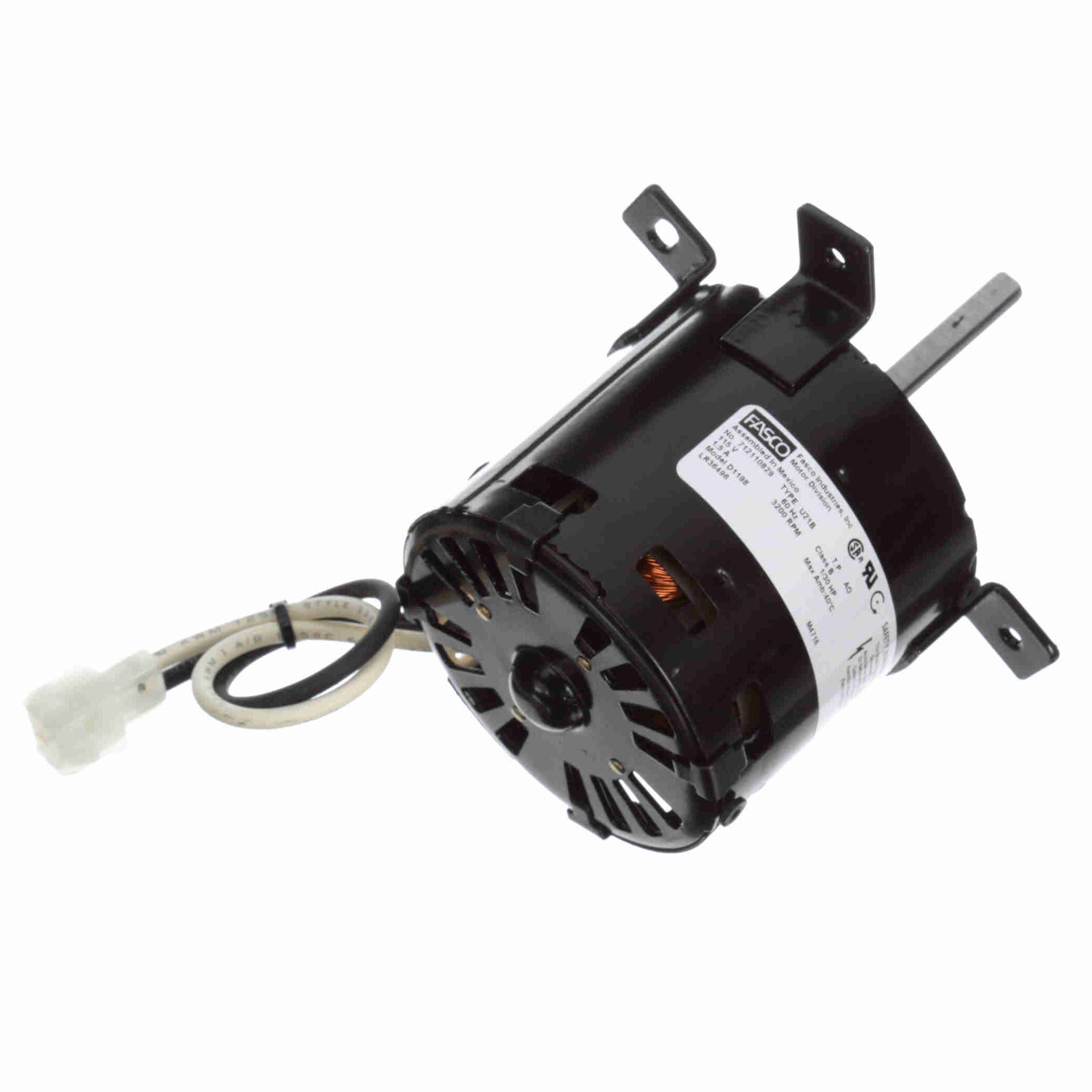

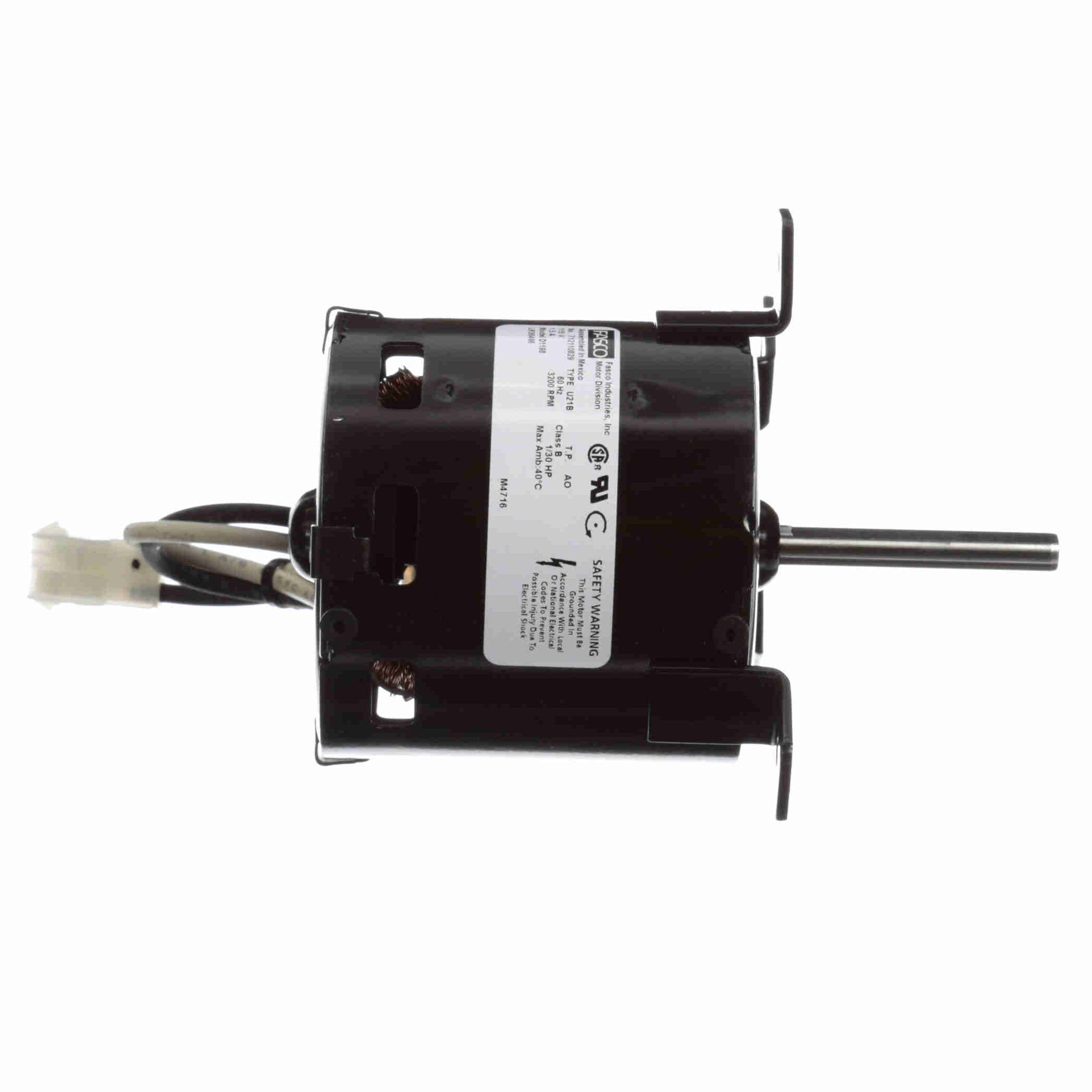

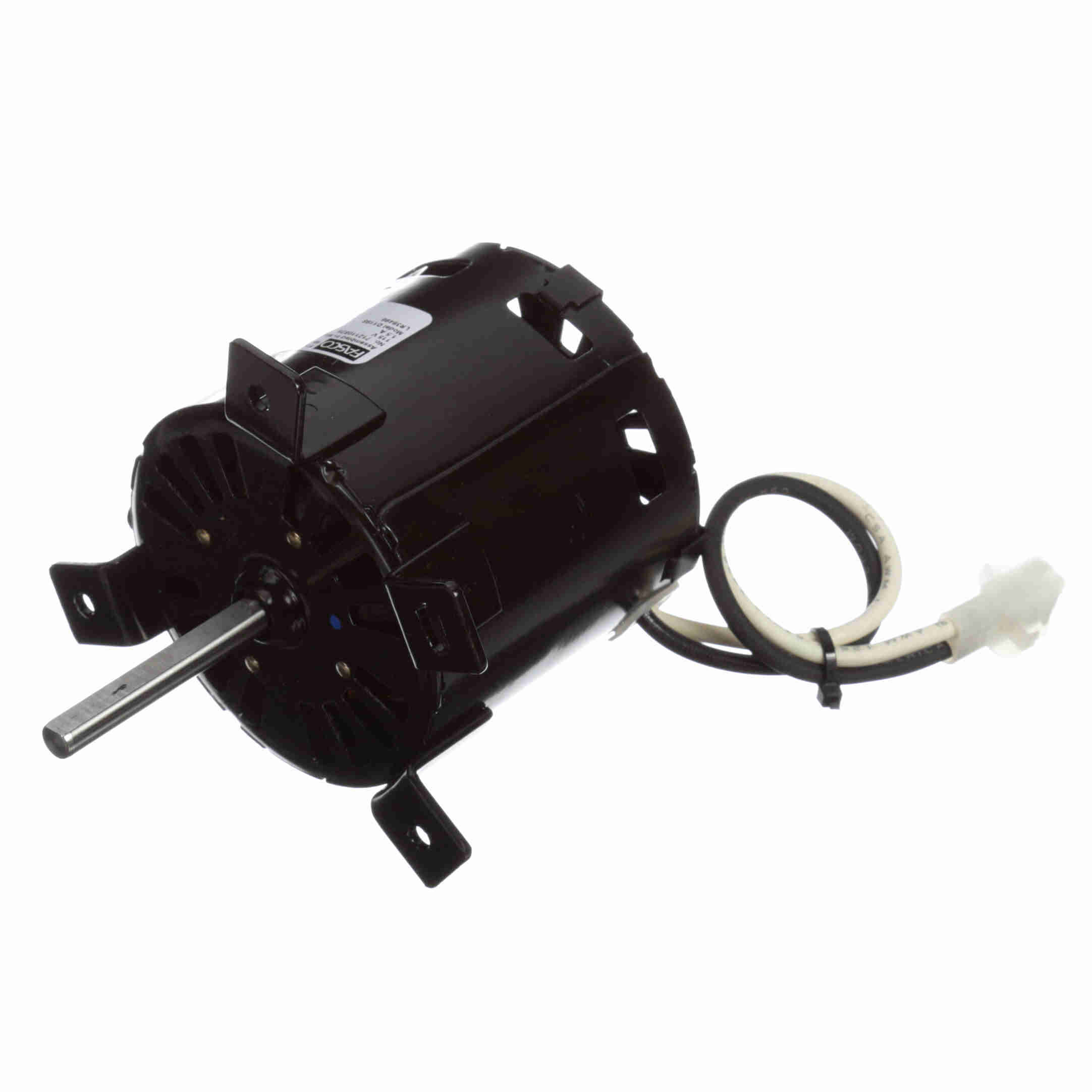

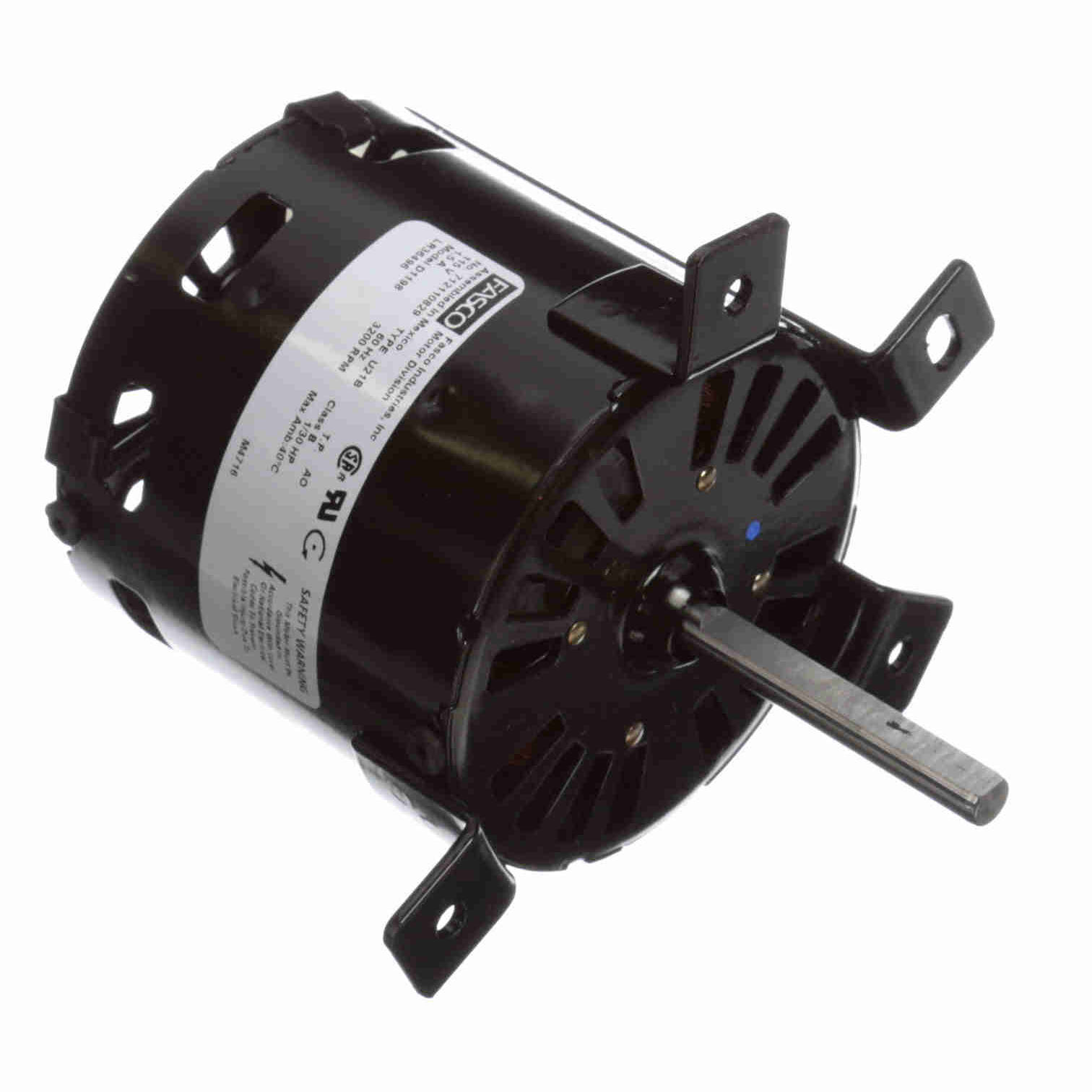

Click Image to Expand

Product ID: D1198

D1198 Fasco 1/30HP Electric Motor, 3.3" Diameter, 3200RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D1198

Selected accessories will also be added to cart
$209.97 / Each
Quantity:
Open Air Over, 115VAC Single Phase 60Hz, Shaded Pole, Lug Mounting, Sleeve Bearings, CCWSE, 5/16" x 2.3" Shaft

Features

  • OEM Direct Replacement Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Shaft End and Lead End End-Frame, Semi-Enclosed Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • 8" Leads with Socket Terminal
  • Lug Mount Shaft End

General Specifications

UPC: 815585028260 Weight: 4.00 LB
Packaged Length: 7.75 IN Packaged Width: 7.25 IN
Packaged Height: 9 IN

Nameplate Specifications

Output HP: 1/30 Hp Output KW: 0.02 kW
Frequency: 60 Hz Voltage: 115 V
Current: 1.50 A Speed: 3200 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: B
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 2 Rotation: Counterclockwise Shaft End
Mounting: Lug Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Overall Length: 5.78 in
Frame Length: 2.96 in Shaft Diameter: 0.313 in
Shaft Extension: 2.3 in

Speed & Load Characteristics
