/3.3" Diameter/D1194 Fasco 1/25HP Draft Inducer Electric Motor, 3200RPM
Click Image to Expand

Product ID: D1194

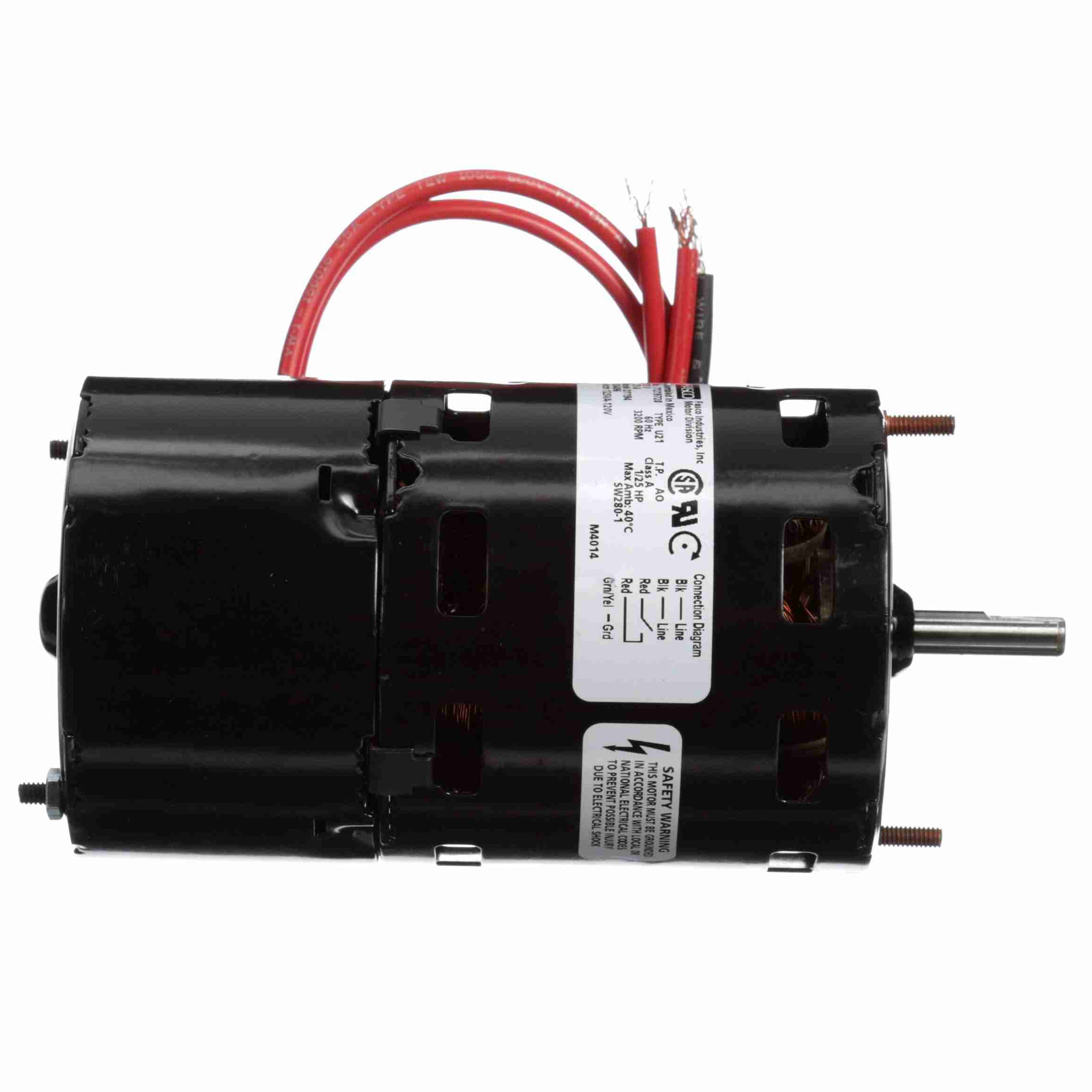

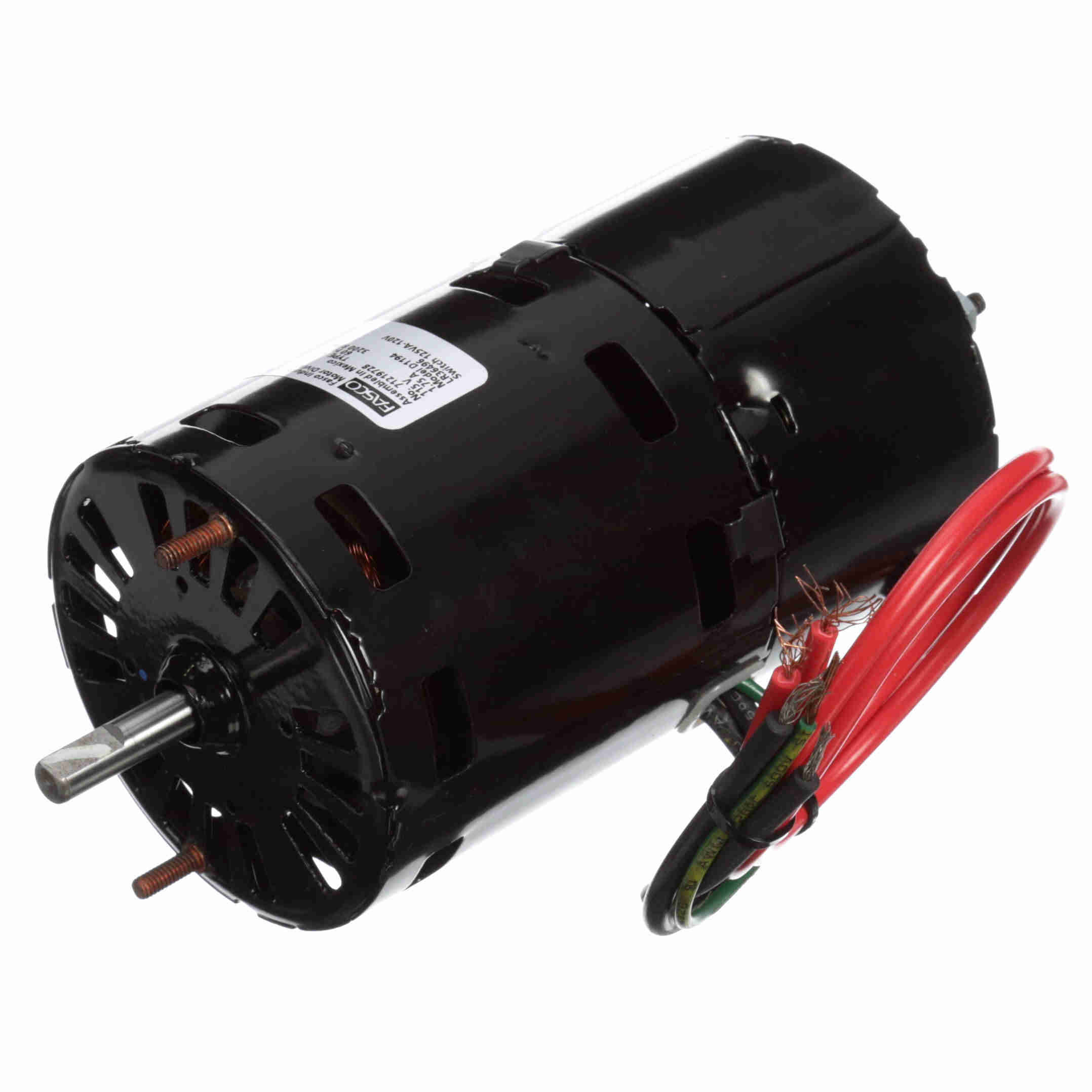

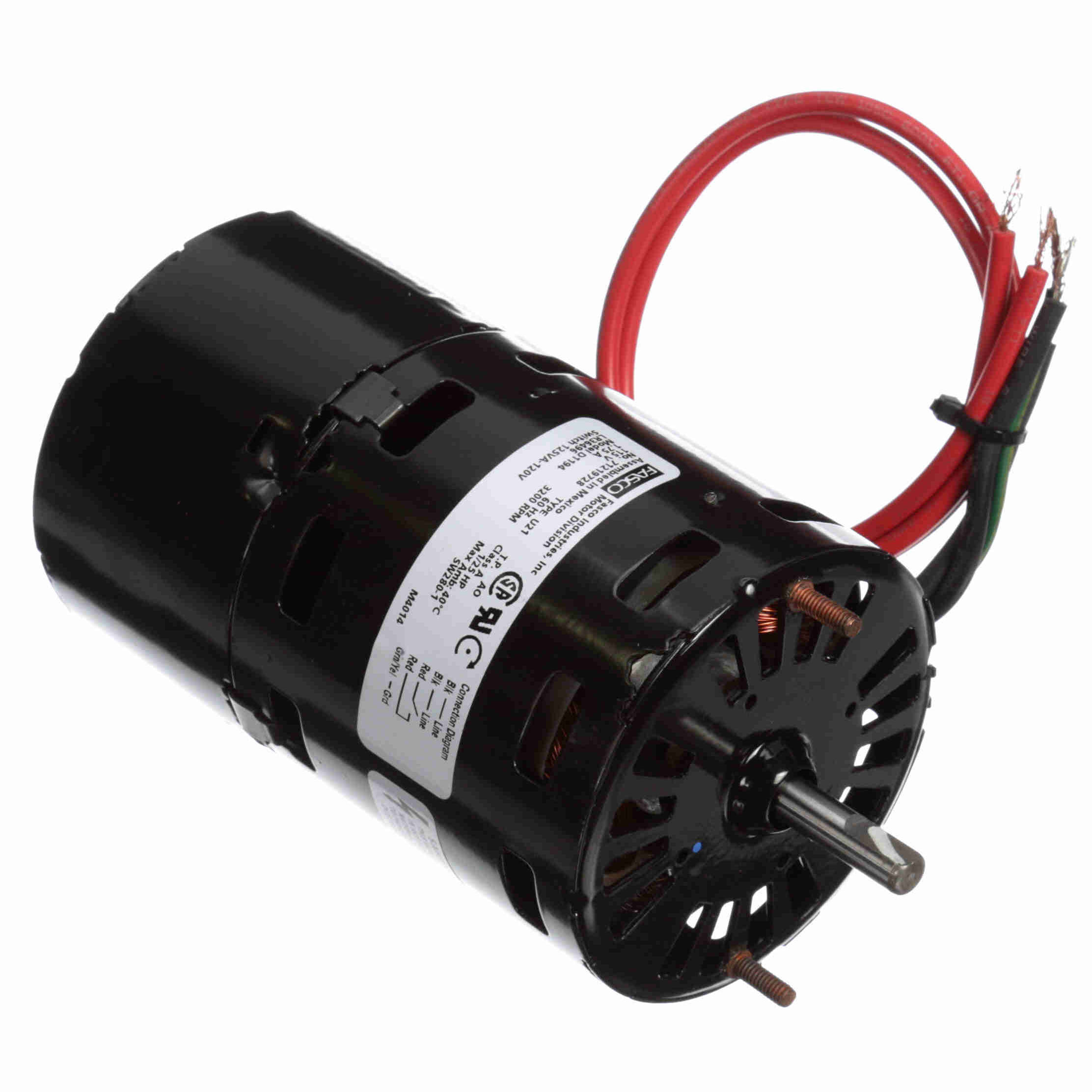

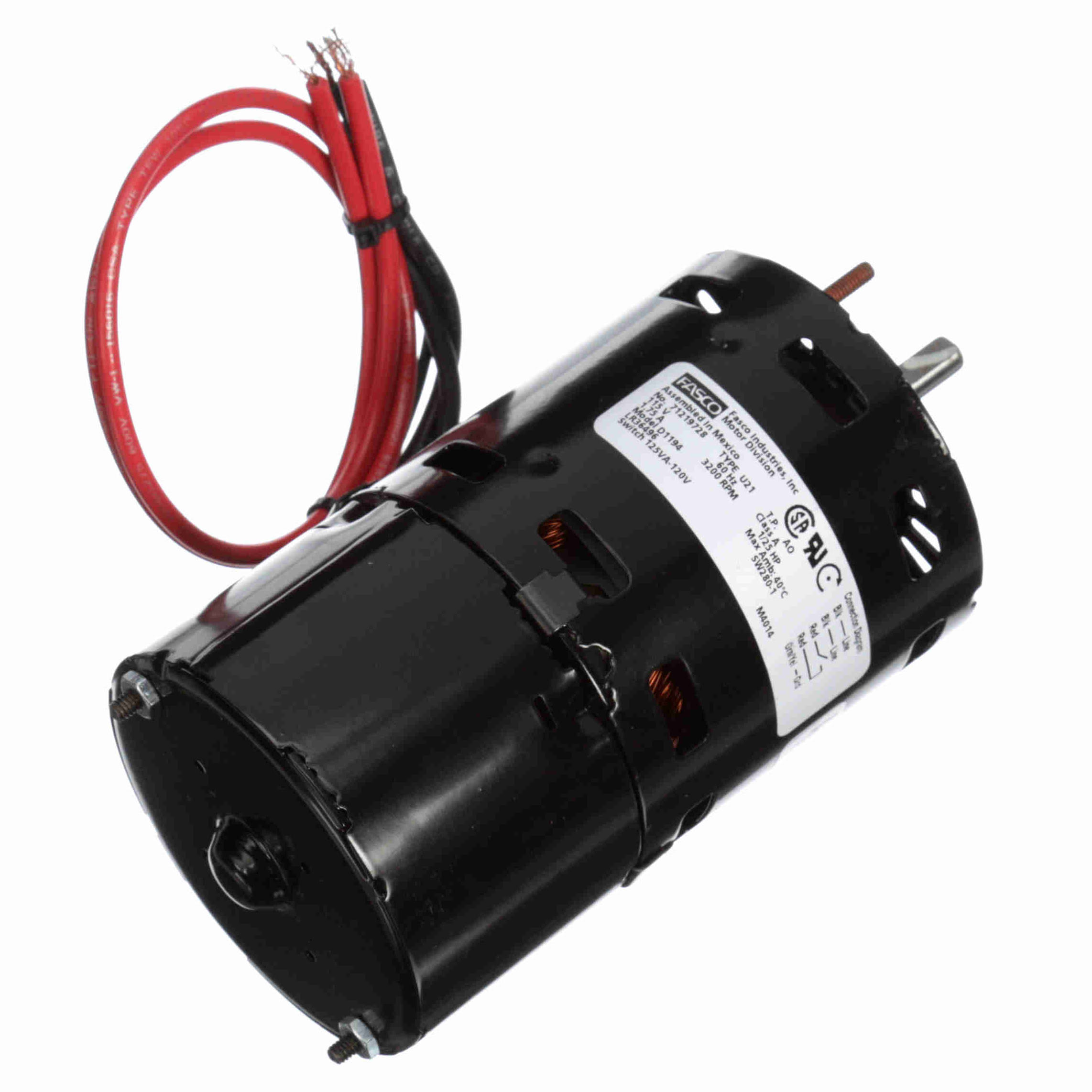

D1194 Fasco 1/25HP Draft Inducer Electric Motor, 3200RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D1194

Selected accessories will also be added to cart
$162.97 / Each
Quantity:
Open Air Over, 3.3" Diameter, 115VAC Single Phase 60Hz, Shaded Pole, Extended Studs, Ball Bearings, 5/16" x 1.25" Shaft

Features

  • Draft Inducer Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Shaft End End-Frame and Shell, Enclosed Lead End End-Frame, Air Over
  • Class A Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • 6" Leads, 16" Switch Leads
  • Extended Studs Shaft End,

General Specifications

UPC: 815585028222 Weight: 4.00 LB
Packaged Length: 11 IN Packaged Width: 3.38 IN
Packaged Height: 3.38 IN

Nameplate Specifications

Output HP: 1/25 Hp Output KW: 0.03 kW
Frequency: 60 Hz Voltage: 115 V
Current: 1.75 A Speed: 3200 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: A
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 2 Rotation: Clockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Steel
Shaft Type: Flat Overall Length: 7.11 in
Frame Length: 3.18 in Shaft Diameter: 0.312 in
Shaft Extension: 1.25 in

Speed & Load Characteristics
