/3.3" Diameter/D1193 Fasco 1/25HP Draft Inducer Electric Motor, 3000RPM
Click Image to Expand

Product ID: D1193

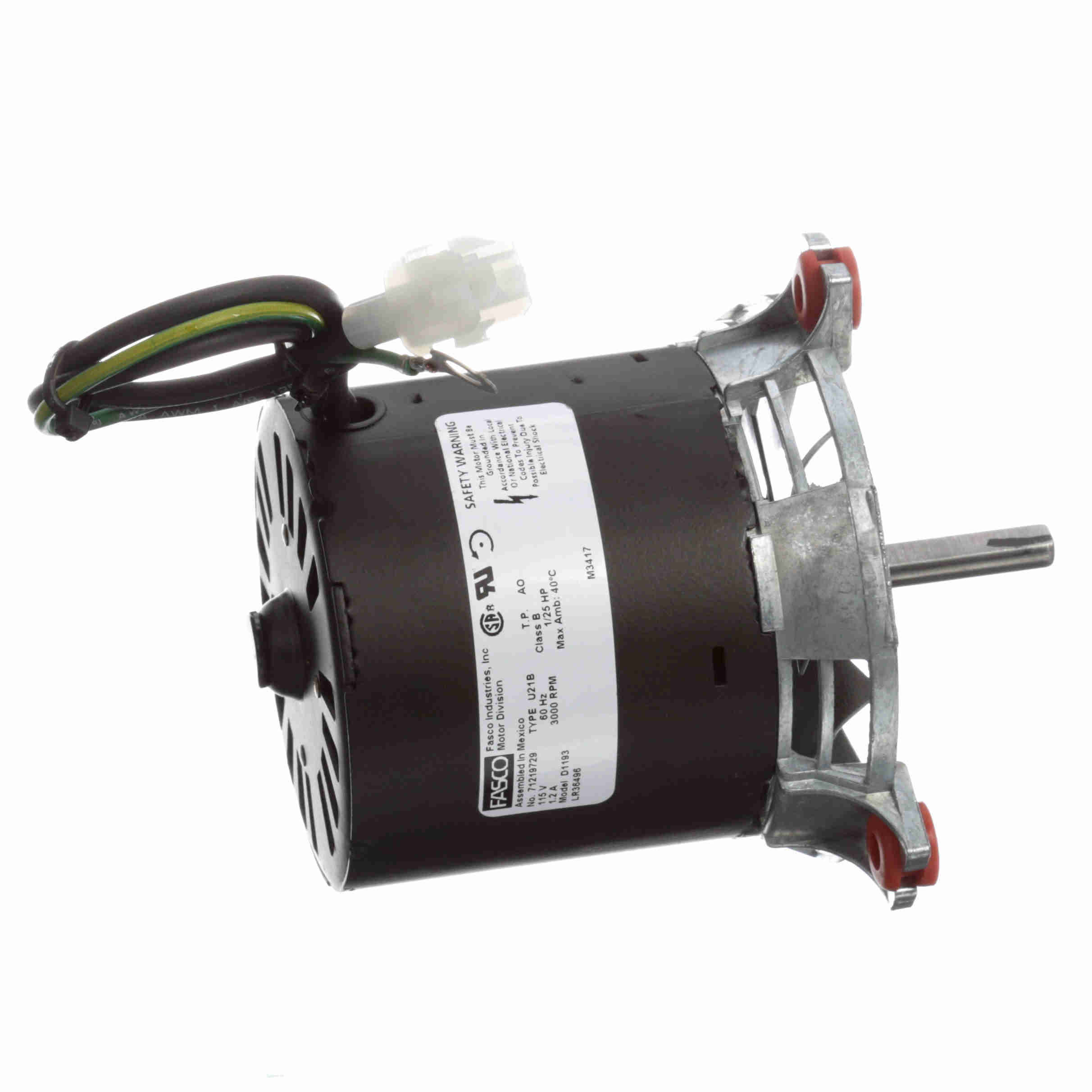

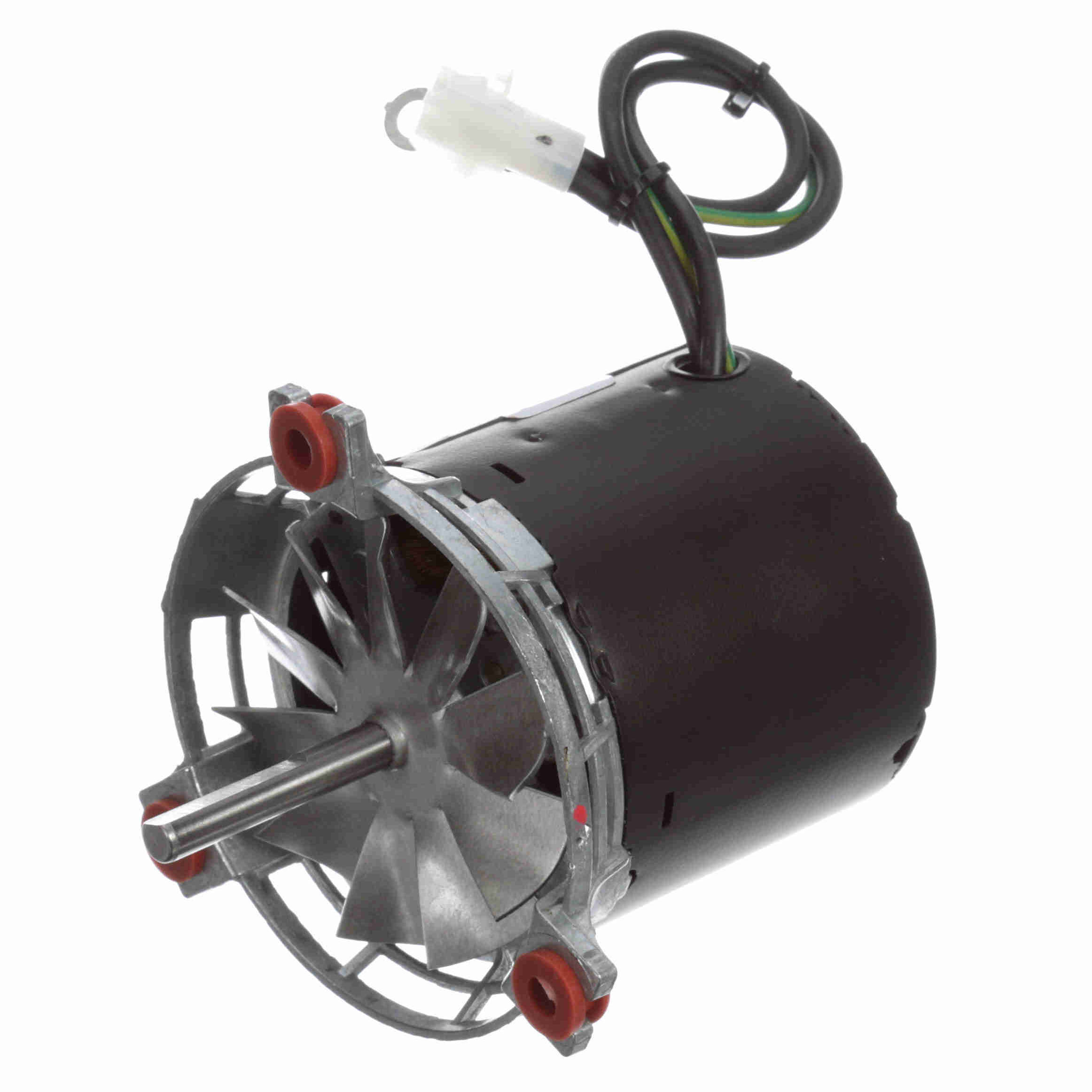

D1193 Fasco 1/25HP Draft Inducer Electric Motor, 3000RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D1193

Selected accessories will also be added to cart
$200.97 / Each
Quantity:
Open Air Over, 3.3" Diameter, 115VAC Single Phase 60Hz, Shaded Pole, Lug Mounting, Sleeve Bearings, CCWSE, 5/16" x 2.32" Shaft

Features

  • Draft Inducer Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • 8" Leads with Terminal Housing
  • Motor-Blower Bracket

General Specifications

UPC: 815585028208 Weight: 3.00 LB
Packaged Length: 6.5 IN Packaged Width: 5.13 IN
Packaged Height: 9 IN

Nameplate Specifications

Output HP: 1/25 Hp Output KW: 0.03 kW
Frequency: 60 Hz Voltage: 115 V
Current: 1.2 A Speed: 3000 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: B
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 2 Rotation: Counterclockwise Shaft End
Mounting: Lug Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Overall Length: 5.54 in
Frame Length: 2.68 in Shaft Diameter: 0.313 in
Shaft Extension: 2.32 in

Speed & Load Characteristics
