/4.4" Diameter/D119 Fasco 1/11, 1/25, 1/70HP Fan and Blower Electric Motor, 1500RPM
Click Image to Expand

Product ID: D119

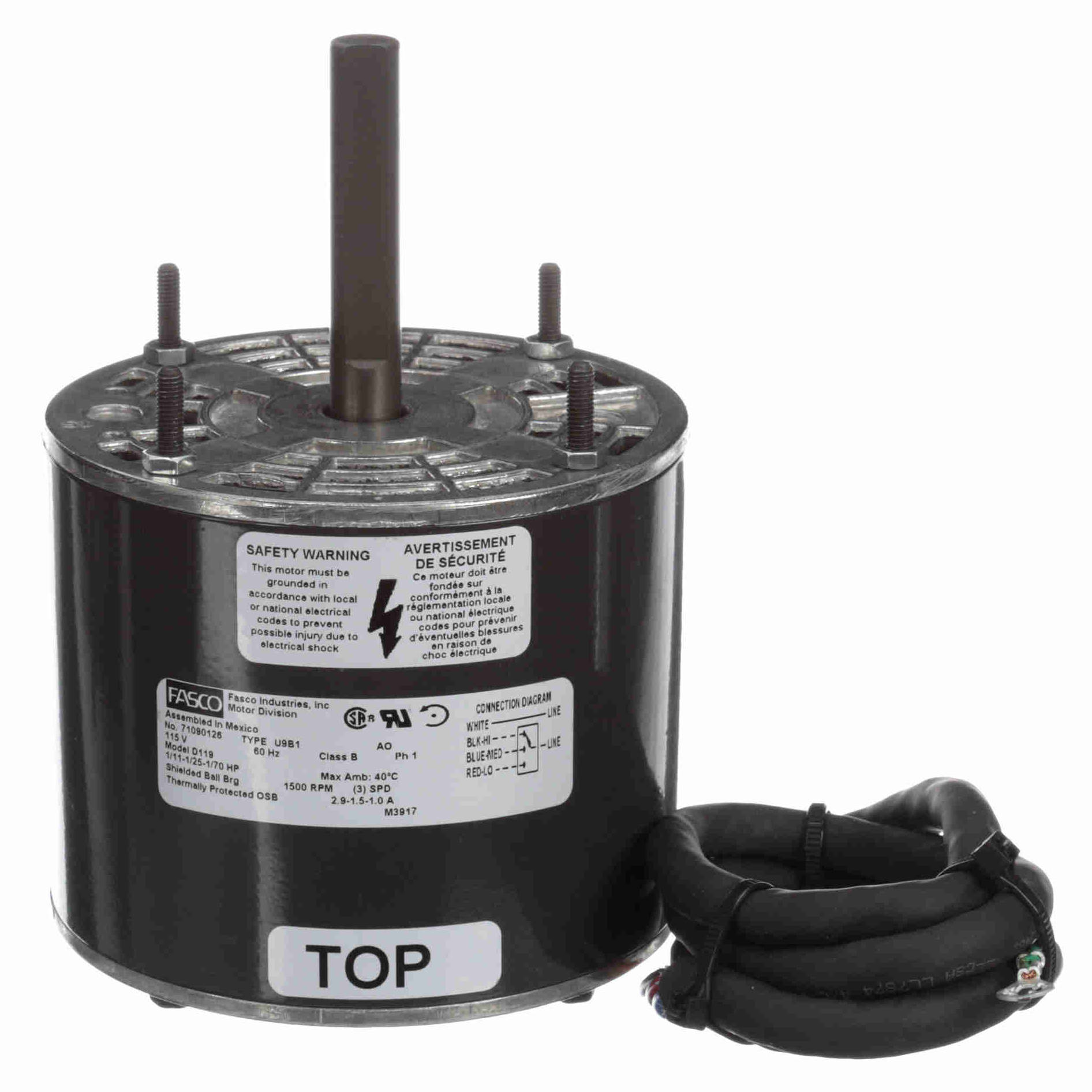

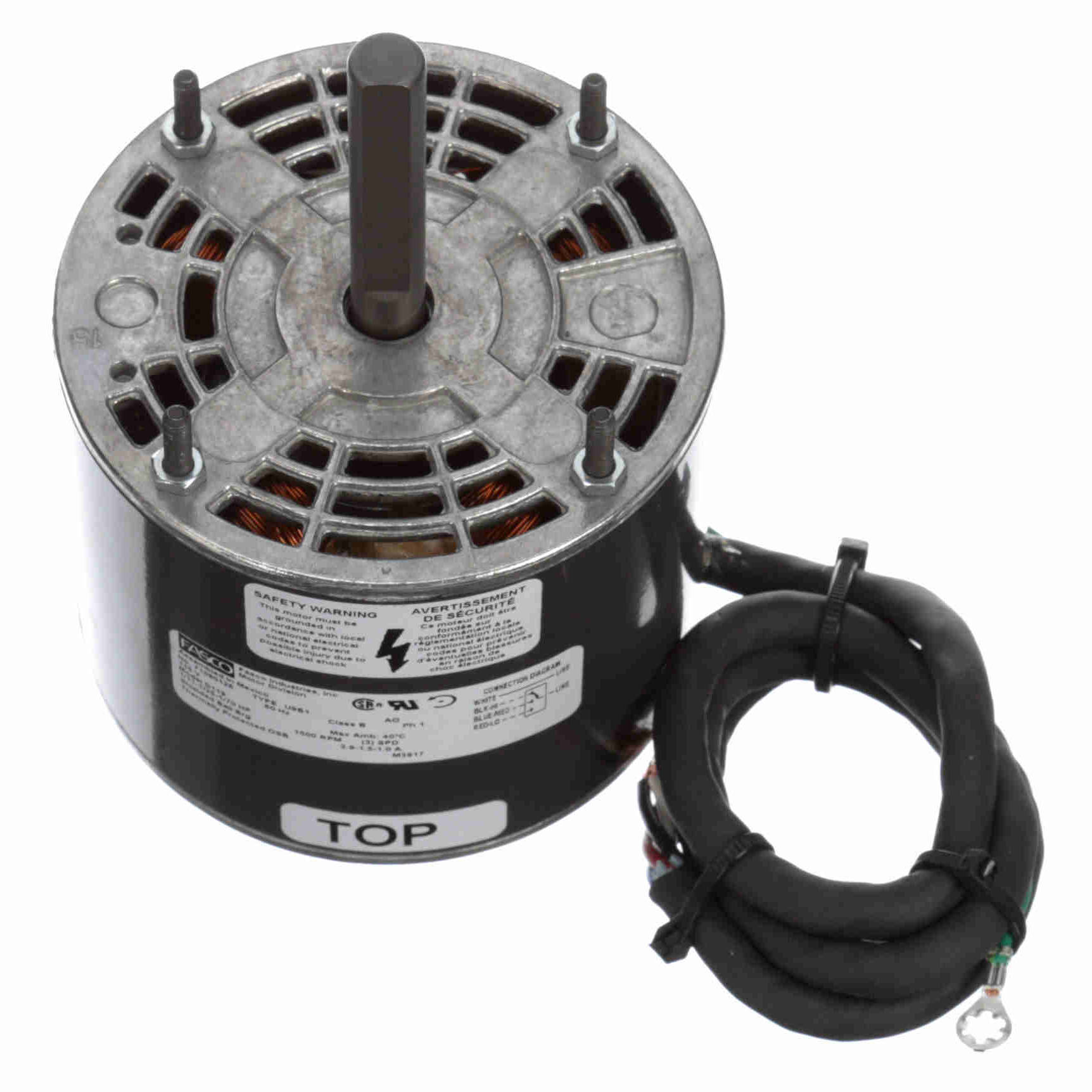

D119 Fasco 1/11, 1/25, 1/70HP Fan and Blower Electric Motor, 1500RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D119

Selected accessories will also be added to cart
$180.97 / Each
Quantity:
Semi-Enclosed, 4.4" Diameter, 115VAC 60Hz Single Phase, Extended Studs, Ball Bearings, Rolled Steel, 1/2" x 2.6" Shaft, CCW Shaft End

Features

  • General Purpose Motor
  • 4.4" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Shaft End and Opposite Shaft End End-Frame, Enclosed Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Flat
  • 30" Leads
  • Extended Studs Shaft End

General Specifications

UPC: 815585028123 Weight: 7 LB
Packaged Length: 4.38 IN Packaged Width: 4.38 IN
Packaged Height: 10 IN

Nameplate Specifications

Output HP: 1/11-1/25-1/70 Hp Output KW: 0.07 kW
Frequency: 60 Hz Voltage: 115 V
Current: 2.9-1.5-1.0 A Speed: 1500 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: B
Frame: 4.4 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Counterclockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Flat Overall Length: 6.36 in
Frame Length: 3.38 in Shaft Diameter: 0.500 in
Shaft Extension: 2.6 in
