/3.3" Diameter/D1184 Fasco 1/16HP Draft Inducer Electric Motor, 3450RPM
Click Image to Expand

Product ID: D1184

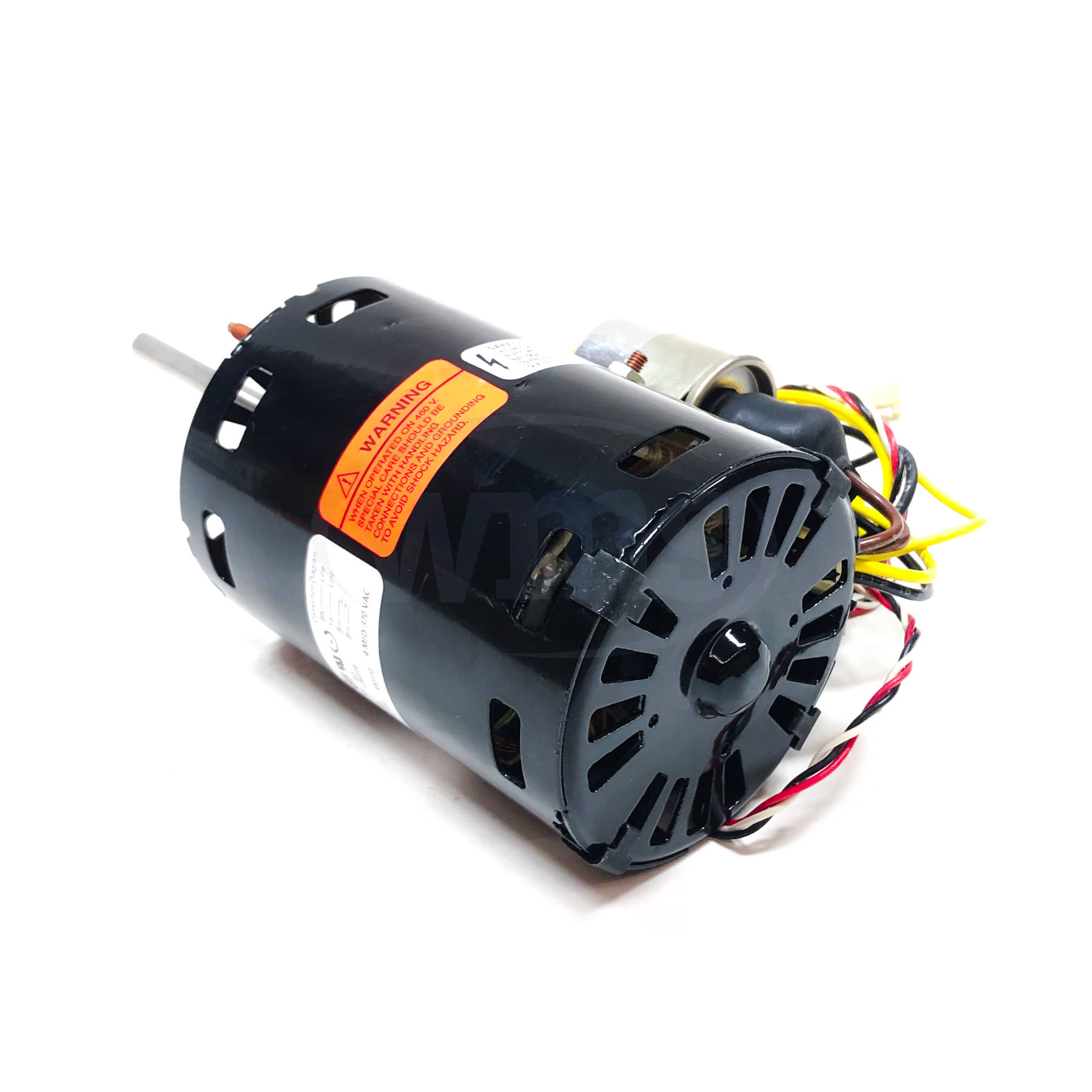

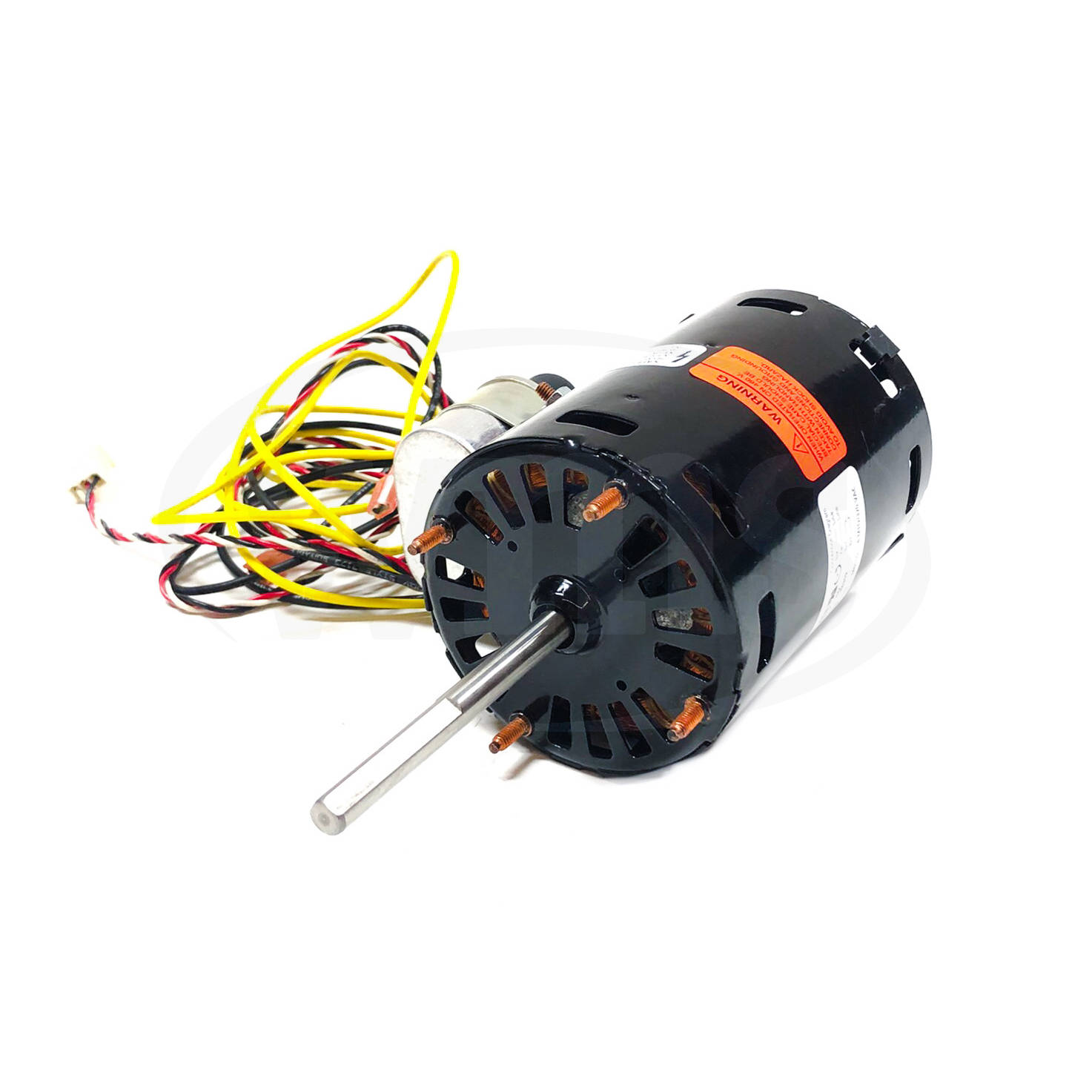

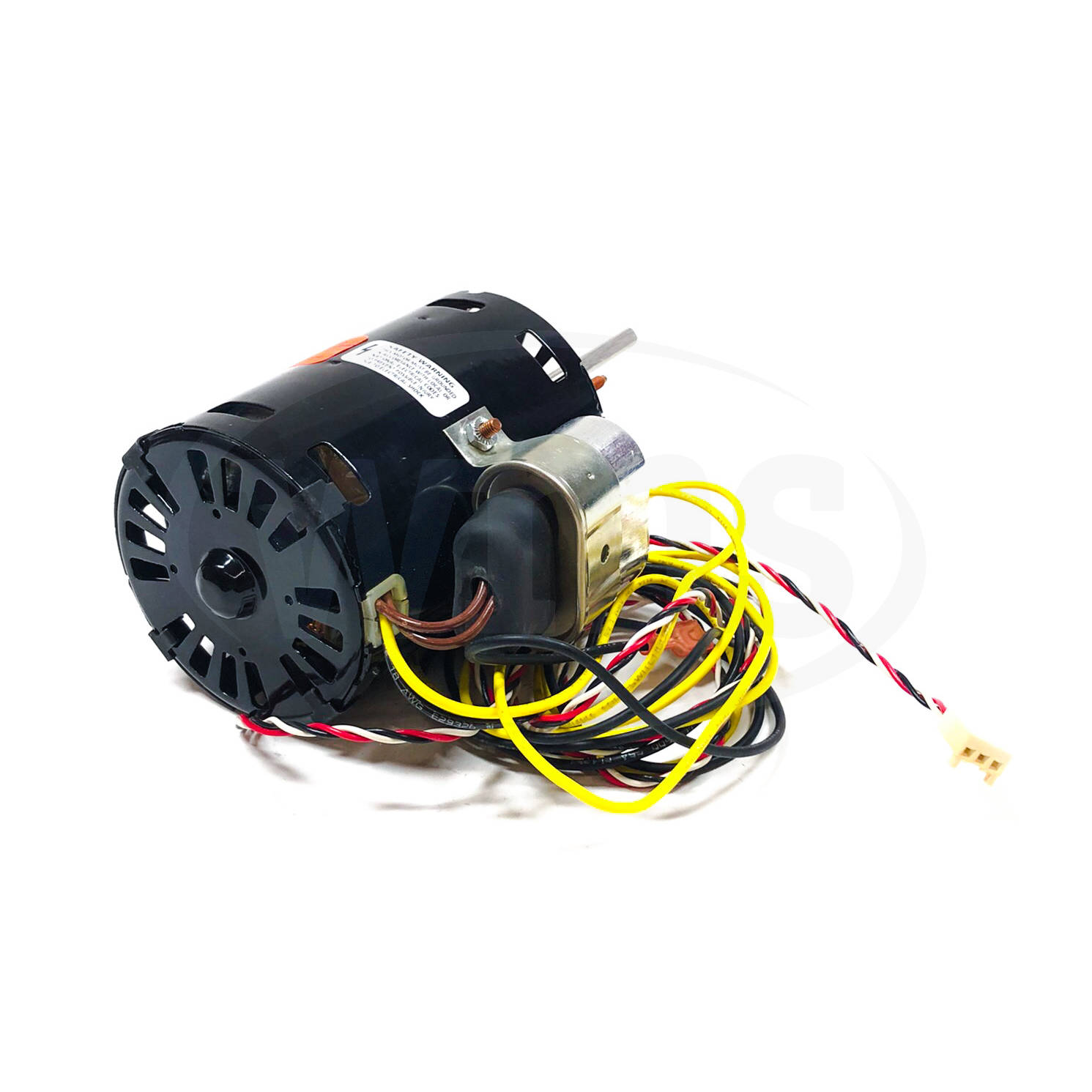

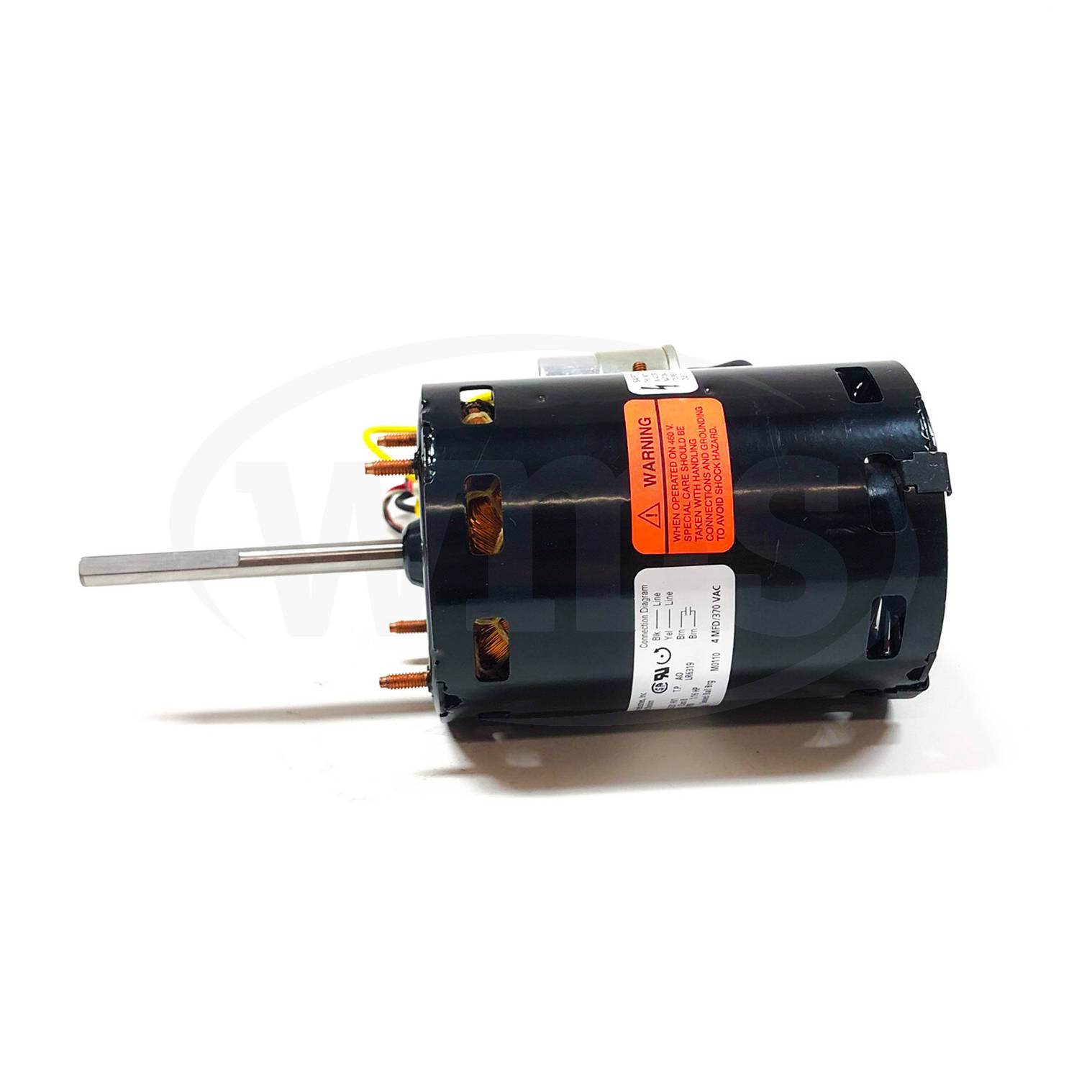

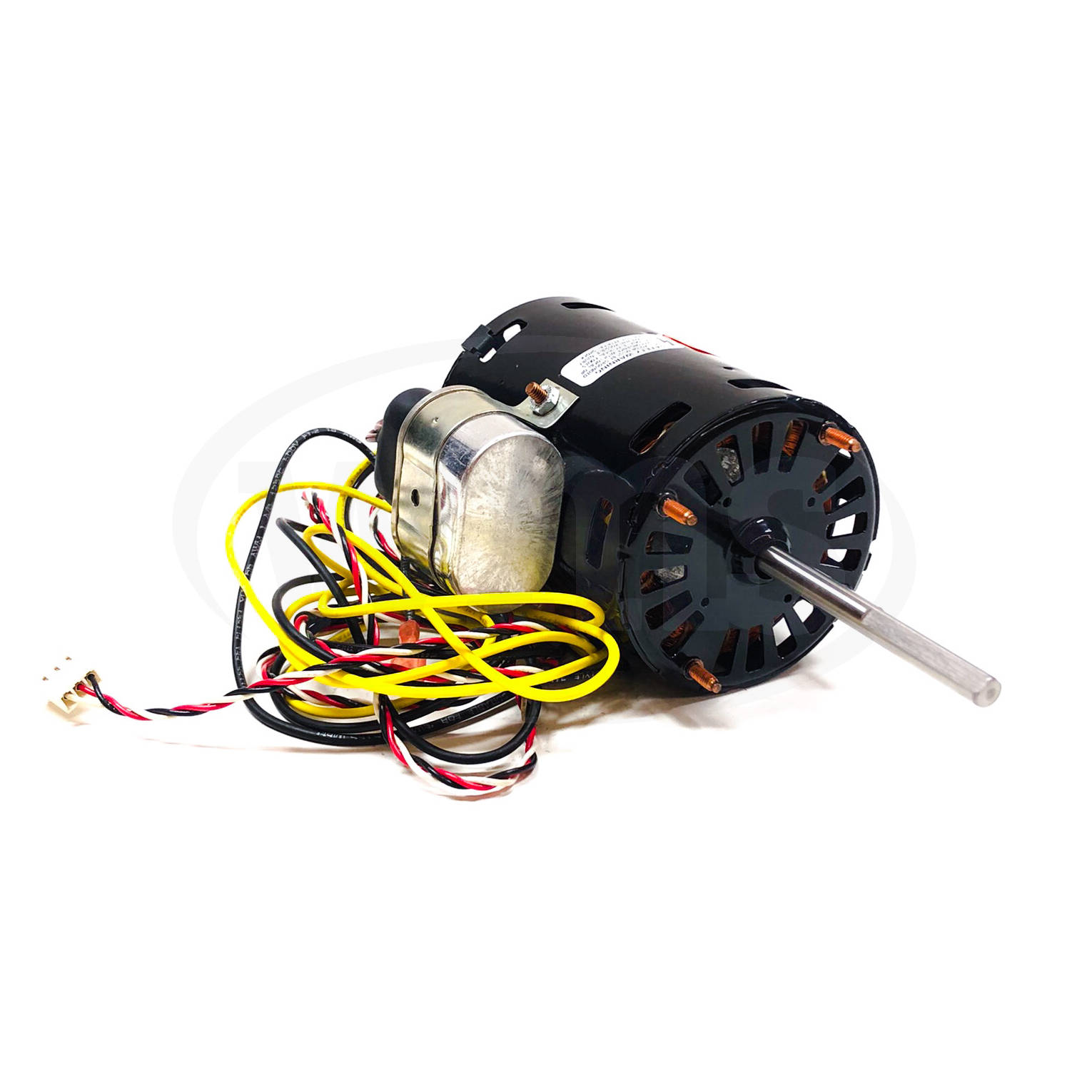

D1184 Fasco 1/16HP Draft Inducer Electric Motor, 3450RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D1184

Available Stock: 1
Selected accessories will also be added to cart
$243.97 / Each
Quantity:
Open Air Over, 3.3" Diameter, 460VAC Single Phase 60Hz, Permanent Split Capacitor, Extended Studs, Ball Bearings, CCWSE, 5/16" x 3.35" Shaft

Features

  • Draft Inducer Motor
  • 3.3" Diameter
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Shaft End End-Frame and Lead End End-Frame, Open Lead End Shell and Enclosed Shaft End Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 5/16" Diameter Shaft with Double Flat
  • 56" Leads with Spade Terminals
  • Extended Studs Shaft End

General Specifications

UPC: 815585028048 Weight: 5.00 LB
Packaged Length: 12 IN Packaged Width: 5.13 IN
Packaged Height: 3.31 IN

Nameplate Specifications

Output HP: 1/16 Hp Output KW: 0.04 kW
Frequency: 60 Hz Voltage: 460 V
Current: .3 A Speed: 3450 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: B
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 2 Rotation: Counterclockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Steel
Shaft Type: Double Flat Overall Length: 8.10 in
Frame Length: 4.51 in Shaft Diameter: 0.312 in
Shaft Extension: 3.35 in

Speed & Load Characteristics
