/3.3" Diameter/D1167 Fasco 1/40HP Electric Motor, 3.3" Diameter, 3000RPM
Click Image to Expand

Product ID: D1167

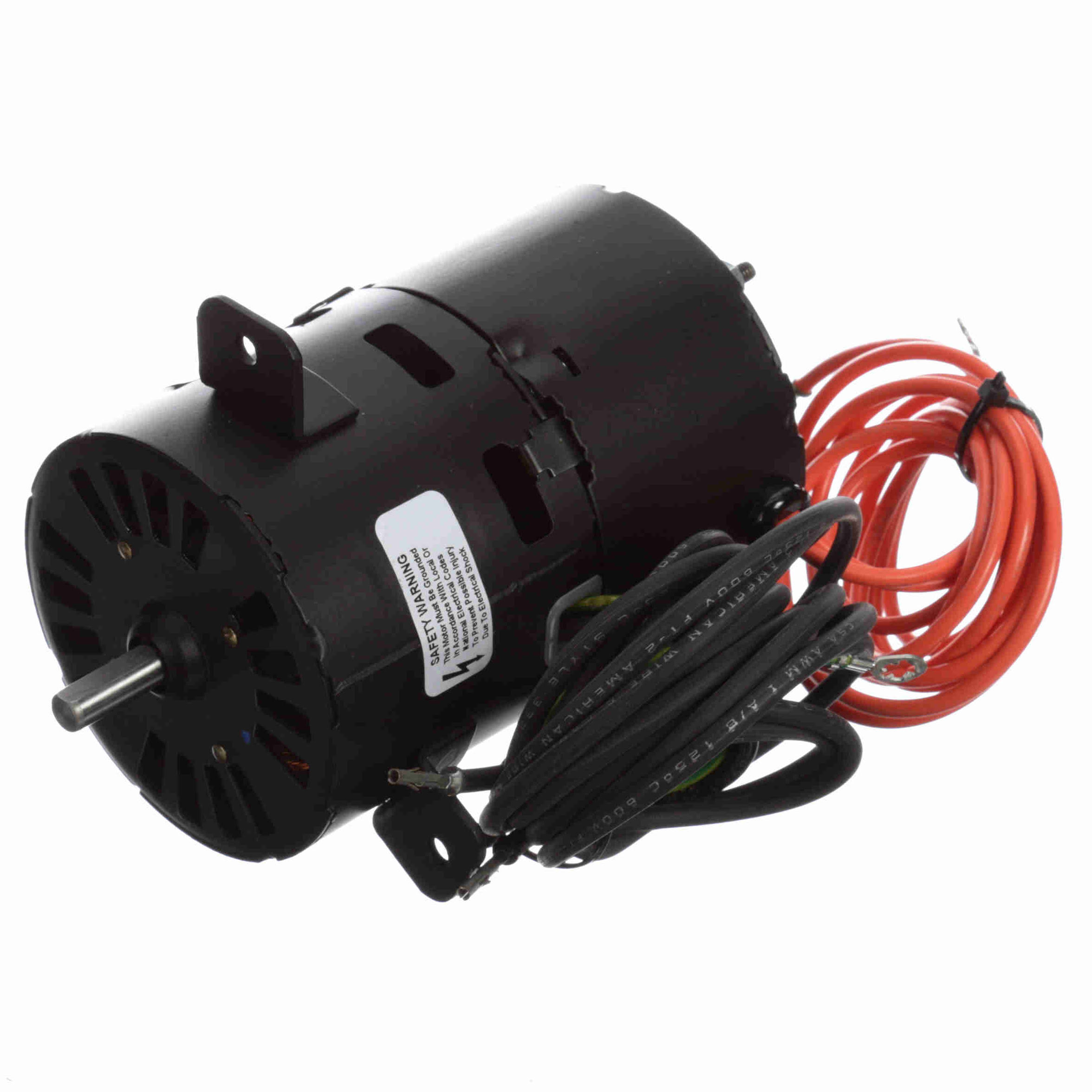

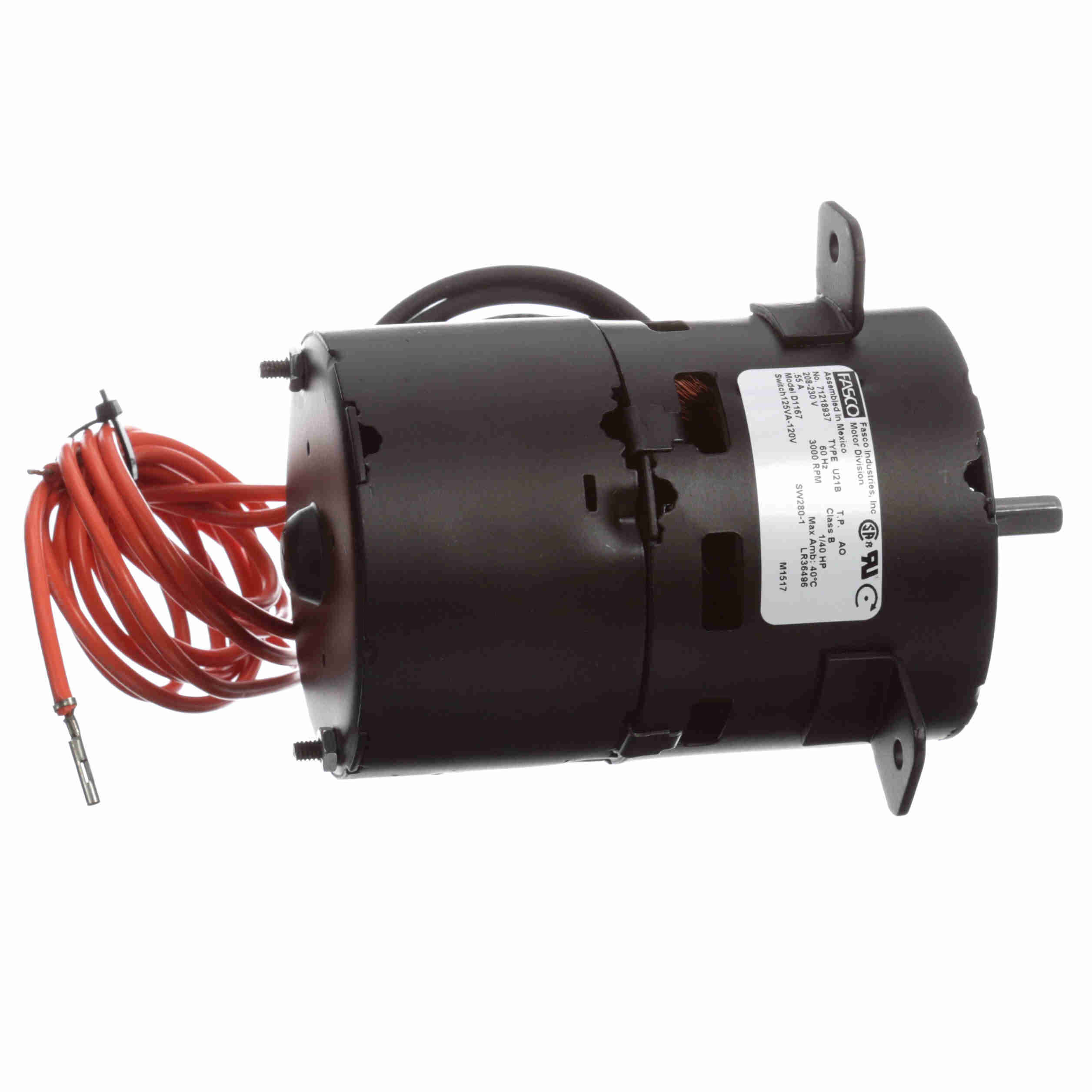

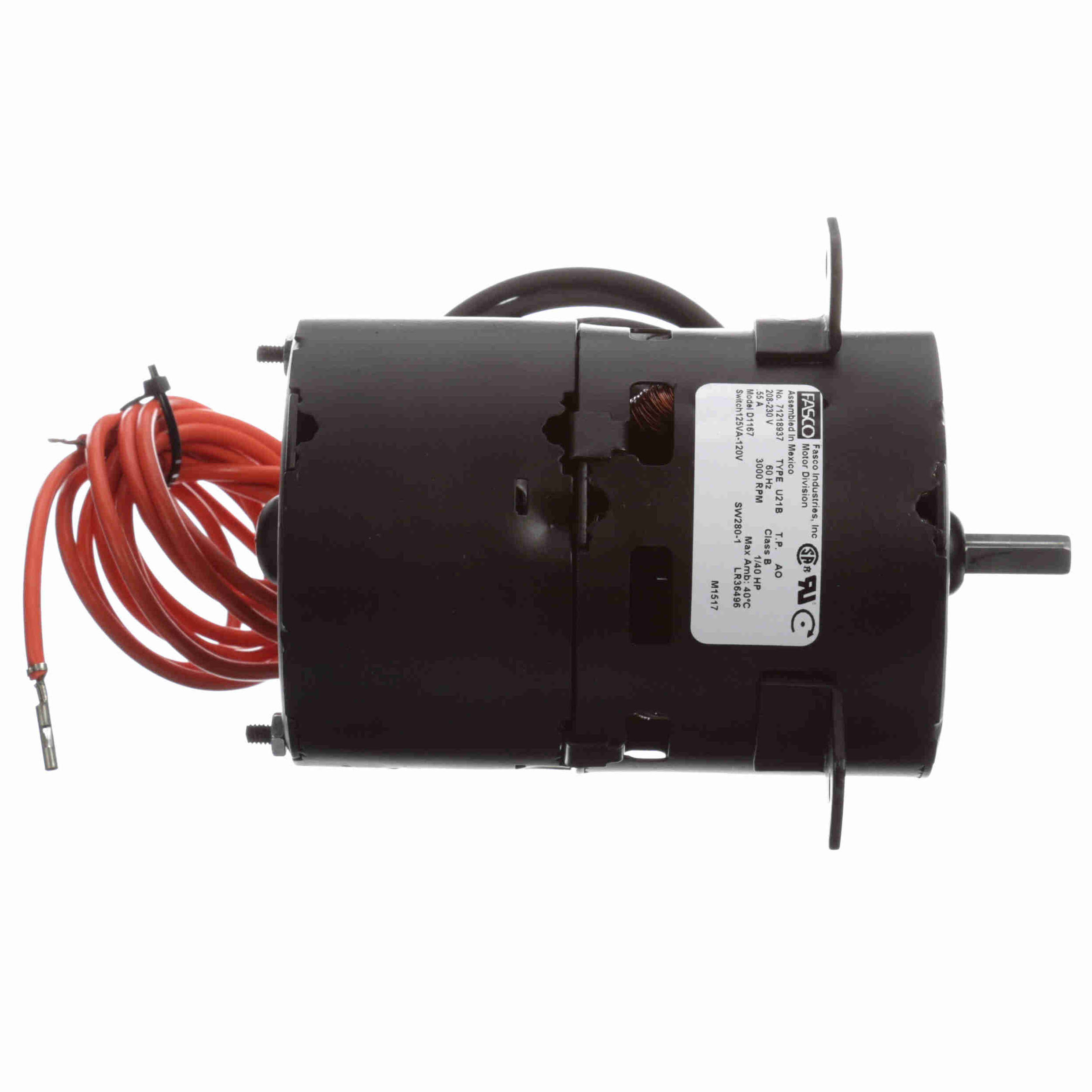

D1167 Fasco 1/40HP Electric Motor, 3.3" Diameter, 3000RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D1167

Selected accessories will also be added to cart
$262.97 / Each
Quantity:
Open Air Over, 208-230VAC Single Phase 60Hz, Shaded Pole, Lug Mounting, CCWSE, Sleeve Bearings, 5/16" x 1" Shaft

Features

  • OEM Direct Replacement Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Shaft End End-Frame, Enclosed Lead End End-Frame, Semi-Enclosed Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Double Flat
  • 56" Leads with Socket Terminals, 18" Swithch Leads with Socket Terminals
  • Lug Mount

General Specifications

UPC: 818508022277 Weight: 4.00 LB
Packaged Length: 6.13 IN Packaged Width: 5.5 IN
Packaged Height: 10 IN

Nameplate Specifications

Output HP: 1/40 Hp Output KW: 0.02 kW
Frequency: 60 Hz Voltage: 208-230 V
Current: .55 A Speed: 3000 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: B
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 2 Rotation: Counterclockwise Shaft End
Mounting: Lug Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Double Flat Overall Length: 6.18 in
Frame Length: 2.50 in Shaft Diameter: 0.313 in
Shaft Extension: 1 in
