3.3" Diameter
/
D1160 Fasco 1/100HP OEM Replacement Electric Motor, 1550RPM
Click Image to Expand
Previous
Next
Product ID: D1160

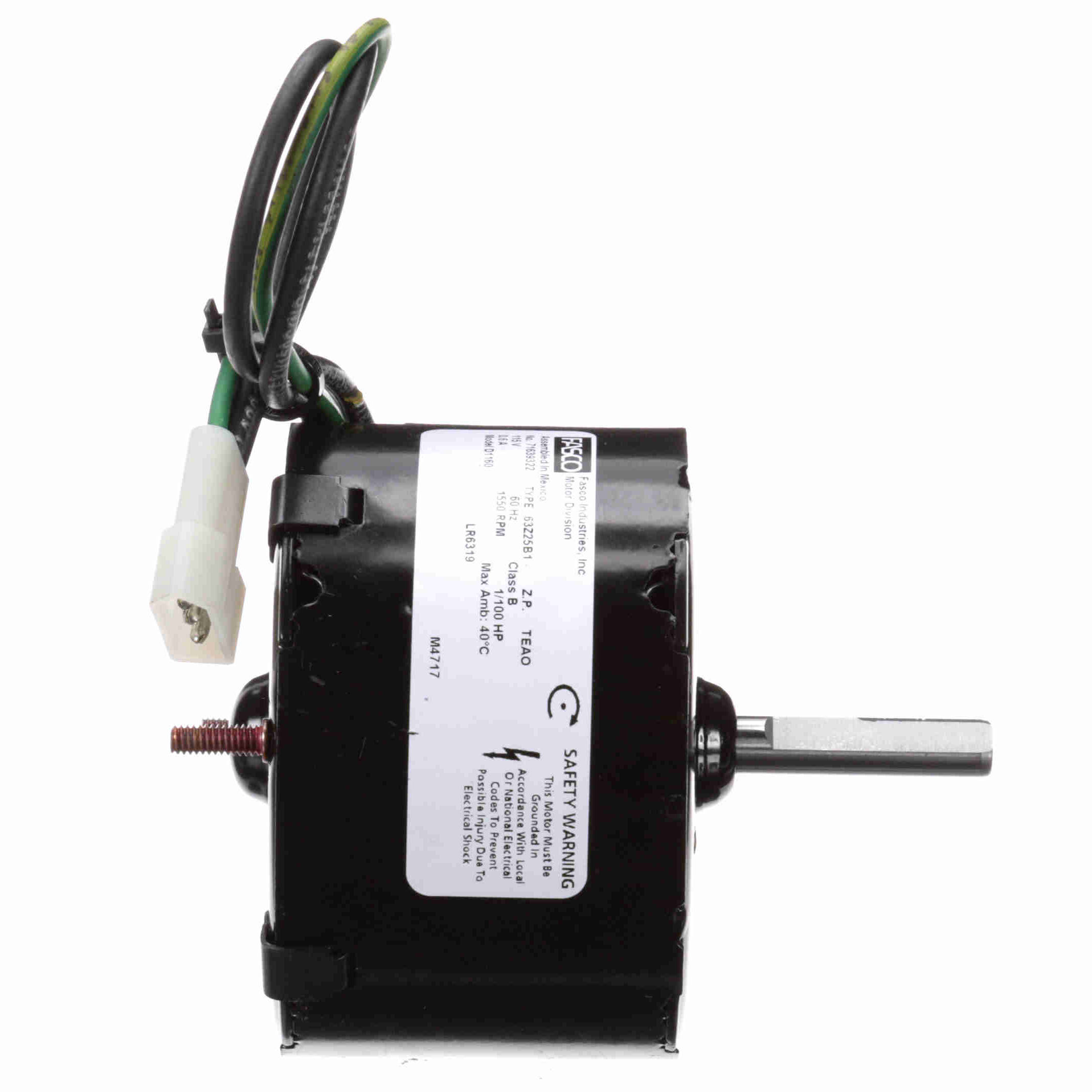

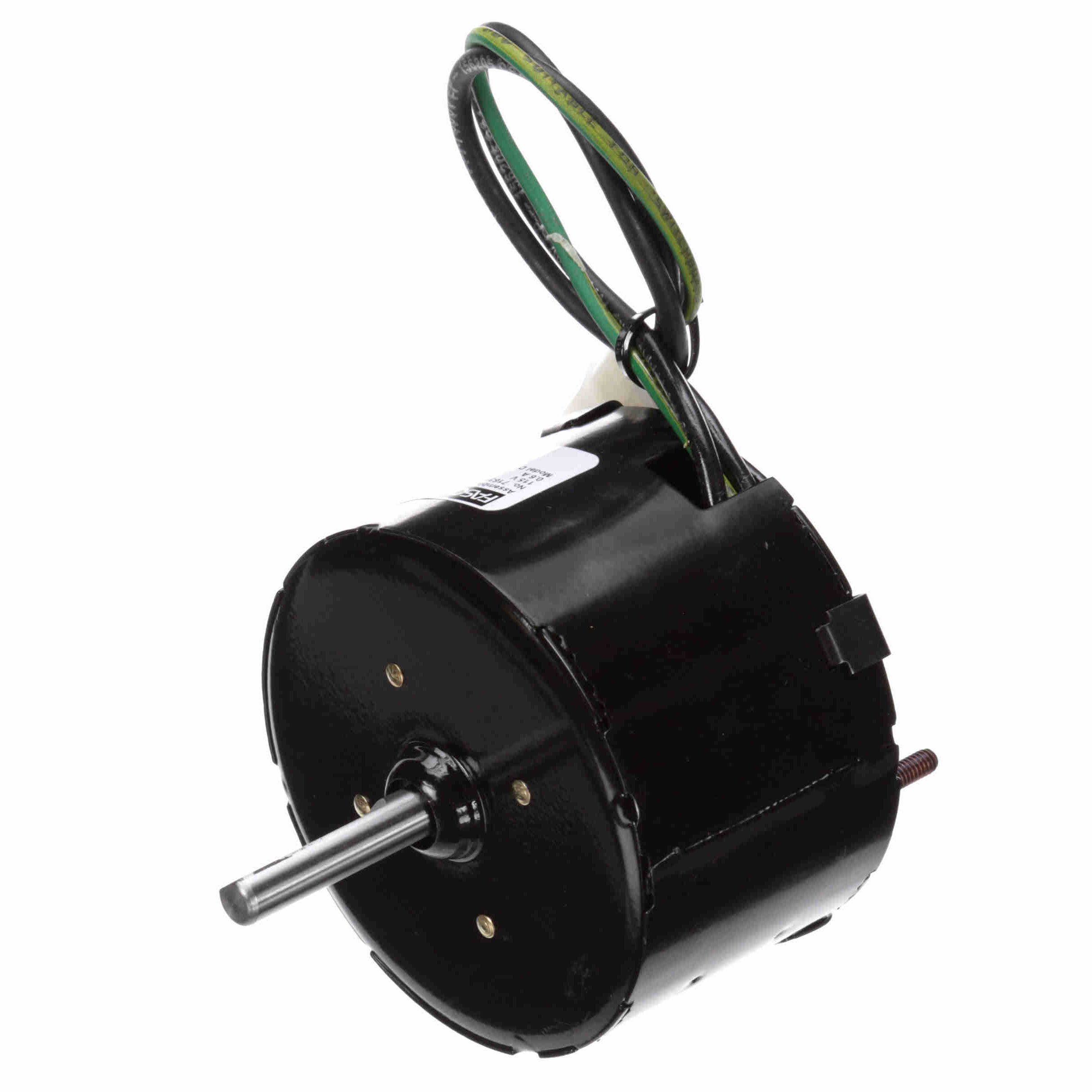

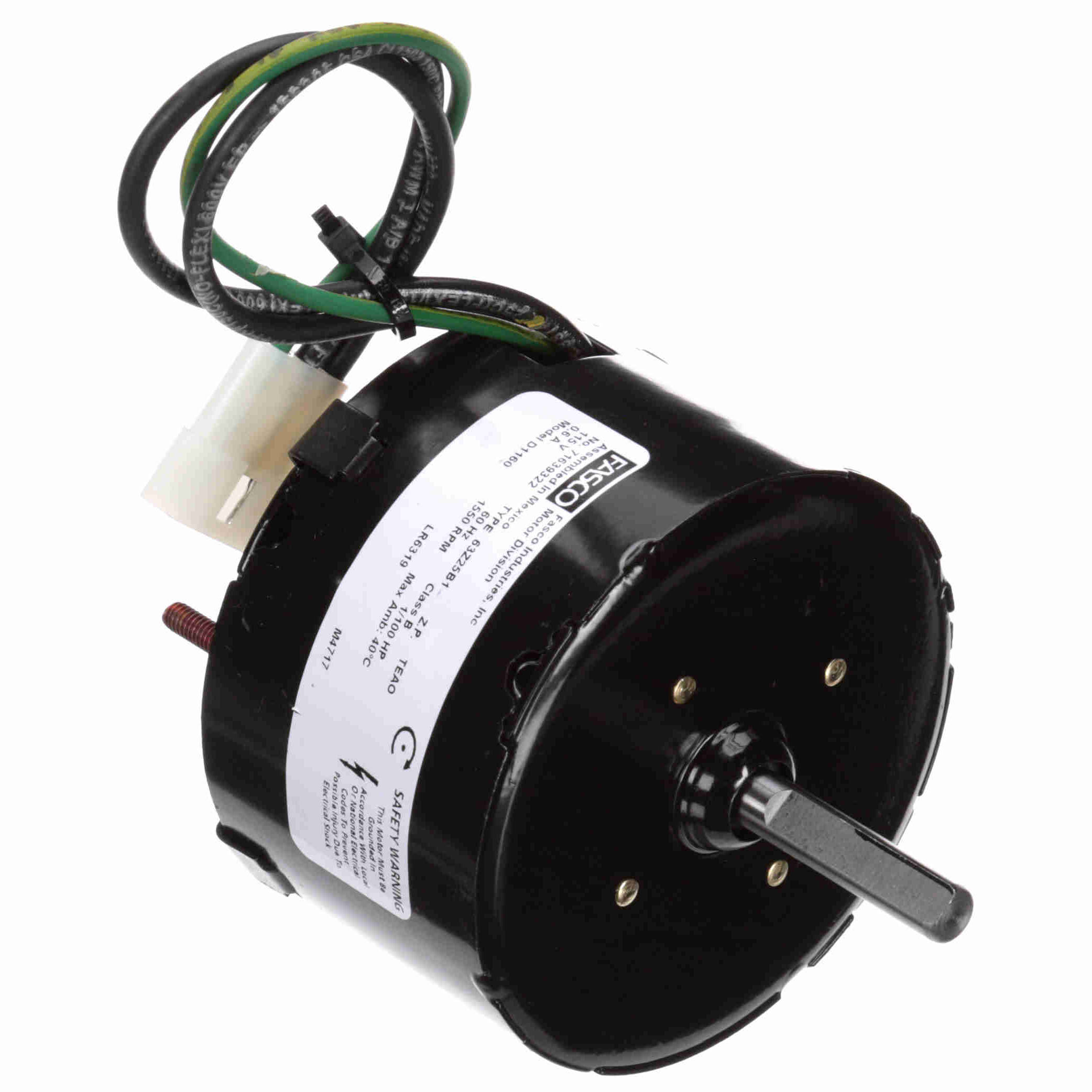

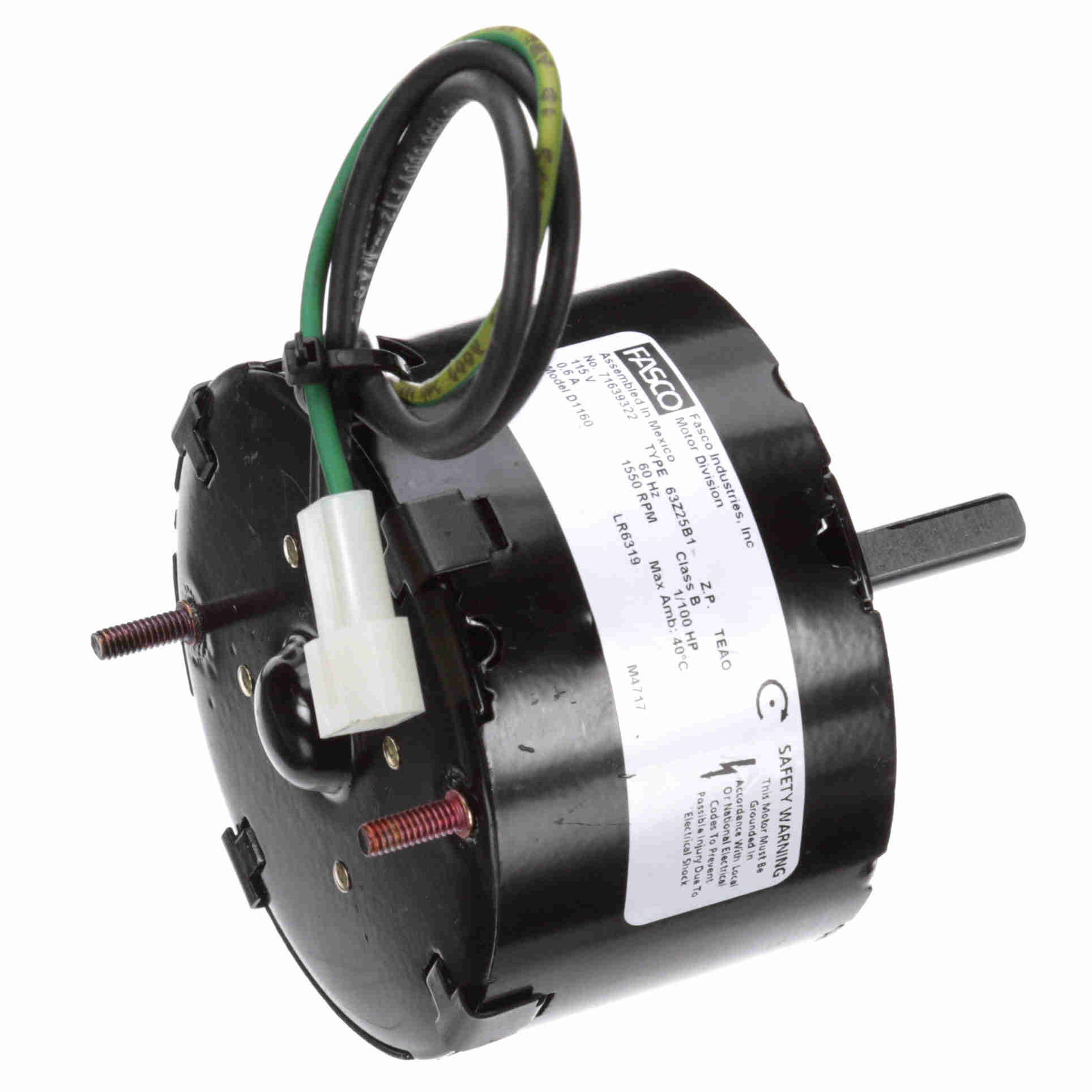

D1160 Fasco 1/100HP OEM Replacement Electric Motor, 1550RPM
MFG: Fasco (RegalRexnord)
MFG Part Number: D1160
Selected accessories will also be added to cart
$76.97 / Each
Quantity:
TEAO, 3.3" Diameter, 115VAC 60Hz Single Phase, Extended Studs, Sleeve Bearings, 5/16" x 1.60" Shaft, CW Shaft End
Details
Features
OEM Direct Replacement Motor
3.3" Diameter
Shaded Pole
Impedance Protected
Totally Enclosed Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
5/16" Diameter Shaft with Flat
7" Leads with Terminal House
Extended Studs Lead End
General Specifications
UPC:
818508022222
Weight:
2 LB
Packaged Length:
8 IN
Packaged Width:
3.38 IN
Packaged Height:
3.38 IN
Nameplate Specifications
Output HP:
1/100 Hp
Output KW:
0.01 kW
Frequency:
60 Hz
Voltage:
115 V
Current:
0.60 A
Speed:
1550 rpm
Service Factor:
1
Phase:
1
Duty:
Air Over
Insulation Class:
B
Frame:
3.3
Enclosure:
Totally Enclosed Air Over
Thermal Protection:
Impedence
Ambient Temperature:
40 °C
UL:
No
CSA:
N
CE:
N
Technical Specifications
Electrical Type:
Shaded Pole
Starting Method:
Across The Line
Poles:
4
Rotation:
Clockwise Shaft End
Mounting:
Extended Studs
Drive End Bearing:
Sleeve
Opp Drive End Bearing:
Sleeve
Frame Material:
Steel
Shaft Type:
Flat
Overall Length:
4.07 in
Frame Length:
1.95 in
Shaft Diameter:
0.313 in
Shaft Extension:
1.60 in
