/4.4" Diameter/D114 Fasco 1/12HP Fan/Room Air Conditioner Electric Motor, 1550RPM
Click Image to Expand

Product ID: D114

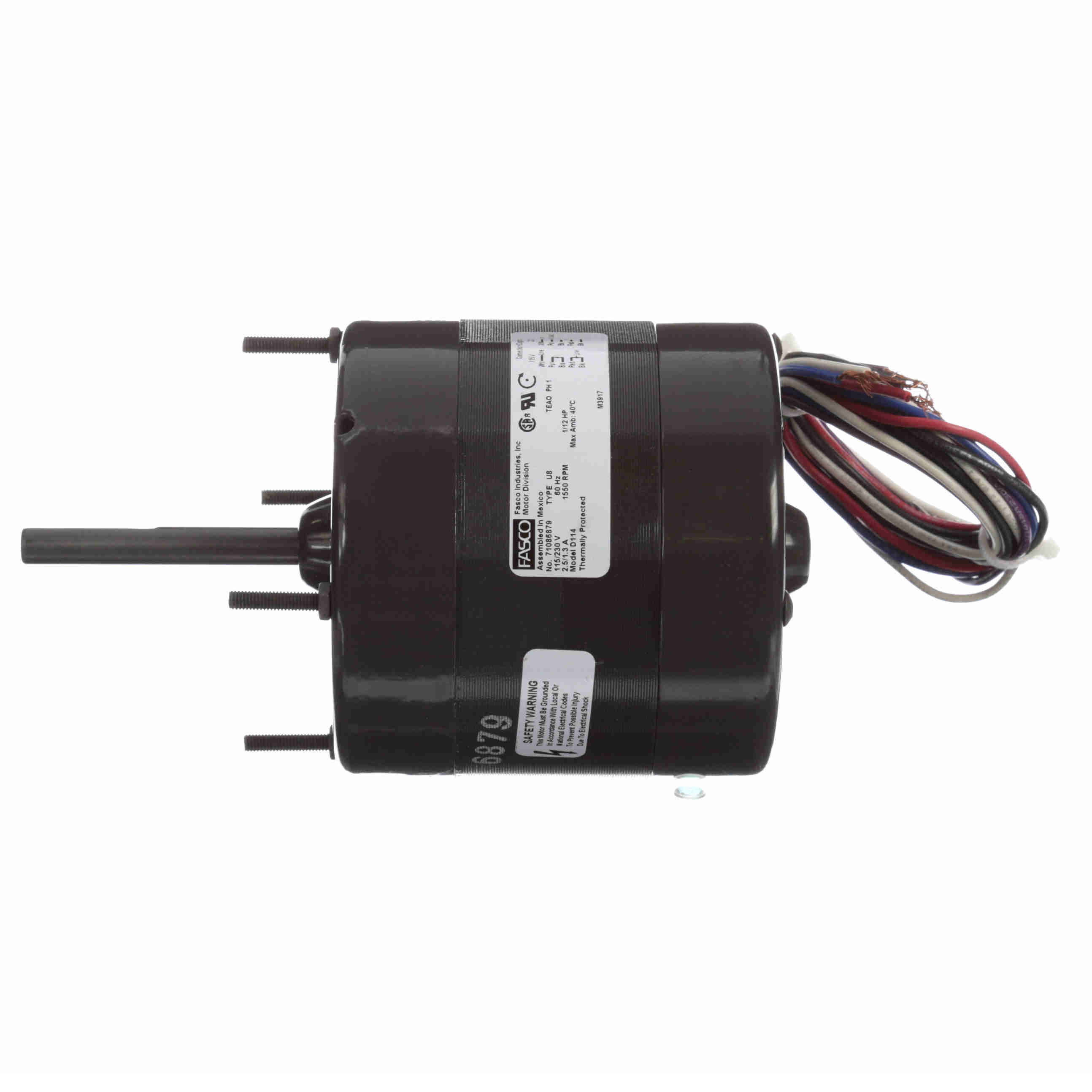

D114 Fasco 1/12HP Fan/Room Air Conditioner Electric Motor, 1550RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D114

Selected accessories will also be added to cart
$357.97 / Each
Quantity:
TEAO, 4.4" Diameter, 115/230VAC Single Phase 60Hz, Shaded Pole, Extended Studs, Sleeve Bearings, CWSE, 3/8" x 3" Shaft

Features

  • Fan Coil - Air-Conditioning - Heating Unit Motor
  • 4.4" Diameter
  • Shaded Pole
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class A Insulation, 40°C Ambient
  • Sleeve Bearing
  • 3/8" Diameter Shaft with Flat
  • Conduit Box, 26" Leads
  • Extended Studs Shaft End

General Specifications

UPC: 818508022055 Weight: 9.00 LB
Packaged Length: 5.75 IN Packaged Width: 4.38 IN
Packaged Height: 8 IN

Nameplate Specifications

Output HP: 1/12 Hp Output KW: 0.06 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 2.5/1.3 A Speed: 1550 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: A
Frame: 4.4 Enclosure: Totally Enclosed Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Na
Shaft Type: Flat Overall Length: 7.62 in
Shaft Diameter: 0.375 in Shaft Extension: 3 in

Speed & Load Characteristics
