/3.3" Diameter/D1138 Fasco 1/50, 1/80, 1/140HP OEM Replacement Electric Motor, 1500RPM

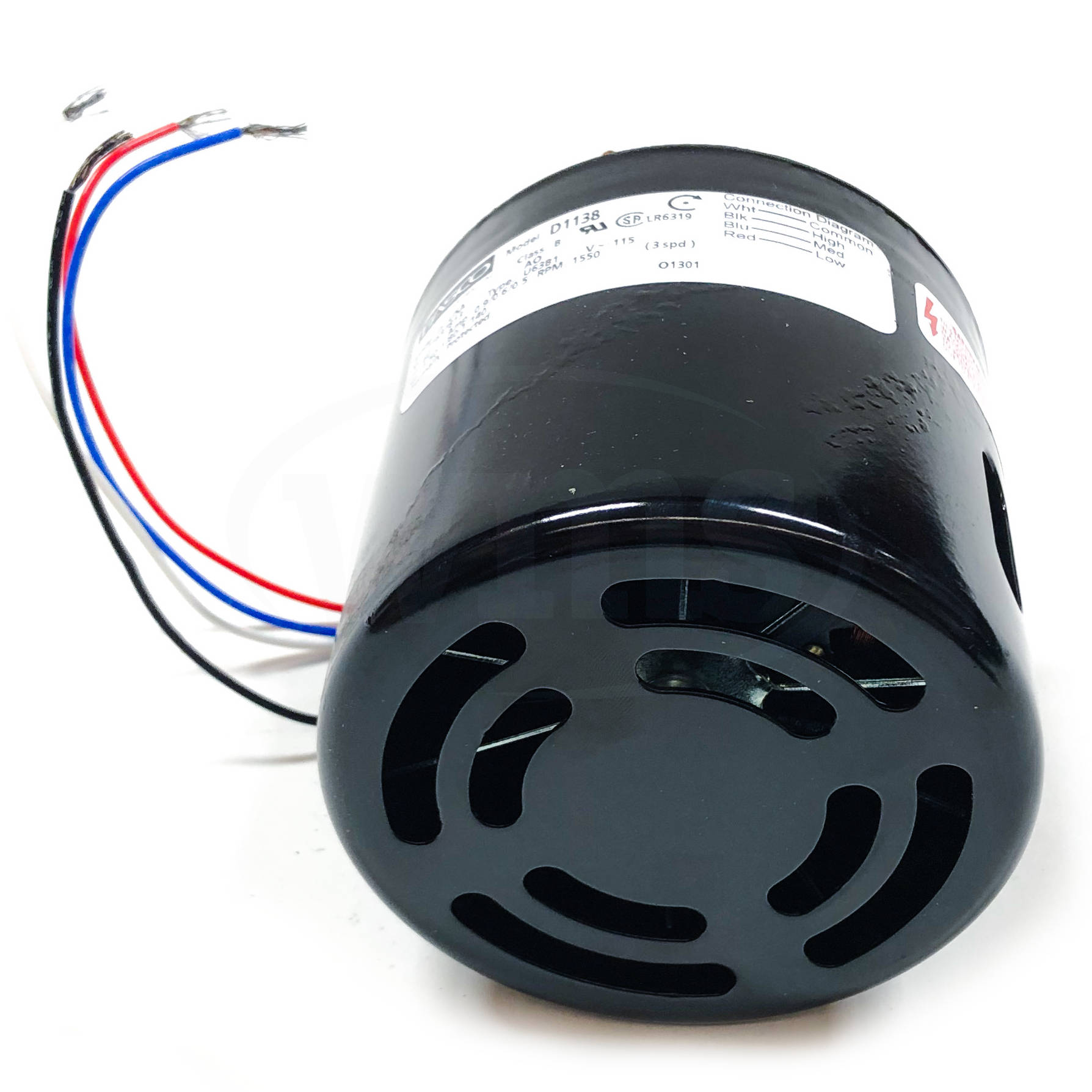

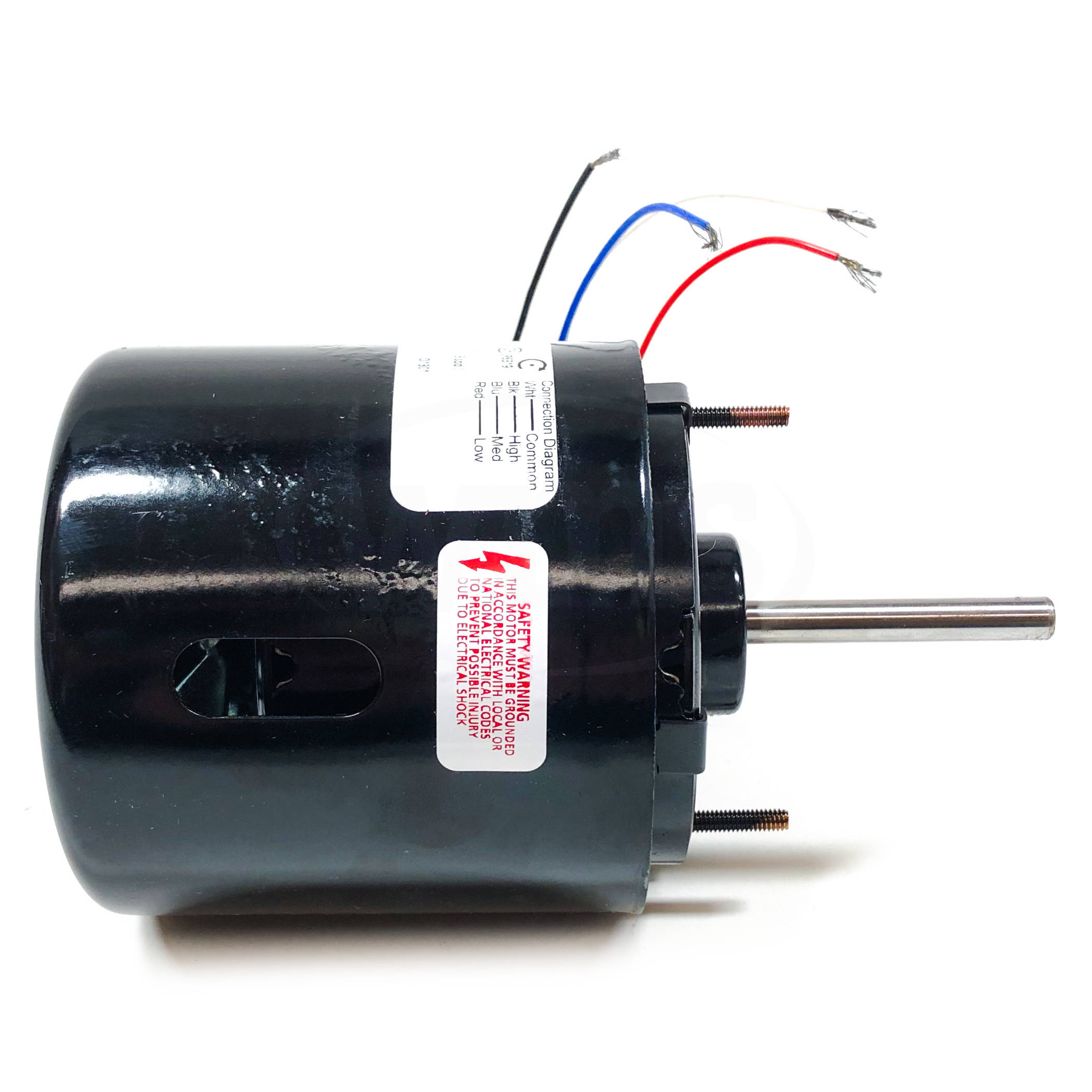

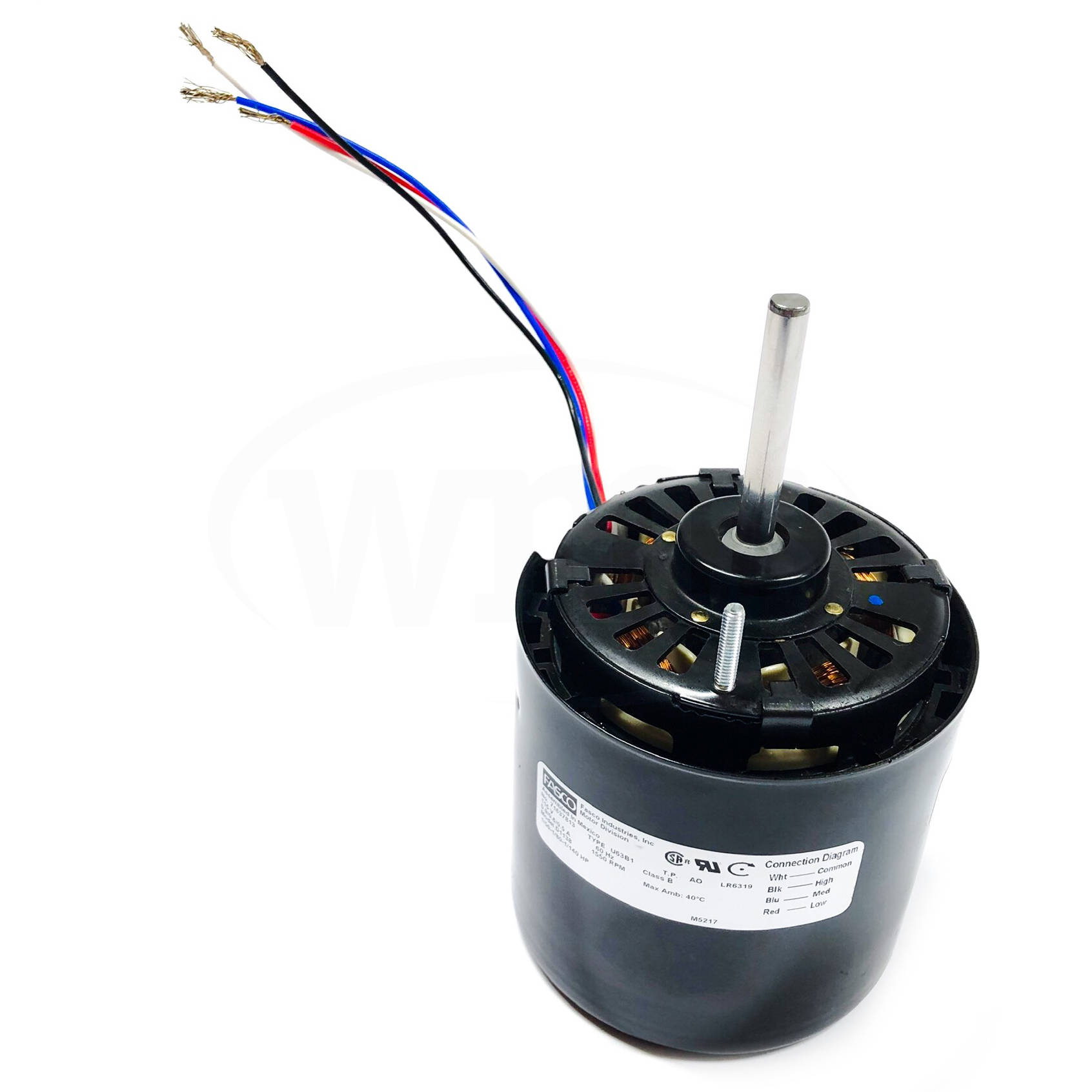

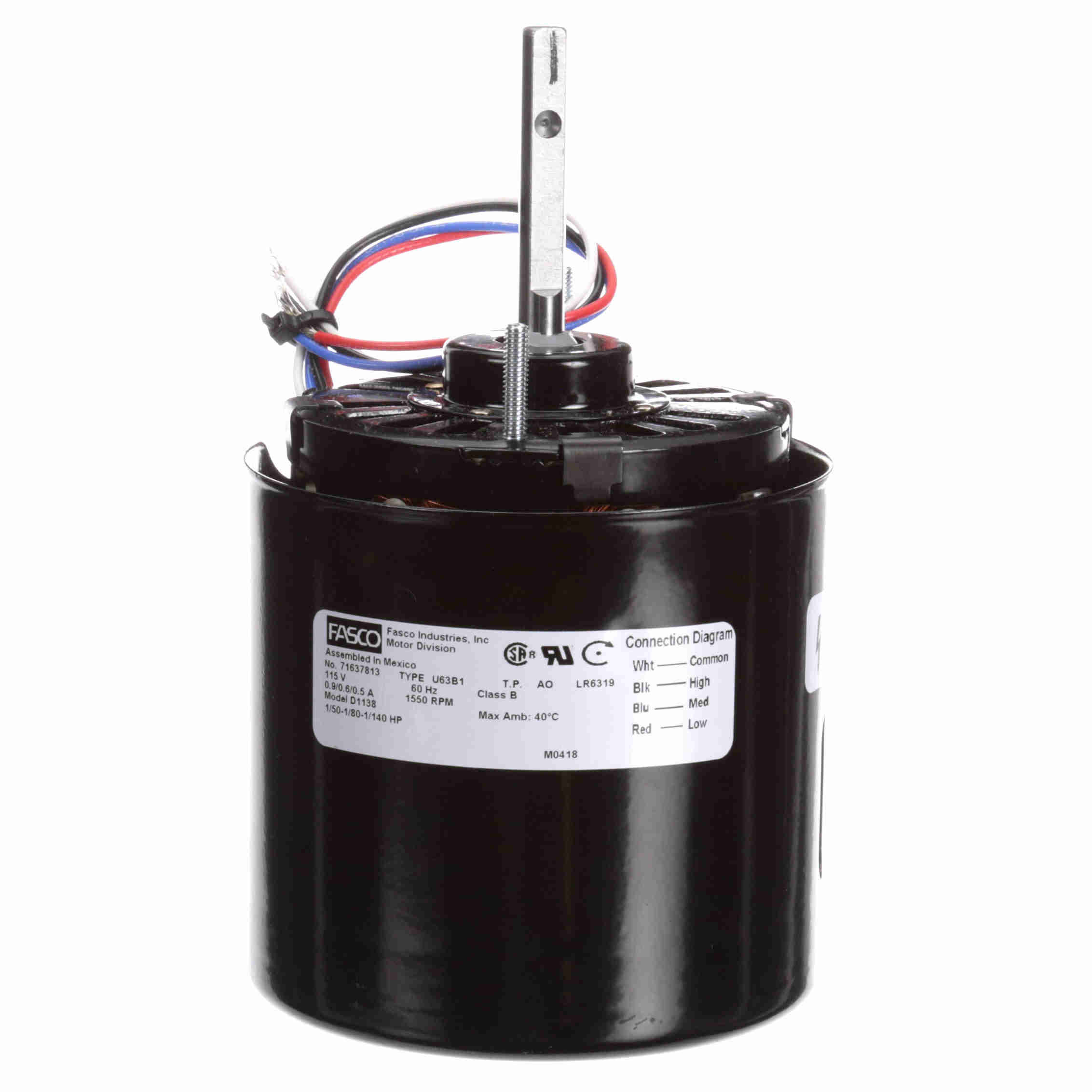

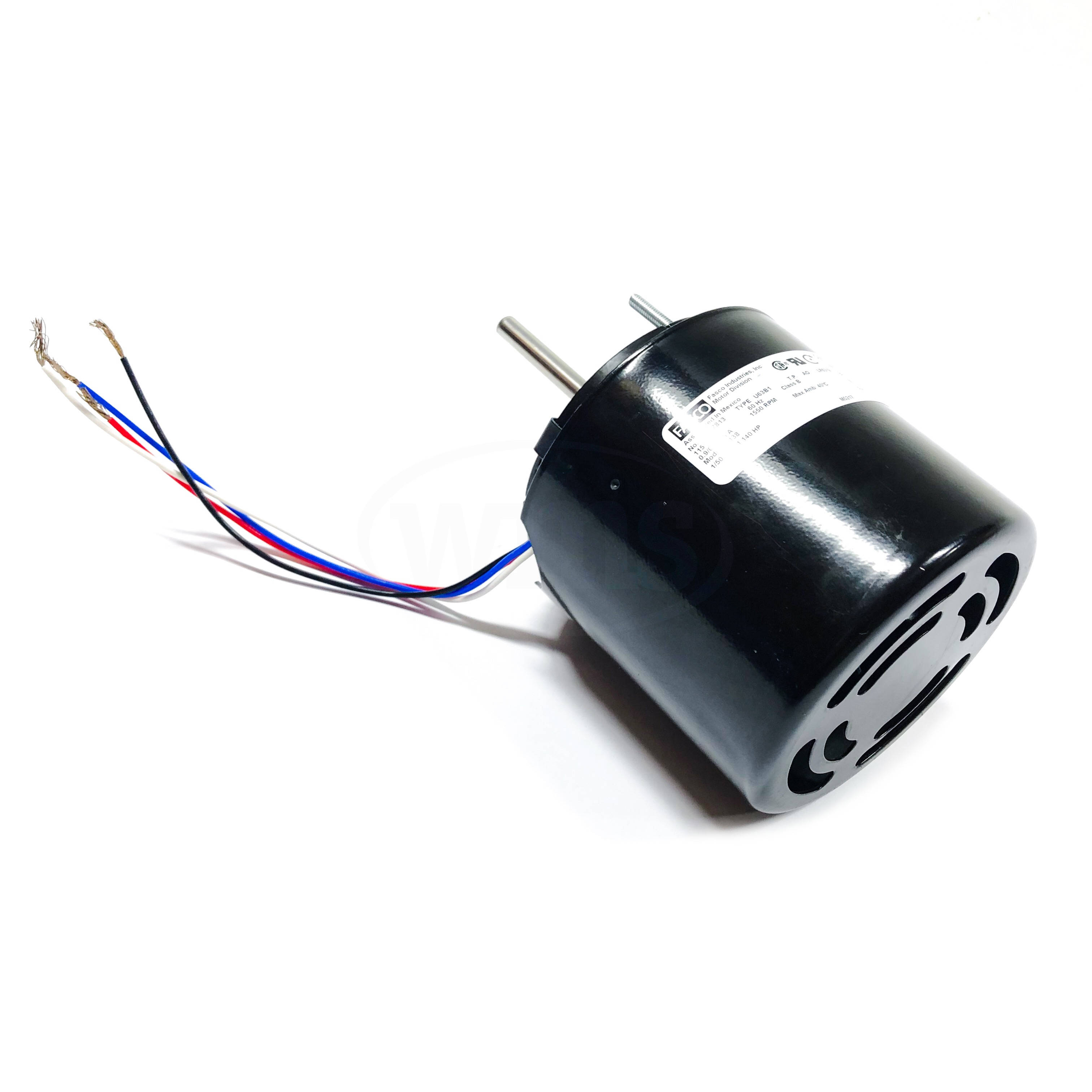

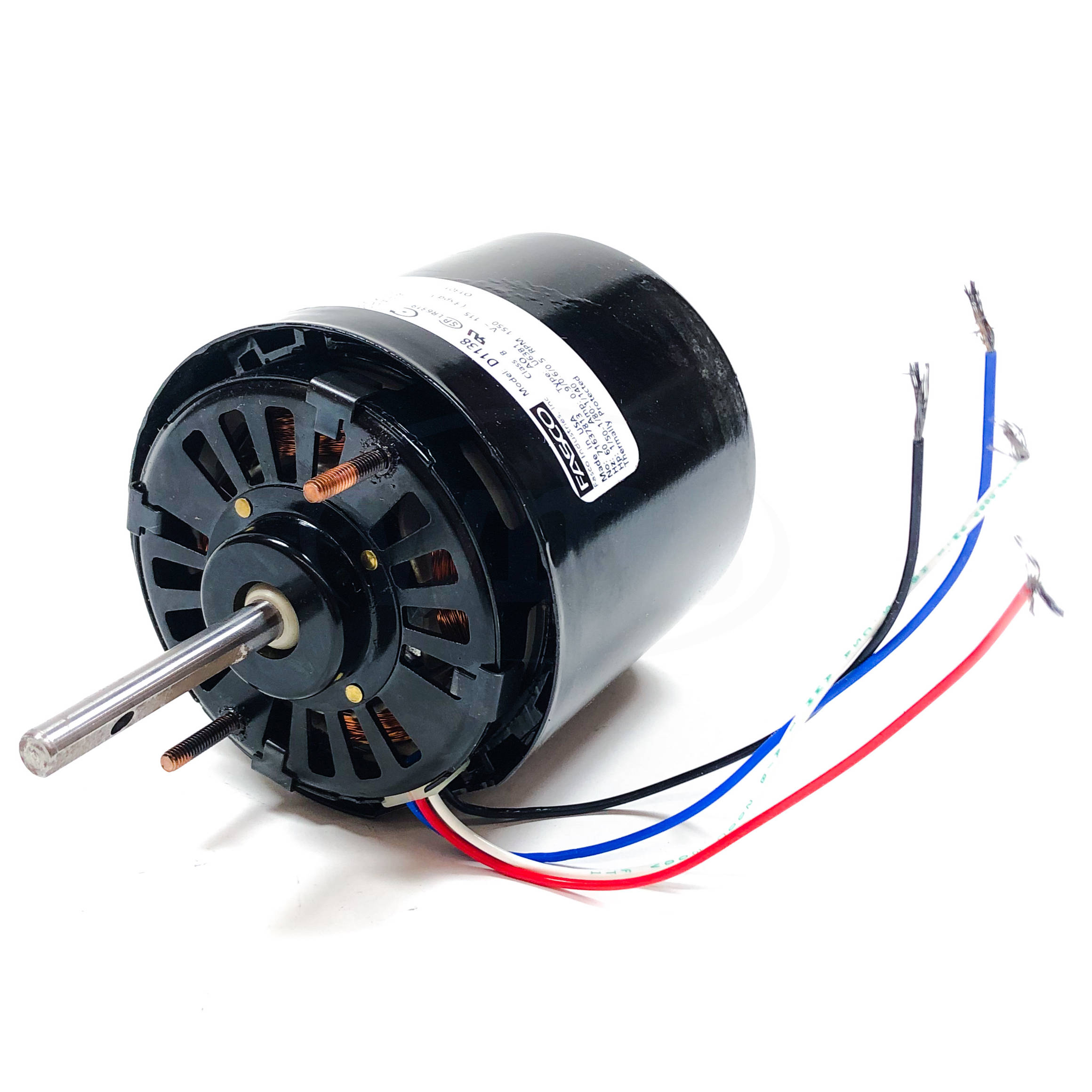

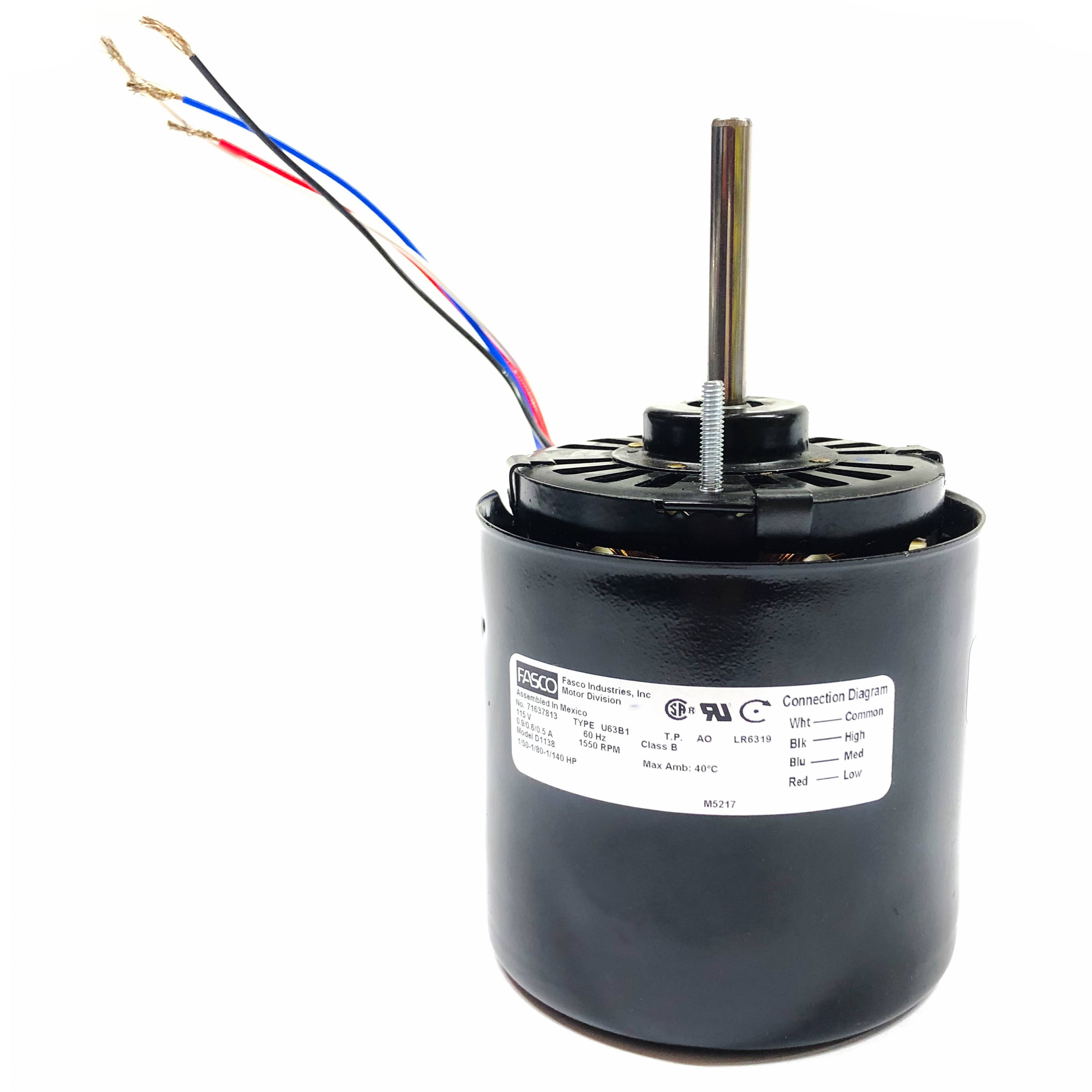

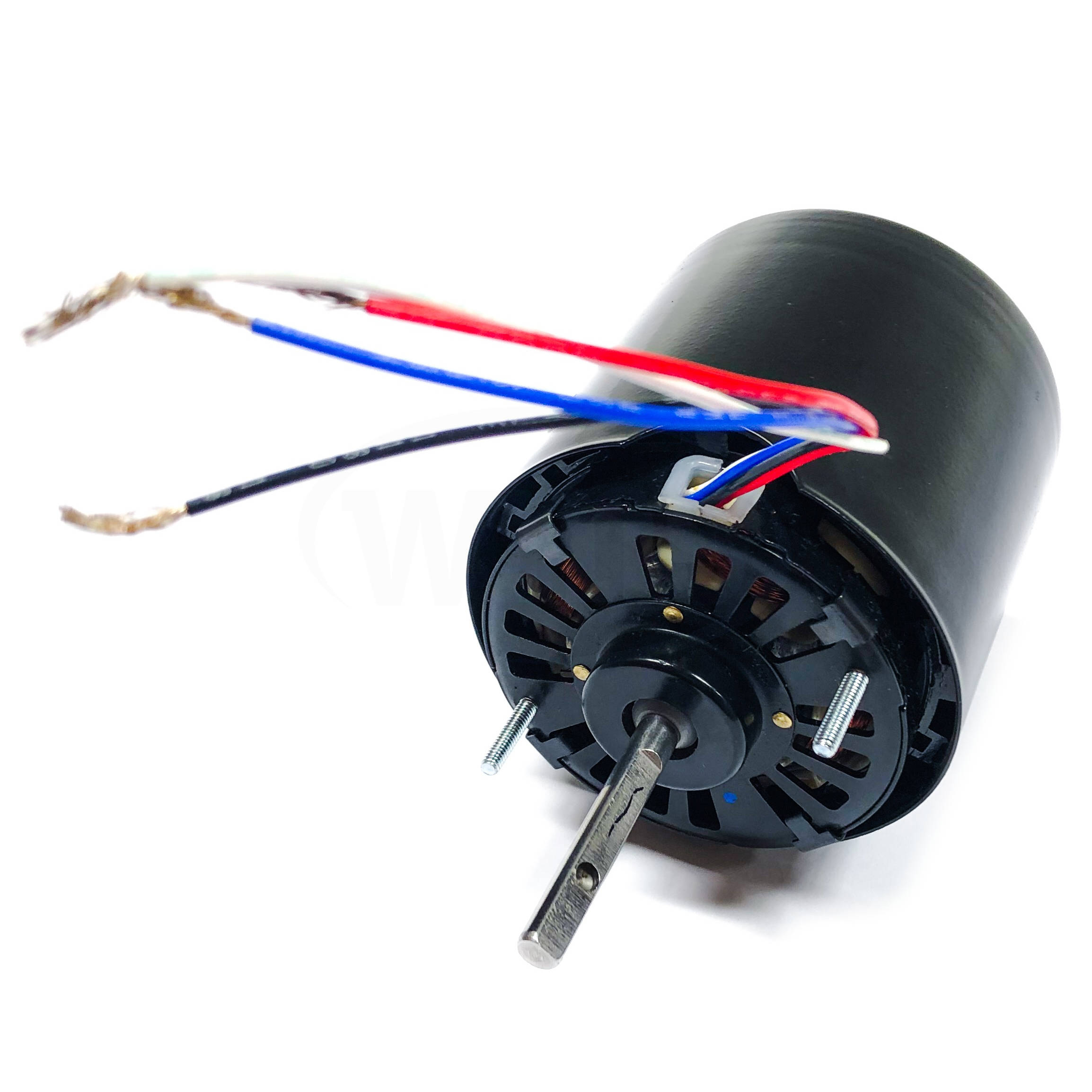

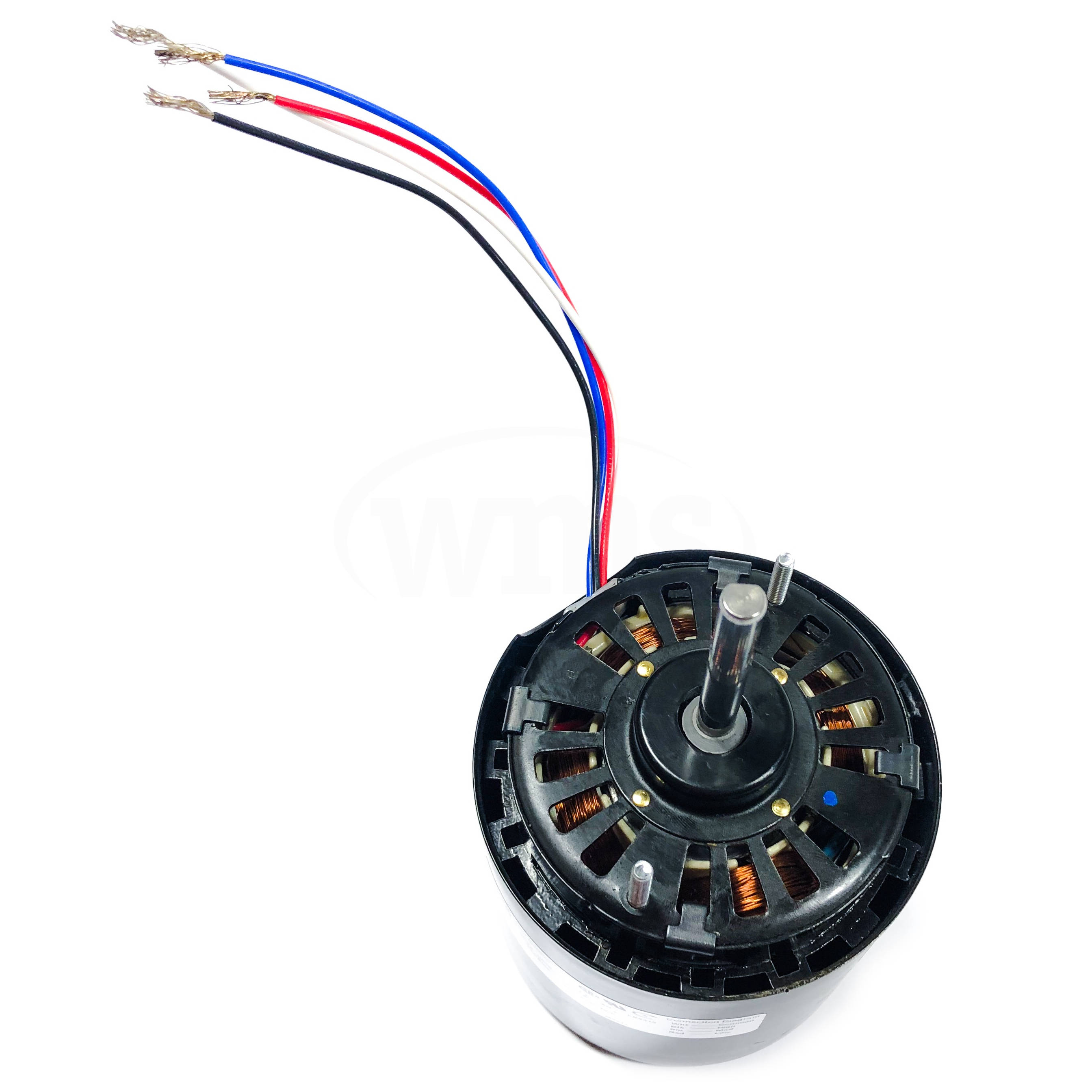

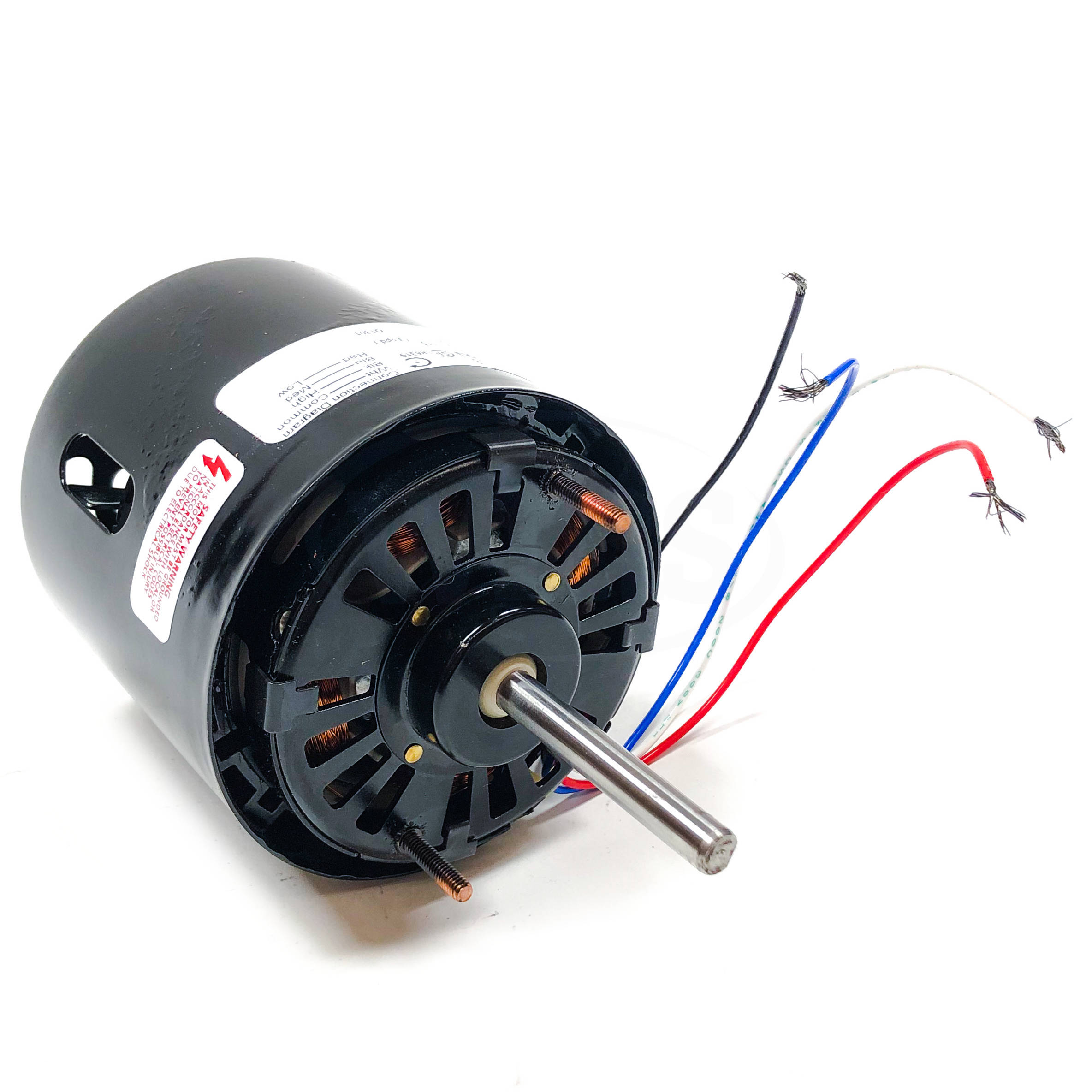

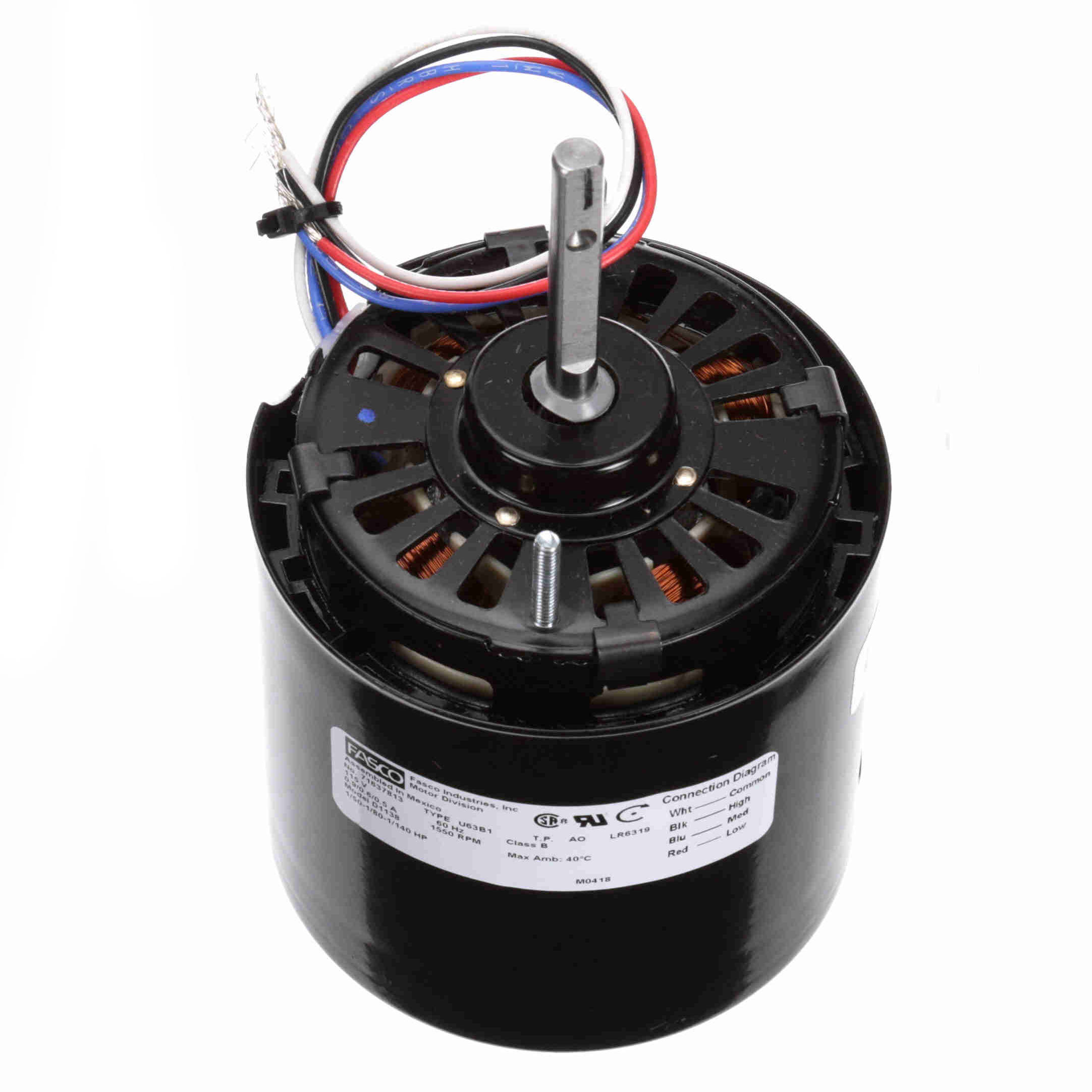

Click Image to Expand

Product ID: D1138

D1138 Fasco 1/50, 1/80, 1/140HP OEM Replacement Electric Motor, 1500RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D1138

Selected accessories will also be added to cart
$127.97 / Each
Quantity:
Semi-Enclosed, 3.3" Diameter, 115VAC Single Phase 60Hz, 3-Speed, Open Ventilated, Extended Studs, Sleeve Bearings, 5/16" x 2.5" Shaft, CWSE

Features

Features
  • OEM Direct Replacement Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Shaft End and Opposite Shaft End, Internal Fan Cooled, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • 6" Leads
  • Extended Studs Shaft End

General Specifications

General Specifications
Model : Catalog No : D1138
Part Description : 71637813.MOTOR.3.3 DIA..1/50 HP.3 SPD.. Category : OEM Replacement
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 1/50-1/80-1/140 HP Output KW : 0.01 kW
Frequency : 60 Hz Voltage : 115 V
Current : 0.90/0.60/0.50 A Speed : 1550 RPM
Service Factor : 1 Phase : 1
Duty : Air Over Insulation Class : B
Frame : 3.3 Enclosure : Open Air Over
Overload Protector : Thermally Protected Ambient Temperature : 40 °C
UL : Recognized CSA : Y
CE : N

Technical Specifications

Technical Specifications
Electrical Type : Shaded Pole Starting Method : Across The Line
Poles : 4 Rotation : Clockwise Shaft End
Mounting : Extended Studs Drive End Bearing : Sleeve
Opp Drive End Bearing : Sleeve Frame Material : Steel
Shaft Type : Flat Overall Length : 6.59 in
Frame Length : 2.53 in Shaft Diameter : 0.313 in
Shaft Extension : 2.5 in UPC : 818508022031
Weight : 4.00 LB
