/3.3" Diameter/D1129 Fasco 1/20HP Refrigeration Electric Motor, 1550/1350RPM
Click Image to Expand

Product ID: D1129

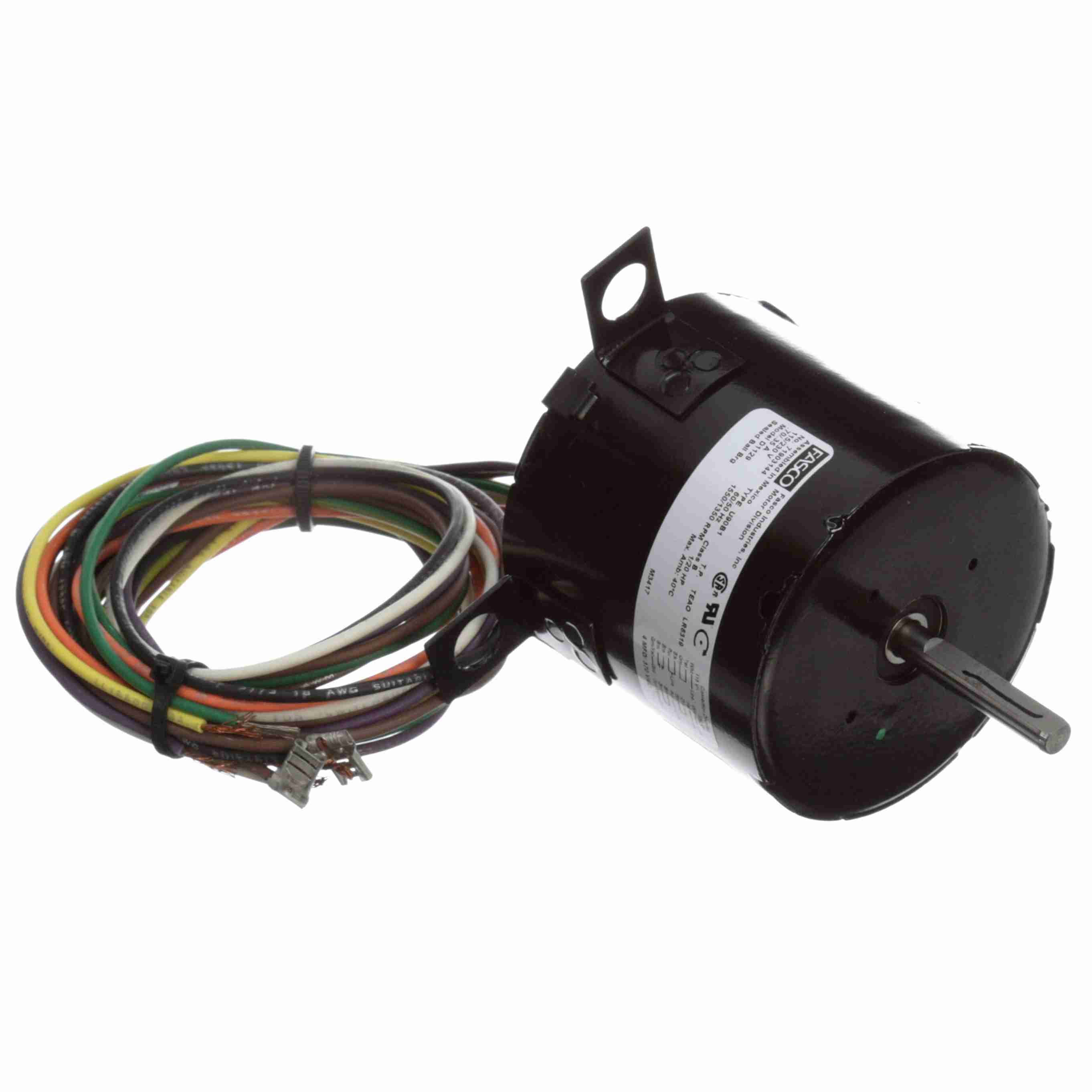

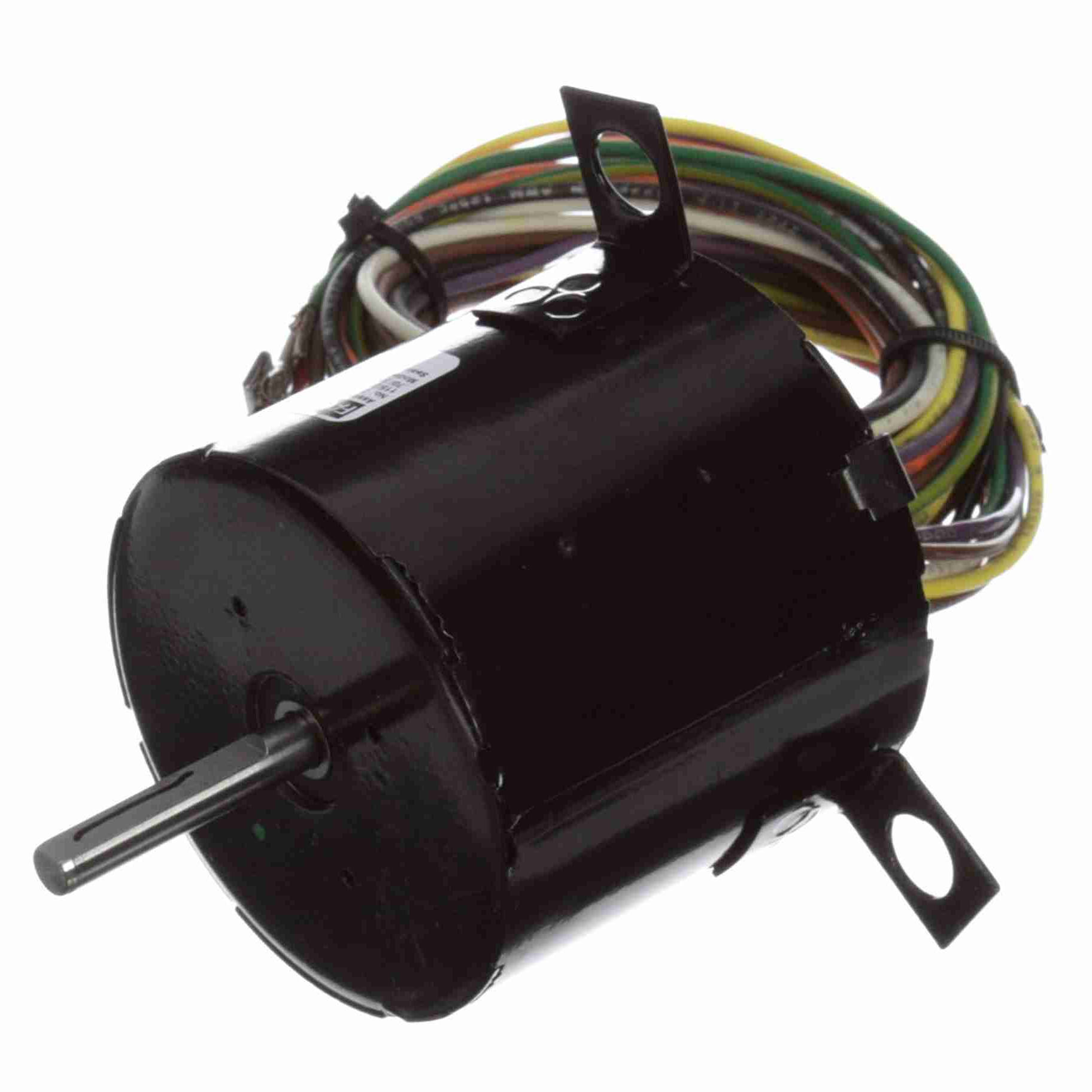

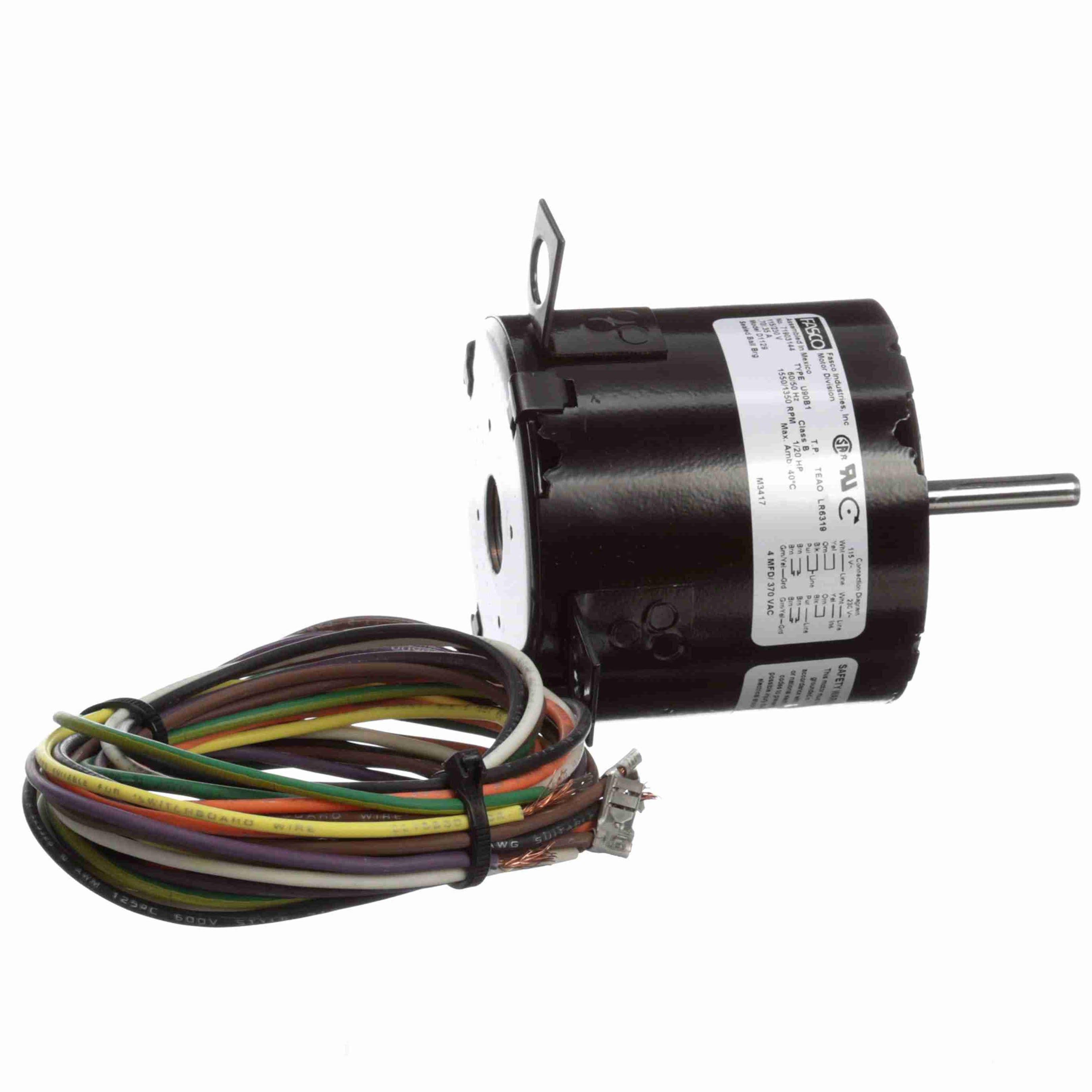

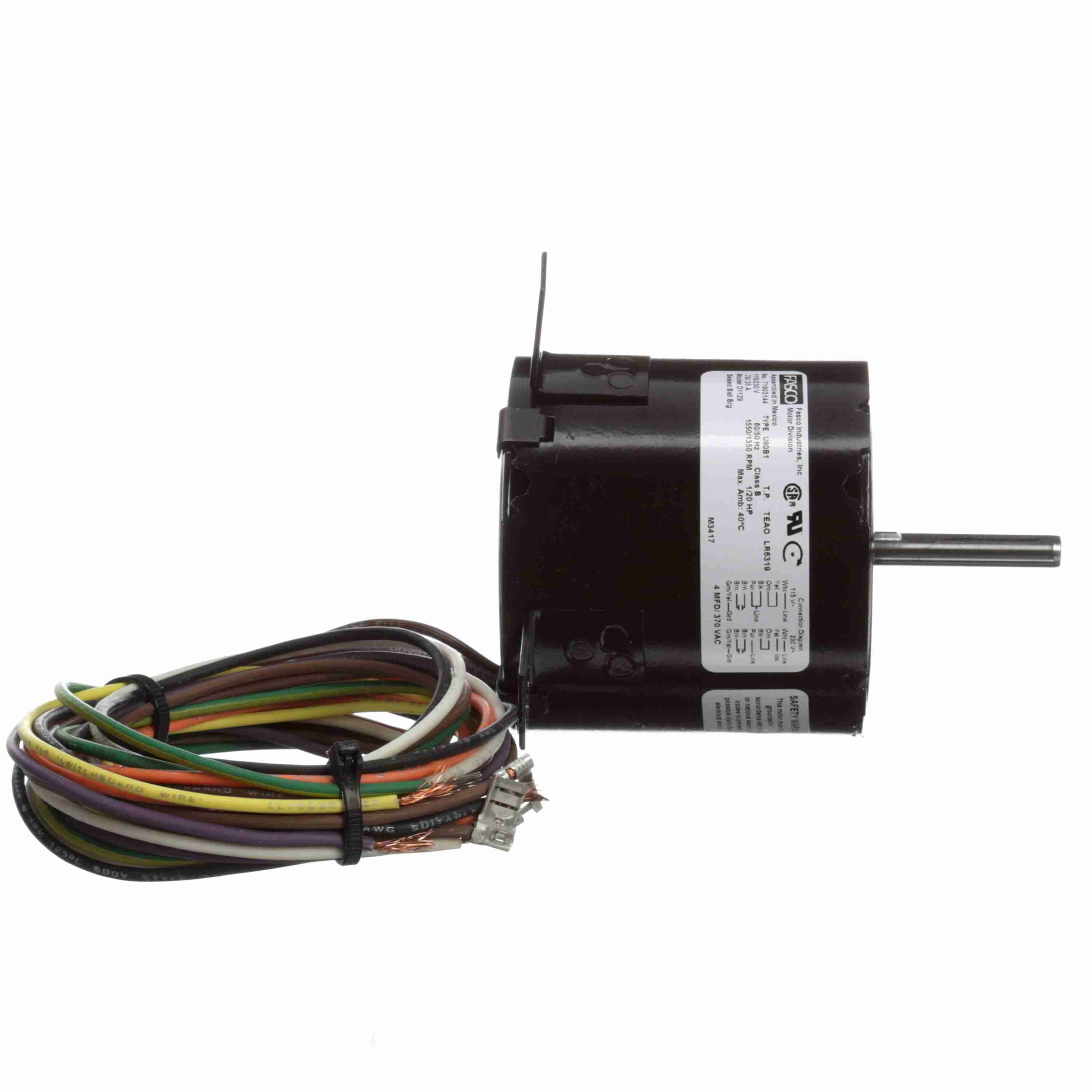

D1129 Fasco 1/20HP Refrigeration Electric Motor, 1550/1350RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D1129

Selected accessories will also be added to cart
$186.97 / Each
Quantity:
TEAO, 3.3" Diameter, 115/230VAC 60Hz Single Phase, Ball Bearings, 5/16" x 1.63" Shaft

Features

  • Refrigeration Fan Motor
  • 3.3" Diameter
  • Permanent Split Capacitor
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 40°C Ambient
  • Sealed Ball Bearing
  • .5/16" Diameter Shaft with Flat
  • 42" Leads
  • Lug Mounting

General Specifications

UPC: 818508021959 Weight: 4 LB
Packaged Length: 6.81 IN Packaged Width: 6.81 IN
Packaged Height: 8.5 IN

Nameplate Specifications

Output HP: 1/20 Hp Output KW: 0.04 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 0.70/0.35 A Speed: 1550/1350 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: B
Frame: 3.3 Enclosure: Totally Enclosed Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Shaft End
Mounting: Lug Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Steel
Shaft Type: Flat Overall Length: 4.86 in
Frame Length: 2.95 in Shaft Diameter: 0.312 in
Shaft Extension: 1.63 in
