/3.3" Diameter/D1125 Fasco 1/20, 1/15HP OEM Replacement Electric Motor, 1550RPM
Click Image to Expand

Product ID: D1125

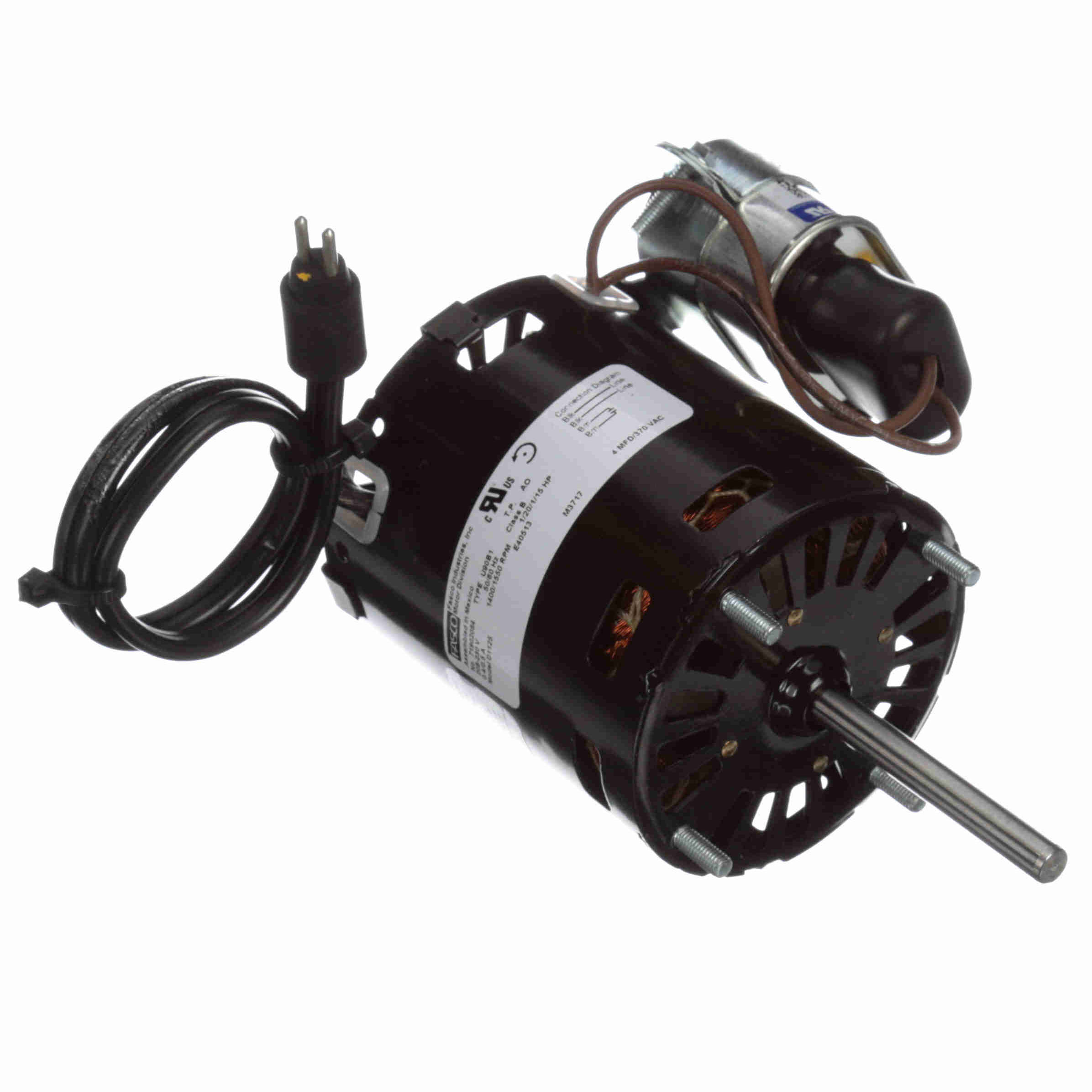

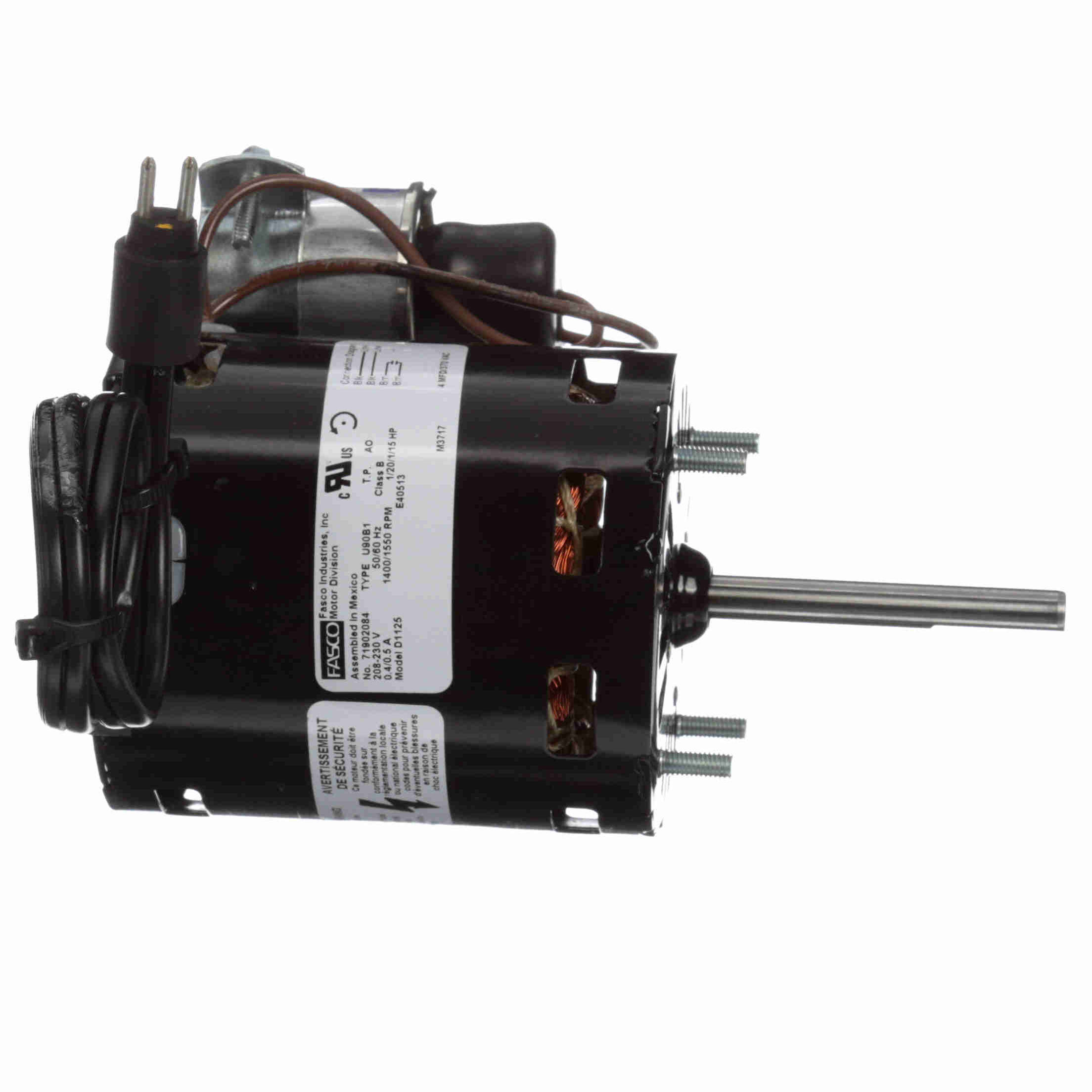

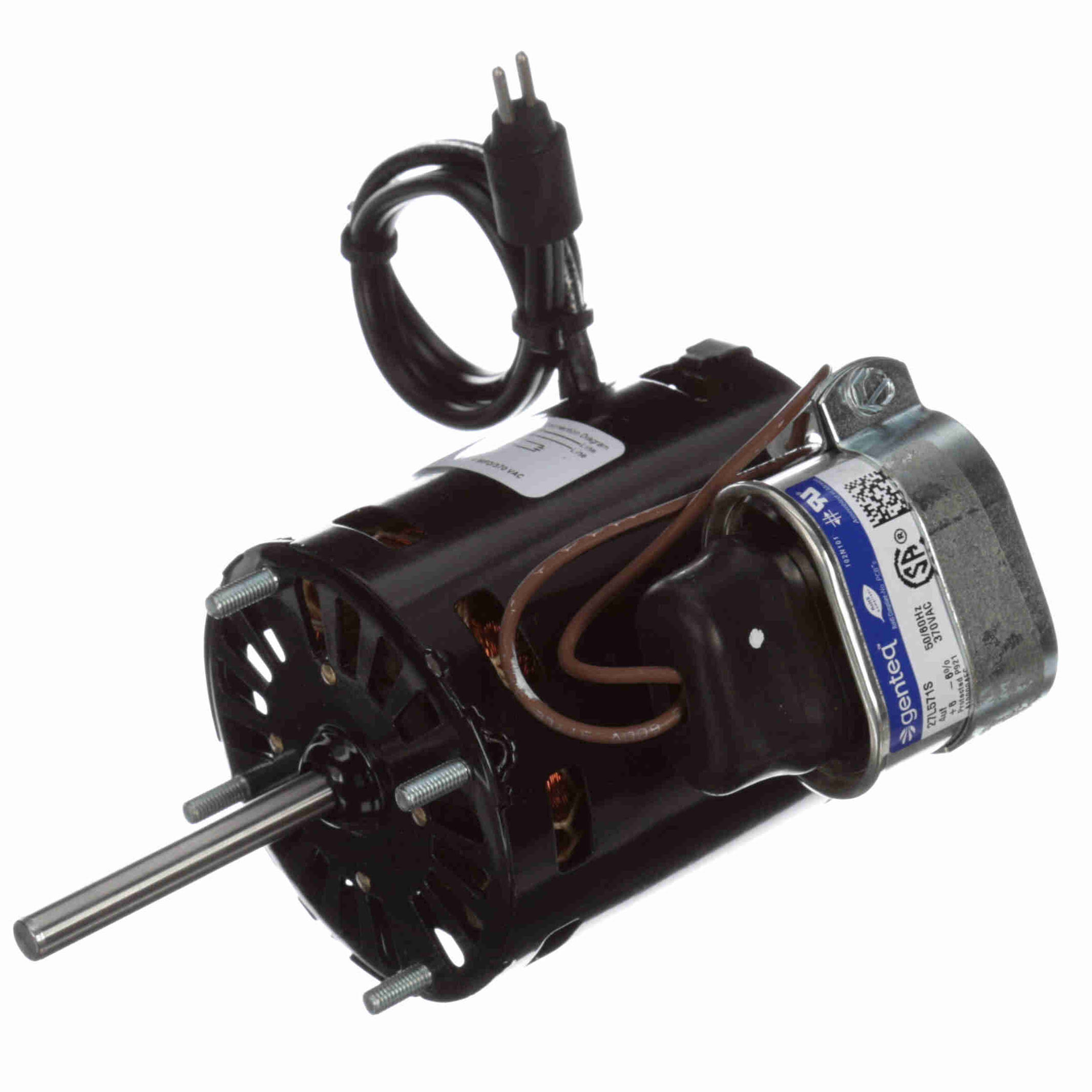

D1125 Fasco 1/20, 1/15HP OEM Replacement Electric Motor, 1550RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D1125

Selected accessories will also be added to cart
$78.97 / Each
Quantity:
OAO, 3.3" Diameter, 208-230VAC 60Hz Single Phase, Extended Studs, Sleeve Bearings, 5/16" x 2.64" Shaft, CCWSE

Features

  • OEM Direct Replacement Motor
  • 3.3" Diameter
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • 13" Leads with Molded Plug
  • Extended Studs Shaft End

General Specifications

UPC: 818508021911 Weight: 4 LB
Packaged Length: 8 IN Packaged Width: 5.63 IN
Packaged Height: 5 IN

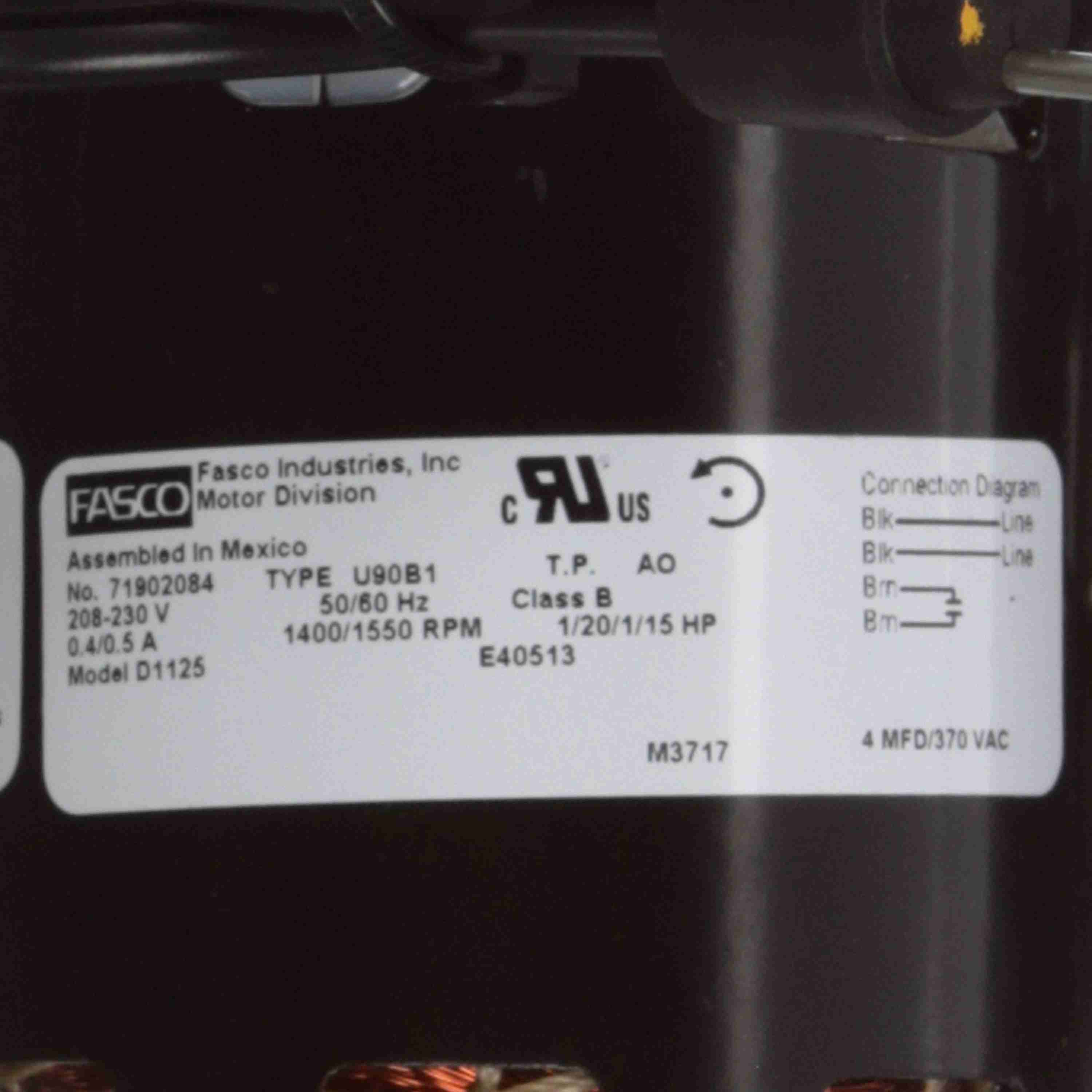

Nameplate Specifications

Output HP: 1/20-1/15 Hp Output KW: 0.04 kW
Frequency: 60 Hz Voltage: 208-230 V
Current: 0.40/0.50 A Speed: 1400/1550 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: B
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: N
CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 4 Rotation: Counterclockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Overall Length: 6.75 in
Frame Length: 3.62 in Shaft Diameter: 0.313 in
Shaft Extension: 2.64 in
