/3.3" Diameter/D1109 Fasco 1/100HP General Purpose Electric Motor, 1500RPM

Click Image to Expand

Previous Next

Product ID: D1109

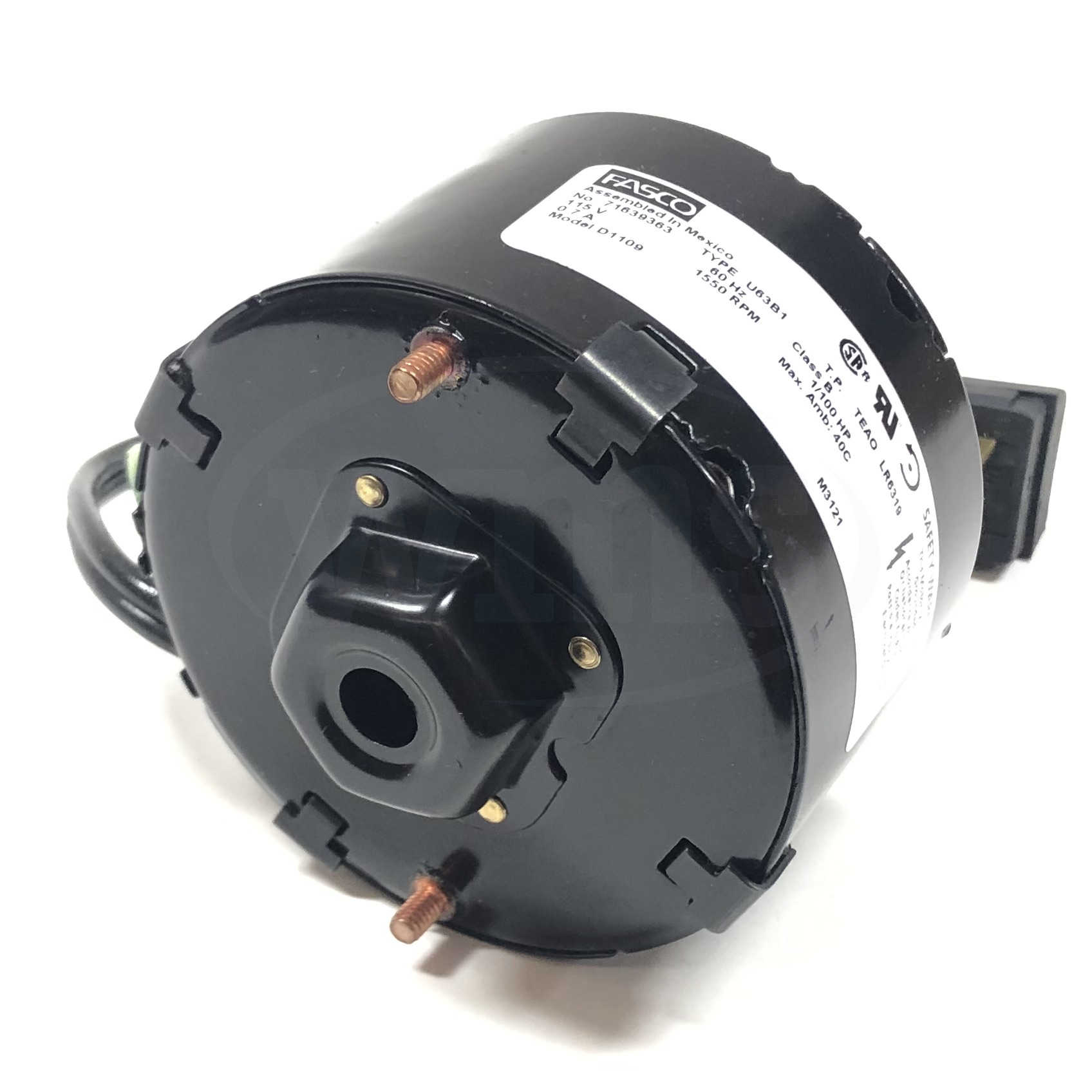

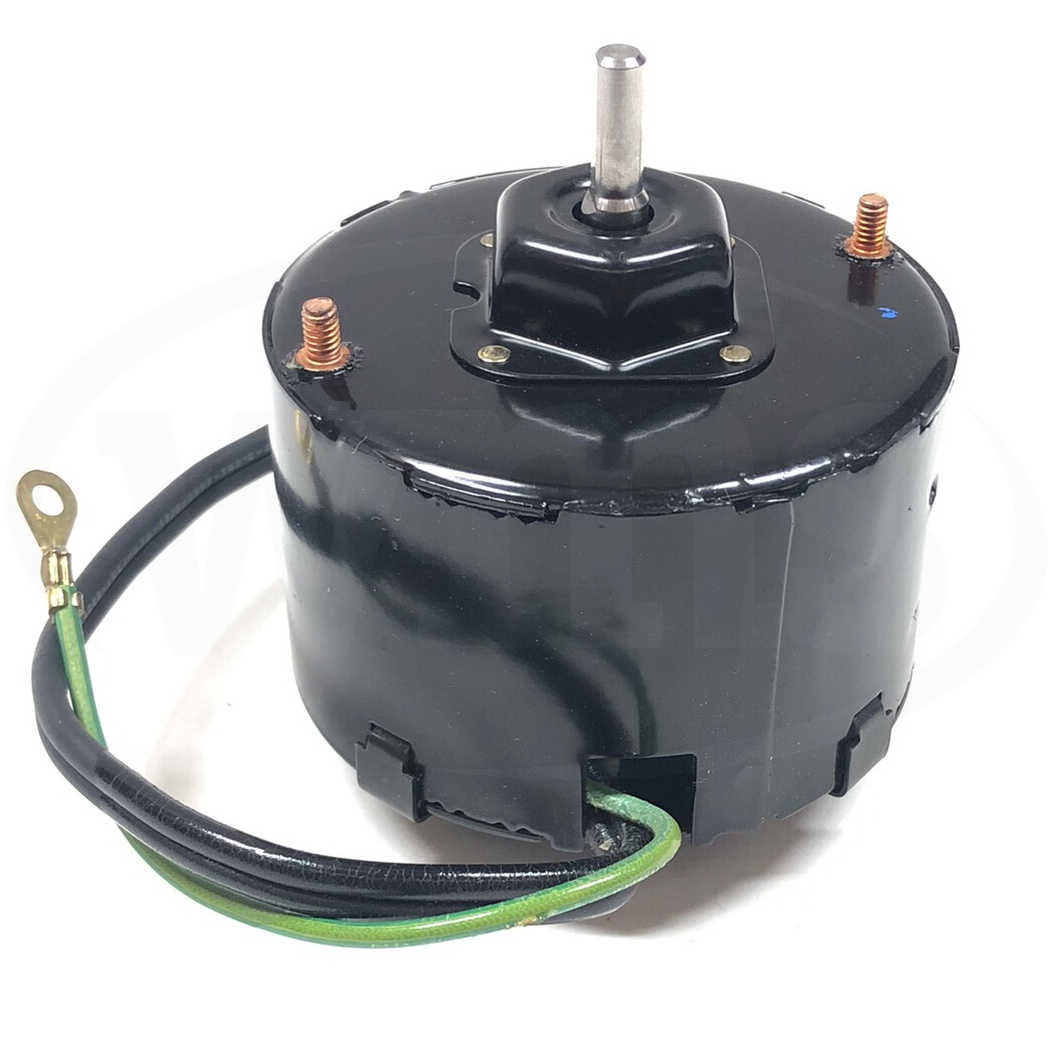

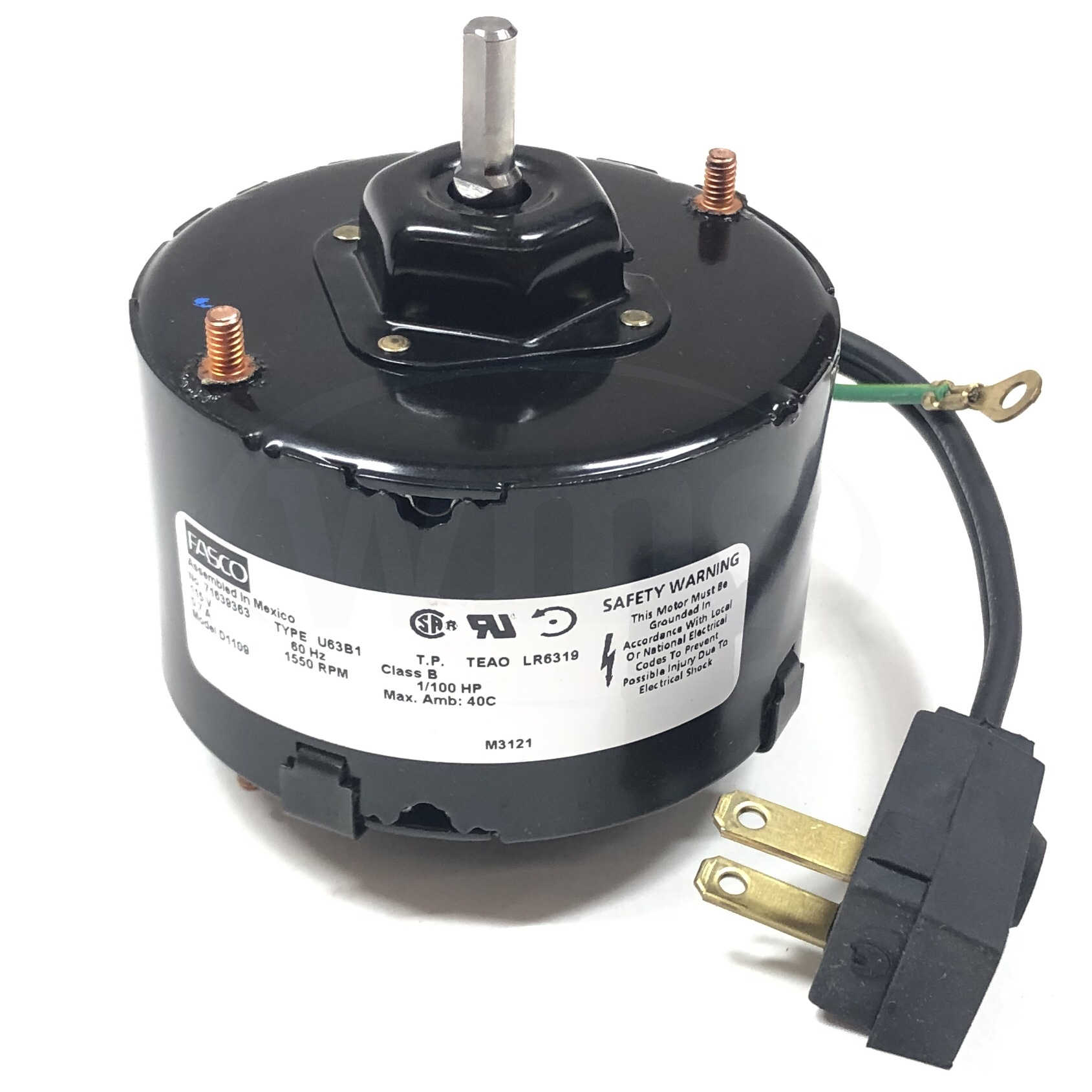

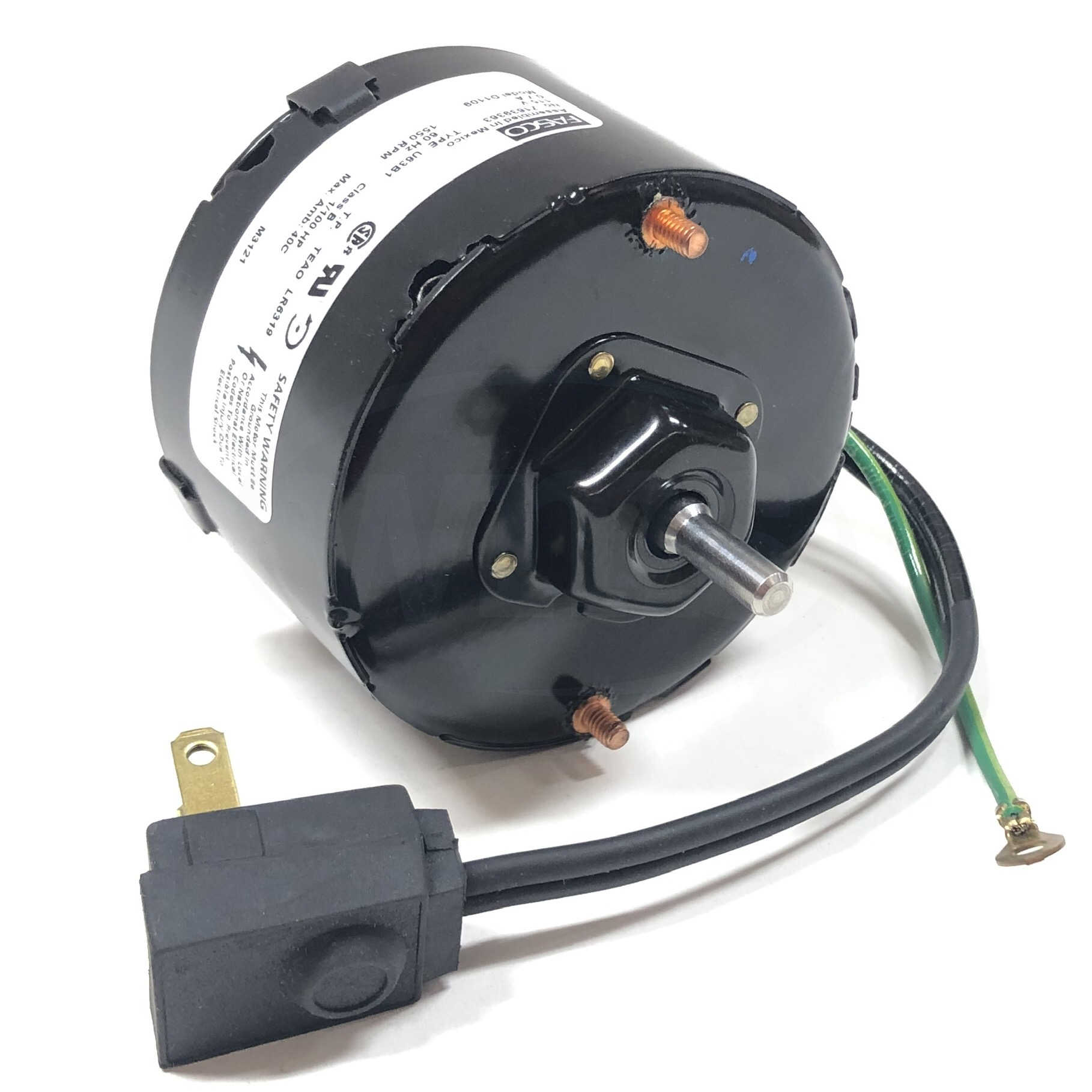

D1109 Fasco 1/100HP General Purpose Electric Motor, 1500RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D1109

Selected accessories will also be added to cart

$81.97 / Each

Quantity:

TEAO, 115VAC 60Hz, Single Speed, CCWSE, 0.25" x 1.25" Shaft, 3.3" Diameter

Details

Electrical

HP	1/100 HP
Voltage	115 VAC
Frequency	60 Hz
Phase	Single Phase
RPM	1500 RPM Single Speed
Amperage	0.65 Amps

Specifications

Manufacturer	Fasco
Model Number	D1109
Diameter	3.3 inches
Rotation Direction	CCW
Bearing Type	Sleeve
Shaft Dimensions	1/4" x 1-1/4"
Stack	inches
Notes
Weight	2.3 lbs
Frame
Type
Enclosure	Totally Enclosed
”A” Dimension	2-1/16"

Cross Reference

Nutone	23405 23388

Motor/Control Division
