/3.3" Diameter/D1103 Fasco 1/20HP OEM Replacement Electric Motor, 1500RPM

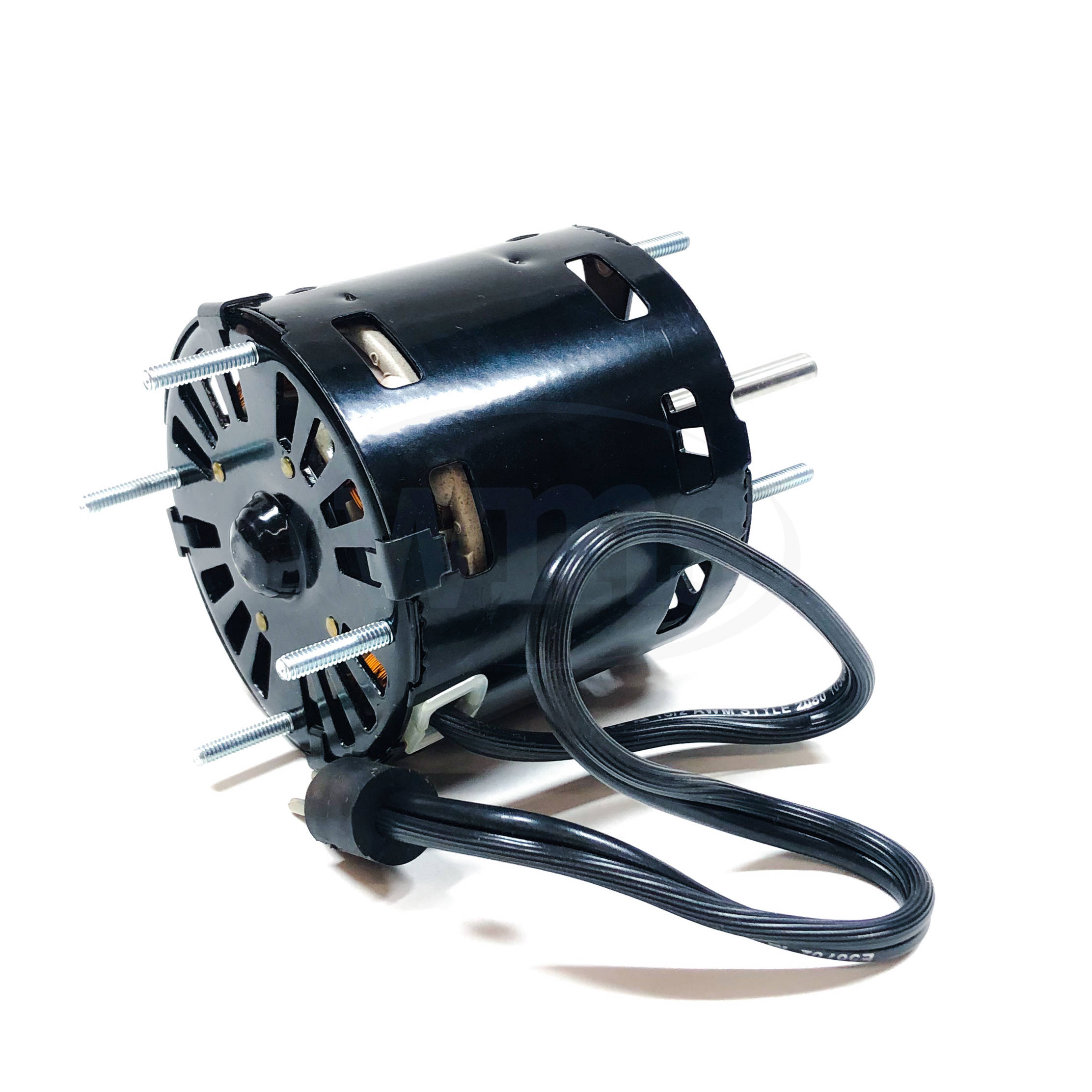

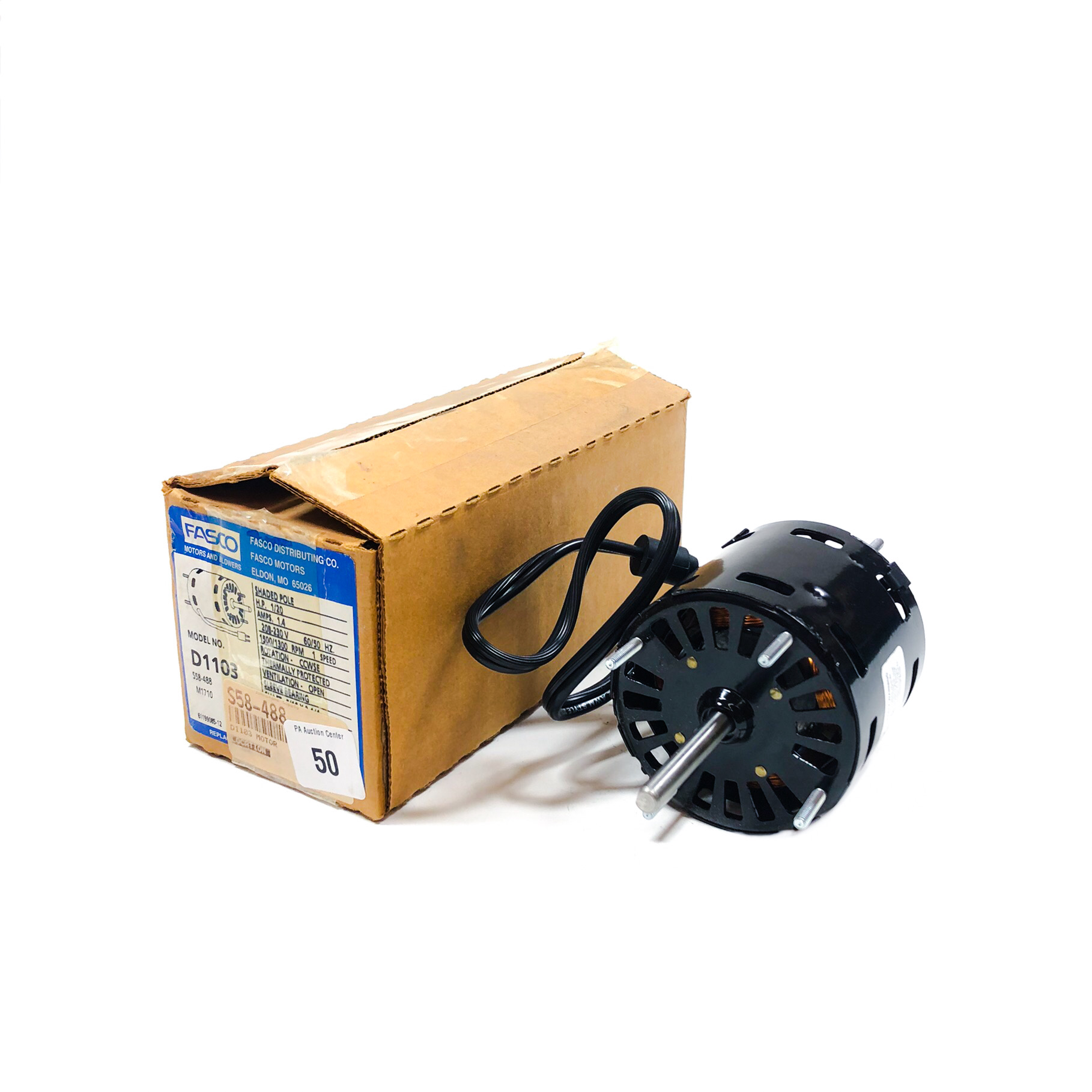

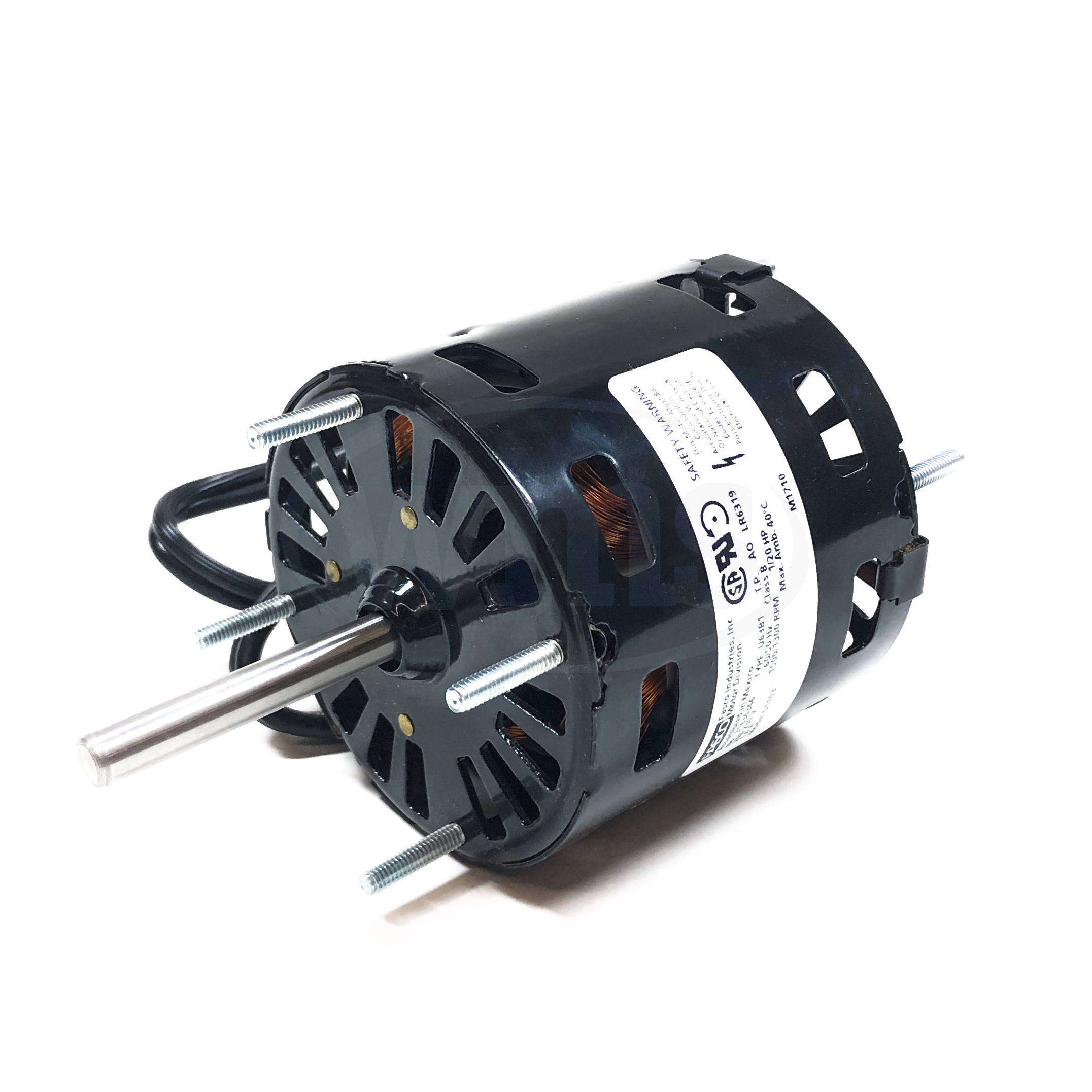

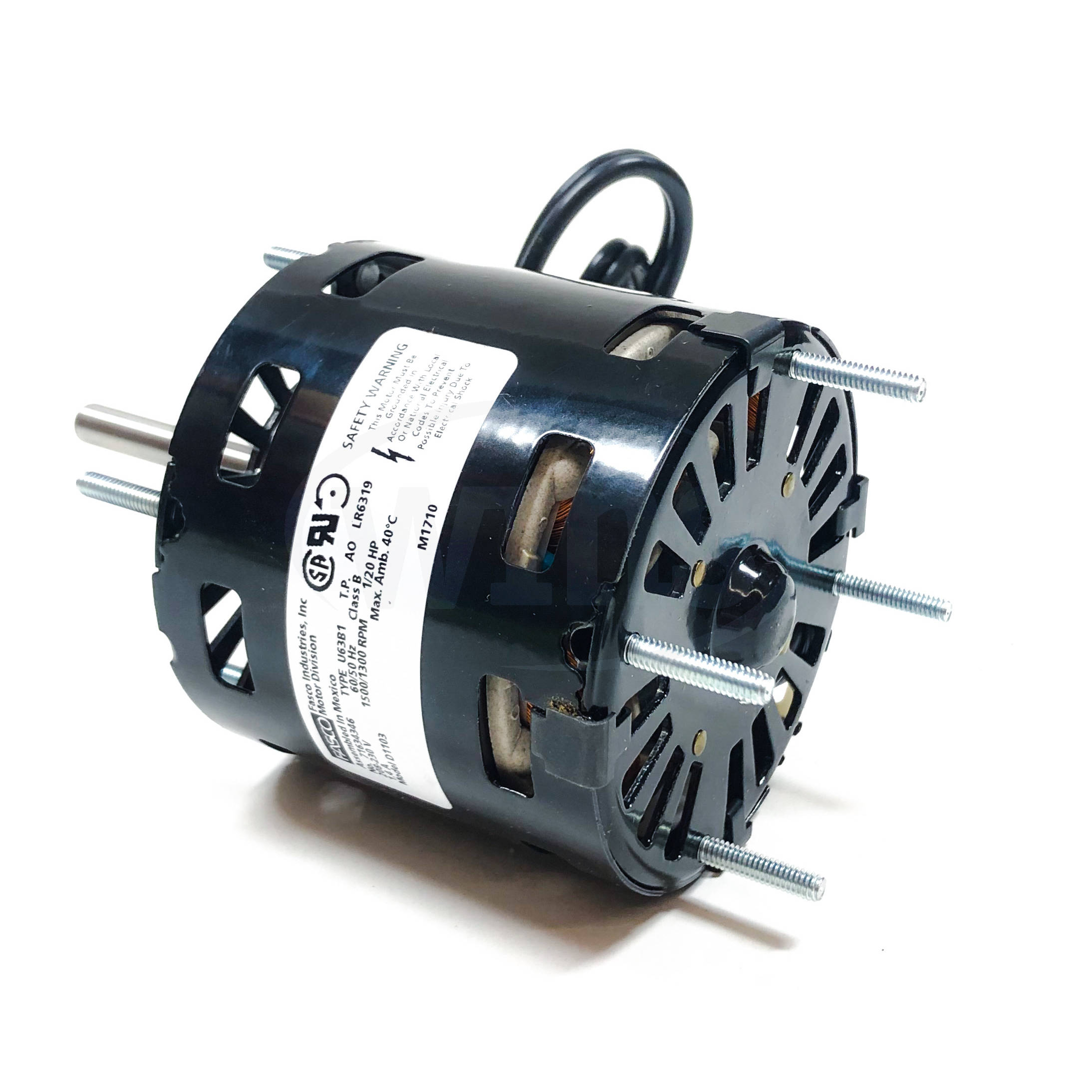

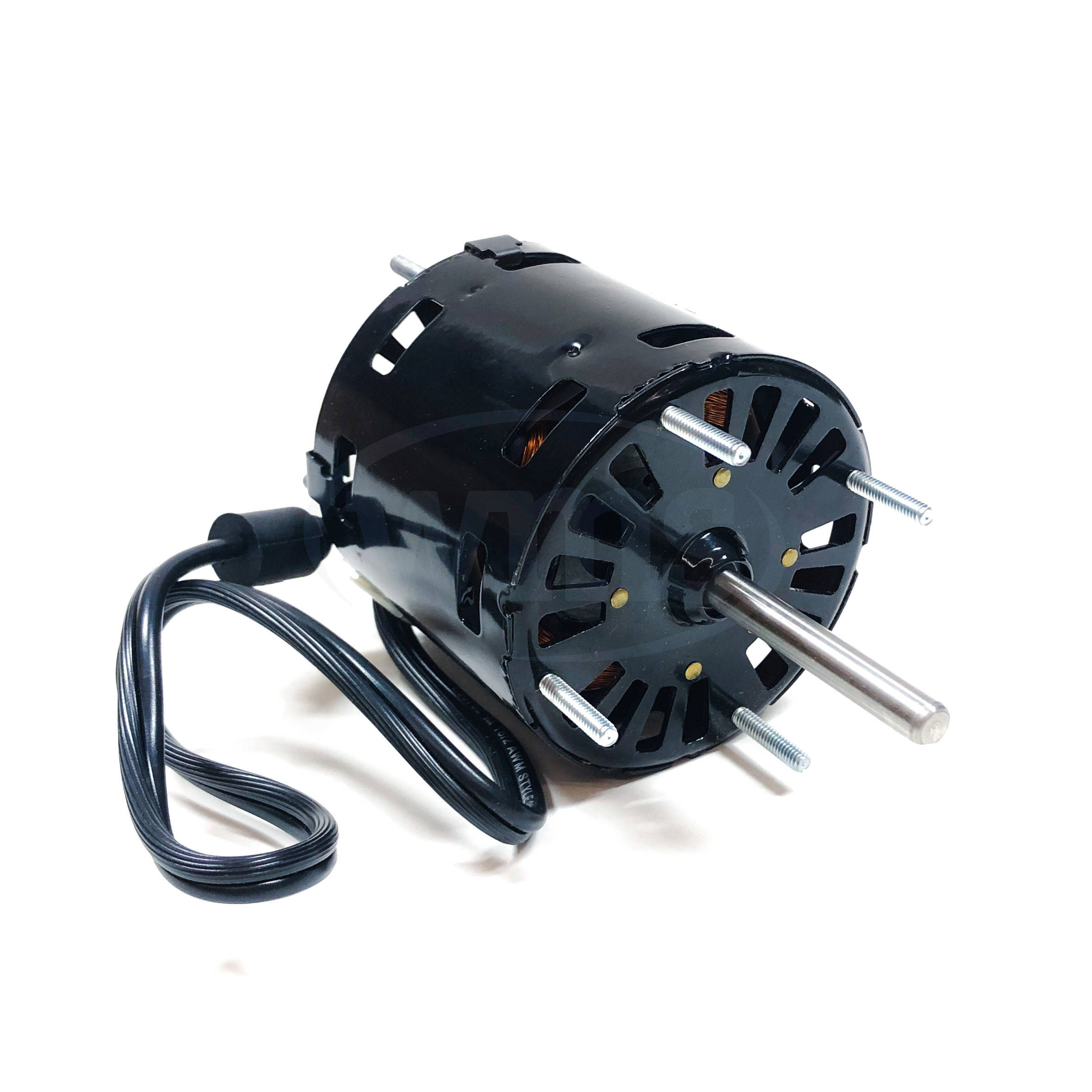

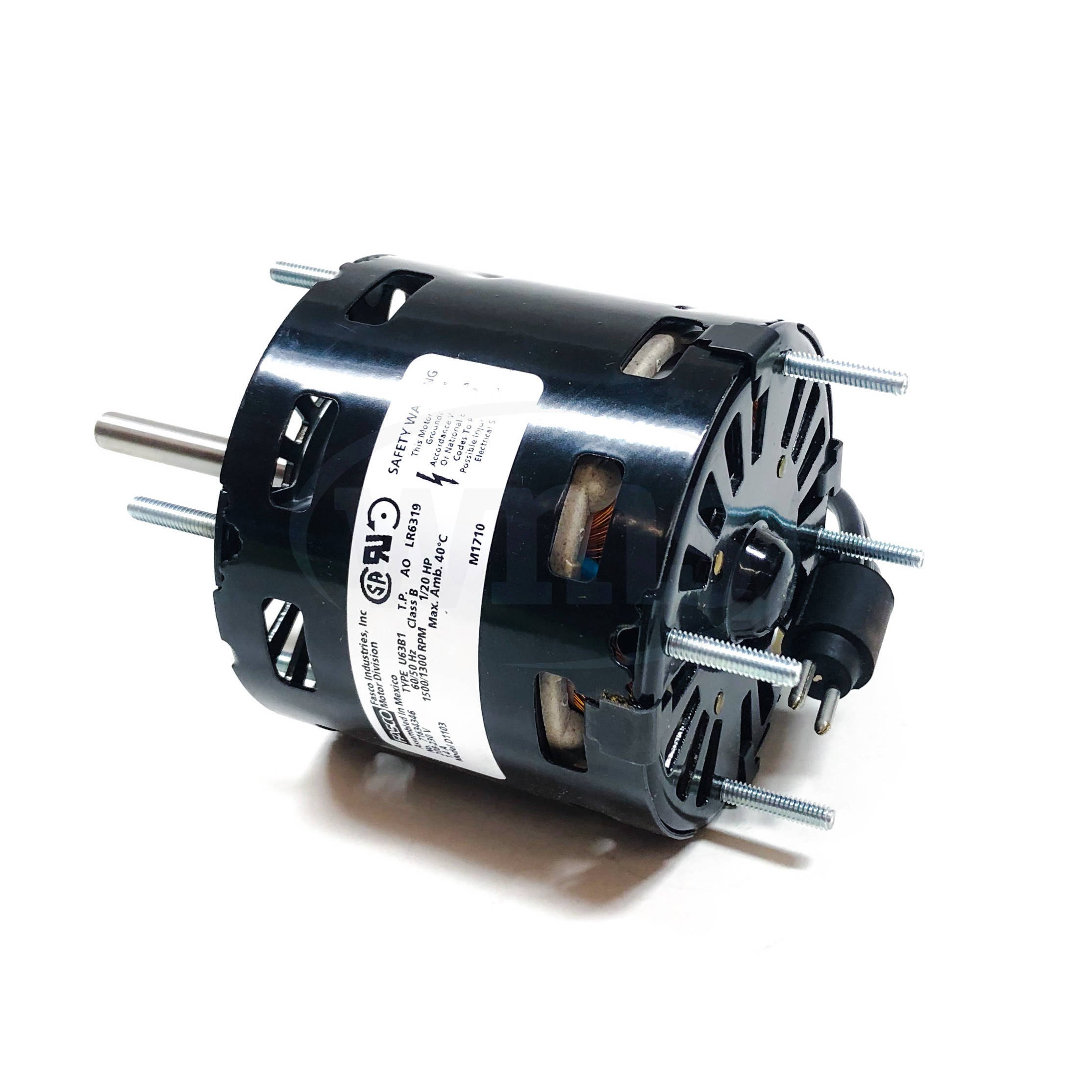

Click Image to Expand

Product ID: D1103

D1103 Fasco 1/20HP OEM Replacement Electric Motor, 1500RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D1103

Temporarily out of stock
Selected accessories will also be added to cart
$94.97 / Each
OAO, 3.3" Diameter, 208-230VAC 60Hz Single Phase, Extended Studs, Sleeve Bearings, 5/16" x 2.25" Shaft, CCWSE

Features

  • OEM Direct Replacement Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • 14" Leads with Molded Plug
  • Exented Studs Shaft End and Lead End

General Specifications

UPC: 815585028192 Weight: 3 LB
Packaged Length: 8 IN Packaged Width: 3.38 IN
Packaged Height: 3.38 IN

Nameplate Specifications

Output HP: 1/20 Hp Output KW: 0.04 kW
Frequency: 60 Hz Voltage: 208-230 V
Current: 1.15/1.35 A Speed: 1500/1300 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: B
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Counterclockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Overall Length: 5.58 in
Frame Length: 2.82 in Shaft Diameter: 0.313 in
Shaft Extension: 2.25 in
