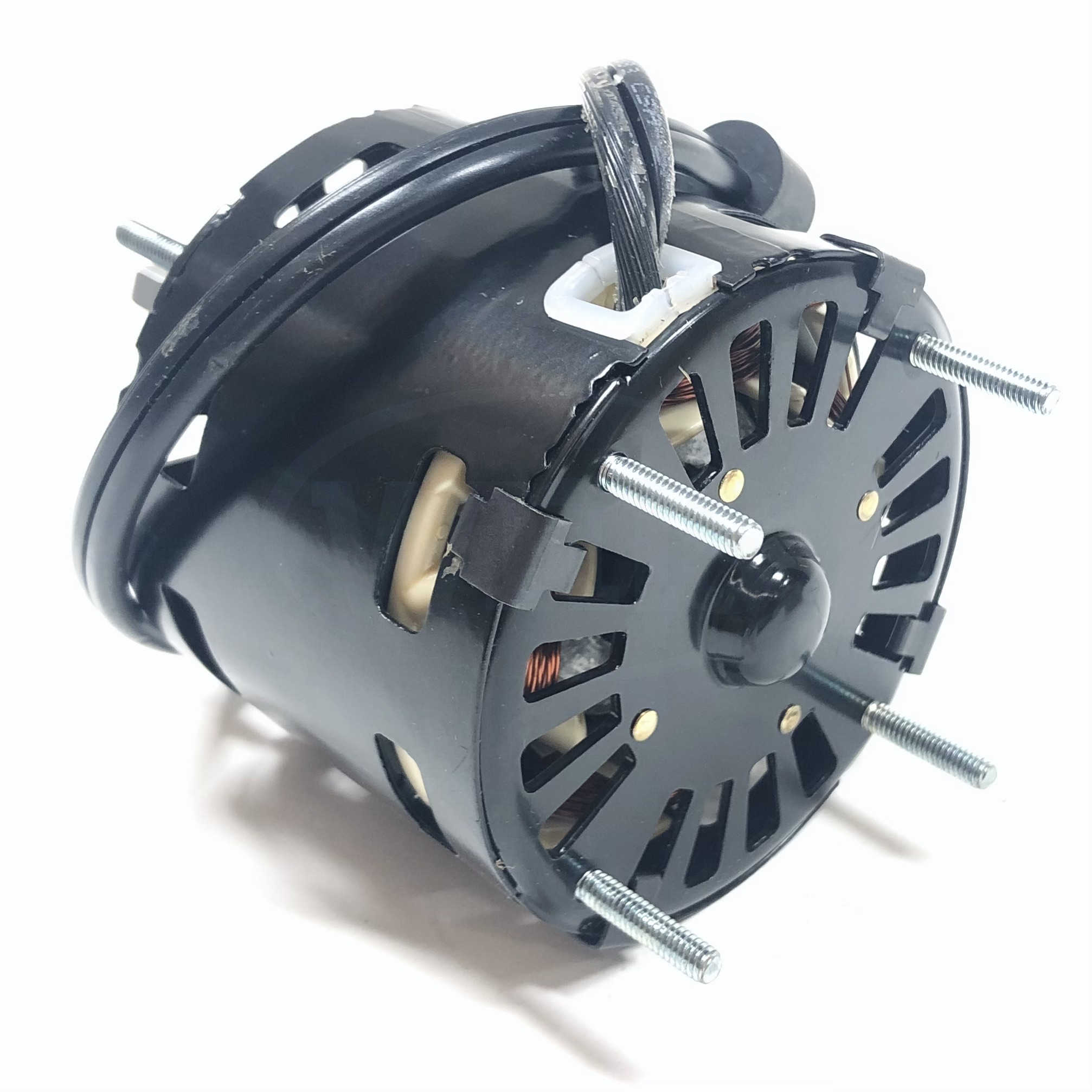

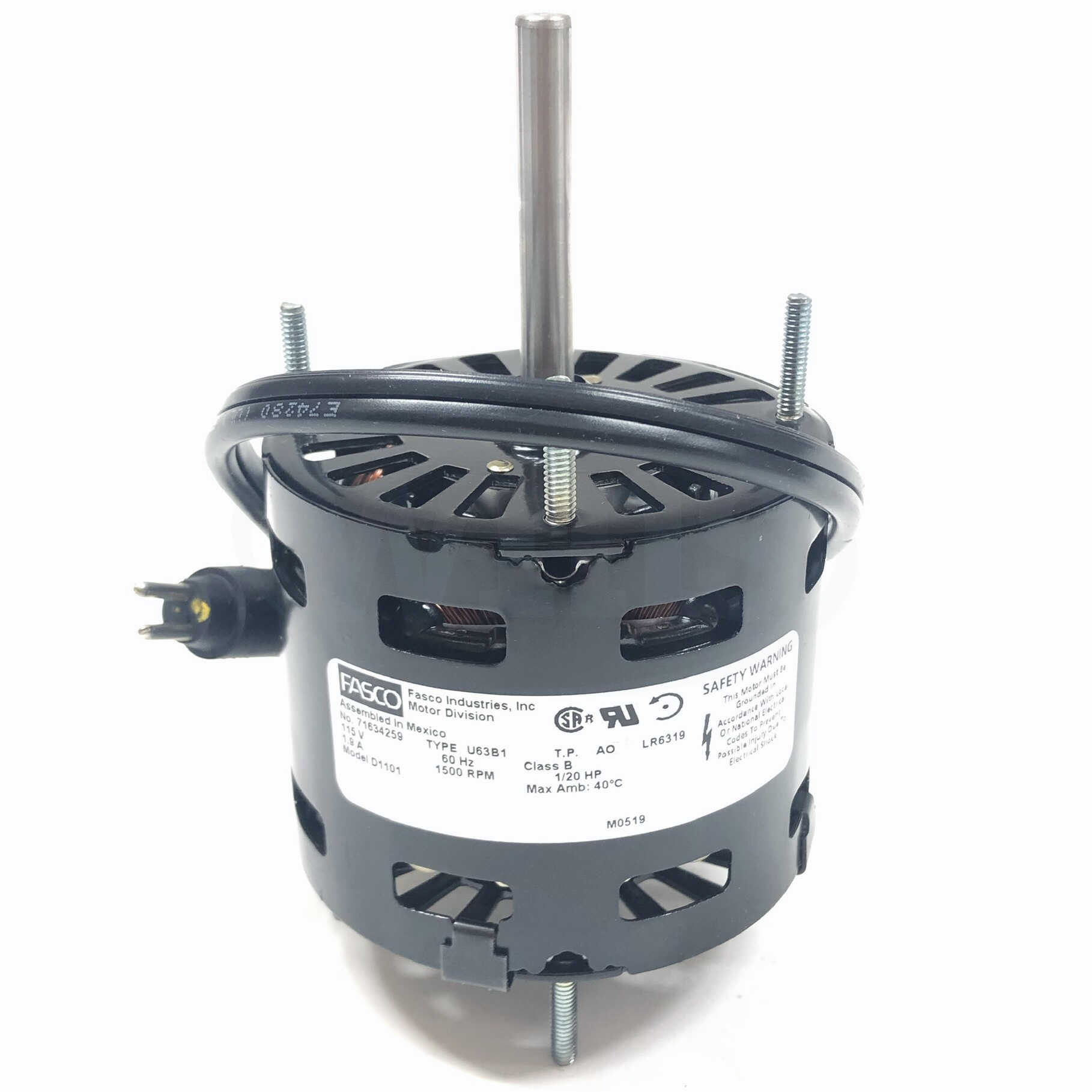

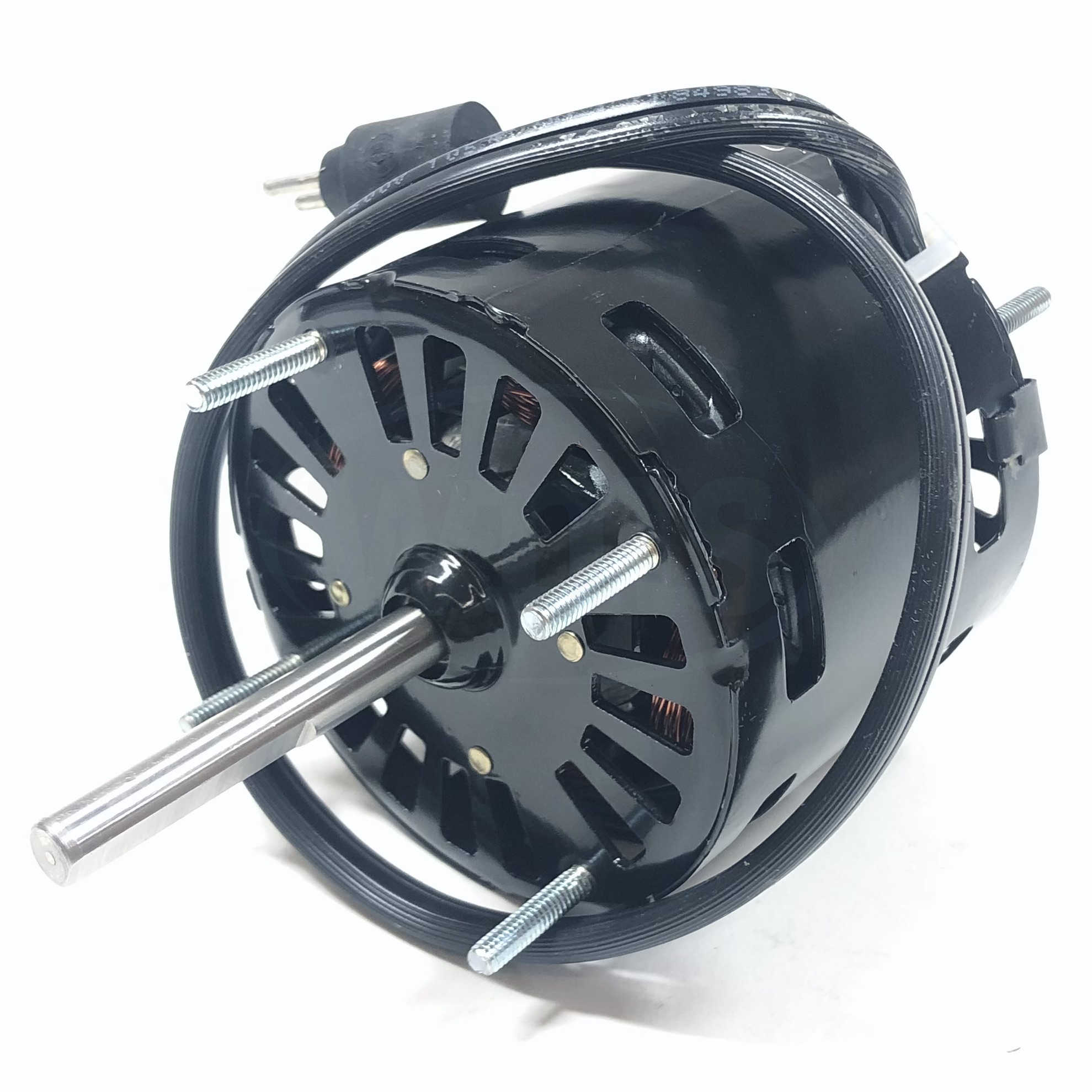

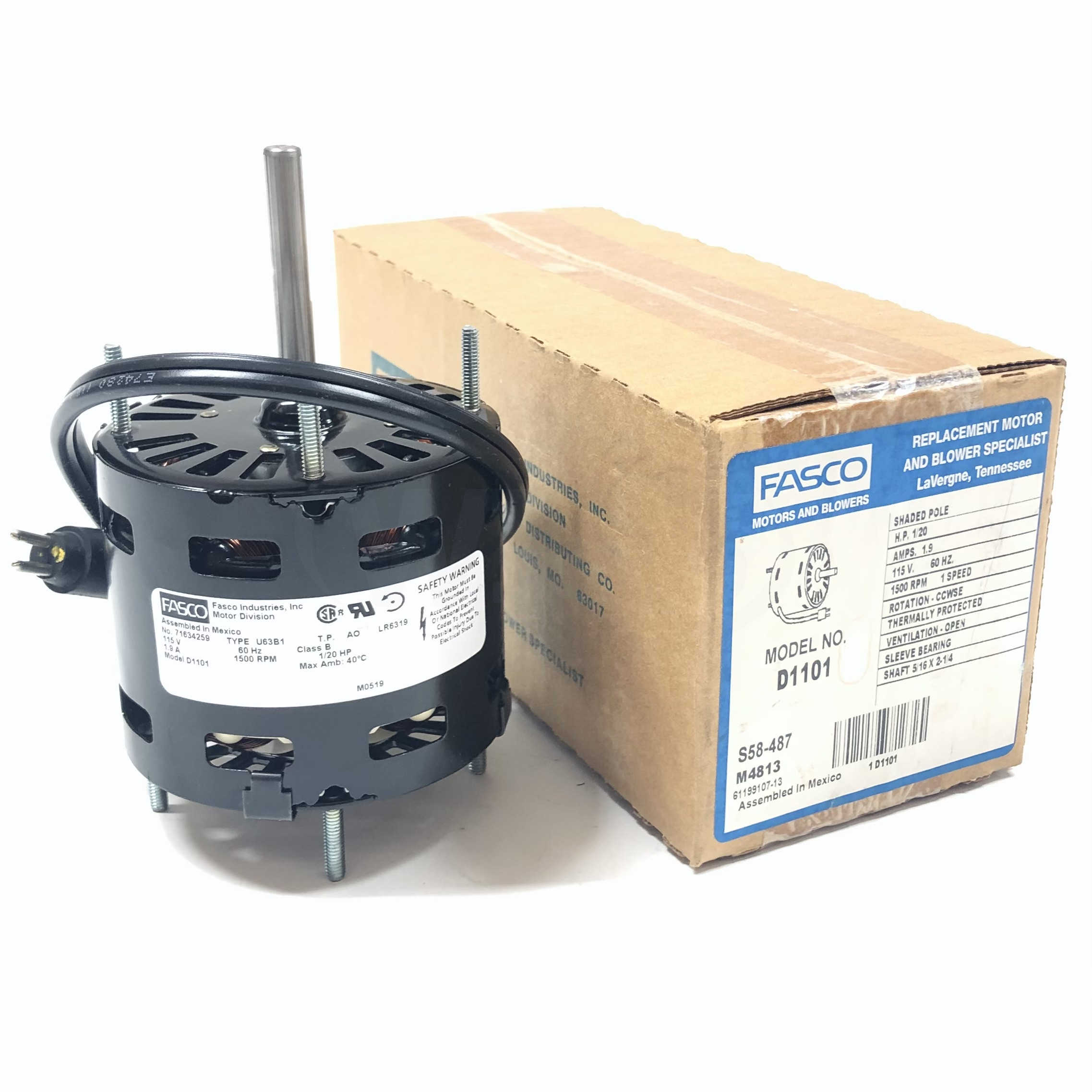

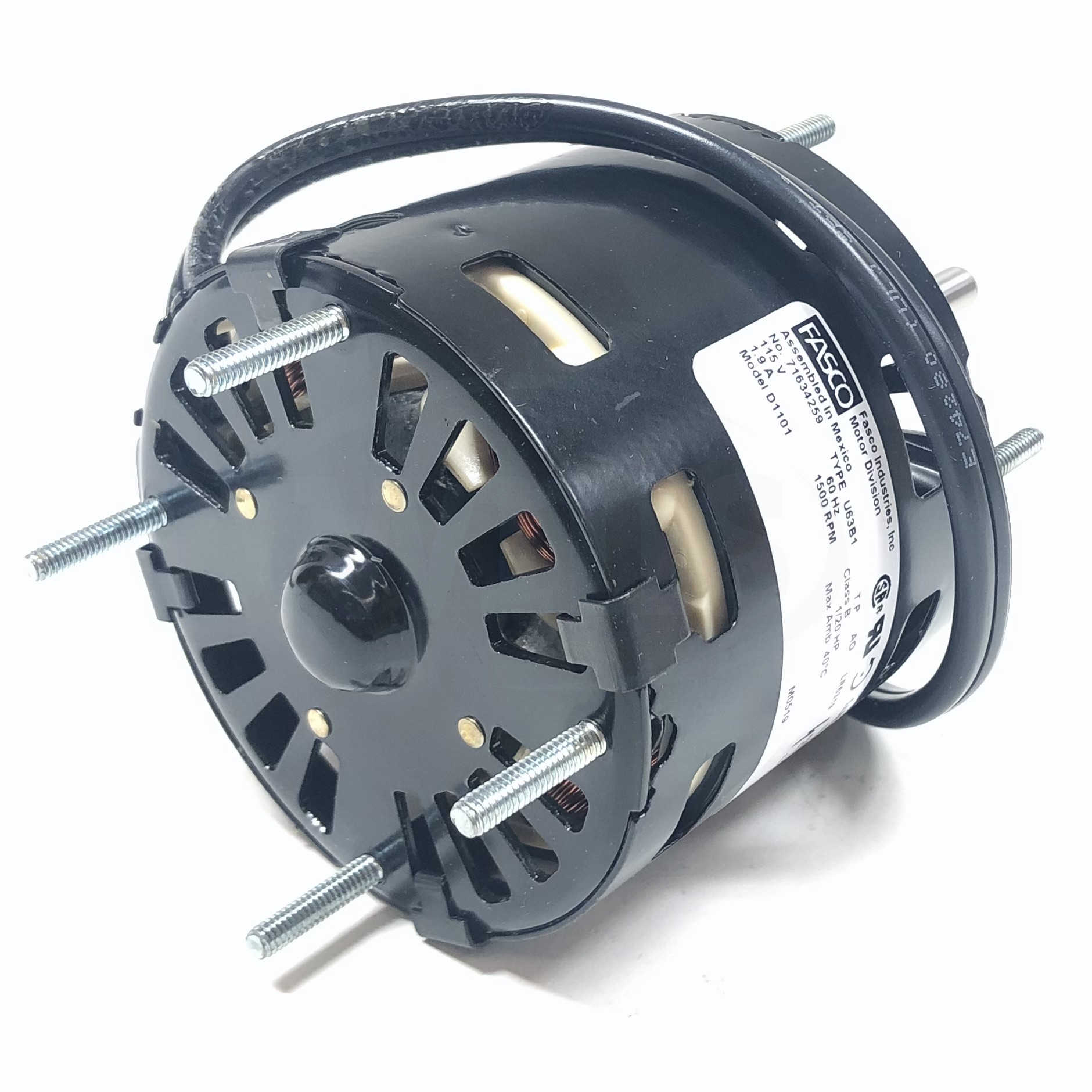

D1101 Fasco 1/20HP OEM Replacement Electric Motor, 1500RPM
Click Image to Expand
Previous
Next
Product ID: D1101
D1101 Fasco 1/20HP OEM Replacement Electric Motor, 1500RPM
MFG: Fasco (RegalRexnord)
MFG Part Number: D1101
Available Stock:
2
Selected accessories will also be added to cart
$89.97 / Each
Quantity:
OAO, 3.3" Diameter, 115VAC 60Hz Single Phase, Extended Studs, Sleeve Bearings, 5/16" x 2.25" Shaft
Details
Features
OEM Direct Replacement Motor
3.3" Diameter
Shaded Pole
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
5/16" Diameter Shaft with Flat
14" Leads with Quick Connect Molded Plug
Extended Studs Shaft End and Opposite Shaft End
General Specifications
UPC:
815585028178
Weight:
3 LB
Packaged Length:
8 IN
Packaged Width:
3.38 IN
Packaged Height:
3.38 IN
Nameplate Specifications
Output HP:
1/20 Hp
Output KW:
0.04 kW
Frequency:
60 Hz
Voltage:
115 V
Current:
1.90 A
Speed:
1500 rpm
Service Factor:
1
Phase:
1
Duty:
Air Over
Insulation Class:
B
Frame:
3.3
Enclosure:
Open Air Over
Thermal Protection:
Thermally Protected
Ambient Temperature:
40 °C
UL:
Recognized
CSA:
Y
CE:
N
Technical Specifications
Electrical Type:
Shaded Pole
Starting Method:
Across The Line
Poles:
4
Rotation:
Counterclockwise Shaft End
Mounting:
Extended Studs
Drive End Bearing:
Sleeve
Opp Drive End Bearing:
Sleeve
Frame Material:
Steel
Shaft Type:
Flat
Overall Length:
5.33 in
Frame Length:
2.57 in
Shaft Diameter:
0.313 in
Shaft Extension:
2.25 in
