/5.0" Diameter (42 Frame)/D1092 Fasco 1/3HP Electric Motor, 1675/1080RPM
Click Image to Expand

Product ID: D1092

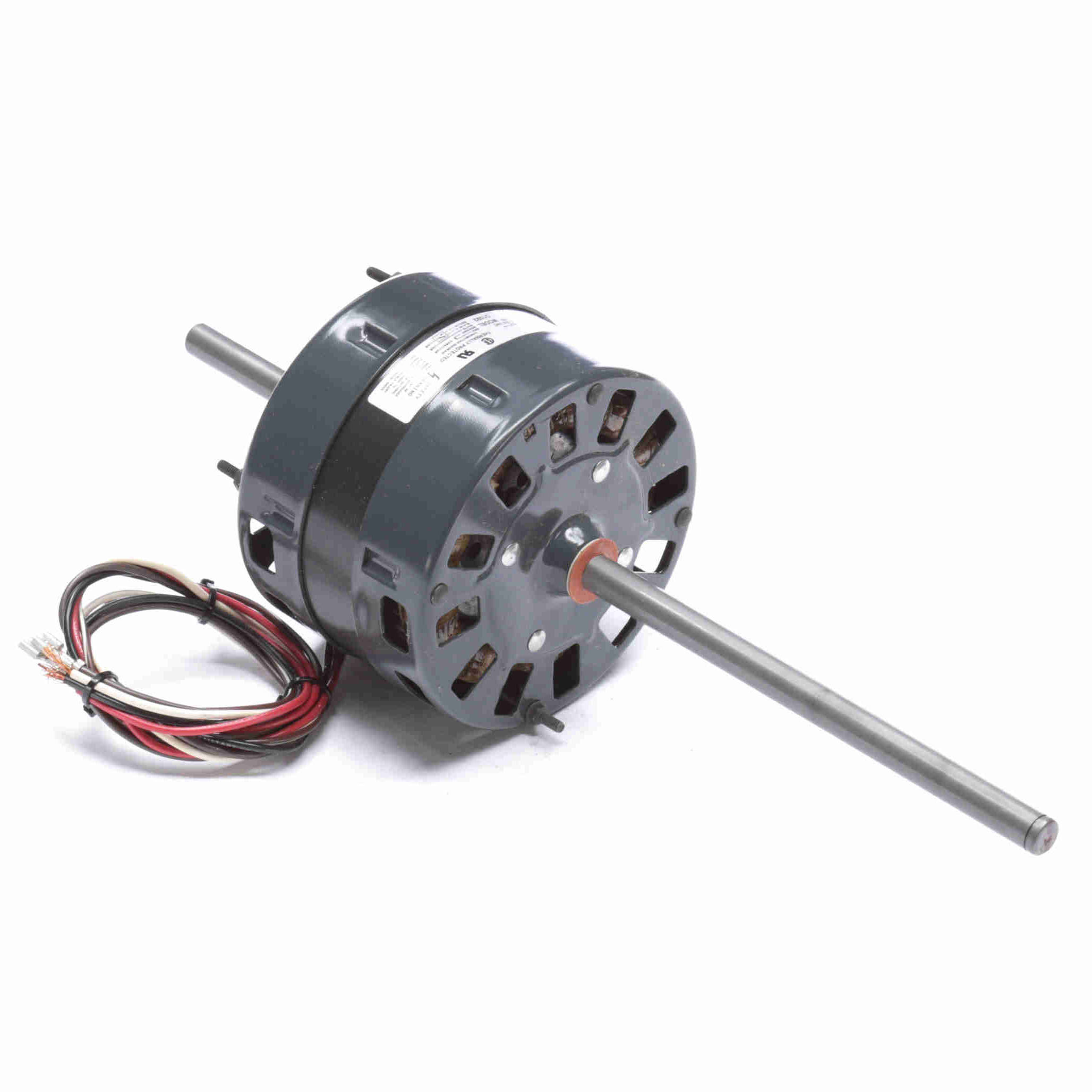

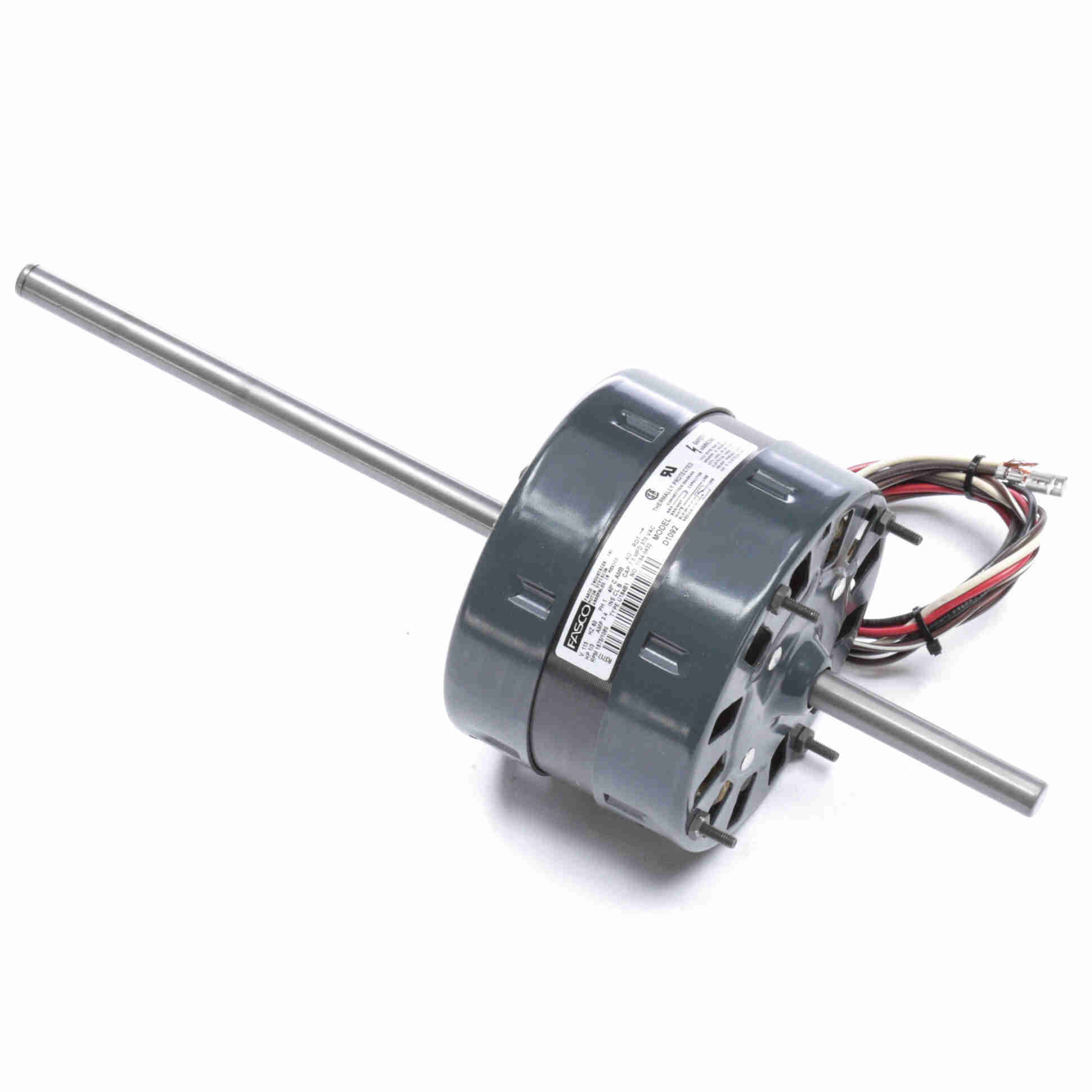

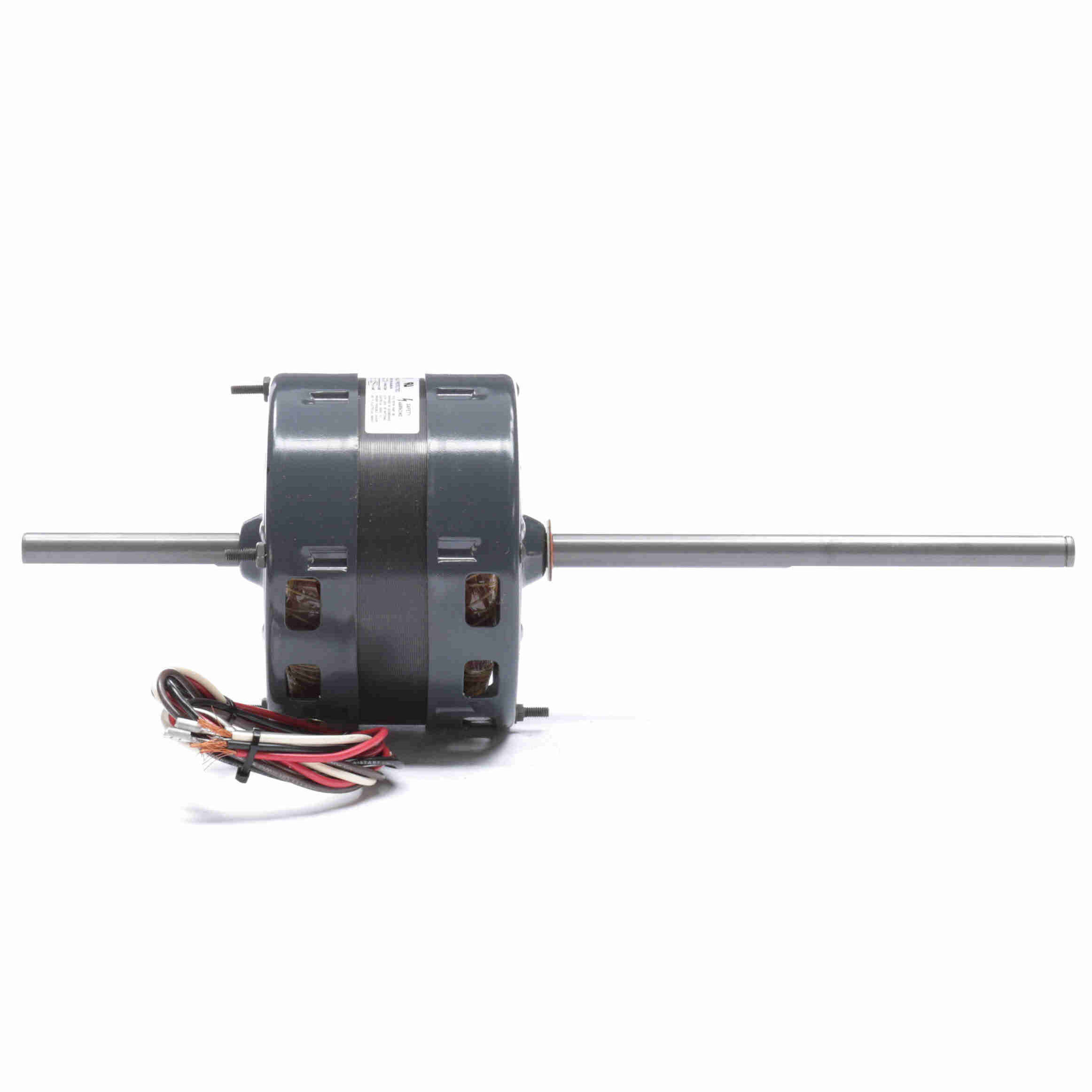

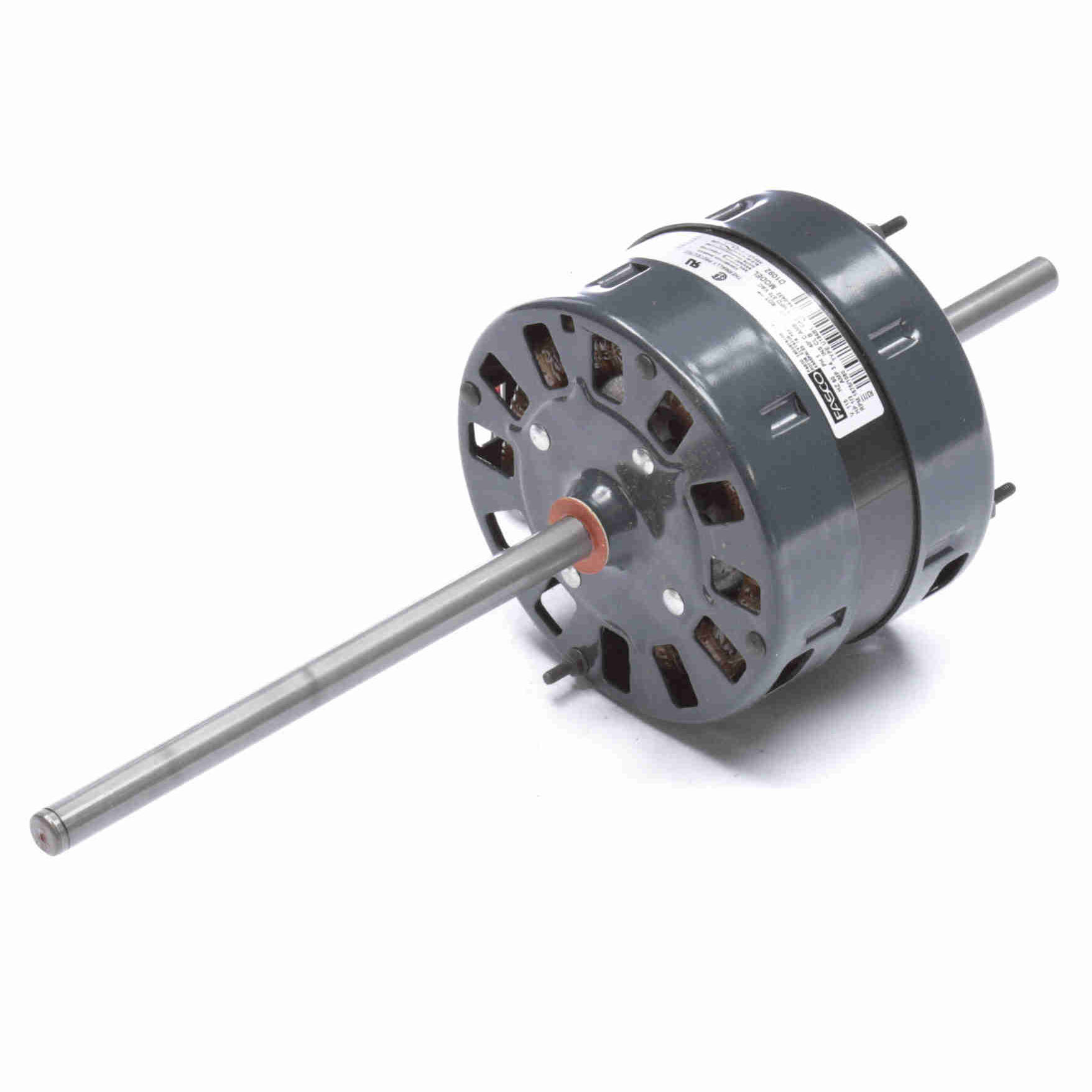

D1092 Fasco 1/3HP Electric Motor, 1675/1080RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D1092

Selected accessories will also be added to cart
$160.97 / Each
Quantity:
OAO, 42 Frame, 115VAC 60Hz Single Phase, 2 Speed, Extended Studs, Sleeve Bearings, 1/2" x 7.92" Shaft, CCWSE

Features

  • OEM Direct Replacement Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Double Shaft with Flat
  • 23" Leads
  • (4) Extended Studs Lead End, (1) Extended Stud Opposite Lead End

General Specifications

UPC: 815585028116 Weight: 10 LB
Packaged Length: 5.13 IN Packaged Width: 5.13 IN
Packaged Height: 22 IN

Nameplate Specifications

Output HP: 1/3 Hp Output KW: 0.25 kW
Frequency: 60 Hz Voltage: 115 V
Current: 3.4 A Speed: 1675/1080 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 42 Enclosure: Open Air Over
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 4 Rotation: Counterclockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Na
Shaft Type: Flat Overall Length: 15.02 in
Shaft Diameter: 0.500 in Shaft Extension: 7.92 in
