/3.3" Diameter/D109 Fasco 1/15HP Fan & Blower Electric Motor, 1100 RPM
Click Image to Expand

Product ID: D109

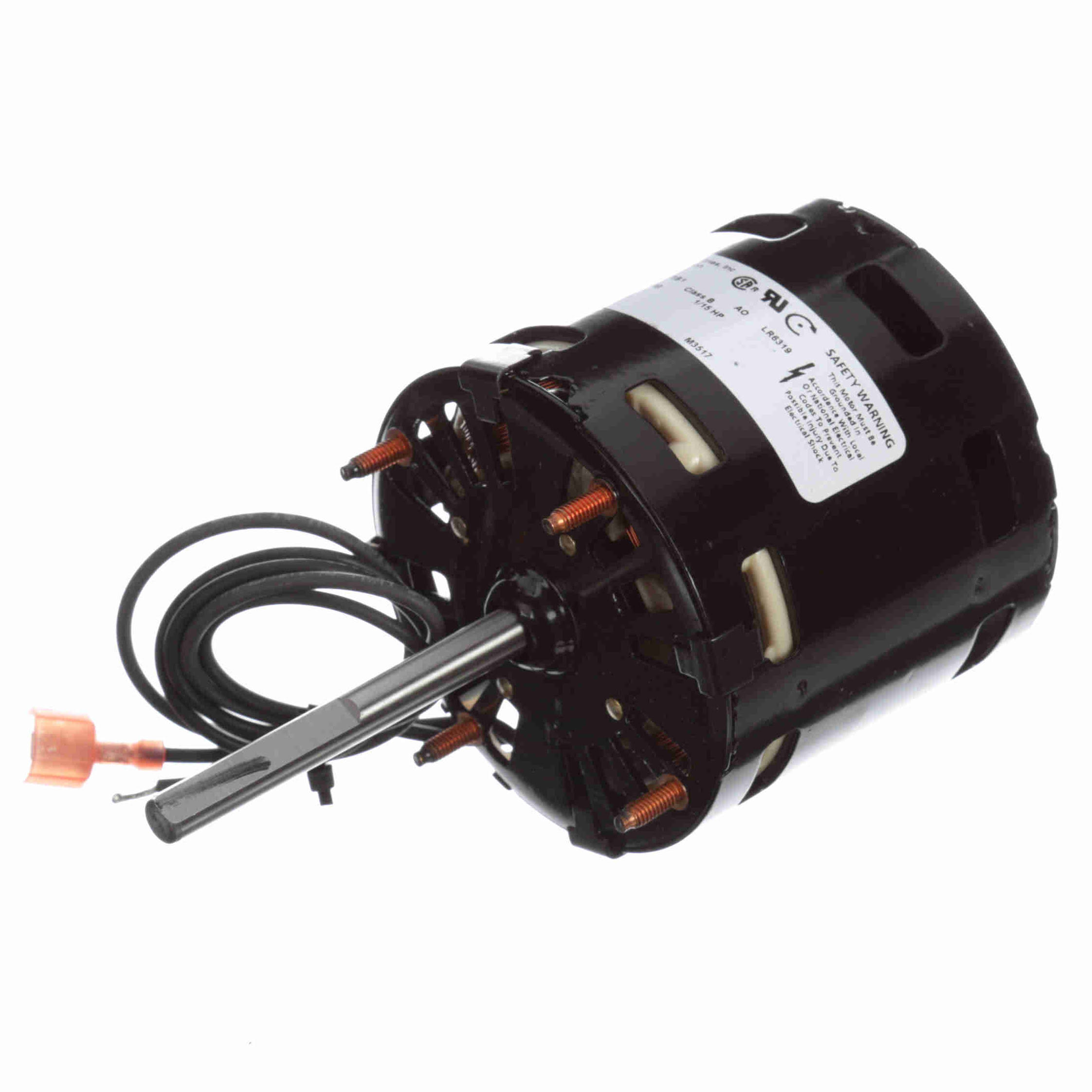

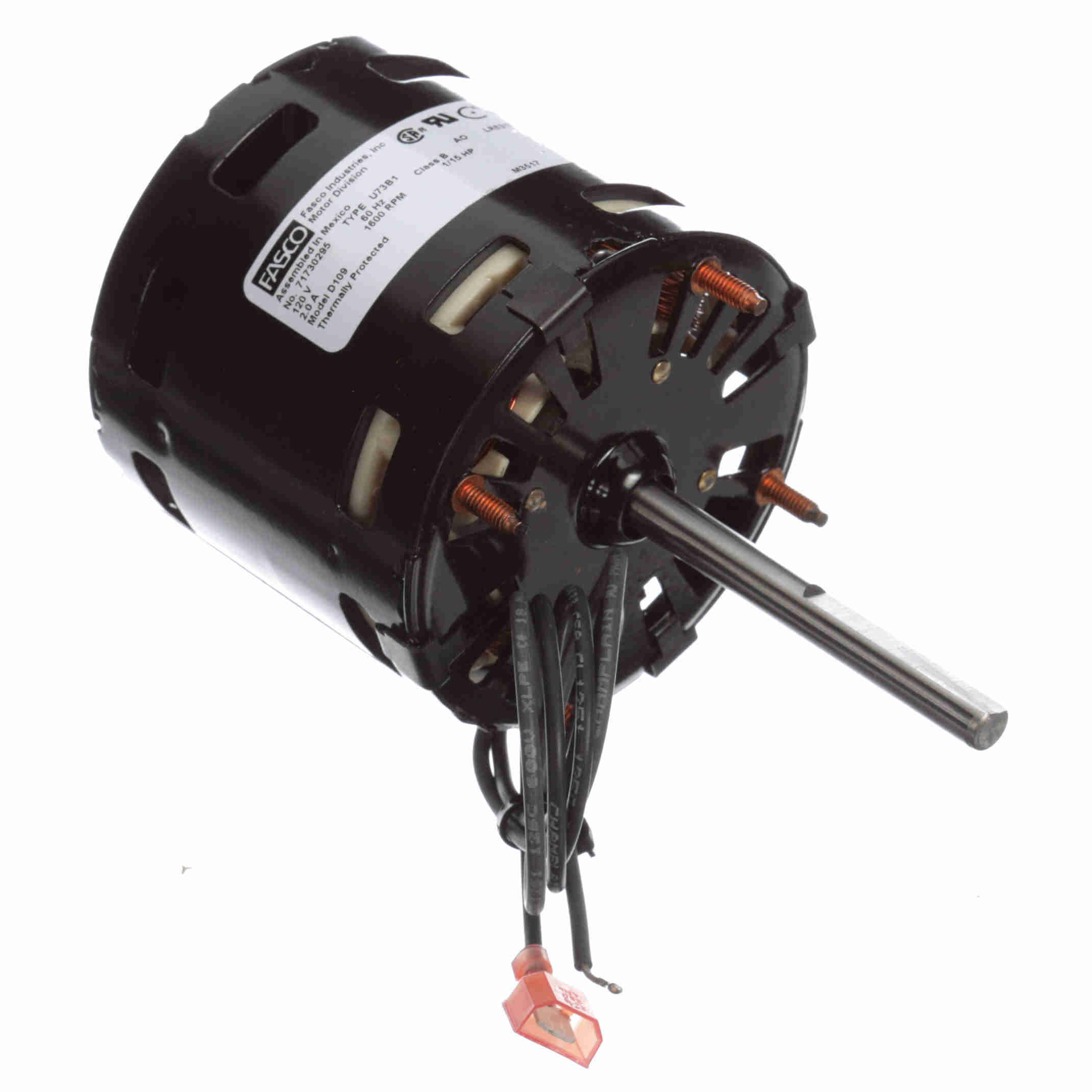

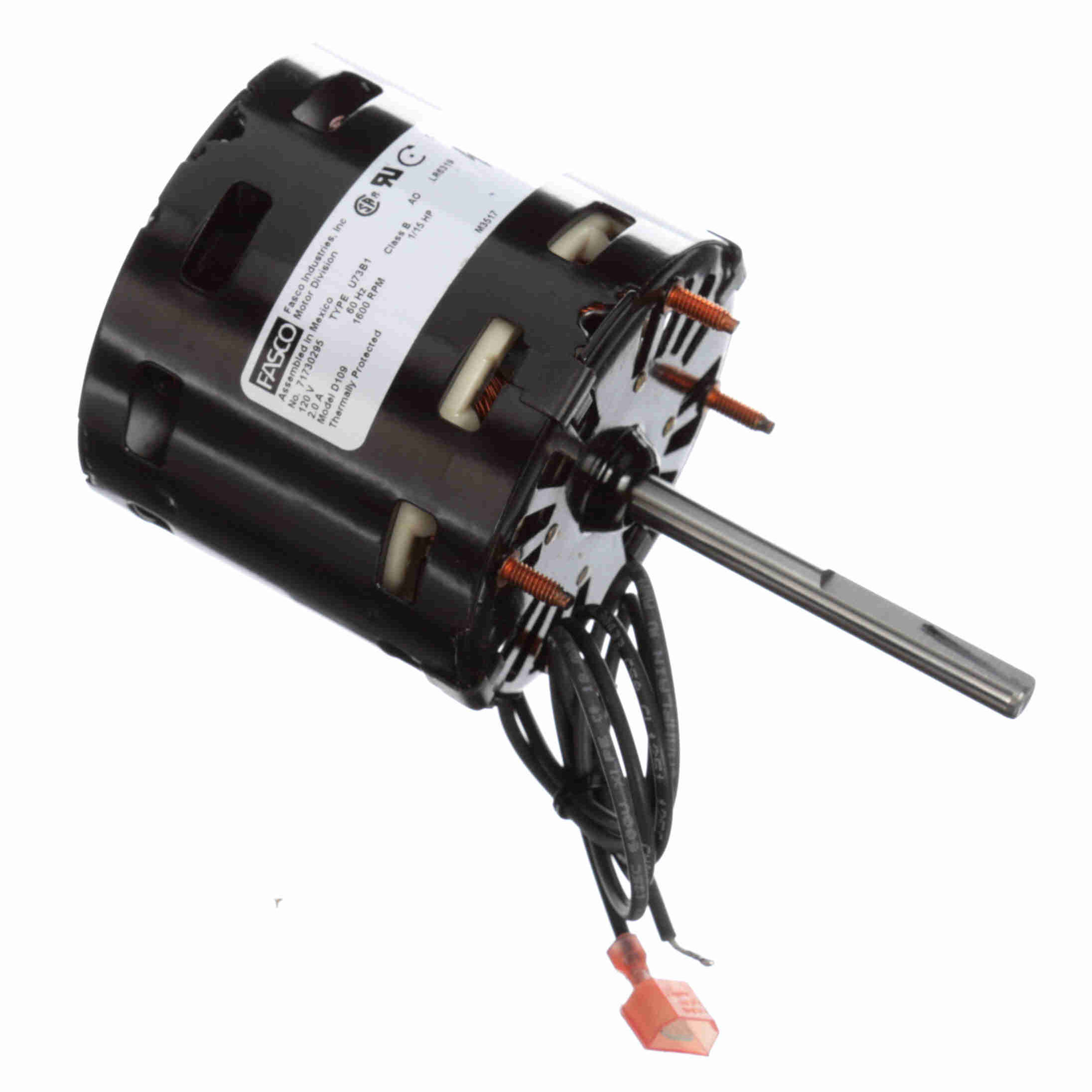

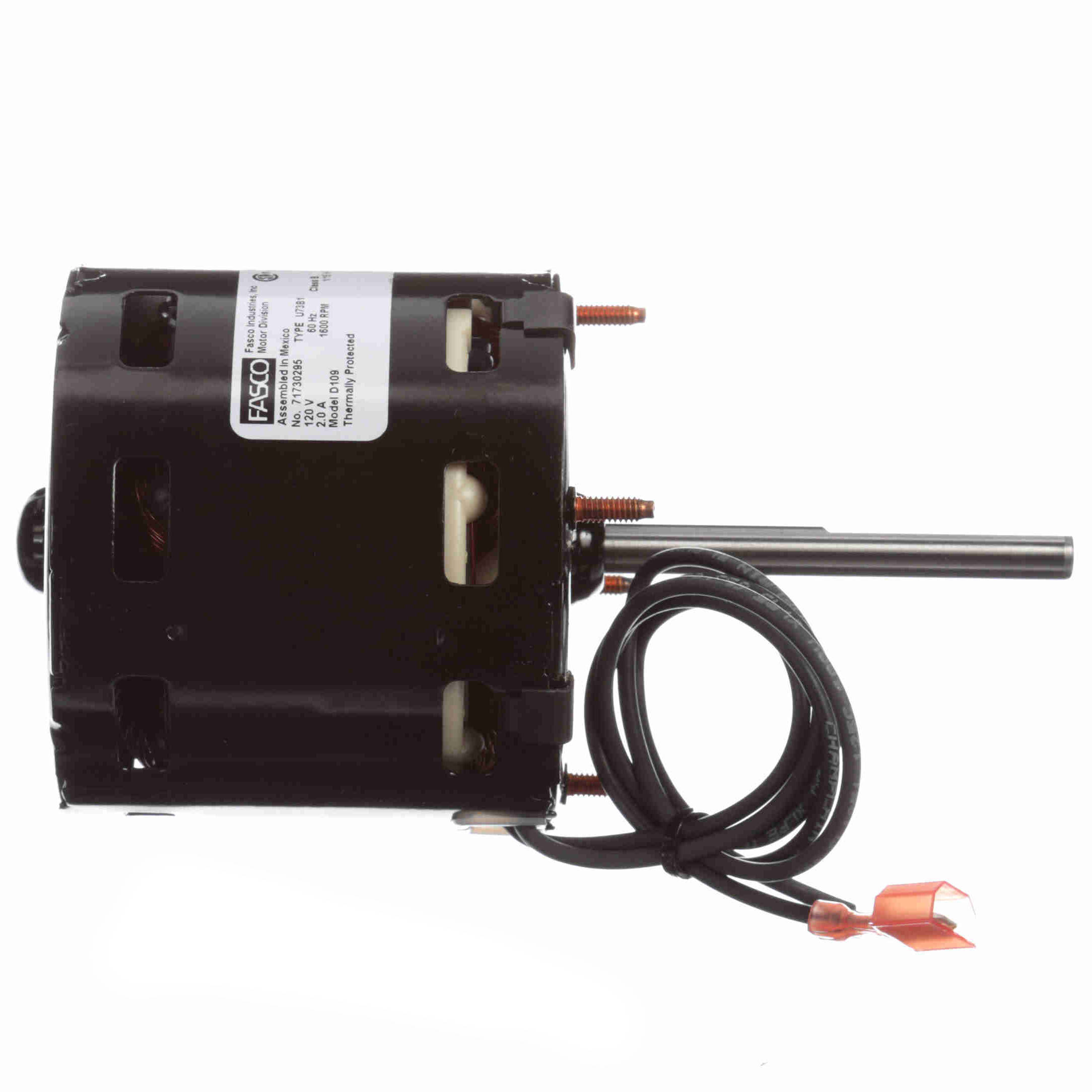

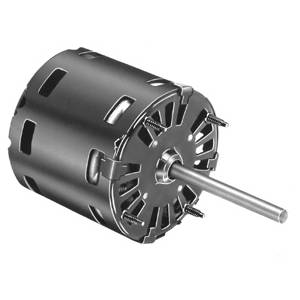

D109 Fasco 1/15HP Fan & Blower Electric Motor, 1100 RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D109

Selected accessories will also be added to cart
$101.97 / Each
Quantity:
Semi-Enclosed, 3.3" Diameter, 115VAC 60Hz Single Phase, Extended Studs, Sleeve Bearings, 5/16" x 3.00" Shaft

Electrical

HP 1/15 HP
Voltage 115 VAC
Frequency 60 Hz
Phase Single Phase
RPM 1100 RPM
Three Speed
Amperage 0.8 Amps

Specifications

Manufacturer Fasco
Model Number D109
Diameter 5 inches
Rotation Direction CW
Bearing Type Sleeve
Shaft Dimensions 10-1/2" x 1/2" x 11-1/2"
Stack inches
Notes Air Over
Motors include shaft bushing
Weight 3.5 lbs
Frame
Type SP
Enclosure Open Ventilated
”A” Dimension 3"

Cross Reference
