/5.0" Diameter (42 Frame)/D1071 Fasco 1/6HP OEM Replacement Electric Motor, 1100RPM
Click Image to Expand

Product ID: D1071

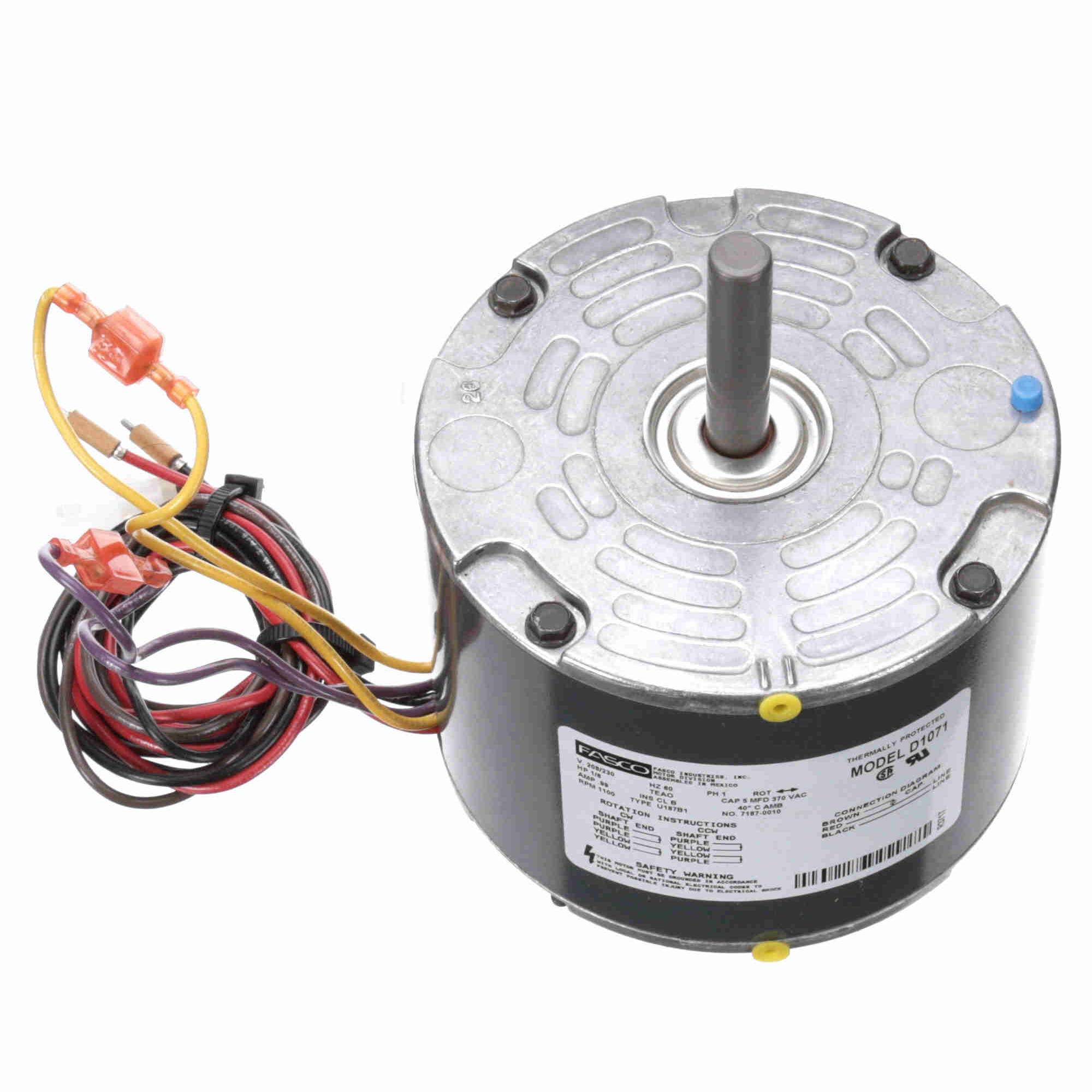

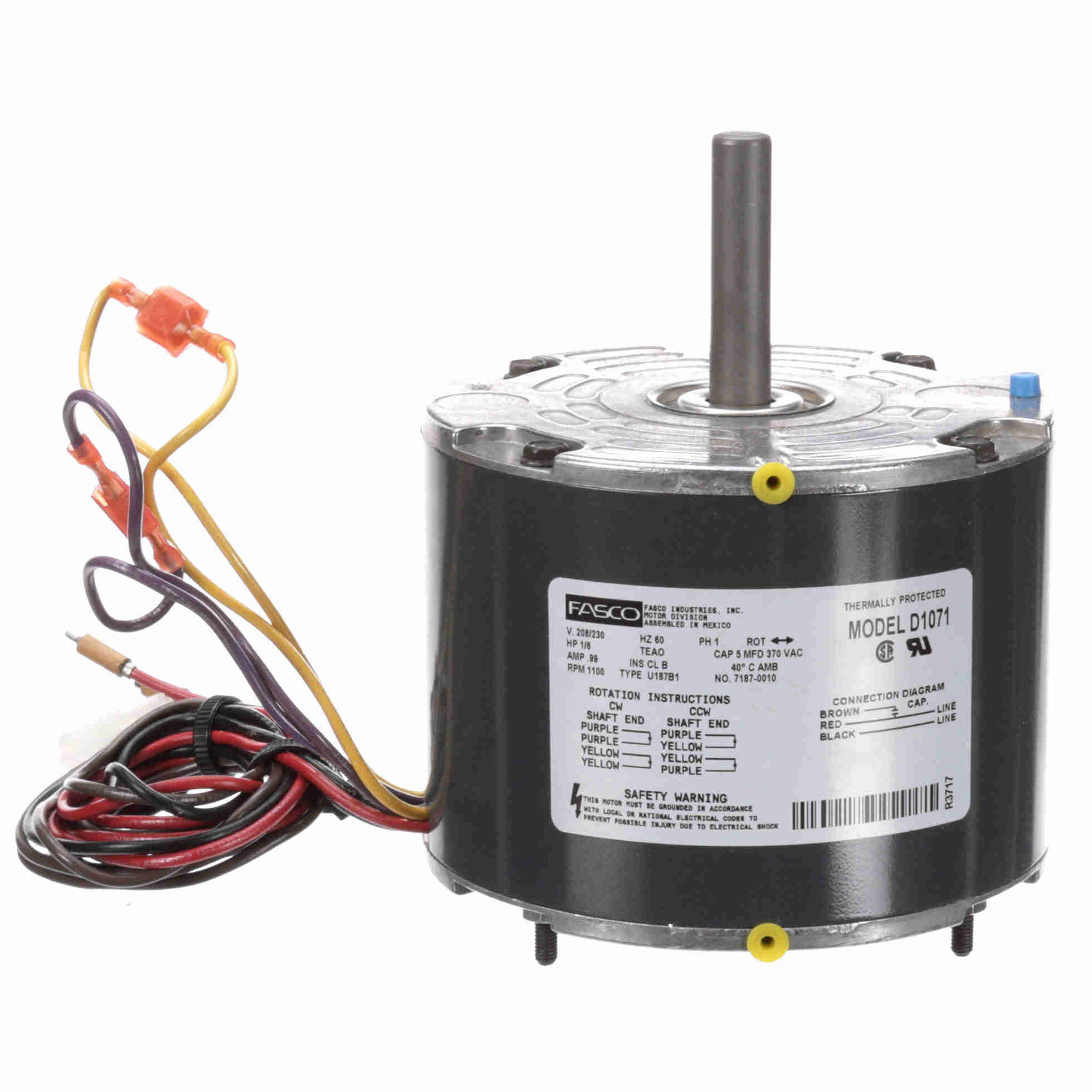

D1071 Fasco 1/6HP OEM Replacement Electric Motor, 1100RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D1071

Available Stock: 1
Selected accessories will also be added to cart
$173.97 / Each
Quantity:
TEAO, 42 Frame, 208-230VAC 60Hz Single Phase, Bracket Mounting, Ball Bearings, Rolled Steel, 1/2" x 2.2" Shaft, Reversible

Features

  • OEM Direct Replacement Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Flat
  • 42" Leads with Teminal Housing
  • Extended Studs Lead End, Belly Band Mount

General Specifications

UPC: 815585027898 Weight: 9 LB
Packaged Length: 5.13 IN Packaged Width: 5.13 IN
Packaged Height: 10 IN

Nameplate Specifications

Output HP: 1/6 Hp Output KW: 0.13 kW
Frequency: 60 Hz Voltage: 208/230 V
Current: 0.99 A Speed: 1100 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 42 Enclosure: Open Air Over
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Reversible
Mounting: Bracket Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Flat Overall Length: 6.02 in
Frame Length: 3.38 in Shaft Diameter: 0.500 in
Shaft Extension: 2.2 in
