/5.0" Diameter (42 Frame)/D1055 Fasco 1/12HP Electric Motor, 1375RPM, 3-Speed
Click Image to Expand

Product ID: D1055

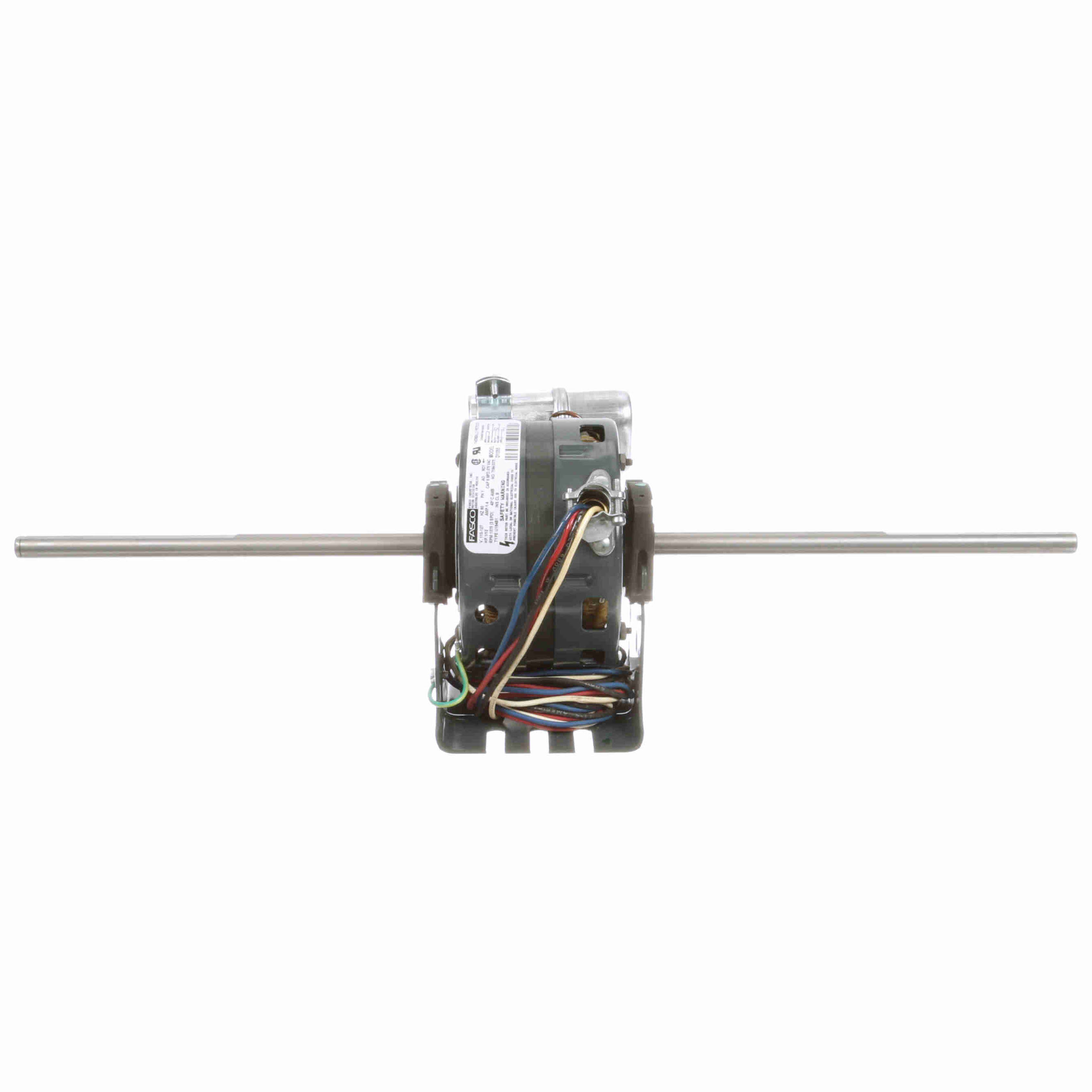

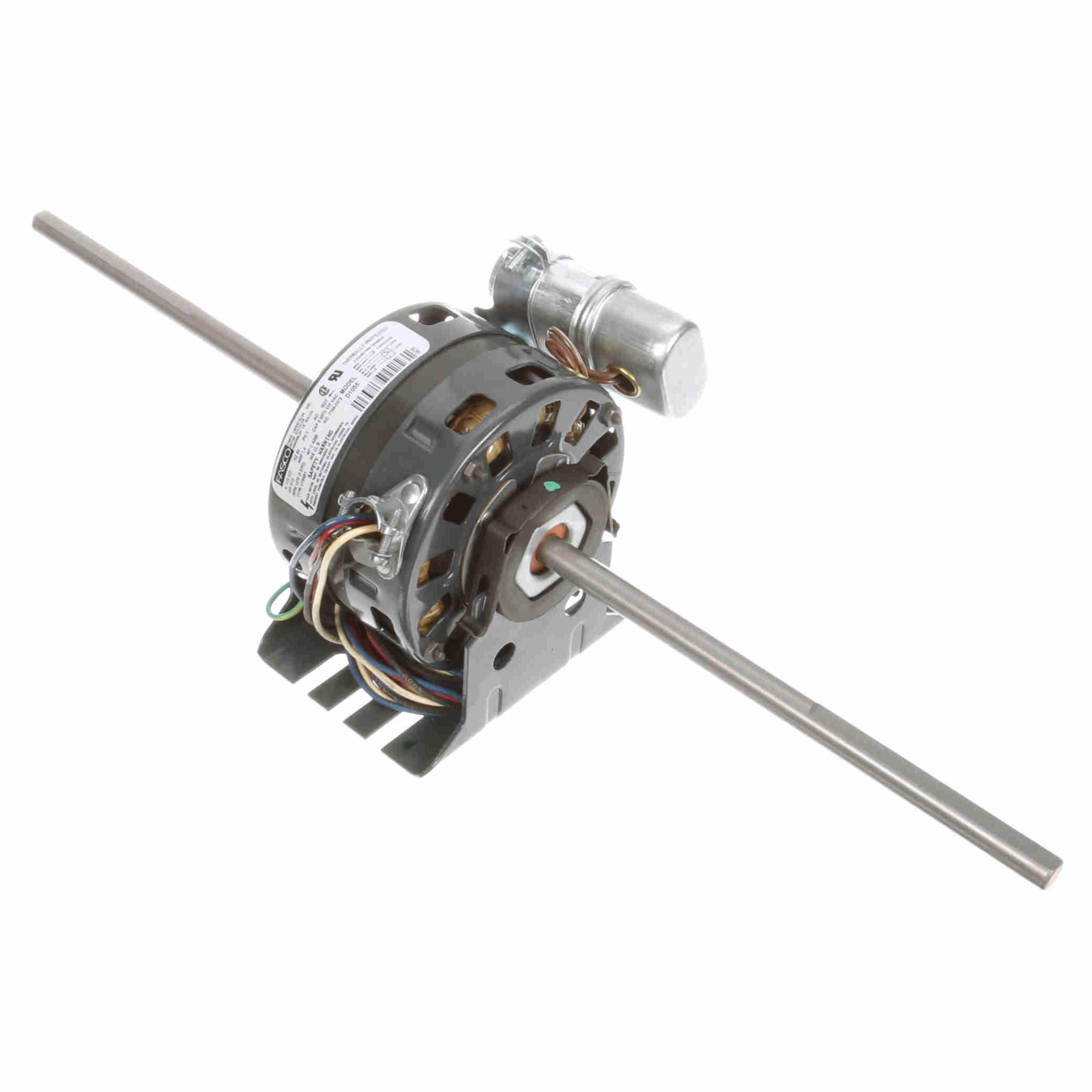

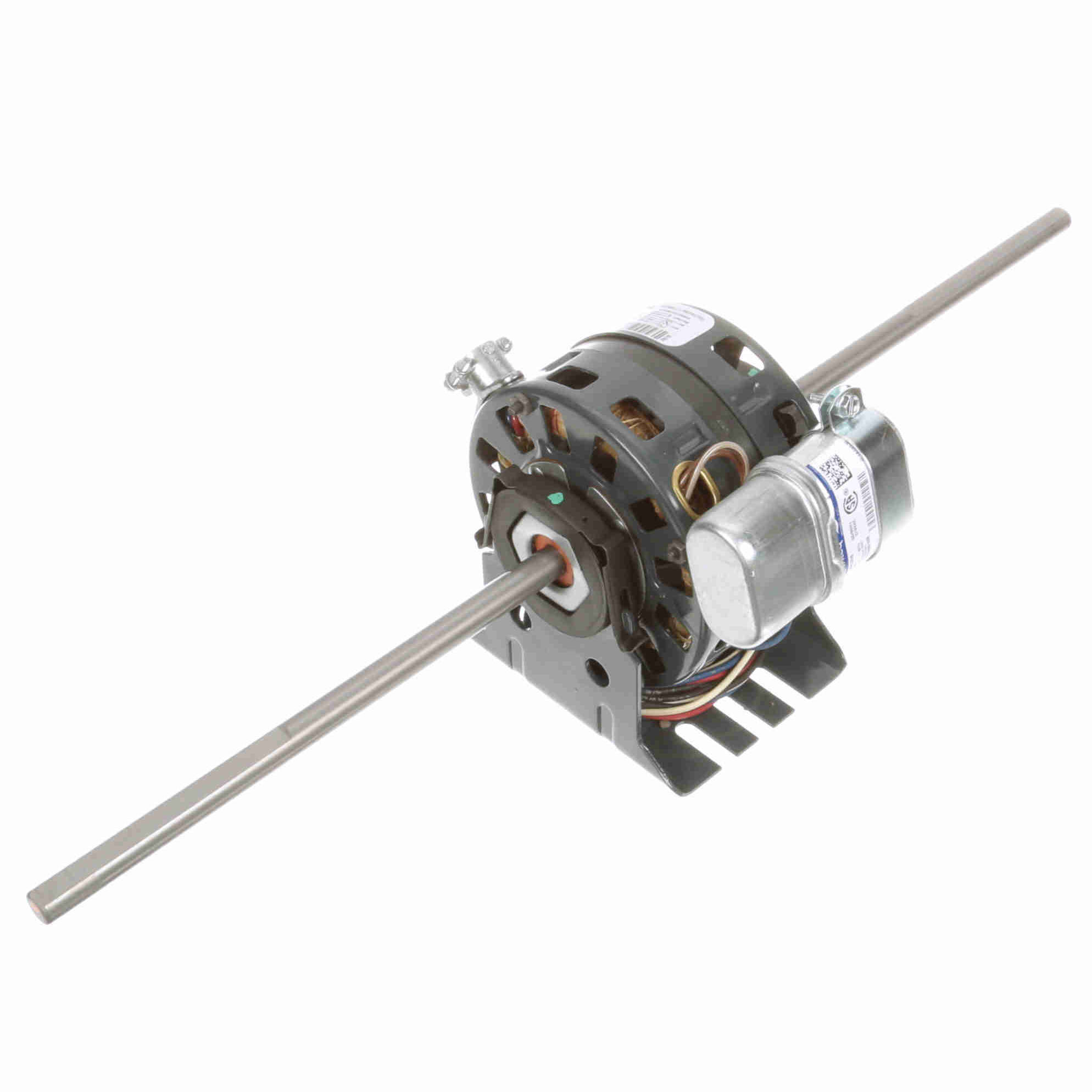

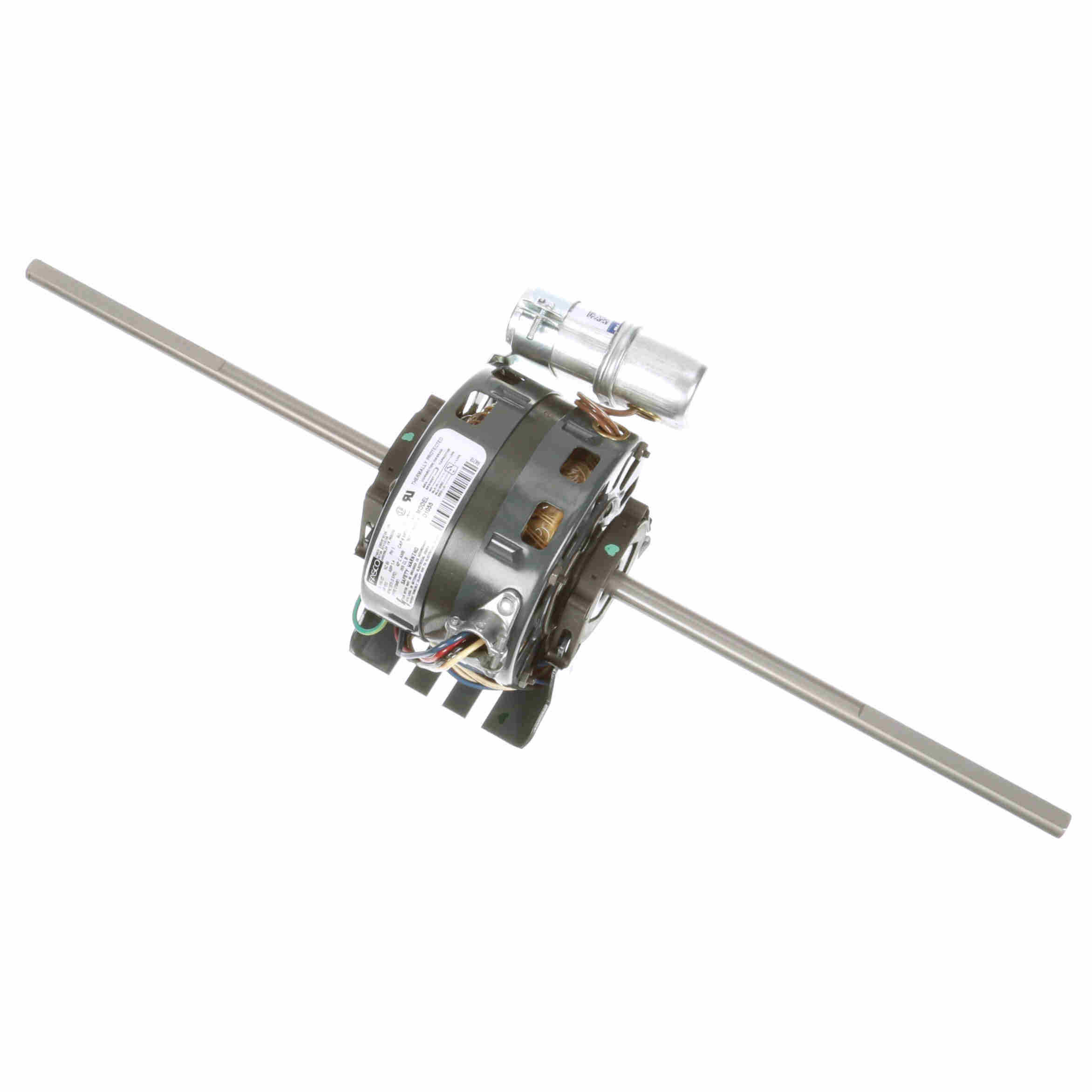

D1055 Fasco 1/12HP Electric Motor, 1375RPM, 3-Speed

MFG: Fasco (RegalRexnord)
MFG Part Number: D1055

Selected accessories will also be added to cart
$243.97 / Each
Quantity:
Open Air Over, 42 Frame, 115-127VAC 60Hz Single Phase, Resilient Base, Sleeve Bearings, 1/2" Shaft, CW Shaft End

Features

  • OEM Direct Replacement Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 71" Leads
  • Resilient Base

General Specifications

UPC: 815585027805 Weight: 10.00 LB
Packaged Length: 7.38 IN Packaged Width: 6.13 IN
Packaged Height: 25.75 IN

Nameplate Specifications

Output HP: 1/12 Hp Output KW: 0.06 kW
Frequency: 60 Hz Voltage: 115-127 V
Current: 1.4 A Speed: 1375 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 42 Enclosure: Open Air Over
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Shaft End
Mounting: Resilient Base Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Na
Shaft Type: Flat Overall Length: 21.77 in
Shaft Diameter: 0.500 in Shaft Extension: 9.125 in
