/5.0" Diameter (42 Frame)/D1049 Fasco 1/20HP OEM Replacement Electric Motor, 1075RPM
Click Image to Expand

Product ID: D1049

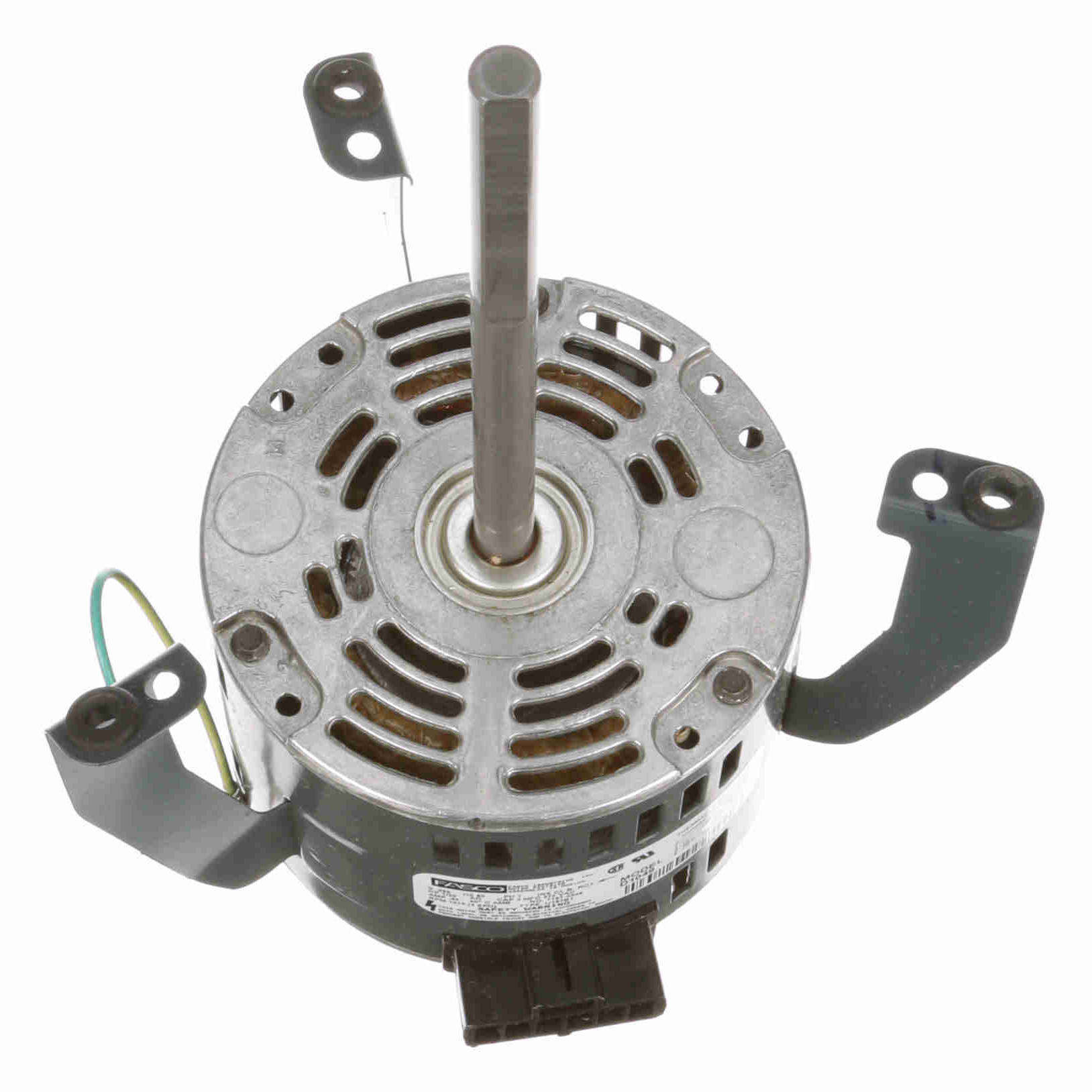

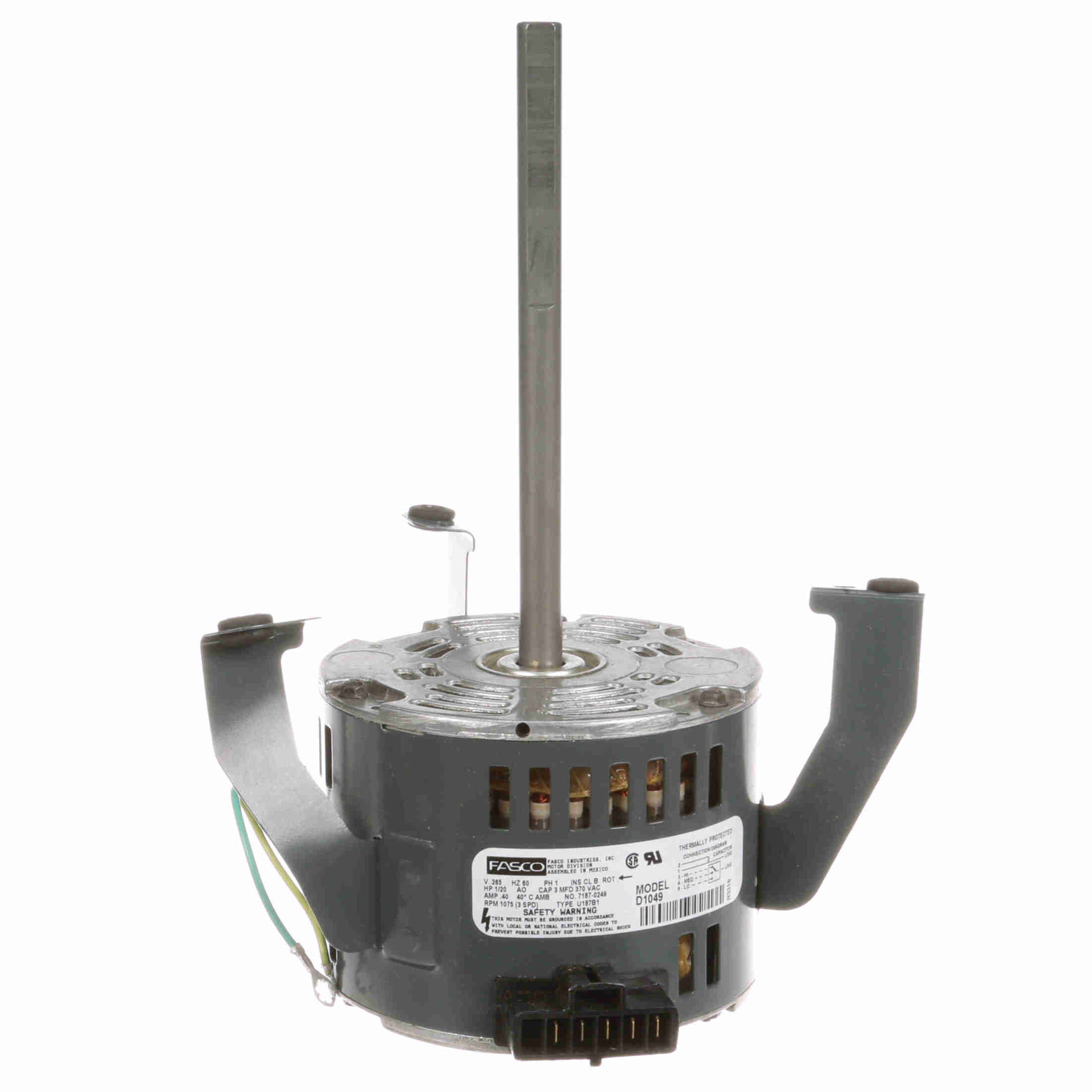

D1049 Fasco 1/20HP OEM Replacement Electric Motor, 1075RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D1049

Selected accessories will also be added to cart
$227.97 / Each
Quantity:
OAO, 42 Frame, 265VAC 60Hz Single Phase, 3 Speed, Lug Mounting, Sleeve Bearings, Rolled Steel, 1/2" Shaft

Features

  • OEM Direct Replacement Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • Terminal Block
  • Flex Mount

General Specifications

UPC: 815585027744 Weight: 12 LB
Packaged Length: 11 IN Packaged Width: 11 IN
Packaged Height: 18 IN

Nameplate Specifications

Output HP: 1/20 Hp Output KW: 0.04 kW
Frequency: 60 Hz Voltage: 265 V
Current: 0.40 A Speed: 1075 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 42 Enclosure: Open Air Over
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Clockwise Shaft End
Mounting: Lug Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Rolled Steel
Shaft Type: Flat Overall Length: 11.02 in
Frame Length: 3.83 in Shaft Diameter: 0.500 in
Shaft Extension: 7.15 in
