Product ID: D1045

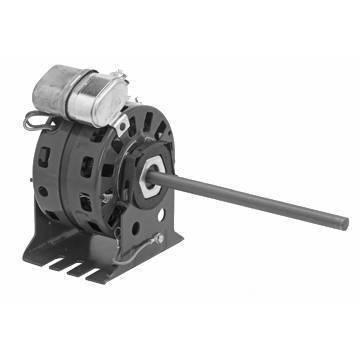

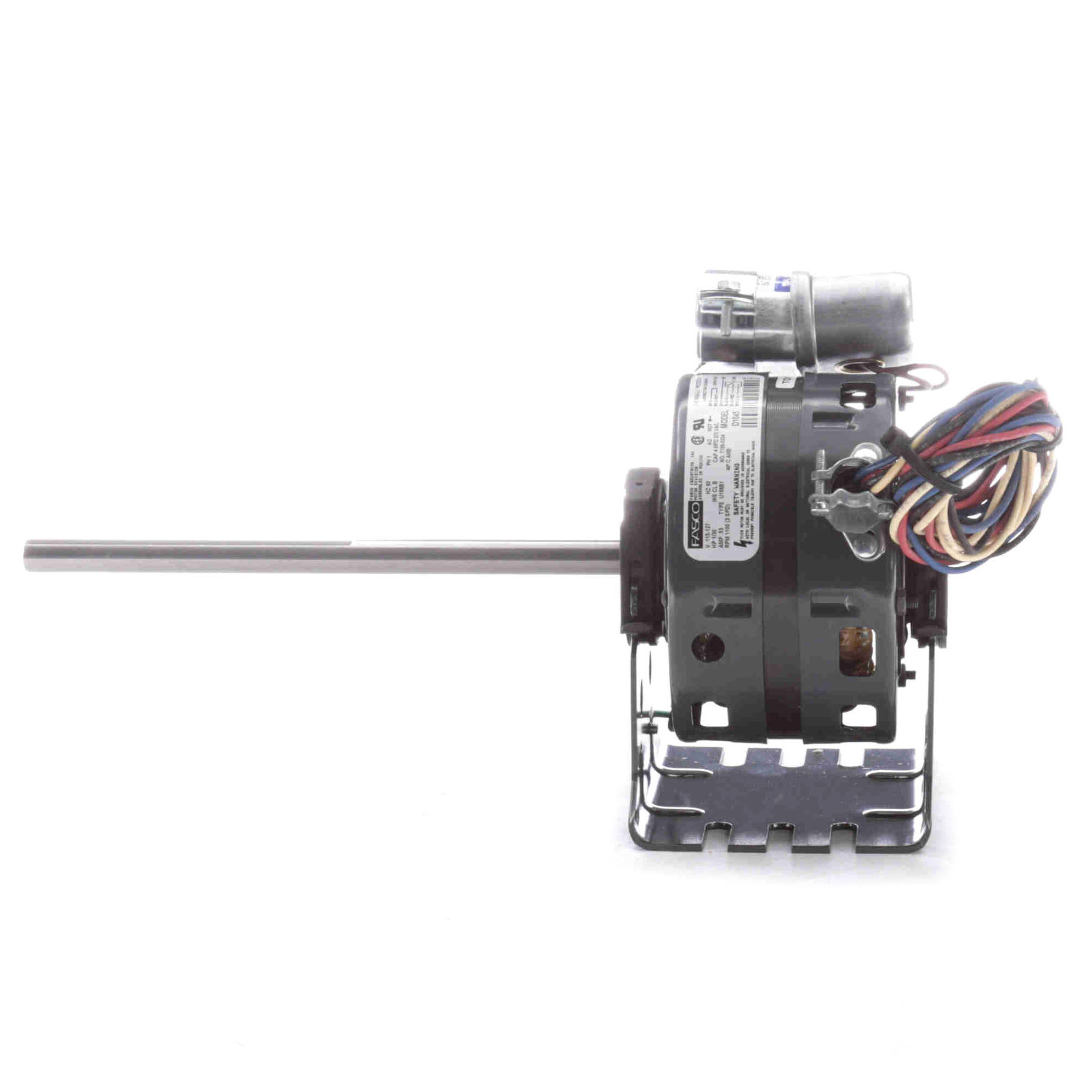

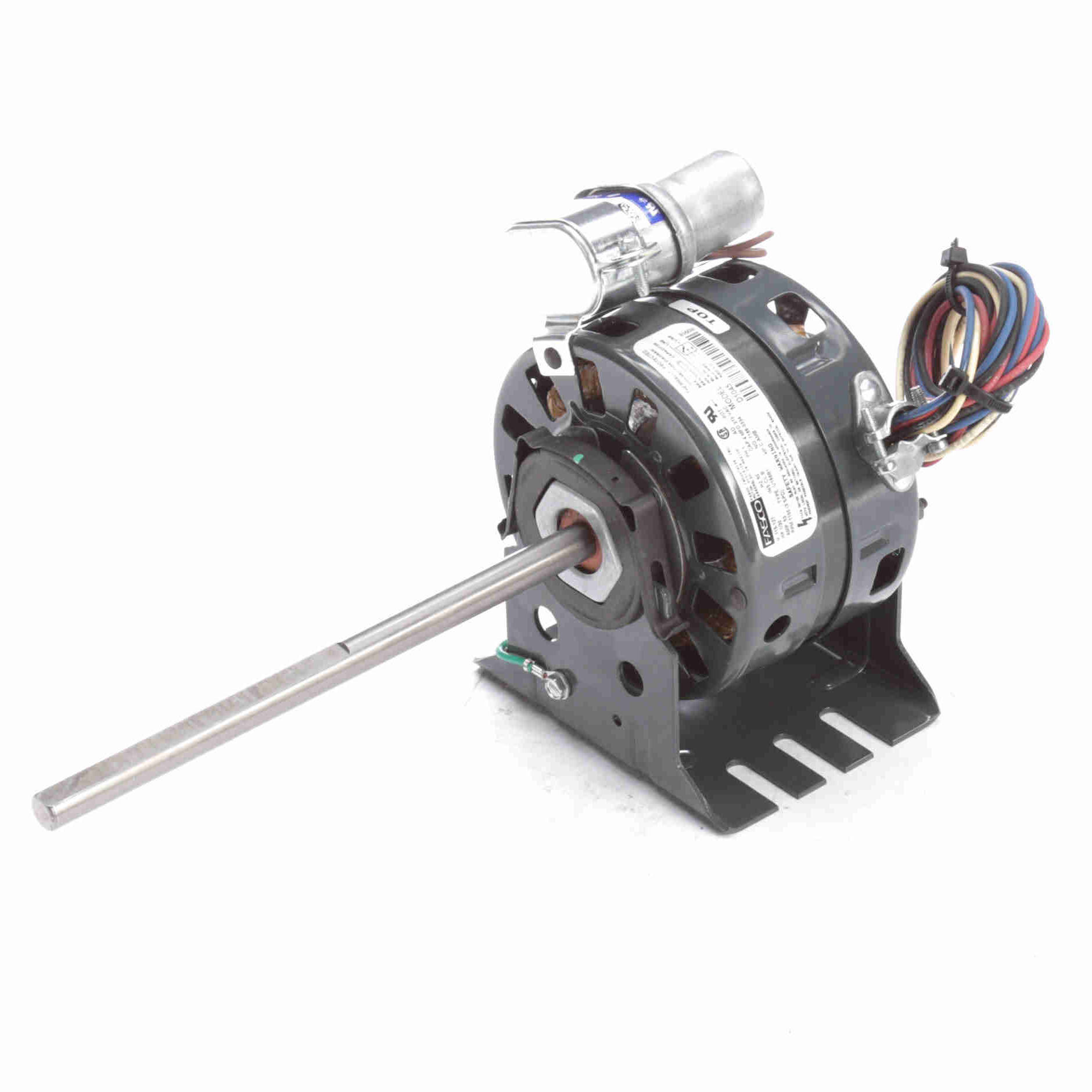

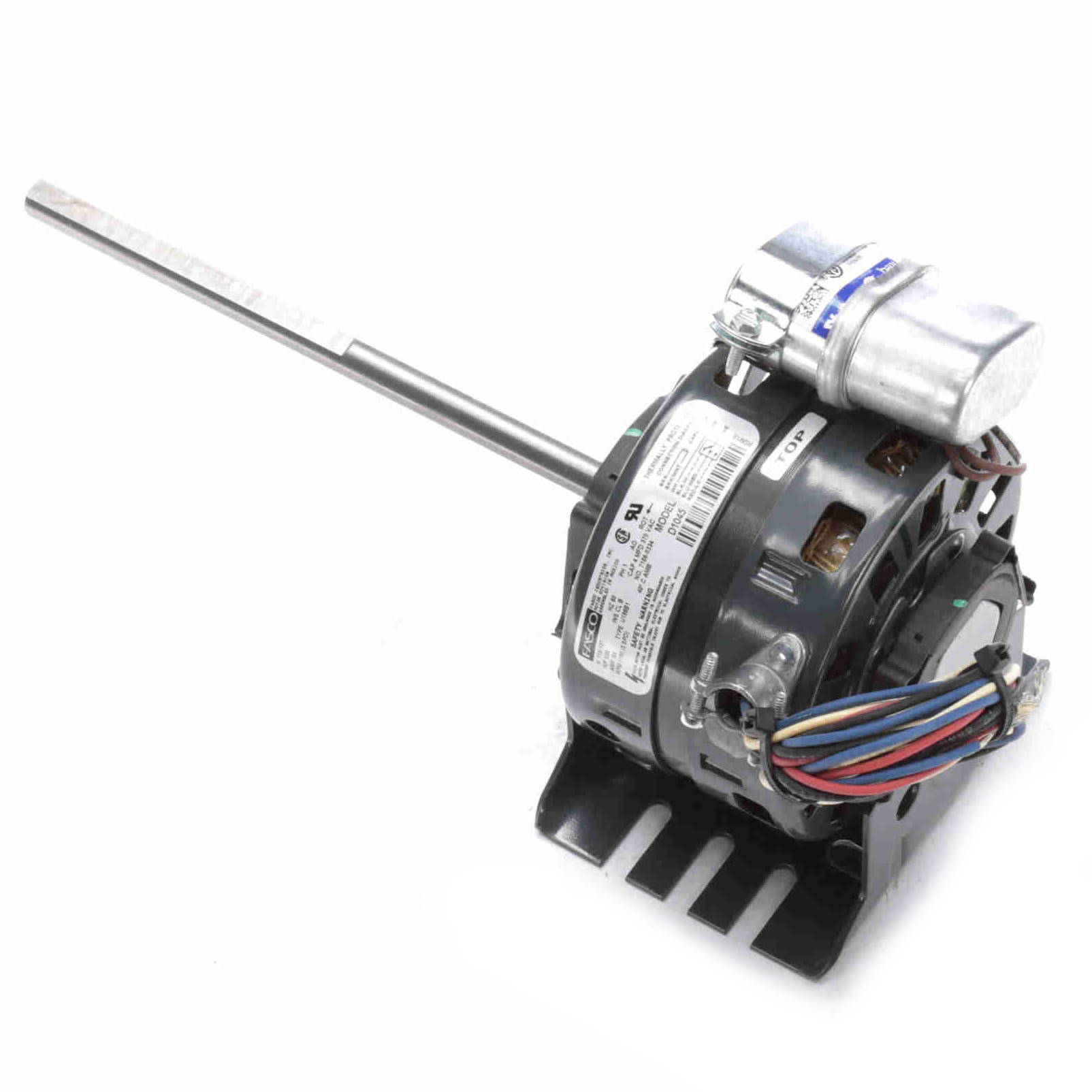

D1045 Fasco 1/30HP Electric Motor, 5", 1100 RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D1045

Temporarily out of stock

Selected accessories will also be added to cart

$201.97 / Each

3-Speed, 115-127VAC 60Hz Single Phase

Details

Electrical

HP	1/30HP HP
Voltage	115-127 VAC
Frequency	60 Hz
Phase	Single Phase
RPM	1100 RPM Three Speed
Amperage	0.53 Amps

Specifications

Manufacturer	Fasco
Model Number	D1045
Diameter	5 inches
Rotation Direction	CW
Bearing Type	Sleeve
Shaft Dimensions	1/2" x 9"
Stack	inches
Notes	4Mfd 370V capacitor included
Weight	7.5 lbs
Frame
Type	PSC
Enclosure
”A” Dimension	3-1/8"

Cross Reference

	5KCP29BK8382S S89202
