/5.0" Diameter (42 Frame)/D1038 Fasco 1/25HP Electric Motor, 5" Diameter, 1050RPM
Click Image to Expand

Product ID: D1038

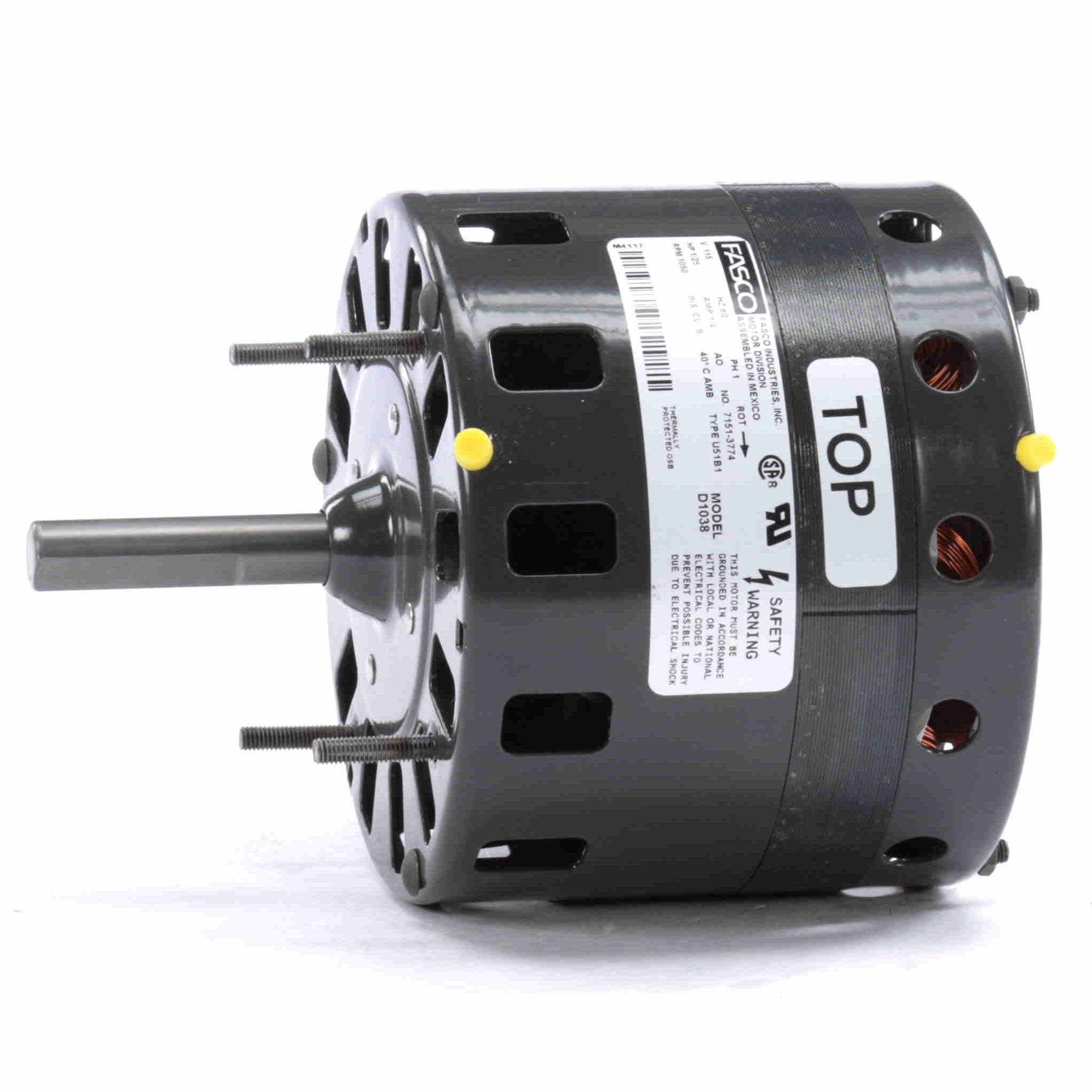

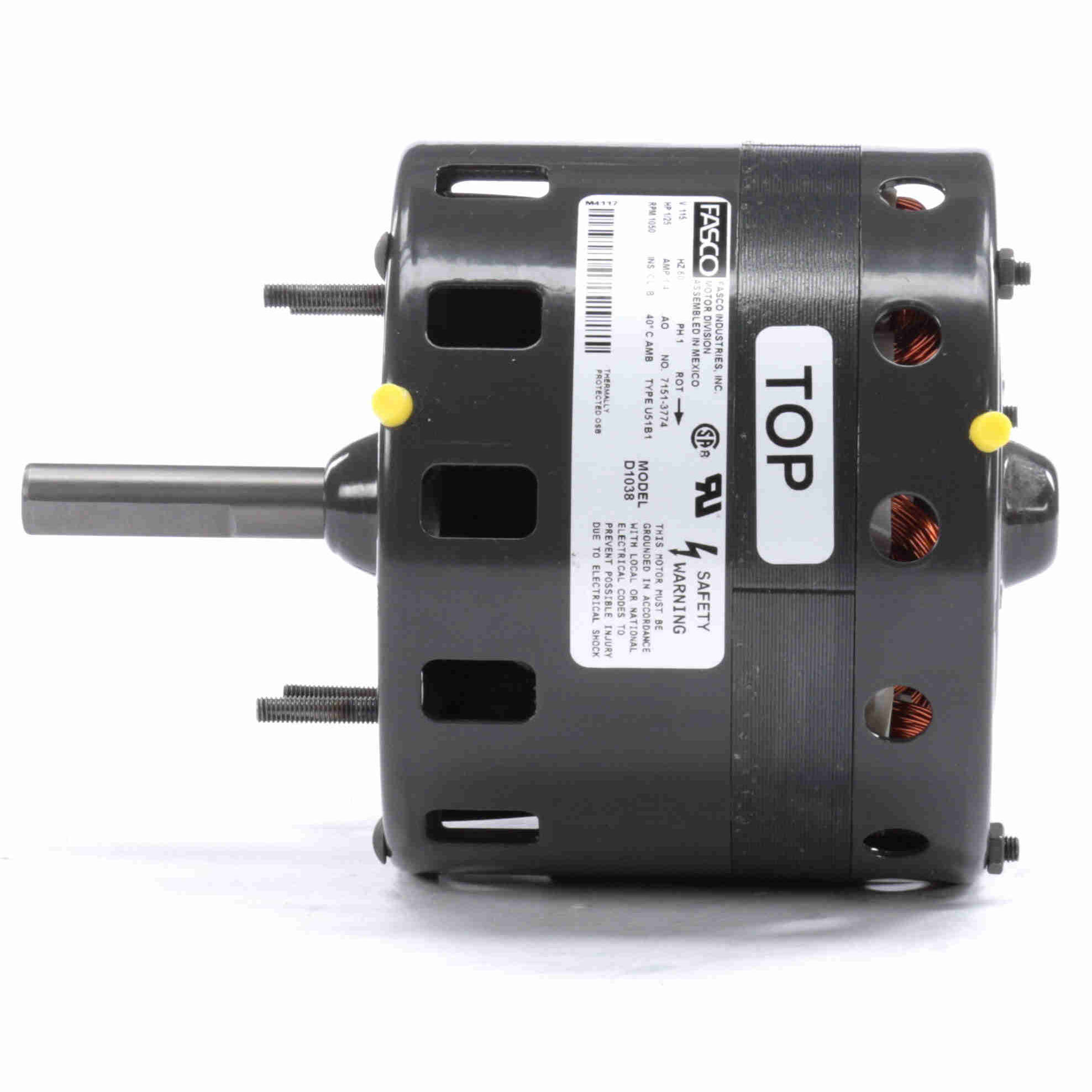

D1038 Fasco 1/25HP Electric Motor, 5" Diameter, 1050RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D1038

Selected accessories will also be added to cart
$182.97 / Each
Quantity:
Open, 115VAC Single Phase 60Hz, CWSE, 0.50" x 2.50" Shaft, Extended Studs, Sleeve Bearing, Shaded Pole

Features

Features
  • Ventilation - Unit Heater Motor
  • 5" Diameter - 42 Frame
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • Conduit Box
  • Extended Studs Shaft End

General Specifications

General Specifications
Model : Catalog No : D1038
Part Description : 71513774.MOTOR.5.00" DIA..1/25 HP.1 SPD. Category : Ventilation
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 1/25 HP Output KW : 0.03 kW
Frequency : 60 Hz Voltage : 115 V
Current : 1.4 A Speed : 1050 RPM
Service Factor : 1 Phase : 1
Duty : Air Over Insulation Class : B
Frame : 42 Enclosure : Open Air Over
Overload Protector : Thermally Protected Ambient Temperature : 40 °C
UL : Recognized CSA : Y
CE : N

Technical Specifications

Technical Specifications
Electrical Type : Shaded Pole Starting Method : Across The Line
Poles : 6 Rotation : Clockwise Shaft End
Mounting : Extended Studs Drive End Bearing : Sleeve
Opp Drive End Bearing : Sleeve Frame Material : Na
Shaft Type : Flat Overall Length : 7.07 in
Shaft Diameter : 0.500 in Shaft Extension : 2.50 in
UPC : 815585027638 Weight : 7.00 LB
