/Products/Electric Motors/Single Phase/Century/D1036 Century 1/3HP Fan & Blower Electric Motor, 1075RPM
Click Image to Expand

Product ID: D1036

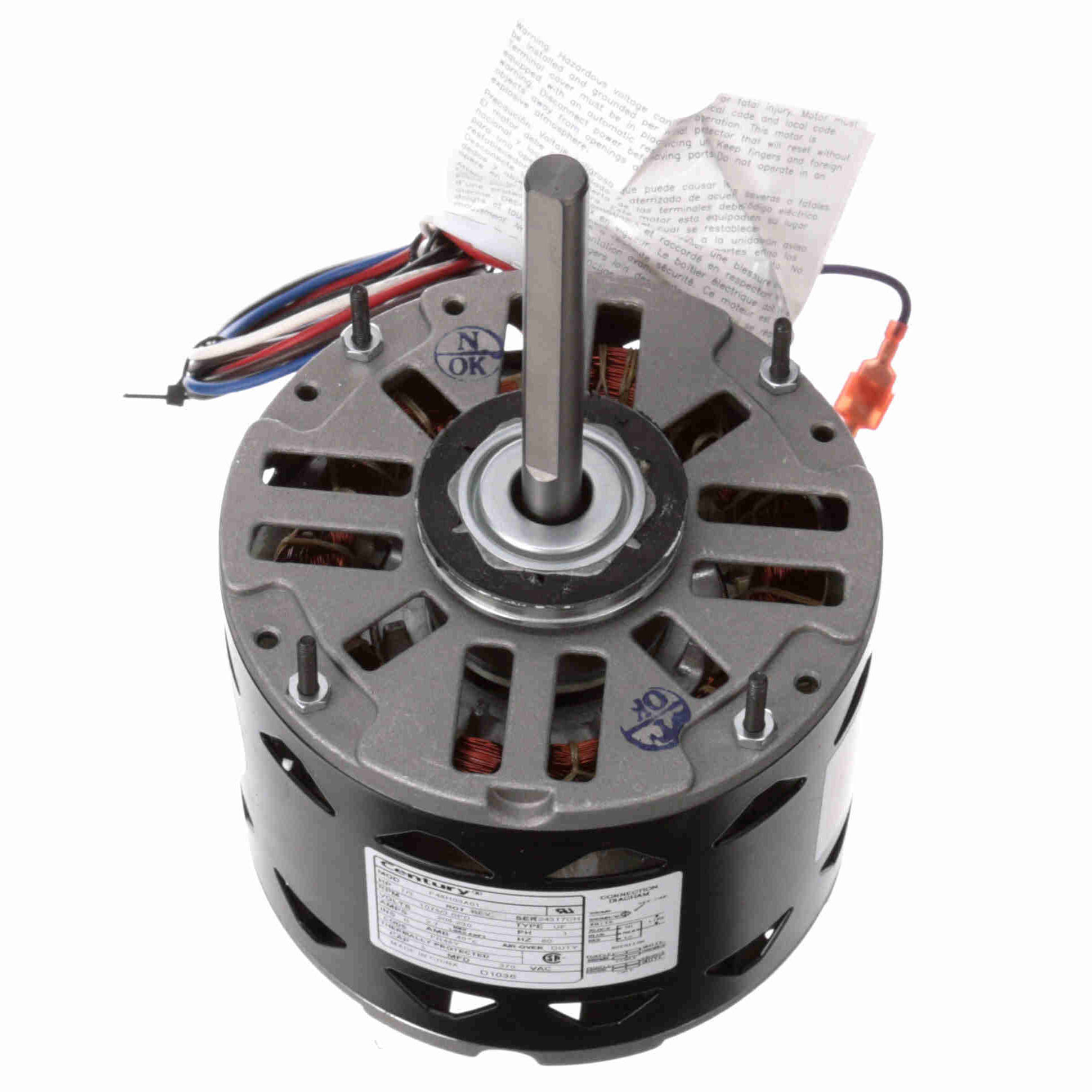

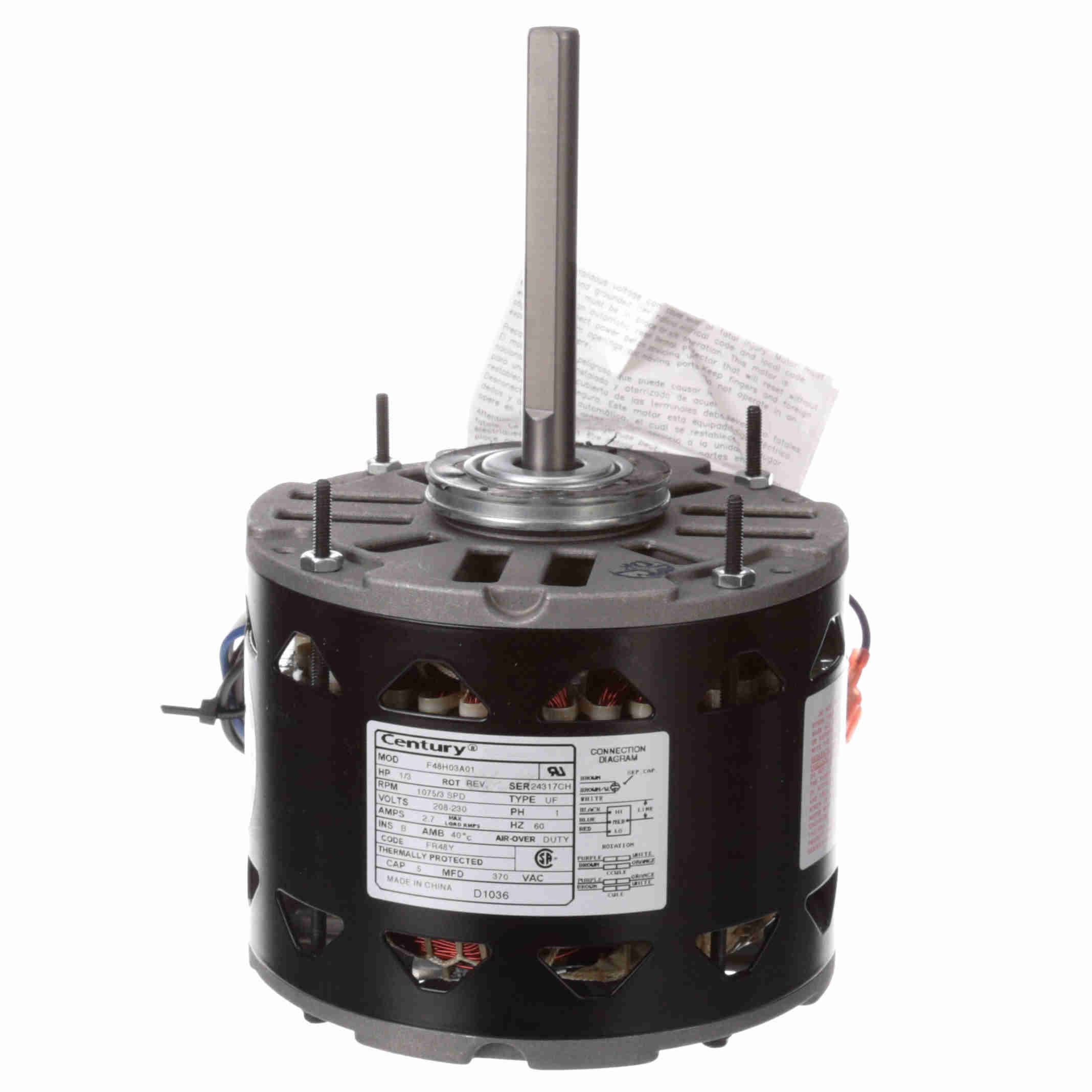

D1036 Century 1/3HP Fan & Blower Electric Motor, 1075RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D1036

Selected accessories will also be added to cart
$88.97 / Each
Quantity:
OAO, 3-Speed, 48 Frame, 208-230VAC Single Phase 60Hz, Reversible, Resilient Rings, 1/2" Shaft, Rolled Steel

Features

  • Fan Coils - Dual Wheel Blower Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 26" Leads
  • Extended Studs Shaft End, Resilient Ring Mount, Belly Band

General Specifications

UPC: 786674017833 Weight: 13.00 LB
Packaged Length: 13.78 IN Packaged Width: 6.41 IN
Packaged Height: 6.81 IN

Nameplate Specifications

Output HP: 1/3 Hp Output KW: 0.25 kW
Frequency: 60 Hz Voltage: 208-230 V
Current: 2.7 A Speed: 1075 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: B
Frame: 48 Enclosure: Open Enclosed
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Induction Run
Poles: 6 Rotation: Reversible
Mounting: Resilient Rings Motor Orientation: Horizontal
Drive End Bearing: Sleeve Opp Drive End Bearing: Sleeve
Frame Material: Rolled Steel Shaft Type: Flat
Overall Length: 9.36 in Frame Length: 3.75 in
Shaft Diameter: 0.500 in Shaft Extension: 4.5 in

Speed & Load Characteristics
